Page 193 S M4 2 1 Servo Int erface (Z1, Z2, Z3 ) NO. P ART NO . P ART NAME Q'TY Old No. Stock Apply Reference 1 J90 8313 92B Z3_ MOT OR_ ASS Y 1 2 J90 8313 91B Z2_ MOT OR_ ASS Y 1 3 J90 8313 90A Z1_ MOT OR_ ASS Y 1 …
Page
192
SM421

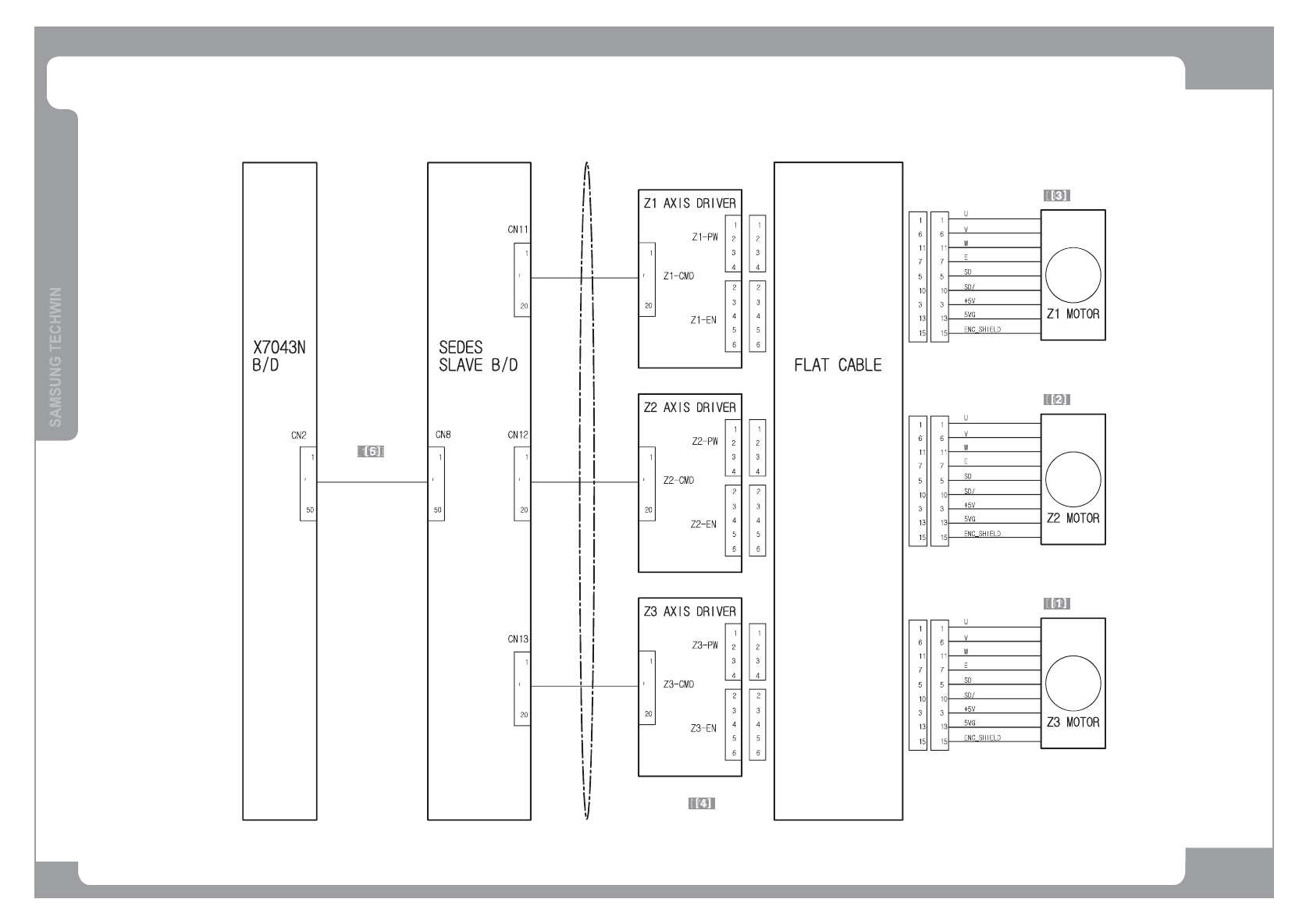

Servo Interface (Z1, Z2, Z3)
SM41_MD026
SM41_VM008
SM41_MD027
SM41_MD028
SM421_VM109-1
Page
193
SM421
Servo Interface (Z1, Z2, Z3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90831392B Z3_MOTOR_ASSY 1
2 J90831391B Z2_MOTOR_ASSY 1
3 J90831390A Z1_MOTOR_ASSY 1
4 AM03-003552A CABLE ASSY-R1R3R5_DRV_CMD_EXT 1
5 J90831387C HEAD_NETWORK_SERIAL_CABLE_ASSY 1
