Page 146 S M4 2 1 Front Fe eder Board Interface-SM421S (1/2) SM421_CA101-1 SM_FD003 SM_FD004 SM41_FD005 SM_FD007 SM_FD006 SM421S_CA101 SM421_CA101 SM421_CV101 SM421_SC201
Page
145
SM421
Front Feeder Board Interface (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-003607A CABLE ASSY-F_FDR_BASE_PW_J6 1
Page
146
SM421

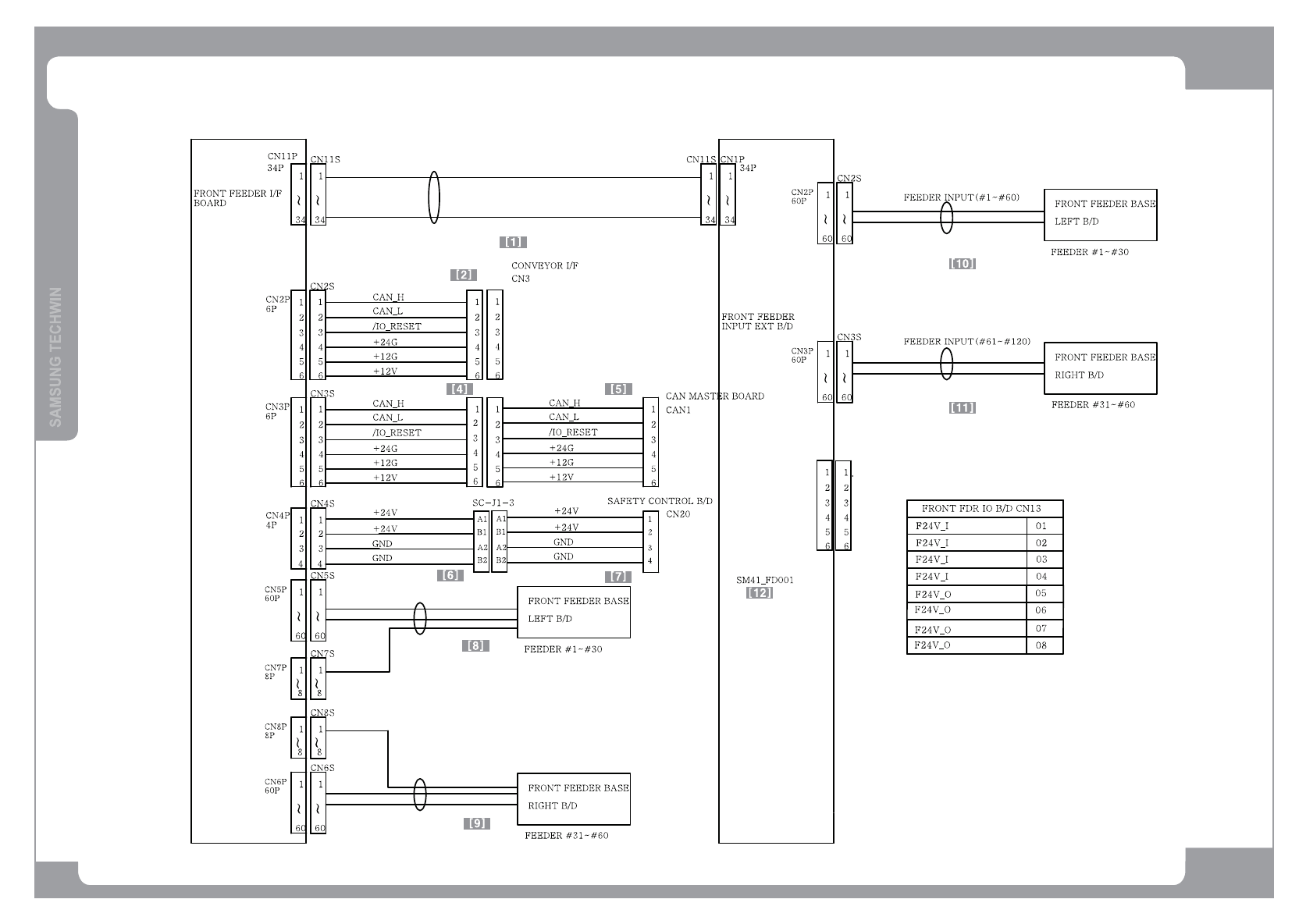

Front Feeder Board Interface-SM421S (1/2)
SM421_CA101-1
SM_FD003
SM_FD004
SM41_FD005
SM_FD007
SM_FD006
SM421S_CA101
SM421_CA101
SM421_CV101
SM421_SC201
Page
147
SM421
Front Feeder Board Interface-SM421S (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J90831413A FDR_INPUT_EXT_CABLE_ASSY SM41-FD005 1
2 AM03-004909A CABLE ASSY-FFDR_CVIF_CAN_5 1
4 AM03-003555A CABLE ASSY-MASTER_FFDR_CAN_EXT 1
5 AM03-003554A CABLE ASSY-MASTER_FFDR_CAN 1
6 AM03-003489A CABLE ASSY-CV_IF_R_FD_IO_BD_PW_J1 1
7 AM03-003614A CABLE ASSY-BD_PW_SC_J1 1
8 J90800838D LEFT FDR SOL OUTPUT CABLE ASSY 1
9 J90800839D RIGHT FDR SOL OUTPUT CABLE ASSY 1
10 J90800841C LEFT FDR SENSOR INPUT CABLE ASS 1
11 J90800842C RIGHT FDR SENSOR INPUT CABLE AS 1
12 J90831336C FRONT_FDR_IO_BD_PWR_CABLE_ASSY 1
