Page 177 S M4 2 1 He ad IO B oa rd In ter face (1/2) NO. P ART NO . P ART NAME Q'TY Old No. Stock Apply Reference 1 J90 8318 5A SW HO ME SE NSO R CA BLE A SSY [SM2 1-HD0 14] 1 2 J90 8318 4A R HOM E SE NS OR CAB L E …
Page
176
SM421
Head IO Board Interface (1/2)
SM41_FL001
SM411-HD001
SM21_HD002
SM411-CA006
SM21_HD014
SM21-HD008
SM21-HD006
SM421F_HD008 : SM421FC
SM41-HD005
SM421F_HD005 : SM421FC
SM21-HD013
SM421F_HD013 : SM421FC
Page
177
SM421

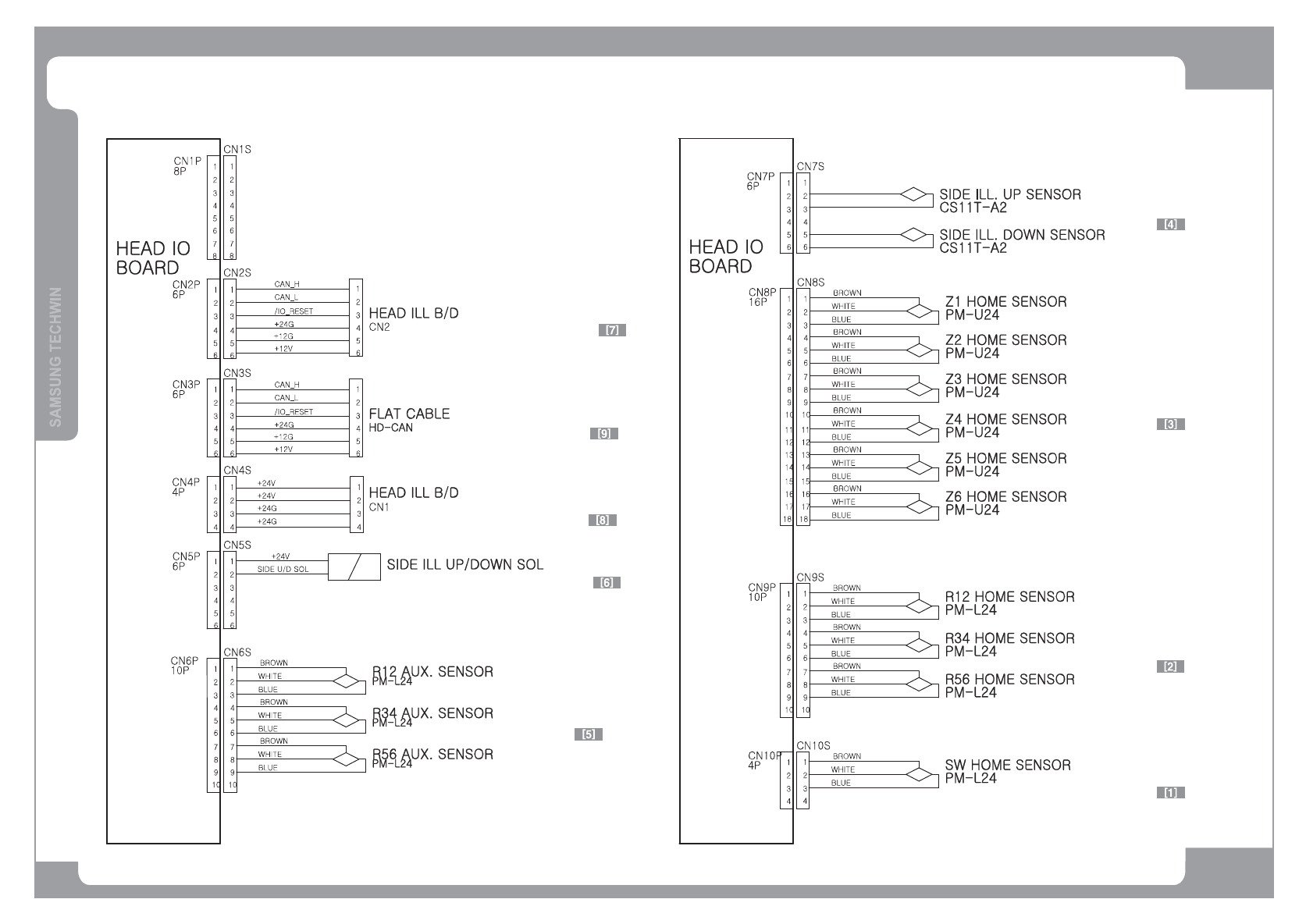

Head IO Board Interface (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J9083185A SW HOME SENSOR CABLE ASSY[SM21-HD014] 1
2 J9083184A R HOME SENSOR CABLE ASSY[SM21-HD013] 1
3 J9083180A Z HOME SENSOR CABLE ASSY[SM21-HD008] 1
4 J9083179A SIDE ILL U/D SENSOR CABLE ASSY[SM21-HD00 1
5 J90831307A R-AUX-SENSOR-CABLE-ASSY SM41-HD005 1
6 J90830177B SIDE ILL UP/DN SOL CABLE ASSY SM21-HD002 1
7 J90831031C HDIO-HILL_CAN_CABLE_ASSY 1
8 J90831033C HEAD_IO-ILL_POWER_CABLE_ASSY 1
9 J90831300E FLAT-CABLE-ASSY 1
Page
178
SM421

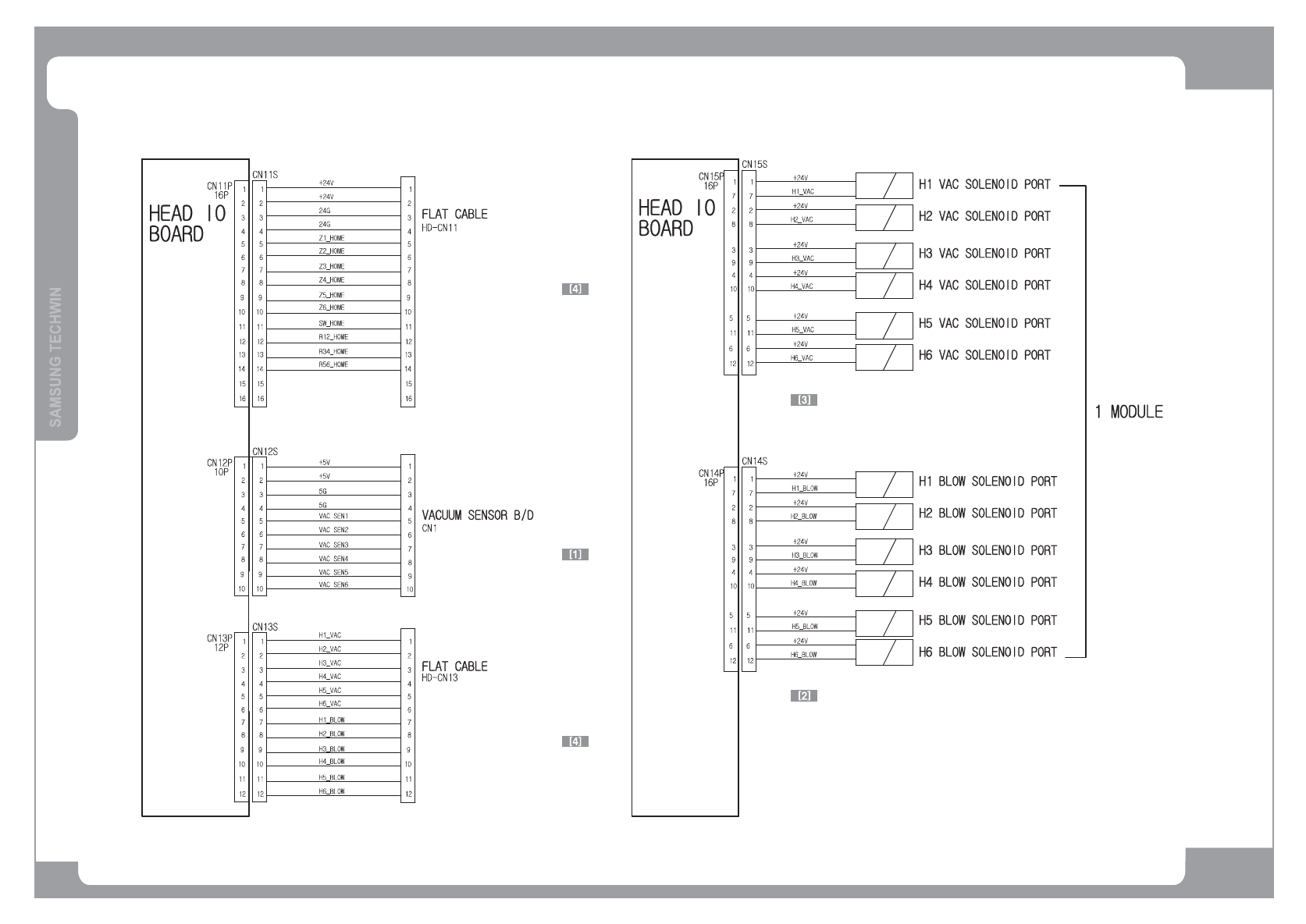

Head IO Board Interface (2/2)
SM41_HD006
SM41_FL001
SM21-HD011
SM21-HD012
SM41_FL001
