Page
204
SM421

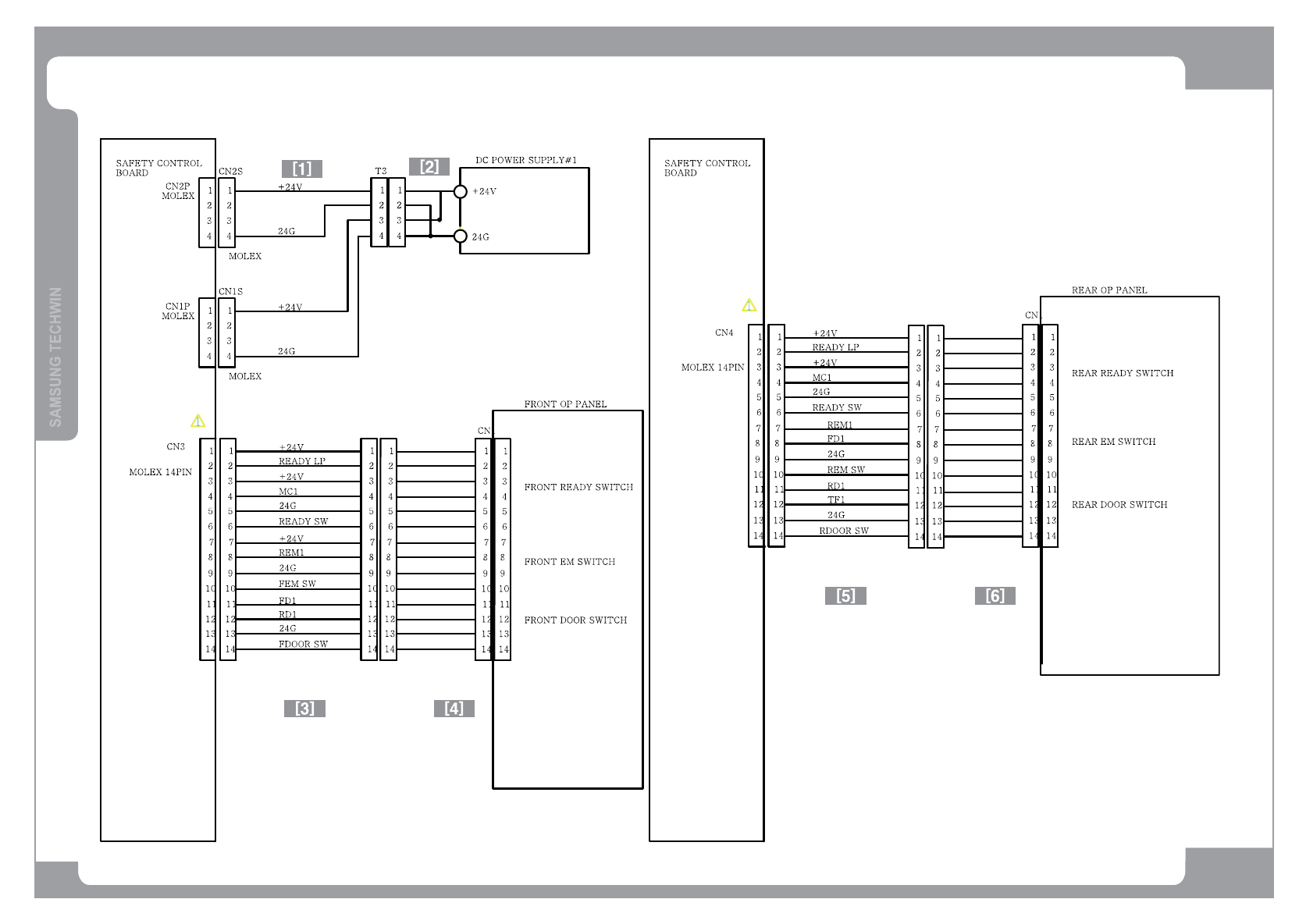

Safety Control Board Interface (1/4)
(SM421_PW201)
(SM421_SC101)
(SM421_SC102)
(SM421_PW116)
(SM421_SC101-1)
(SM421_SC102-1)
Page
205
SM421
Safety Control Board Interface (1/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-003486A CABLE ASSY-PS1_SC_Z_DRV_PW_T3 1
2 AM03-003500A CABLE ASSY-SC_BD_PW_T3 1
3 AM03-003638A CABLE ASSY-F_EMDOOR_RPCDY_SW 1
4 AM03-003639A CABLE ASSY-F_EMDOOR_RPCDY_SW_EXT 1
5 AM03-003862A CABLE ASSY- R_EMDOOR_RPCDY_SW 1
6 AM03-003863A CABLE ASSY- R_EMDOOR_RPCDY_SW_EXT 1
Page
206
SM421

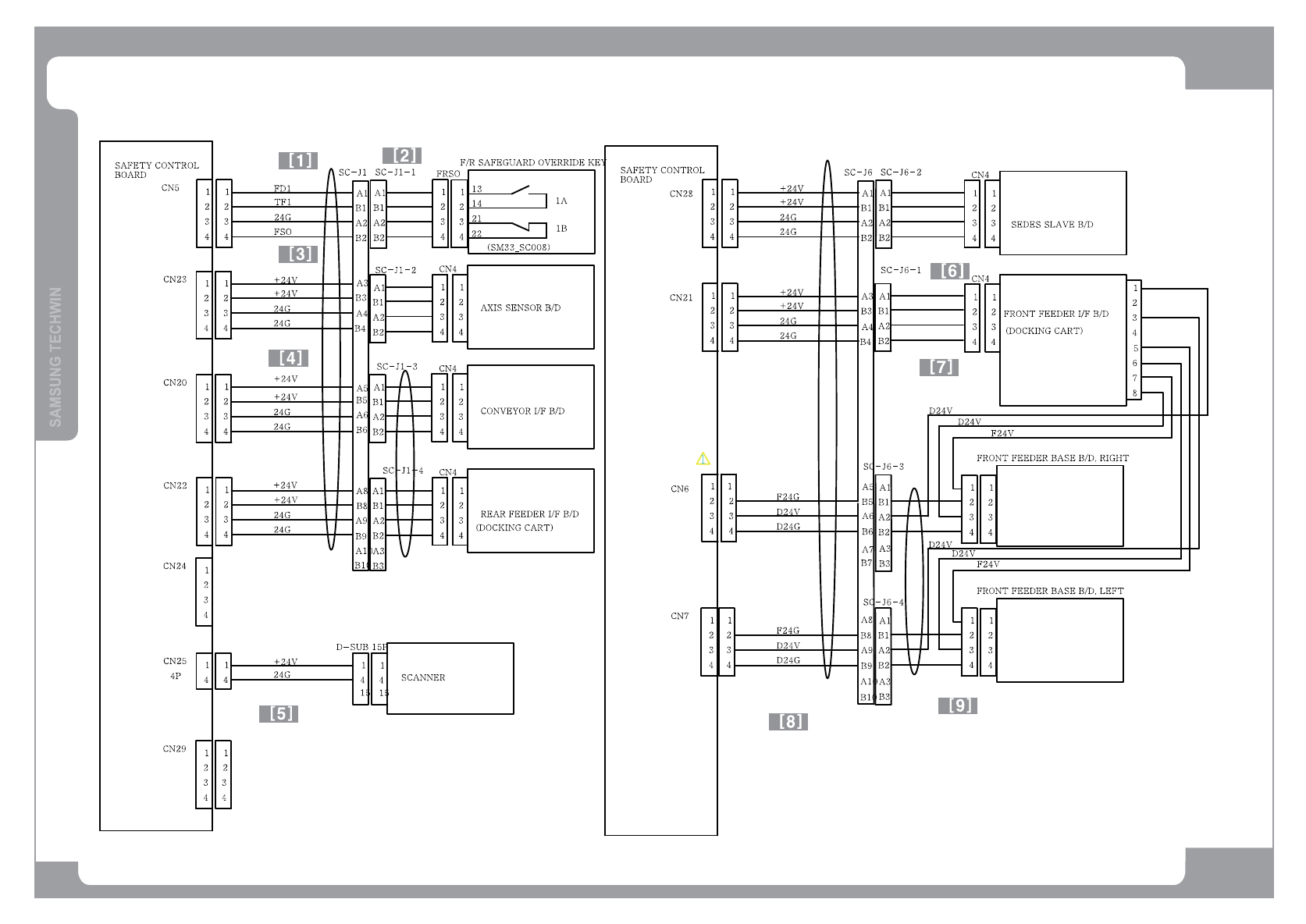

Safety Control Board Interface (2/4)
(SM421_FD101)
(SM421_SC201)
(SM41_IT003)
(SM421_SC103)
(SM421_FD108)
(SM421_SC109)
(SM421_AX101)
(SM421_CV101)
(SM421_SC206)
