Page 21 1 S M4 2 1 Safety Control Board I nterface (4/4) NO. P A RT NO. P A RT NAME Q'TY Old No. Stock Apply Reference 1 AM 03- 0036 16A CAB LE AS SY -OP _IF_ SC_J 3 1 2 AM 03- 0038 60A CAB LE AS SY - F- OP_IF 1 3 A…
Page
210
SM421
Safety Control Board Interface (4/4)
Page
211
SM421
Safety Control Board Interface (4/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 AM03-003616A CABLE ASSY-OP_IF_SC_J3 1
2 AM03-003860A CABLE ASSY- F-OP_IF 1
3 AM03-003603A CABLE ASSY-CV_SUB_CONN_J3 1
4 AM03-003619A CABLE ASSY-R_OP_IF_TBOX_J5 1
5 AM03-003613A CABLE ASSY-SC-RPCR_TBOX_J5 1
6 AM03-003609A CABLE ASSY-R_OP_IF_J5 1
7 AM03-003612A CABLE ASSY-SC_F_TBOX_J2 1
8 AM03-003611A CABLE ASSY-T_BOX_HOST_J2 1
9 AM03-003868A CABLE ASSY-CONVEYOR SENSOR EXT 1
10 AM03-003861A CABLE ASSY- F-OP_IF_EXT 1
Page
212
SM421

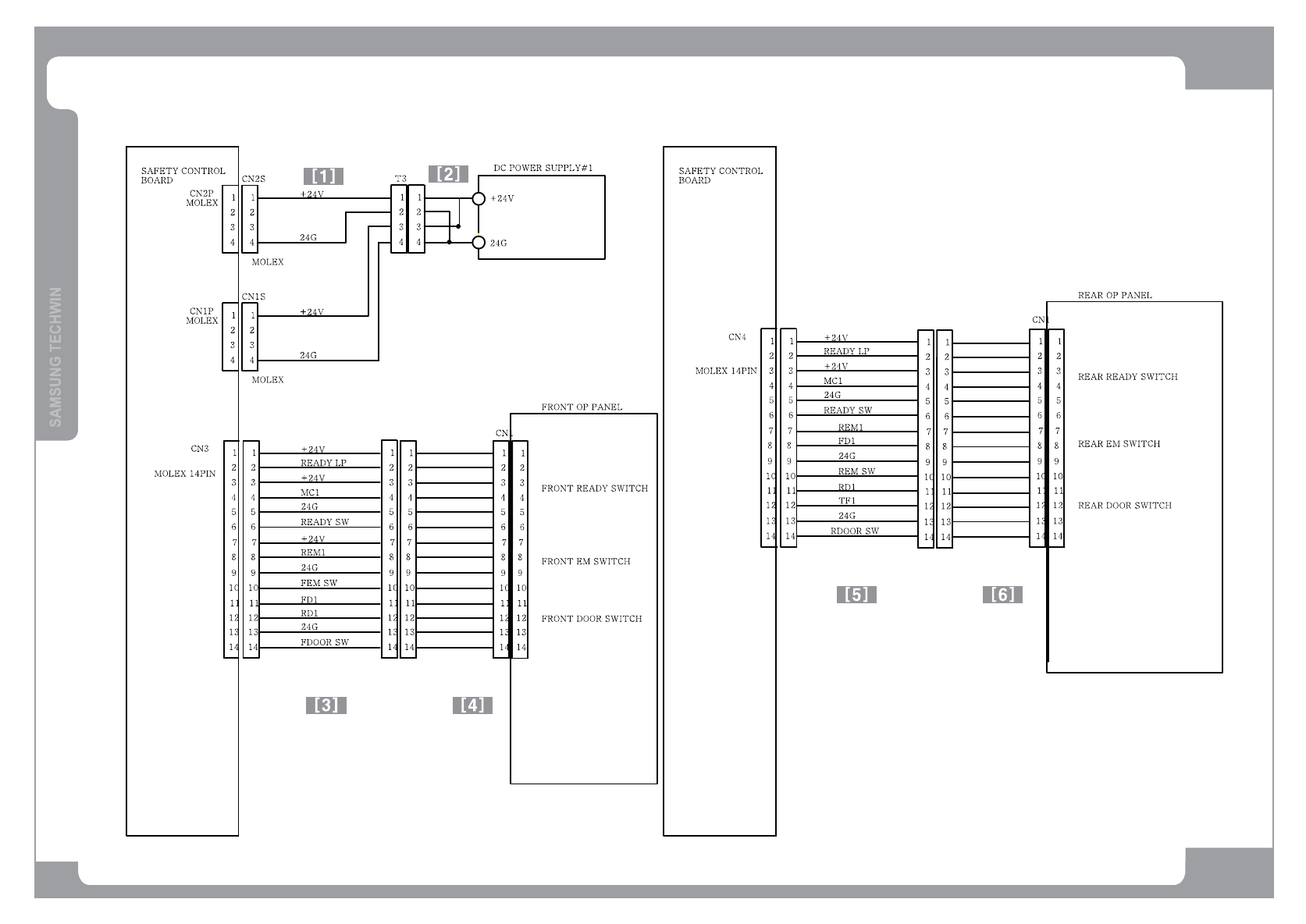

Safety Control Board Interface - SM421S (1/4)
(SM421_PW201)
(SM421_SC101)
(SM421_SC102)
(SM421_PW116)
(SM421_SC101-1)
(SM421_SC102-1)
