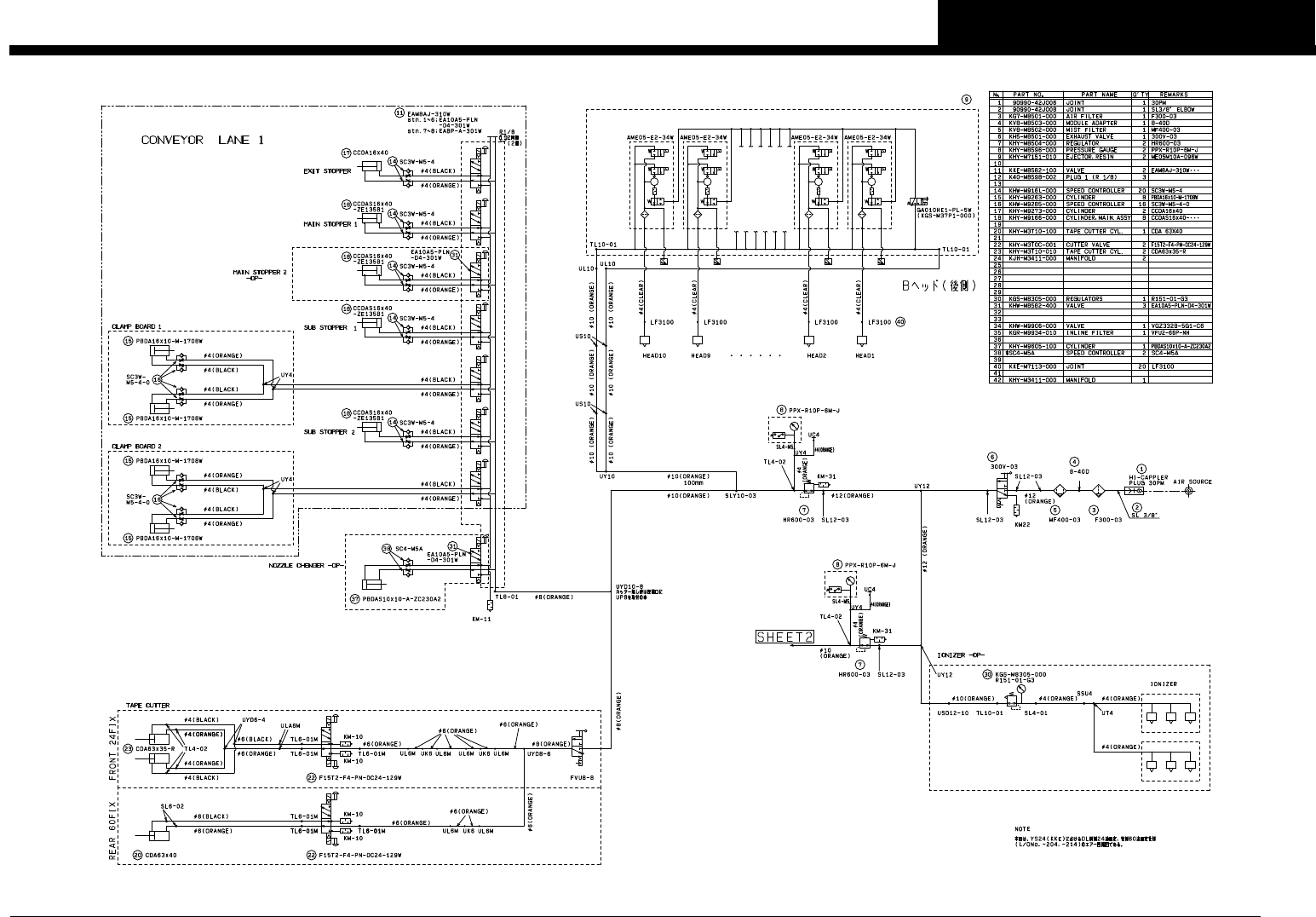

PA G E 25 Con ﬁ dential & Proprietary Y S 2 4 ( D L ) YS24(DL) H014130 Air circuit Air circuit FIX24/60 2/2

PAG E

24

Conﬁ dential & Proprietary

YS24(DL)

YS24(DL)

H014130

Air circuit

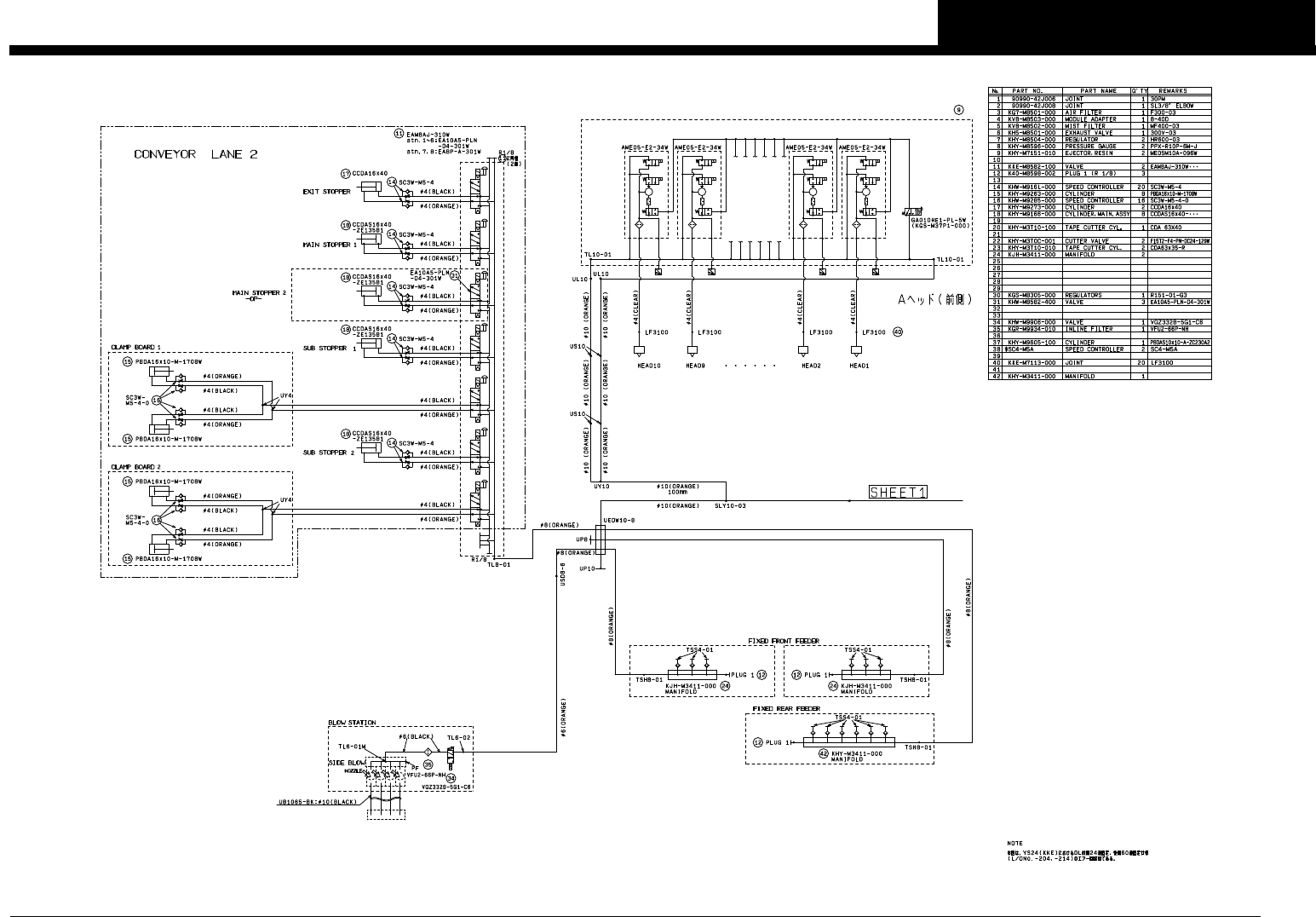

FIX24/60 1/2

PAG E

25

Conﬁ dential & Proprietary

YS24(DL)

YS24(DL)

H014130

Air circuit

Air circuit FIX24/60 2/2

W i r i n g p a r t s l i s t

KKE1309

PAGE

26

Condential & Proprietary

No Part No. Part Name Q'ty Remarks No Part No. Part Name Q'ty Remarks

1

KGA-M55B2-010 BCR,SYMBOL TYPE 5M 1 A43

39

90K30-444070 HNS,PE 700 2 J0083,J0085

2

KGA-M55B2-010 BCR,SYMBOL TYPE 5M 2 A43/A44

40

90K30-245060 HNS,EARTH 5 J0086,J0090

3

KKE-M26CL-021 FAN MOTOR ASSY 4

FAN YA1,FAN YA2,FAN YB1,FAN YB2

41

90K30-244035 HNS,FG-CNT.BOX 1 J0091

4

KJ3-M4187-000 FAN GUARD 8

FAN YA1,FAN YA2,FAN YB1,FAN YB2

42

90K30-544180 HNS,EARTH 2 J0092,J0093

5

KHN-M6561-000 POWER SUPPLY 1 1 GS21

43

90K30-544110 HNS,EARTH 2 J0094,J0095

6

KKE-M6561-000 POWER SUPPLY 1 1 GS22

44

KHY-M668A-000 HNS,I/O CMN 1 J0101

7

KKE-M6561-100 POWER SUPPLY 1 1 GS31

45

KKE-M668F-000 HNS,I/O CONV CMN 1 J0102

8

KKE-M661A-004 HNS,XB11-QS11-QF11 1 J0001

46

KKE-M66B3-000 HNS,ANC CMN 1 1 J0103

9

KKE-M661L-002 HNS,QF11-TM11 1 J0002

47

KHY-M66RB-000 HNS,FEEDER F1 CMN 1 J0104

10

KKE-M661G-000 HNS,NF11-KM11 1 J0005

48

KHY-M66RB-100 HNS,FEEDER R1 CMN 1 J0105

11

KKE-M661H-001 HNS,C/R AC230V 1 J0006

49

KKE-M66RF-000 HNS,FEEDER COM 1 1 J0106/J0107

12

KHN-M661M-000 HNS,TAP CHANGE 10 J0007-J0014,J0016-J0017

50

KKE-M66RB-200 HNS,FEEDER CMN 2 2 J0106/J0107

13

KHN-M661M-100 HNS,TAP CHANGE 1 J0015

51

KHY-M66RG-002 HNS,TERMINATION 1 J0108/J0109

14

KKE-M664G-000 HNS,KM12-QF51,52 1 J0018

52

KHY-M66RG-002 HNS,TERMINATION 1 J0109

15

KKE-M664A-000 HNS,GS31-KM12 1 J0019

53

KHY-M66RF-000 HNS,FEEDER I/O 1 J0110/J0111

16

KKE-M664F-002 HNS,QF51 QF52 +48V 1 J0021

54

KHY-M66RF-000 HNS,FEEDER I/O 1 J0111

17

KKE-M663E-000 HNS,I/O HEAD DC24V 2 J0022,J0023

55

KKE-M66RF-100 HNS,FEEDER COM 2 1 J0113/J0114

18

KKE-M663F-000 HNS,Y-FLEX H.PWR EMG 2 J0024,J0025

56

KKE-M66RF-200 HNS,FEEDER COM 3 1 J0115/J0116

19

KKE-M663G-001 HNS,X-FLEX HA PWR 1 J0026

57

KKE-M66B3-100 HNS,ANC CMN 2 1 J0116

20

KKE-M663G-100 HNS,X-FLEX HB PWR 1 J0027

58

KKE-M66B3-201 HNS,ANC CMN3 1 J0117

21

KKE-M662F-002 HNS,QF12-TC11 1 J0028

59

KKE-M66B3-300 HNS,ANC CMN4 1 J0118

22

KKE-M662A-100 HNS,TC11-QF61 1 J0029

60

KG2-M669R-113 HNS,BUZZER 1 J0119

23

KKE-M663K-001 HNS,CONV PWR 1 J0036

61

KGK-M6680-200 HNS,USB-MEMORY 2M AS 1 J0120

24

KKE-M663J-001 HNS,I/O CONV.PWR 1 J0037

62

KKE-M66E1-000 HNS,MO3 1 J0141

25

KKE-M663R-001 HNS,C/R EXT.POWER 1 J0041

63

KKE-M66E2-100 HNS,MO4 1 J0142

26

KHY-M663N-000 HNS,ANC POWER 1 J0044

64

KKE-M66E3-002 HNS,SERVO1 MO 1 J0143

27

KKE-M661C-000 HNS,QF11-QF12 1 J0046

65

KKE-M66E4-200 HNS,SERVO2 MO 1 J0144

28

KKE-M663V-000 HNS,ANC DC24V 1 J0047

66

KKE-M66E5-000 HNS,Y-FLEX XABM 2 J0145,J0146

29

KKE-M665F-000 HNS,CONV.DRIVER 2 J0051,J0053

67

KKE-M66E7-000 HNS,Y-FLEX SCABM 2 J0147,J0148

30

KKT-M665E-100 HNS,CONV.MOTOR 2 J0052,J0054

68

KKE-M66E8-001 HNS,XA-FLEX SCAM 1 J0149

31

KKT-M665G-101 HNS,BRAKE SRV1 2 2 J0058,J0059

69

KKE-M66E8-100 HNS,XB-FLEX SCBM 1 J0150

32

KKE-M536A-020 HNS,PE 1 J0071

70

KKE-M66E6-001 HNS,YA-FLEX YA1M 1 J0151

33

90K30-789080 HNS,EARTH 3 J0072-J0074

71

KKE-M66E6-101 HNS,YA-FLEX YA2M 1 J0152

34

90K30-367015 HNS,EARTH 1 J0075

72

KKE-M66E6-200 HNS,YB-FLEX YB1M 1 J0153

35

90K30-789030 HNS,EARTH 2 J0076,J0077

73

KKE-M66E6-300 HNS,YB-FLEX YB2M 1 J0154

36

90K30-377025 HNS,EARTH 1 J0079

74

KKE-M66F3-004 HNS,EMG 1 J0161

37

90K30-367040 HNS,EARTH 1 J0080

75

KKE-M66F2-001 HNS,HEAD EMG 1 J0162

38

KV8-M66L1-001 HNS,FG-C/R 1 J0081

76

KKE-M66F1-000 HNS,YB EMG 1 J0163
