5.4.1 Error Handling

The following error message may be displayed after starting the station software installation.

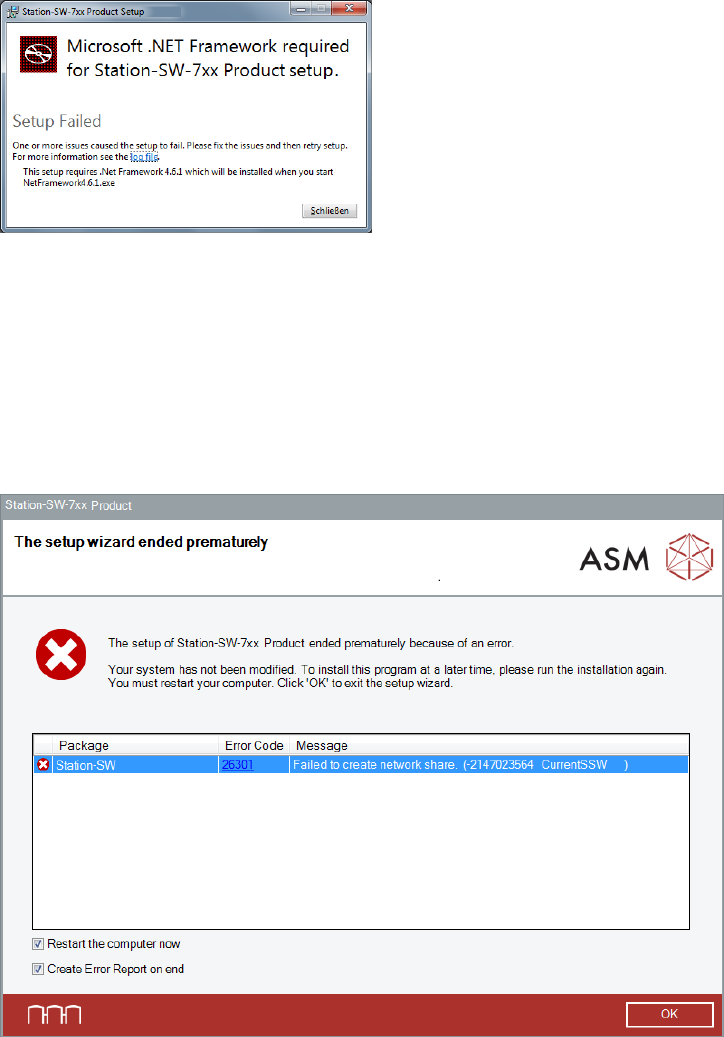

Figure 5-23: Failing .NET Framework installation

In this case, .NET Framework 4.6.1 must be installed manually.

► Click Close to exit the setup wizard.

► Install .NET Framework 4.6.1. Please refer to section 5.3.2.

► Start the BundleInstaller.exe file to run the installation again.

If an error occurs during installation, the setup is interrupted and the following dialog box displayed.

Figure 5-24: Error during installation

► Ensure that the Restart the computer now option is selected (default).

► Ensure that the Create Error Report on end option is selected (default).

► Click OK to exit the setup wizard.

You will be prompted to store the Error Report (as zip file).

► After the problem has been solved, start the BundleInstaller.exe file to run the installation

again.

If you install station software 712.x and station software Language Pack of a lower version is still

installed, a correspondent error message is displayed. If you continue installing the station

software, the station software Language Pack will be automatically removed.

Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition

Figure 5-25: Error station software and language pack

5.5 Installing Product Patches

If patches are available for the station software, these must be installed separately.

► Log in under the ASM_Admin user account.

► Insert the installation media and mount the *.iso file.

► Open Windows Explorer.

► Double-click the Station_SW_Patches.exe file to start installing the product patches for the

station software.

Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition

The Welcome dialog box of the patches setup wizard is displayed.

The title of the dialog box shows the release and build number.

Example: Release R19-1, Build 712.1.232.0 (The first ‘7’ of the build number is not displayed)

Figure 5-26: Welcome dialog box

► Click the Next button.
