Station Software Version 7 12.1 (R19-1) / Installation Manual 05/2019 Edition 39 The Welcome dialog box of the patches setup wizard is displayed . The title of the dialog box sh ow s the release and build number. Example…
Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition
38

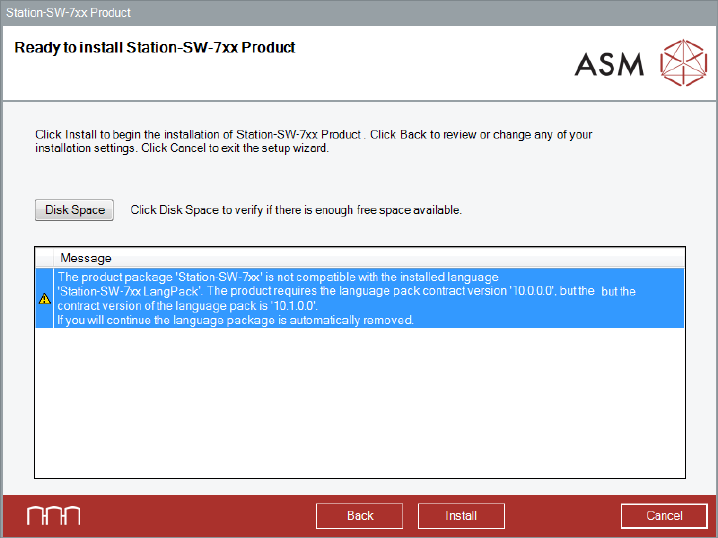

Figure 5-25: Error station software and language pack
5.5 Installing Product Patches
If patches are available for the station software, these must be installed separately.
► Log in under the ASM_Admin user account.
► Insert the installation media and mount the *.iso file.
► Open Windows Explorer.
► Double-click the Station_SW_Patches.exe file to start installing the product patches for the
station software.
Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition
39
The Welcome dialog box of the patches setup wizard is displayed.
The title of the dialog box shows the release and build number.
Example: Release R19-1, Build 712.1.232.0 (The first ‘7’ of the build number is not displayed)

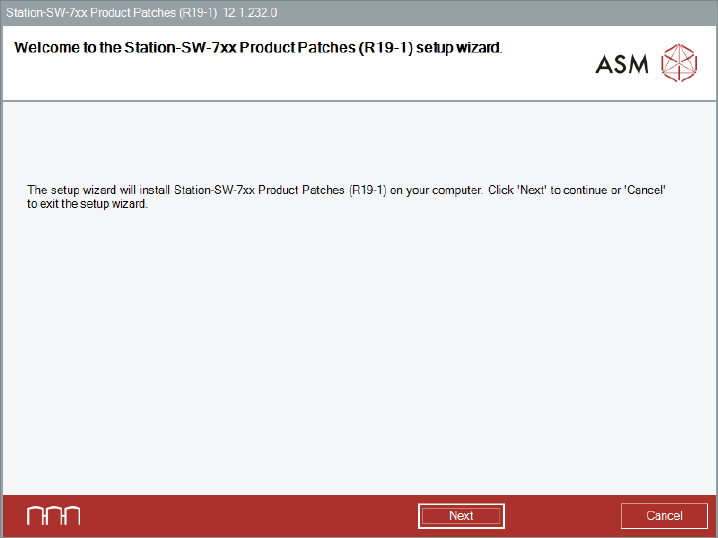

Figure 5-26: Welcome dialog box
► Click the Next button.
Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition
40
The Show License dialog box is displayed.

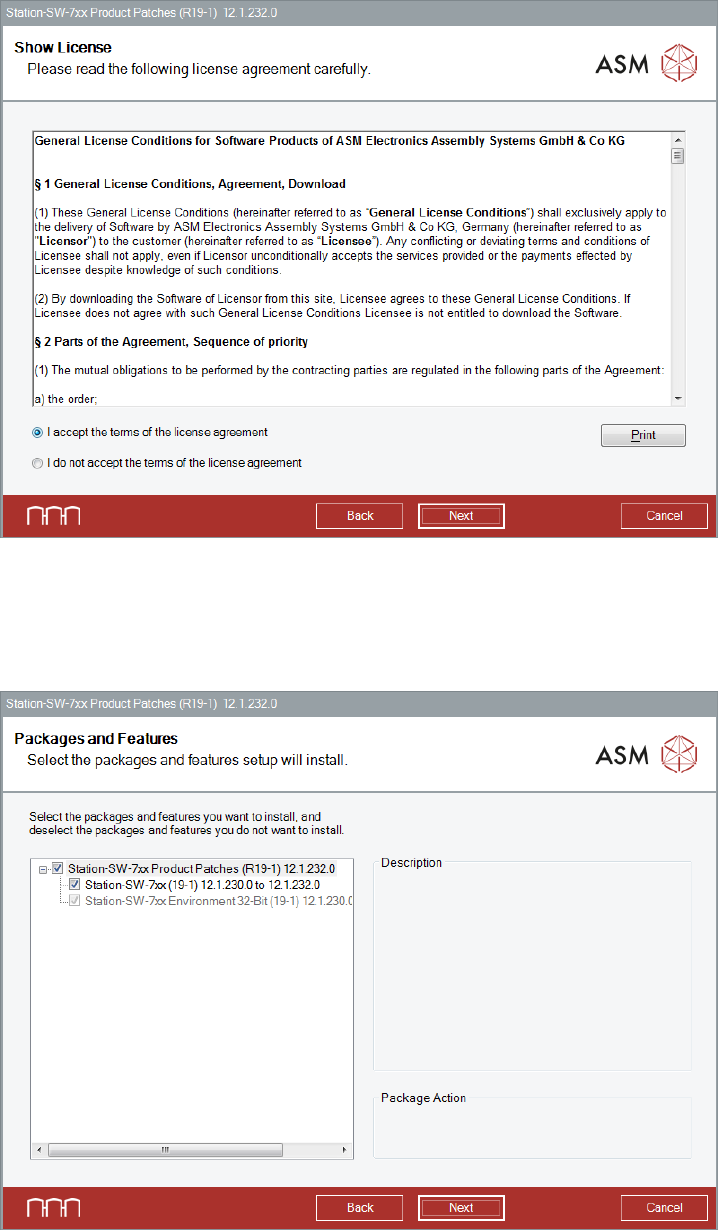

Figure 5-27: Accepting license
► Select I accept the terms of the license agreement to accept the license conditions.
► Click the Next button.
The Packages and Features dialog box is displayed.
Figure 5-28: Selecting packages and features
► Click the Next button.
