Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition
68

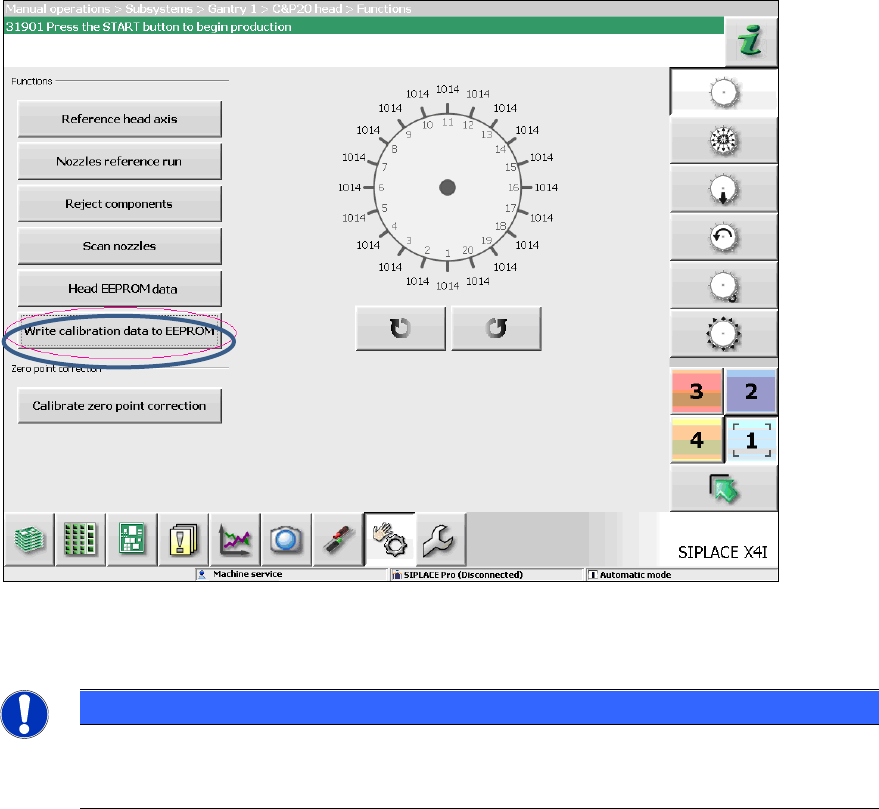

Figure 7-1: Storing calibration data in the EEPROM
► Perform the highlighted function for each placement head.
NOTICE
After the storing calibration data step, the message 37200 Changed heads
detected should disappear. Otherwise you must reboot the machine. If the message
still is displayed after rebooting, please inform the ASM Service.
Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition
69
8 Modifying the Installation
The Modify option allows you to change the current installation entries, e.g. machine ID, serial
number and machine type.
8.1 Modifying the Station Software Installation
► Log in under the ASM_Admin user account on the station computer.
► Insert the installation media and mount the *.iso file.
► Open Windows Explorer.
► Double-click the BundleInstaller.exe file to modify the station software.

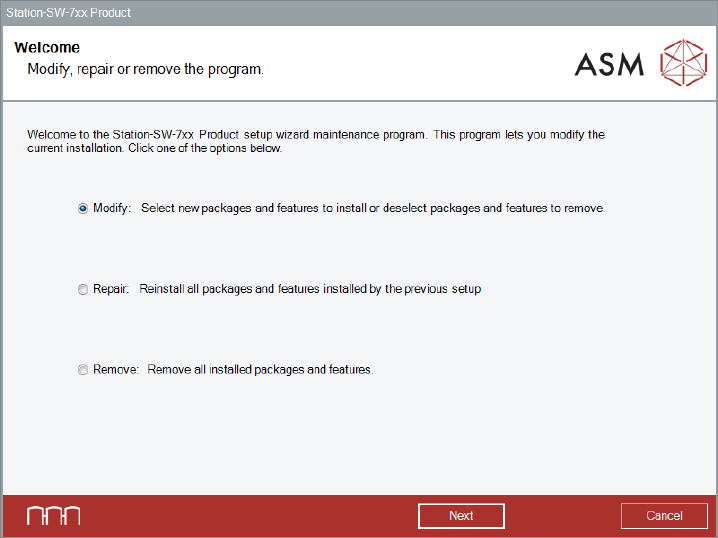

The Welcome dialog box is displayed.
Figure 8-1: Welcome dialog box
► Select Modify.
► Click the Next button.
Station Software Version 712.1 (R19-1) / Installation Manual 05/2019 Edition
70

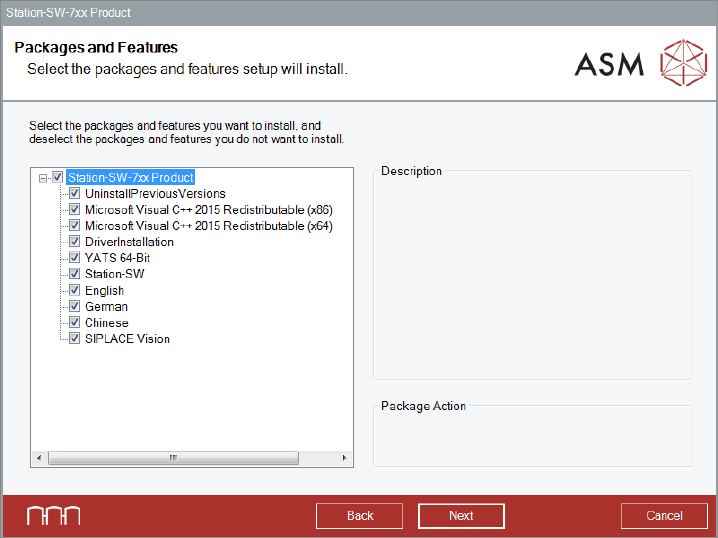

The Packages and Features dialog box is displayed.
Figure 8-2: Modifying Packages and Features
All software components are enabled by default.
► Leave them enabled if you want to modify the station software!
However, you can select single packages and features to be installed or uninstalled.
► After you have made your choice, click the Next button.
The subsequent dialog boxes depend on which packages and features you have selected.
After the modified installation has been completed, it is recommended to restart your computer for
all changes to take effect.
