P-0309-002 - 第111页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 21 221AA028 ROHS:BOL T_HEX-SCT 3 1091401E00-001 22 221HA006 W ASHER 3 1091401E00-002 23 221HA303 ROHS:W ASHER 3 1091401E00-003 24 221DA062 MACHINE SCREW 5 1091401E00-004 5…

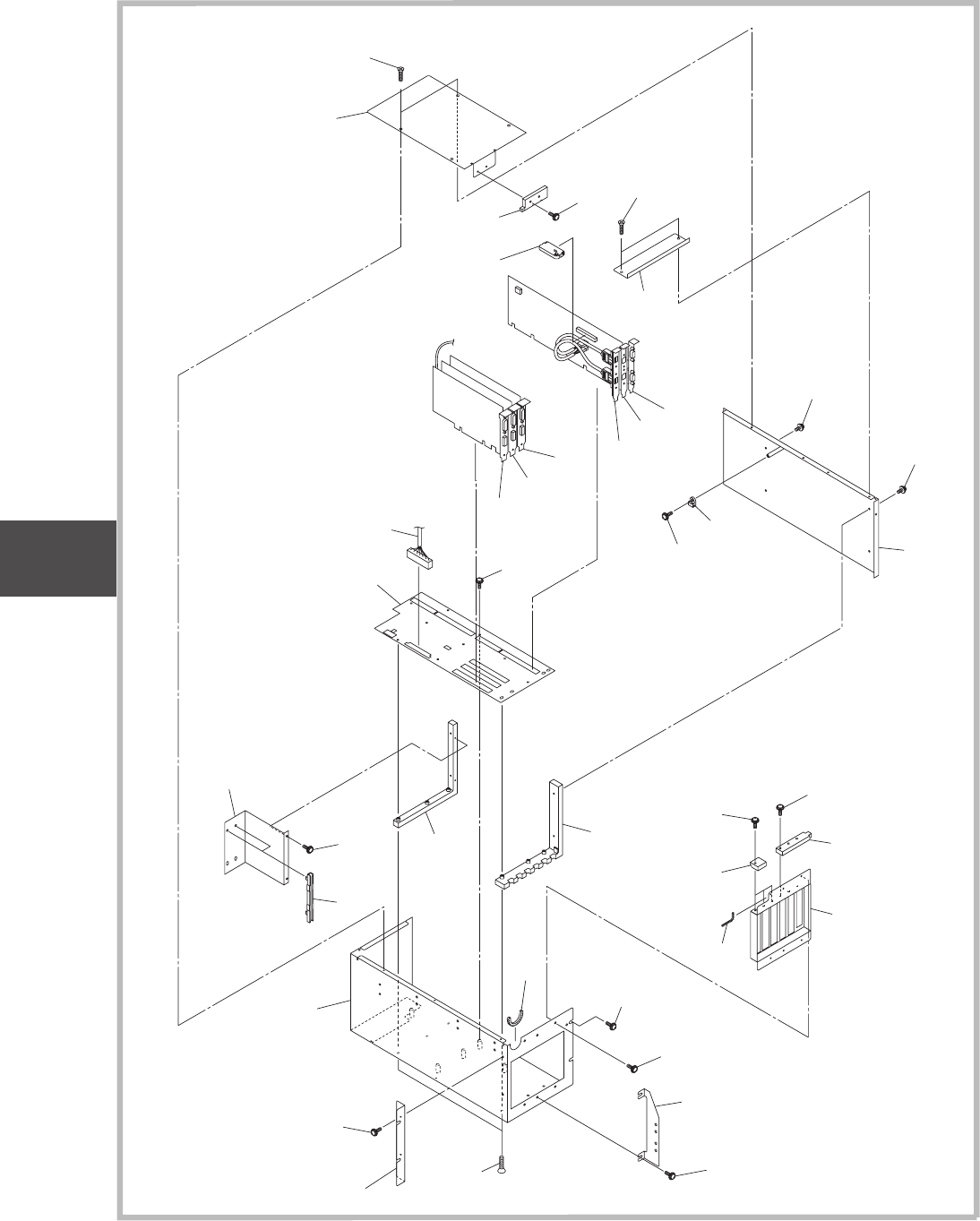

Fig. D2-1
CPU 2
ボックス
CPU 2 Box
A
DETAIL”A”
68
69
57
56
62
80
67
71
65
63
70
51
66
70
64
61
52
54
58
55
53
60
59
75
76
73
74
77
78
60
53
80
80
80
82
81
81
80
82
80
80
83
84
85
86
84
85
80
80
24
80
See Fig. FC-2
P1
P1
P8
P6
P7
P8
AUX
P6
P7
P2
P3
P4
P5
A
A
72
21
22
23
24
See Fig. D3-4
Key No.394
0912-002
Fig. D2 CPU
ボックス部
CPU BOX SECTION
UNIT-3
Fig. D2
CPU
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
21 221AA028 ROHS:BOLT_HEX-SCT 3 1091401E00-001
22 221HA006 WASHER 3
1091401E00-002
23 221HA303 ROHS:WASHER 3
1091401E00-003
24 221DA062 MACHINE SCREW 5
1091401E00-004
51 4U260363 EQUIP_(BUSRACK) 1
U180 1091401500-001
52 4B111622 PCB_MOUNT 1
U81 1091401500-002
53 4U200334 UNIT_POWER(ATX) 2
G21,22 1091401500-003
54 4B111612 P_C_B_MOUNT 1
U82 1091401500-004
55 4B111613 PCB_MOUNT 1
U85 1091401500-005
56 4U250248 UNIT_I/O(CF) 1
D81 1091401500-006
57 24110007 PROGRAM,CD 1
1091401500-007
58 23L00068 RACK_P_C_B 1
1091401500-008
59 4M130041 MOTOR_DC(FAN MOTOR) 1 M177 1091401500-009
60 23M00062 ACCESSORY_MOT-M 2
1091401500-010
61 211B1485 BOX 1
1091401500-011
62 211AD747 COVER 1
1091401500-012
63 211DE800 PLATE 1
1091401500-013
64 211DE549 PLATE 1
1091401500-014
65 211DE803 PLATE 1
1091401500-015
66 211FE291 BRACKET 1
1091401500-016
67 211FE379 BRACKET 1
1091401500-017
68 211K3669 SUPPORT 1
1091401500-018
69 211DE802 PLATE 1
1091401500-019
70 211B1486 BOX 1
1091401500-020
71 211K3316 SUPPORT 1
1091401500-021
72 23L10063 ACCESSORY_P_C_B 1
1091401500-022
73 23K10431 CASE,CONN 1
1091401500-023
74 4J300191 CABLE JOINT,TERMINAL 1 1091401500-024
75 23N20103 TUBE_WIRING 1
1091401500-025
76 23N20106 TUBE_WIRING 1
1091401500-026
77 23N20109 TUBE,WIRING 1
1091401500-027
78 23N30737 ACCESSORY,WIRING(M 1
1091401500-028
80 221DA053 MACHINE SCREW 36
1091401500-030
81 221DA056 MACHINE SCREW 6
1091401500-031
82 221DA138 MACHINE SCREW 10
1091401500-032
83 221DA031 MACHINE SCREW 4
1091401500-033
84 221HA004 WASHER 8
1091401500-034
85 221HA104 WASHER 8
1091401500-035
86 221FA007 NUT_HEX 4
1091401500-036
Fig. D2
0912-002
Fig. D2-1
UNIT-3
Fig. D2
CPU
SIGMA-G4DA
