Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 10 221AA030 ROHS:BOL T_HEX-SCT 3 1091301300-010 1 1 221HA005 W ASHER 3 1091301300-01 1 12 221HA303 ROHS:W ASHER 2 1091301300-012 13 221HA205 W ASHER 1 1091301300-013 22 21…

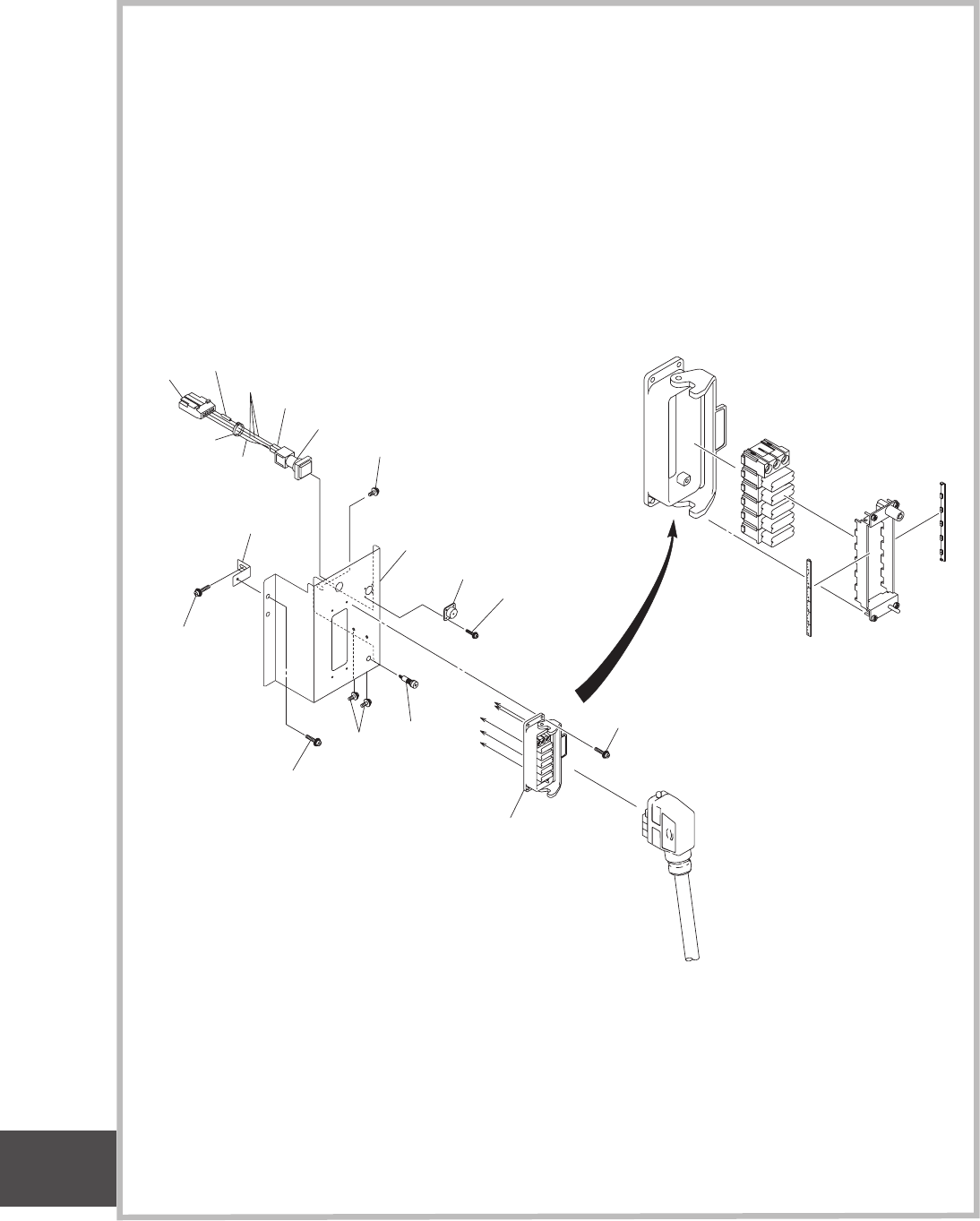

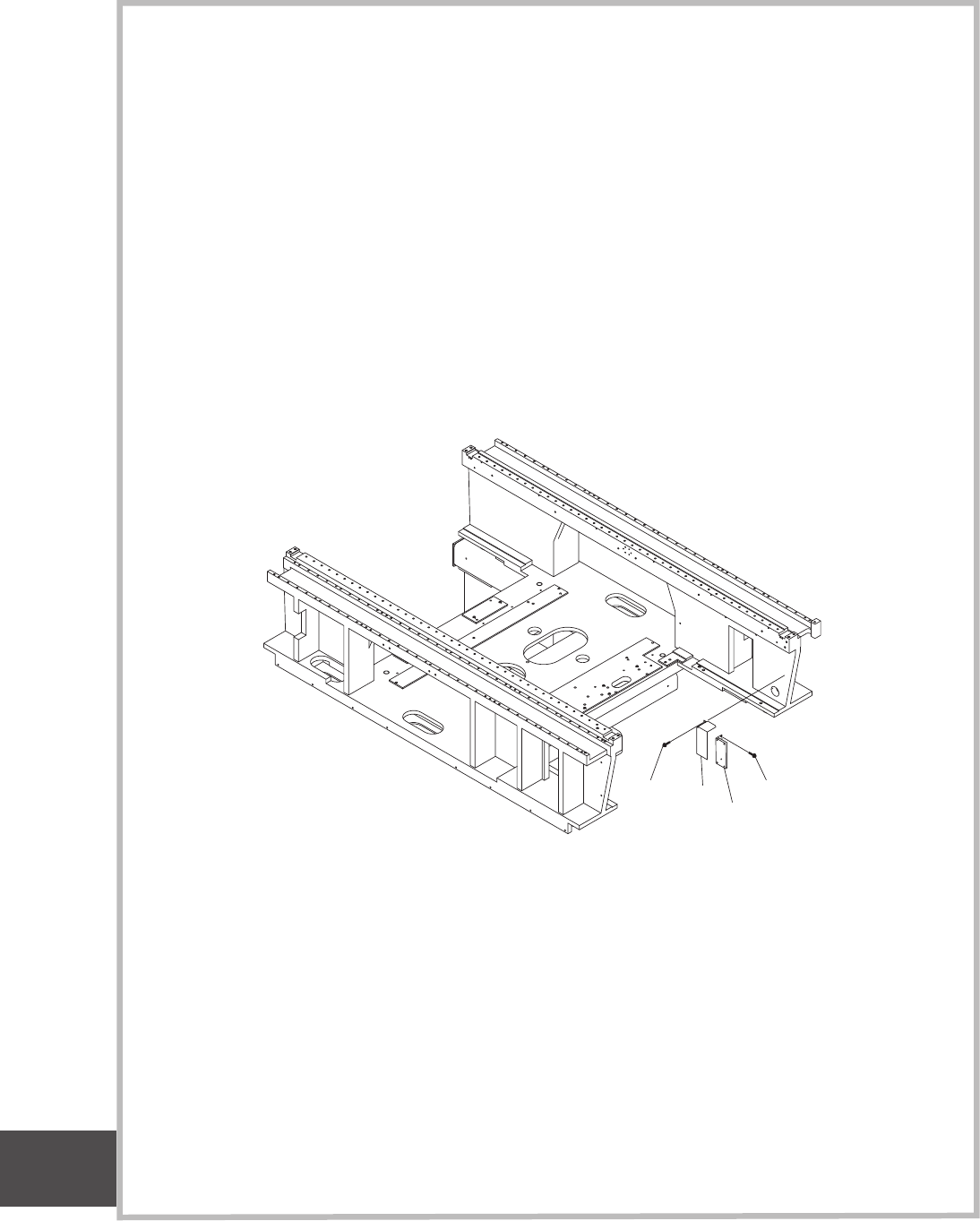

Fig. E5-1
I/F
コネクタ
I/F Connector
0912-002
Fig. E5
電装部３
ELECTRICAL SECTION 3
DETAIL
35
22
23
28
29
30
10
1
1
12
31
32
33
24
27
45
46
48
43
44
47
41
49
10
13
1
1
34
25
X1300F1
X1300B
X1300C
X1300D
X1300E1
X1300E2
X1811F
X1300G
L121
L221
L321
X1300F2
X1300F3
X300
UNIT-4
Fig. E5
CONNECTOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
10 221AA030 ROHS:BOLT_HEX-SCT 3 1091301300-010
11 221HA005 WASHER 3
1091301300-011
12 221HA303 ROHS:WASHER 2
1091301300-012
13 221HA205 WASHER 1
1091301300-013
22 211FE413 BRACKET 2
3091401G00-002
23 9W210506 CABLE 1
3091401G00-003
24 9W210505 CABLE 1
3091401G00-004
25 0914BG0E CORD 1
3091401G00-005
27 221DA053 MACHINE SCREW 2
3091401G00-007
28 221AA030 ROHS:BOLT_HEX-SCT 2
3091401G00-008
29 221HA005 WASHER 2
3091401G00-009
30 221HA303 ROHS:WASHER 2
3091401G00-010
31 221DA002 MACHINE SCREW 4
3091401G00-011
32 221HA002 WASHER 4
3091401G00-012
33 221HA102 WASHER 4
3091401G00-013
34 221DA057 MACHINE SCREW 4
3091401G00-014
35 0914BG0D BRACKET 1
3091401G00-015
41 4S1B0032 SWITCH,BUTTON 1
3091401G00-021
43 9W310128 CORD 1
3091401G00-023
44 9W310129 CORD 3
3091401G00-024
45 23K10402 CASE,CONN 1
3091401G00-025
46 4J300175 CABLE JOINT,TERMINAL 4 3091401G00-026
47 23N20117 TUBE WIRING 4
3091401G00-027
48 23N20103 TUBE WIRING 1
3091401G00-028
49 23N30737 ACCESSORY,WIRING(M 1
3091401G00-029
Fig. E5
0912-002
Fig. E5-1
UNIT-4
Fig. E5
CONNECTOR
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. E5-2
基板
PCB
0912-002
121
122
123
110
11
1
113
Fig. E5
電装部３
ELECTRICAL SECTION 3
UNIT-4
Fig. E5
CONNECTOR
