P-0309-002 - 第247页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. F1 0912-002 Fig. F1-2 134 4T3A0235 PILOT_LAMP 1 3091401804-004 135 23K10406 CASE_CONN 1 3091401804-005 136 4J300191 CAB_JOINTTERMIN 5 3091401804-006 137 23N201 1 1 TU…
See Fig F1-1
Key No.1
134
140
139
141
138
135
136
137
142
184
190
187
188
189
174
174
172
177
177
178
179
180
178
179
180
186
185
164
170
167
168
169
154
152
154
157
157
158
159
160
158
159
160
166
165

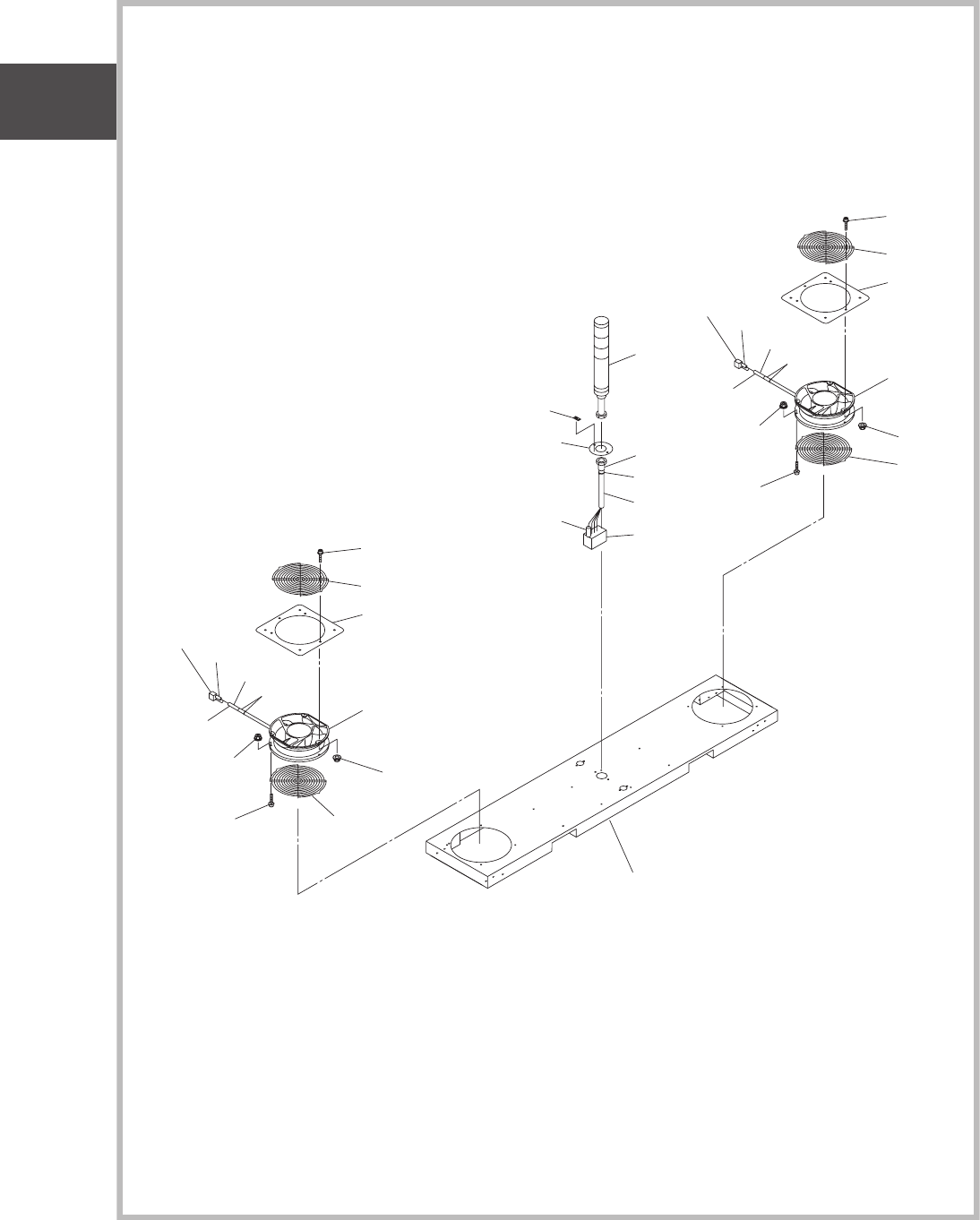

Fig. F1-2
ファン、表示灯
Fan, Indicator Lamp
0912-002
Fig. F1
パネル、中央フレーム部
Panel, Frame SECTION
UNIT-5
Fig. F1
PANEL
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. F1
0912-002
Fig. F1-2
134 4T3A0235 PILOT_LAMP 1 3091401804-004
135 23K10406 CASE_CONN 1 3091401804-005
136 4J300191 CAB_JOINTTERMIN 5 3091401804-006
137 23N20111 TUBE_WIRING 4 3091401804-007
138 23N20119 TUBE_WIRING 1 3091401804-008
139 23N20103 TUBE_WIRING 1 3091401804-009
140 211DE366 PLATE 1 3091401804-010
141 23N30737 ACCESS_WIRING(M 1 3091401804-011
142 0914180N NAME_PLATE 1 3091401804-012
152 0914B80S FAN_HUNG_PLATE 1 309140180C-002
154 23M00070 ACCESSORY_MOT-M 2 309140180C-004
157 221AA105 ROHS_HEX-SCT 6 309140180C-007
158 221FA007 NUT_HEX 6 309140180C-008
159 221HA004 WASHER 6 309140180C-009
160 221HA104 WASHER 6 309140180C-010
164 4M130038 MOTOR_DC(FAN MOTOR) 1 3091401806-004
165 23K10421 CASE,CONN 1 3091401806-005
166 4J300191 CABLE JOINT,TERMINAL 2 3091401806-006
167 23N20106 TUBE WIRING 1 3091401806-007
168 23N20103 TUBE WIRING 1 3091401806-008
169 23N20105 TUBE WIRING 1 3091401806-009
170 23N30737 ACCESSORY,WIRING(M 1 3091401806-010
172 0914B80S FAN_HUNG_PLATE 1 309140180D-002
174 23M00070 ACCESSORY_MOT-M 2 309140180D-004
177 221AA105 ROHS_HEX-SCT 6 309140180D-008
178 221FA007 NUT_HEX 6 309140180D-009
179 221HA004 WASHER 6 309140180D-010
180 221HA104 WASHER 6 309140180D-011
184 4M130038 MOTOR_DC(FAN MOTOR) 1 3091401807-004
185 23K10421 CASE,CONN 1 3091401807-005
186 4J300191 CABLE JOINT,TERMINAL 1 3091401807-006
187 23N20106 TUBE WIRING 1 3091401807-007
188 23N20103 TUBE WIRING 1 3091401807-008
189 23N20105 TUBE WIRING 1 3091401807-009
190 23N30737 ACCESSORY,WIRING(M 1 3091401807-010
UNIT-5
Fig. F1
PANEL
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
0912-002
207
208
211
215
216
217
213
211
212
213
213
204
203
210
214
202
209
201
A
211
DETAIL ”A”
241
256
250
250
256
256
258
261
258
258
256
256
249
250
257
258
261
249
253
254
255
259
258
250
256
248
256
257
257
256
242
243
244
245
247
246
256
251
254
252
254
218
260

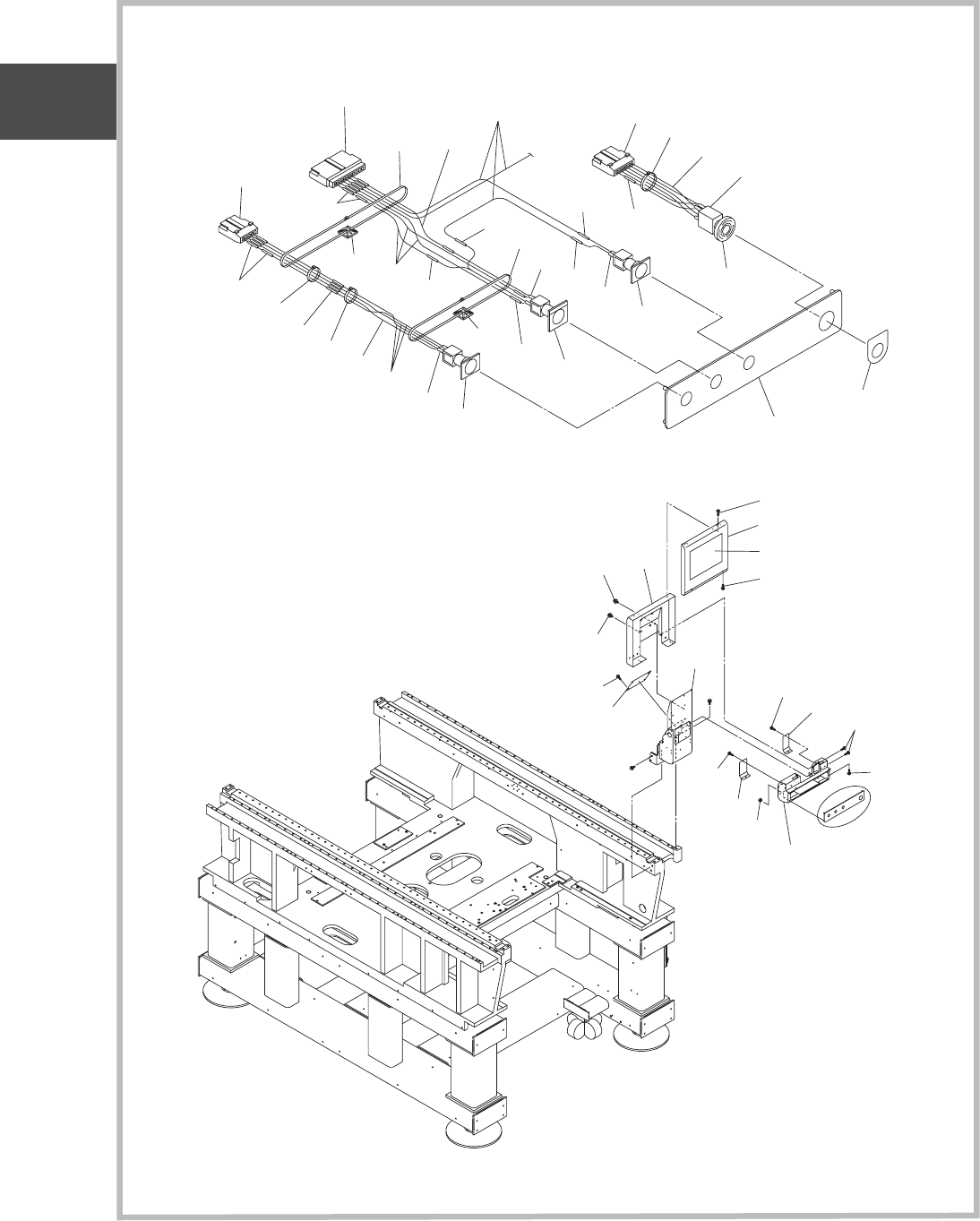

Fig. F1-3
パネル、スイッチ
Panel, Switch
Fig. F1
パネル、中央フレーム部
Panel, Frame SECTION
UNIT-5
Fig. F1
PANEL
