P-0309-002 - 第273页
5B8 5B9 5B3 5B4 5B5 5B6 5C2 5C3 5B4 5D0 5B2 5B7 5C7 5C8 5C0 5C1 5C4 5C5 5C6 DET AIL”B” 5B1 Fig. G1 0912-002 Fig. G1-6 UNIT -6 Fig. G1 HEAD 1
0912-002
517
5A7
5A8
587
5A2
5A3
583
See Fig. G1-5
Key No.431
591
597
598
589
5A2
5A3
582
5B8
5B9
5B3
5B4
5B5
5B6
5C2
5C3
5B4
5D0
5B2
5B7
5C7
5C8
5C0
5C1
5C4
5C5
5C6
507
5A2
5A3
583
5A2
5A4
584
See Fig. G1-4
Key No.343
See Fig. G1-4
Key No.314
B
DETAIL”B”
557
584
See Fig. G1-5
Key No.430
501
See Fig. G1-5
Key No.429
560
535
561
559
558
518
5B1
523
510
576
522
564
567
568
556
569
519
546
536
504
520
520
524
551
508
548
537
549
549
563
562
575
597
598
5A5
Fig. G1-6 DD
モータ
DD Motor

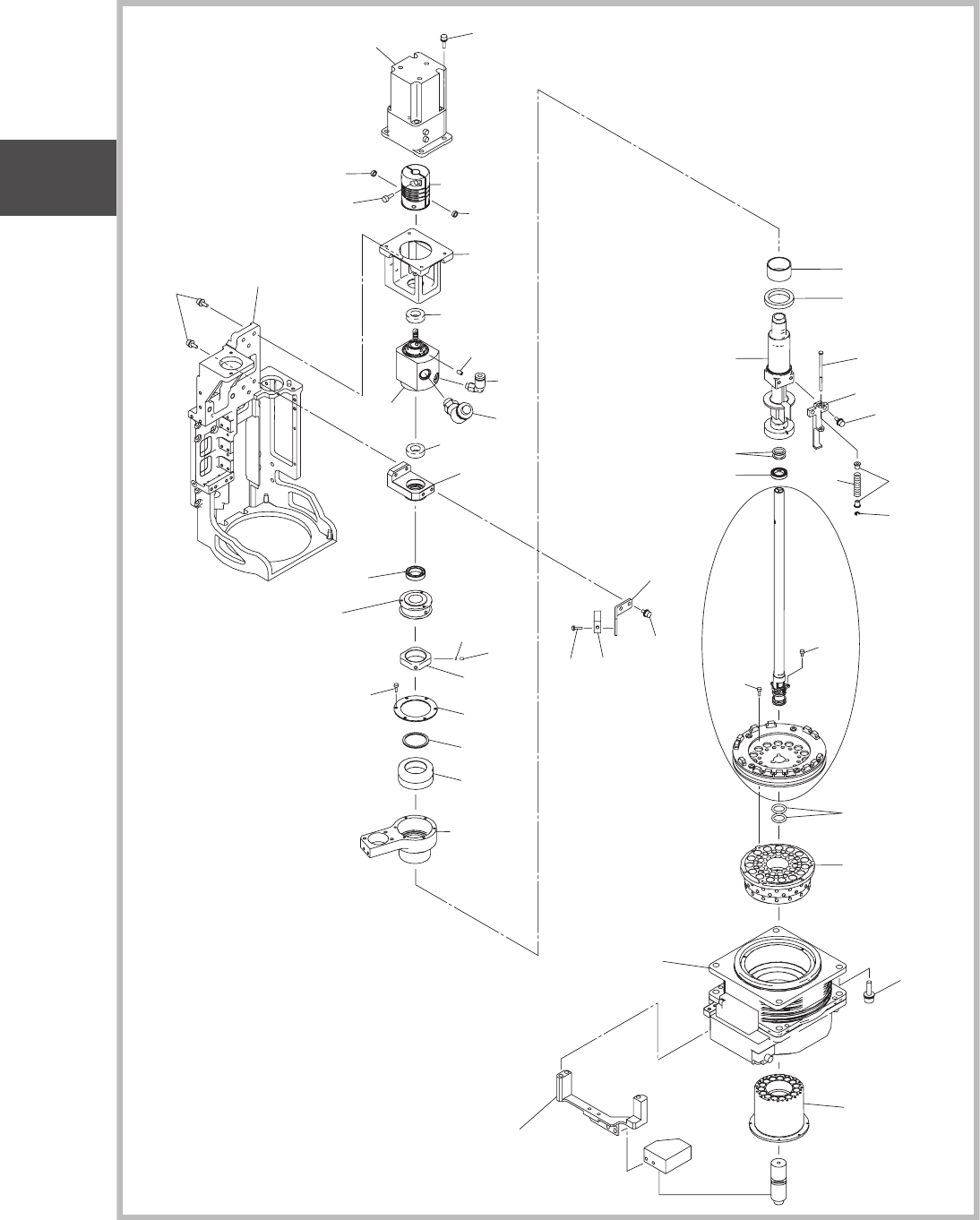

Fig. G1
高速ヘッド部
HIGH SPEED HEAD SECTION
UNIT-6
Fig. G1
HEAD 1
5B8
5B9
5B3
5B4
5B5
5B6
5C2
5C3
5B4
5D0
5B2
5B7
5C7
5C8
5C0
5C1
5C4
5C5
5C6
DETAIL”B”
5B1
Fig. G1
0912-002
Fig. G1-6
UNIT-6
Fig. G1
HEAD 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
501 4M150286 MOTOR_AC-SERVO 2 1091603300-001
504 225F0702 PIPE FITTINGS 2 1091603300-004
507 221C0080 SET SCREW 2 1091603300-007
508 225F0612 PIPE FITTINGS 2 1091603300-008
510 222L0987 GUIDE_LINEAR 2 1091603300-010
517 0916D30T COUPLING 2 1091603300-017
518 222D0425 BEARING_RADIAL 2 1091603300-018
519 222D0426 BEARING_RADIAL 2 1091603300-019
520 222D0430 BEARING_RADIAL 4 1091603300-020
522 226A0293 SEAL 4 1091603300-022
523 226A0190 SEAL 4 1091603300-023
524 09163006 ASSY_SENSOR 2 1091603300-024
535 216C1062 ROD 2 1091603300-035
536 211G5983 BLOCK 2 1091603300-036
537 0916D30P BLOCK 2 1091603300-037
546 211FD778 BRACKET 2 1091603300-046
548 223C0204 COUPLING 2 1091603300-048
549 211E1034 SPACER 4 1091603300-049
551 225F0427 PIPE FITTINGS 2 1091603300-051
556 221G0206 NUT 2 1091603300-056
557 216B1829 HOLDER 2 1091603300-057
558 222D0435 BEARING_RADIAL 2 1091603300-058
559 216A1614 COLLAR 2 1091603300-059
560 216C1009 ROD 2 1091603300-060
561 222M1444 SPRING_COMP 2 1091603300-061
562 221K0095 RING E 2 2 1091603300-062
563 216A1582 COLLAR 4 1091603300-063
564 222D0439 BEARING_RADIAL 2 1091603300-064
567 221H0266 WASHER 2 1091603300-067
568 211AC769 COVER 2 1091603300-068
569 211DE191 PLATE 4 1091603300-069
575 221AA333 ROHS:BOLT_HEX-SCT 6 1091603300-075
576 221AA121 ROHS:BOLT_HEX-SCT 6 1091603300-076
582 221AA005 ROHS:BOLT_HEX-SCT 4 1091603300-082
583 221AA006 ROHS:BOLT_HEX-SCT 16 1091603300-083
584 221AA007 ROHS:BOLT_HEX-SCT 8 1091603300-084
587 221AA031 ROHS:BOLT_HEX-SCT 8 1091603300-087
589 221DA003 MACHINE SCREW 4 1091603300-089
591 221CA026 SET SCREW 4 1091603300-091
597 221HA001 WASHER 16 1091603300-097
598 221HA101 WASHER 16 1091603300-098
5A2 221HA003 WASHER 28 1091603300-102
5A3 221HA103 WASHER 20 1091603300-103
5A4 221HA203 WASHER 8 1091603300-104
5A5 221HA115 WASHER 12 1091603300-105
0912-002
Fig. G1-6
Fig. G1
高速ヘッド部
HIGH SPEED HEAD SECTION
UNIT-6
Fig. G1
HEAD 1
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
