P-0309-002 - 第294页

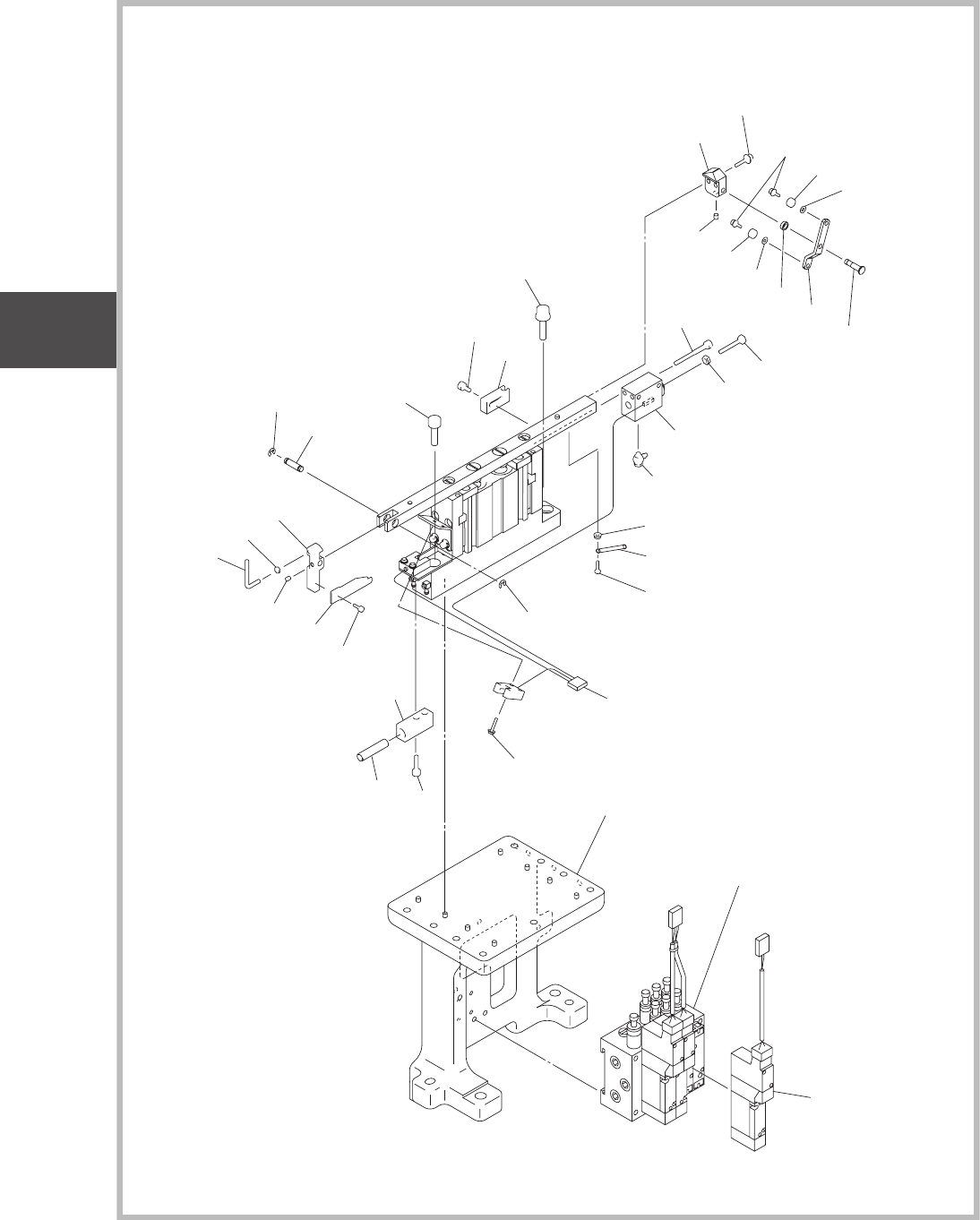

Fig. G3-2 ノズルストッカ駆動部 Nozzle Stocker Driving Section 0912-002 1 13 1 15 1 16 1 12 1 14 101 1 10 104 103 1 1 1 1 17 137 131 128 105 109 106 109 131 107 108 124 123 122 1 18 135 136 135 132 133 138 128 125 126 127 132 120 1…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
1 0919I001 STOCKER_BLOCK 1 2091908000-001
2 211DE925 PLATE 1
2091908000-002
3 221J1002 SPRING_PIN 2
2091908000-003
4 222N0067 SPRING_TENSION 1
2091908000-004
5 226J1958 MECH PARTS(MAGNET) 1
2091908000-005
6 221DA002 MACHINE SCREW 1
2091908000-006
7 221FA001 NUT_HEX 1
2091908000-007
Fig. G3
0912-002
Fig. G3-1
UNIT-6
Fig. G3
STOCKER 2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. G3-2
ノズルストッカ駆動部
Nozzle Stocker Driving Section
0912-002
113
115
116
112
114
101
110
104
103
111
117
137
131
128
105
109
106
109
131
107
108
124
123
122
118
135
136
135
132
133
138
128
125
126
127
132
120
121
119
129
130
131
102
134
120
139
See Fig. G2-3
Key No.240
See Fig. G2-3
Key No.239
UNIT-6
Fig. G3
STOCKER 2
Fig. G3
ノズルストッカ部（自動段取り用）
NOZZLE STOCKER SECTION(For Automatic Setup)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 09198100 ASSY_SENSOR 1 109190800A-001
102 09198209 ASSY_VALVE 1
109190800T-002
104 225F0261 PIPE FITTINGS 1
109190800T-004
105 212A2815 GUIDE 1
109190800T-005
106 216A1615 COLLAR 1
109190800T-006
107 216S3241 LEVER 1
109190800T-007
108 216D0603 PIN_HINGE 1
109190800T-008
109 222D0004 BEARING_RADIAL 2
109190800T-009
110 222N0019 SPRING_TENSION 1
109190800T-010
111 211F8213 BRACKET 1
109190800T-011
112 211F8214 BRACKET 1
109190800T-012
113 211D9588 PLATE 1
109190800T-013
114 222M0657 SPRING_COMP 1
109190800T-014
115 211G3505 BLOCK 1
109190800T-015
116 216S2914 LEVER 1
109190800T-016
117 213A1660 SHAFT 1
109190800T-017
118 221HA004 WASHER 1
109190800T-018
119 221HA104 WASHER 1
109190800T-019
120 221HA001 WASHER 4
109190800T-020
121 221HA101 WASHER 2
109190800T-021
122 221FA005 NUT_HEX 1
109190800T-022
123 221BA003 ROHS:BOLT_HEX 1
109190800T-023
124 221AA013 ROHS:BOLT_HEX-SCT 2
109190800T-024
125 221AA003 ROHS:BOLT_HEX-SCT 2
109190800T-025
126 221HA002 WASHER 2
109190800T-026
127 221HA102 WASHER 2
109190800T-027
128 221CA026 SET SCREW 2
109190800T-028
129 221AA006 ROHS:BOLT_HEX-SCT 2
109190800T-029
130 221HA003 WASHER 2
109190800T-030
131 221HA203 WASHER 4
109190800T-031
132 221DA003 MACHINE SCREW 3
109190800T-032
133 221FA001 NUT_HEX 1
109190800T-033
134 221AA001 ROHS:BOLT_HEX-SCT 2
109190800T-034
135 221KA003 ROHS:RING 2
109190800T-035
136 221FA003 NUT_HEX 1
109190800T-036
137 221AA005 ROHS:BOLT_HEX-SCT 2
109190800T-037
138 221AA008 ROHS:BOLT_HEX-SCT 2
109190800T-038
139 221HA201 WASHER 2
109190800T-039
Fig. G3
0912-002
Fig. G3-2
UNIT-6
Fig. G3
STOCKER 2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
