Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 401 0948C20E PLA TE 1 1094802207-001 402 0917C20G STEPPING_MOTOR 2 1094802207-002 403 21 1FD904 BRACKET 2 1094802207-003 404 223Q0775 PULLEY_TIMING 2 1094802207-004 405 22…

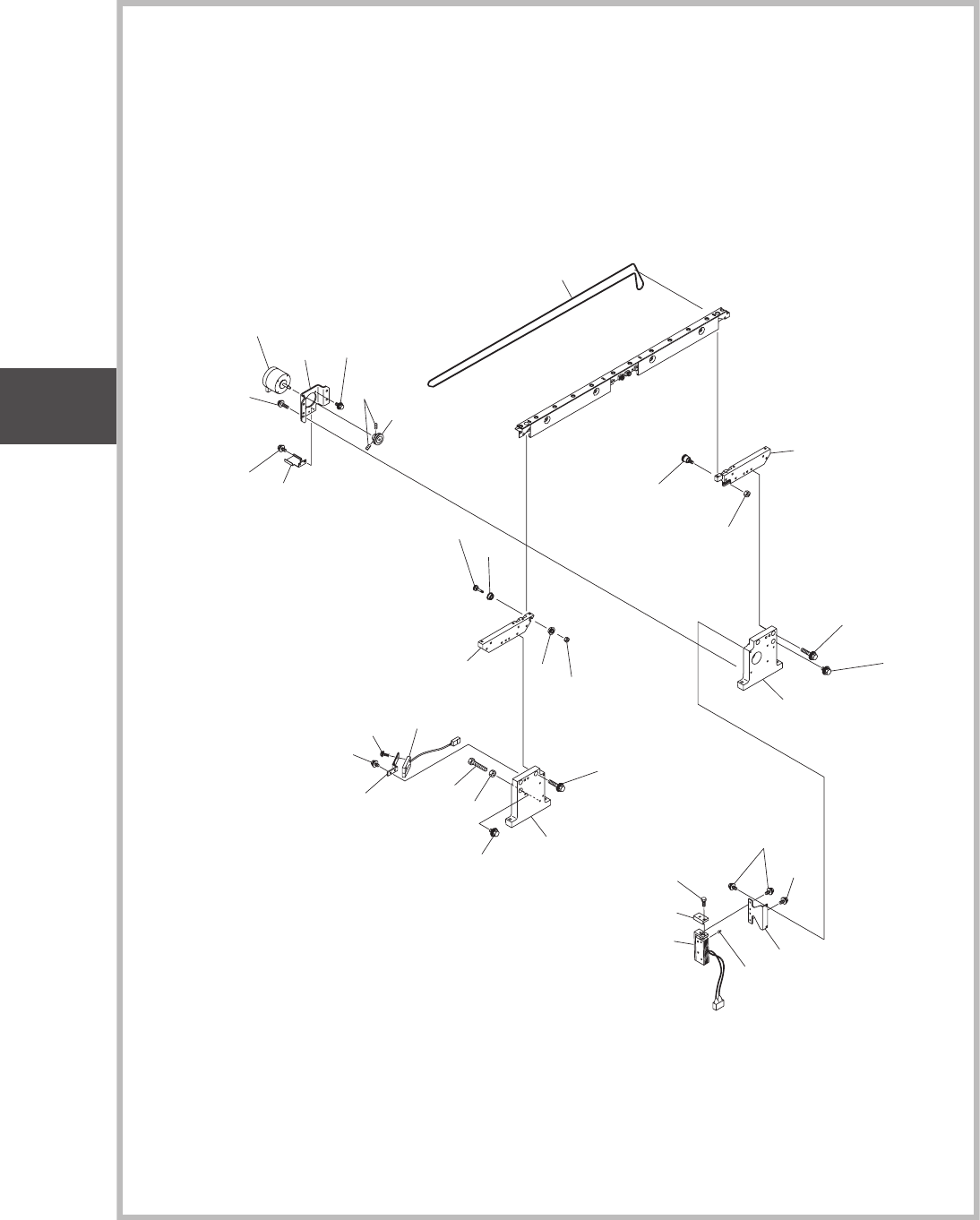

Fig. H1-5
バックアップベース２
Back-Up Base 2
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
411
411
402
403
401
404
413
441
413
412
406
419
427
432
419
427
432
426
427
432
426
427
432
421
428
433
424
429
436
437
407
408
405
409
407
408
405
423
428
440
420
423
428
440
422
428
433
422
428
433
425
430
434
425
430
434
420
409
404
437
424
429
436
403
402
421
428
433
406
410
410
438
439
435
435
432
427
431
432
427
431
416
415
416
414
417
433
428
423
417
433
428
423
418
418
UNIT-7
Fig. H1
CONVEYOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 0948C20E PLATE 1 1094802207-001
402 0917C20G STEPPING_MOTOR 2
1094802207-002
403 211FD904 BRACKET 2
1094802207-003
404 223Q0775 PULLEY_TIMING 2
1094802207-004
405 223B0456 BALL_SCREW 2
1094802207-005
406 221B0133 BOLT_HEX 2
1094802207-006
407 216B1817 HOLDER 2
1094802207-007
408 223Q0773 PULLEY_TIMING 2
1094802207-008
409 0948C202 COLLAR(BACKUP) 2
1094802207-009
410 225F0566 PIPE_FITTINGS 2
1094802207-010
411 211FD378 BRACKET 2
1094802207-011
412 9W210446 CABLE 1
1094802207-012
413 23G10001 SENSOR_PHOTO 2
1094802207-013
414 09482504 ASSY_SENSOR 1
1094802207-014
415 09482505 ASSY_SENSOR 1
1094802207-015
416 23G00312 SENSOR_PELEC 2
1094802207-016
417 0948C203 BLOCK(BACKUP) 2
1094802207-017
418 223L0379 BELT_TIMING 2
1094802207-018
419 221DA013 MACHINE_SCREW 4
1094802207-019
420 221AA017 ROHS_HEX-SCT 8
1094802207-020
421 221AA018 ROHS_HEX-SCT 4
1094802207-021
422 221AA019 ROHS_HEX-SCT 6
1094802207-022
423 221AA021 ROHS_HEX-SCT 12
1094802207-023
424 221AA031 ROHS_HEX-SCT 8
1094802207-024
425 221AA044 ROHS_HEX-SCT 6
1094802207-025
426 221AA005 ROHS_HEX-SCT 4
1094802207-026
427 221HA003 WASHER 12
1094802207-027
428 221HA004 WASHER 22
1094802207-028
429 221HA005 WASHER 8
1094802207-029
430 221HA006 WASHER 6
1094802207-030
431 221AA006 ROHS_HEX-SCT 4
1094802207-031
432 221HA103 WASHER 12
1094802207-032
433 221HA104 WASHER 14
1094802207-033
434 221HA106 WASHER 6
1094802207-034
435 0917C303 TUBE_D4 1
1094802207-035
436 221HA303 ROHS_WASHER 8
1094802207-036
437 221CA007 SET_SCREW 4
1094802207-037
438 221BB008 ROHS:BOLT_HEX 2
1094802207-038
439 221FA015 NUT_HEX 2
1094802207-039
440 221HA204 WASHER 8
1094802207-040
441 9W210445 CABLE 2
1094802207-041
Fig. H1
0912-002
Fig. H1-5
UNIT-7
Fig. H1
CONVEYOR
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. H1-6
固定ベース
Fixed Base
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
533
534
523
529
535
536
511
512
518
524
513
517
519
531
532
525
530
535
503
501
508
507
522
509
510
533
534
539
521
520
531
532
519
531
532
502
504
531
532
526
516
514
517
515
538
537
529
535
522
520
531
532
535
539
527
506
505
531
532
528
UNIT-7
Fig. H1
CONVEYOR
