P-0309-002 - 第66页

Fig. C1-6 クランプレバー Clump Lever 0912-002 542 543 535 537 538 536 537 538 546 547 548 539 545 537 540 549 532 531 541 533 533 534 544 503 502 502 502 502 502 501 504 503 504 503 504 503 504 503 504 504 521 525 522 523 512 5…

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

402 222M1468 SPRING_COMP 30 1092004109-002

407 216C1035 ROD 1

1092004109-007

410 0920E10R FEEDER_GUIDE_L 1

1092004109-010

411 0920E10S FEEDER_GUIDE_R 1

1092004109-011

412 211K3703 SUPPORT 1

1092004109-012

413 211K3704 SUPPORT 1

1092004109-013

414 211DE956 PLATE 2

1092004109-014

415 221DA010 MACHINE SCREW 2

1092004109-015

416 211AD669 COVER 1

1092004109-016

418 221AA031 ROHS:BOLT_HEX-SCT 4

1092004109-018

419 221AA029 ROHS:BOLT_HEX-SCT 4

1092004109-019

420 221AA030 ROHS:BOLT_HEX-SCT 6

1092004109-020

421 221DA209 MACHINE SCREW 3

1092004109-021

422 221AA032 ROHS:BOLT_HEX-SCT 12

1092004109-022

423 221CA044 SET SCREW 3

1092004109-023

424 221AA036 ROHS:BOLT_HEX-SCT 6

1092004109-024

425 221AA261 ROHS:BOLT_HEX-SCT 2

1092004109-025

426 221AA057 ROHS:BOLT_HEX-SCT 4

1092004109-026

427 221HA003 WASHER 2

1092004109-027

428 221HA103 WASHER 2

1092004109-028

431 221HA005 WASHER 22

1092004109-031

432 221HA105 WASHER 22

1092004109-032

433 221HA007 WASHER 4

1092004109-033

434 221HA103 WASHER 4

1092004109-034

436 213A1338 SHAFT 2

1092004109-036

437 226J2598 MECH PARTS 2

1092004109-037

438 211G6364 BLOCK 1

1092004109-038

439 211G6365 BLOCK 1

1092004109-039

440 221AA141 ROHS:BOLT,HEX-SCT 4

1092004109-040

441 0920E112 BLOCK 1

1092004109-041

442 0920E113 BLOCK 1

1092004109-042

443 0920E111 SHAFT 2

1092004109-043

445 0920E10N BALL PLANGERS 2

1092004109-045

446 221FA016 ROHS:NUT,HEX 2

1092004109-046

448 216C1034 ROD 1

1092004109-048

449 221DA107 MACHINE SCREW 4

1092004109-049

451 0920E10F BASE 1

2092004108-001

452 211G5359 BLOCK 6

2092004108-002

453 211DB811 PLATE 31

2092004108-003

454 221AA031 ROHS:BOLT_HEX-SCT 12

2092004108-004

455 221HA005 WASHER 12

2092004108-005

456 221HA105 WASHER 12

2092004108-006

457 221AA007 ROHS:BOLT_HEX-SCT 93

2092004108-007

Fig. C1

0912-002

Fig. C1-5

SIGMA-G4DA

SIGMA-G4DB

SIGMA-G4DC

UNIT-2

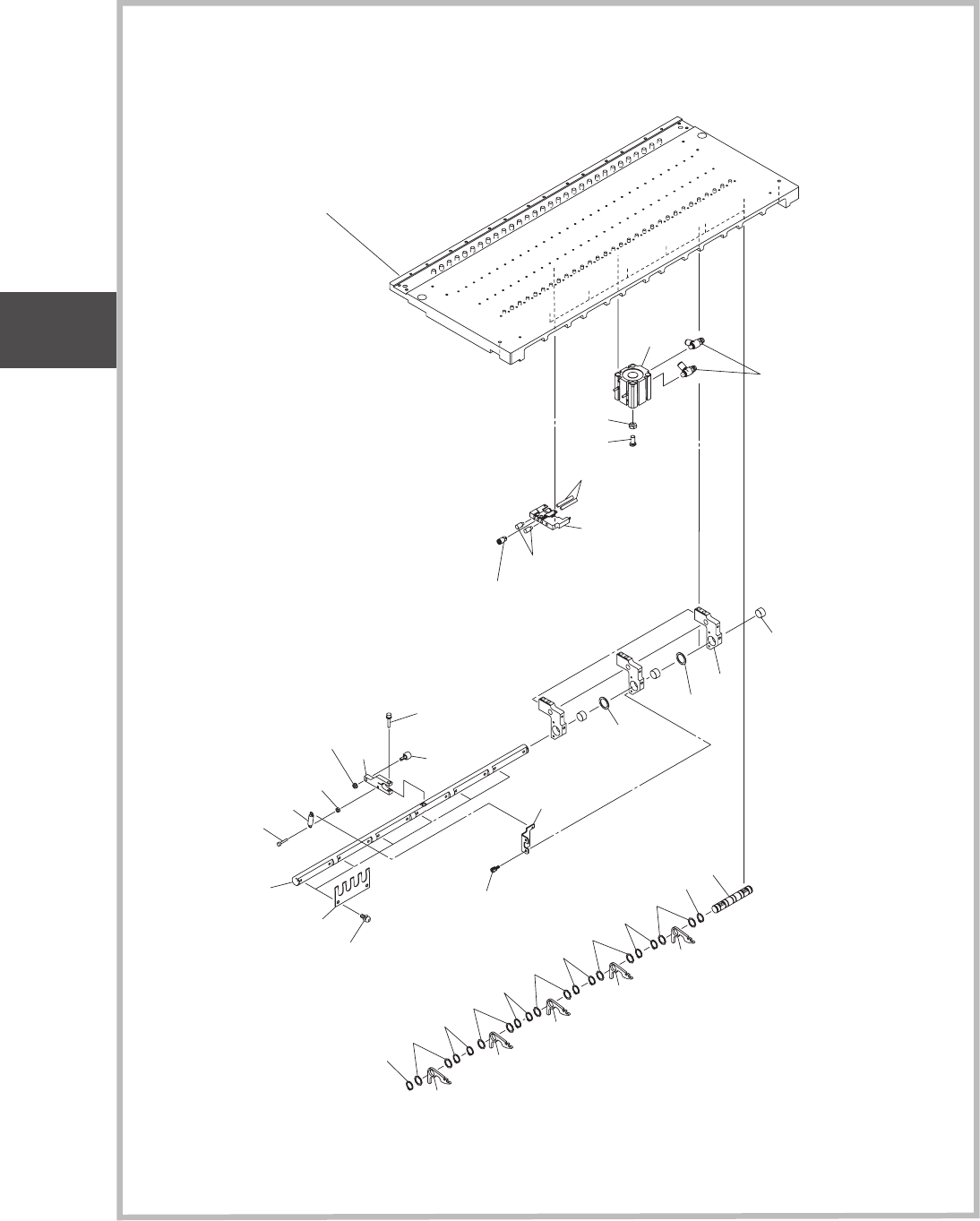

Fig. C1

CART

Fig. C1-6

クランプレバー

Clump Lever

0912-002

542

543

535

537

538

536

537

538

546

547

548

539

545

537

540

549

532

531

541

533

534

544

503

502

501

504

503

504

503

504

503

504

503

504

521

525

522

523

512

511

514

513

See Fig C1-5

Key No.451

Fig. C1

カート部

CART SECTION

UNIT-2

Fig. C1

CART

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

501 213A1024 SHAFT 1 3092004101-001

502 211DE170 PLATE 5

3092004101-002

503 211E1085 SPACER 10

3092004101-003

504 221K0079 RING C 15 10

3092004101-004

511 09204400 ASSY_CYLINDER 1

3092004102-001

512 225B0575 AIR LINE EQPT 2

3092004102-002

513 216C0713 ROD 1

3092004102-003

514 221FA014 NUT_HEX 1

3092004102-004

521 09204401 ASSY_VALVE 1

3092004103-001

522 225F0467 PIPE FITTINGS 1

3092004103-002

523 225B0059 AIR LINE EQPT 2

3092004103-003

525 0920E114 TUBE D6 1

3092004103-005

531 213A1613 SHAFT 1

109200410Q-001

532 222Q0211 SPRING_FLAT 12

109200410Q-002

533 211E1181 SPACER 2

109200410Q-003

534 214A0065 BUSH_BEARING 3

109200410Q-004

535 221A0446 BOLT,HEX-SCT 12

109200410Q-005

536 221AA033 ROHS:BOLT_HEX-SCT 1

109200410Q-006

537 221HA005 WASHER 14

109200410Q-007

538 221HA105 WASHER 13

109200410Q-008

539 221FA008 NUT_HEX 1

109200410Q-009

540 221FA010 NUT_HEX 1

109200410Q-010

541 216S3266 LEVER 1

109200410Q-011

542 222H0132 CAM FOLLOWER 1

109200410Q-012

543 222N0157 SPRING_TENSION 1

109200410Q-013

544 211FE156 BRACKET 1

109200410Q-014

545 221AA021 ROHS:BOLT_HEX-SCT 1

109200410Q-015

546 221AA017 ROHS:BOLT_HEX-SCT 2

109200410Q-016

547 221HA004 WASHER 2

109200410Q-017

548 221HA104 WASHER 2

109200410Q-018

549 222A0168 BUSH,BEARING 3

109200410Q-019

Fig. C1

0912-002

Fig. C1-6

SIGMA-G4DA

SIGMA-G4DB

SIGMA-G4DC

UNIT-2

Fig. C1

CART
