P-0309-002 - 第78页

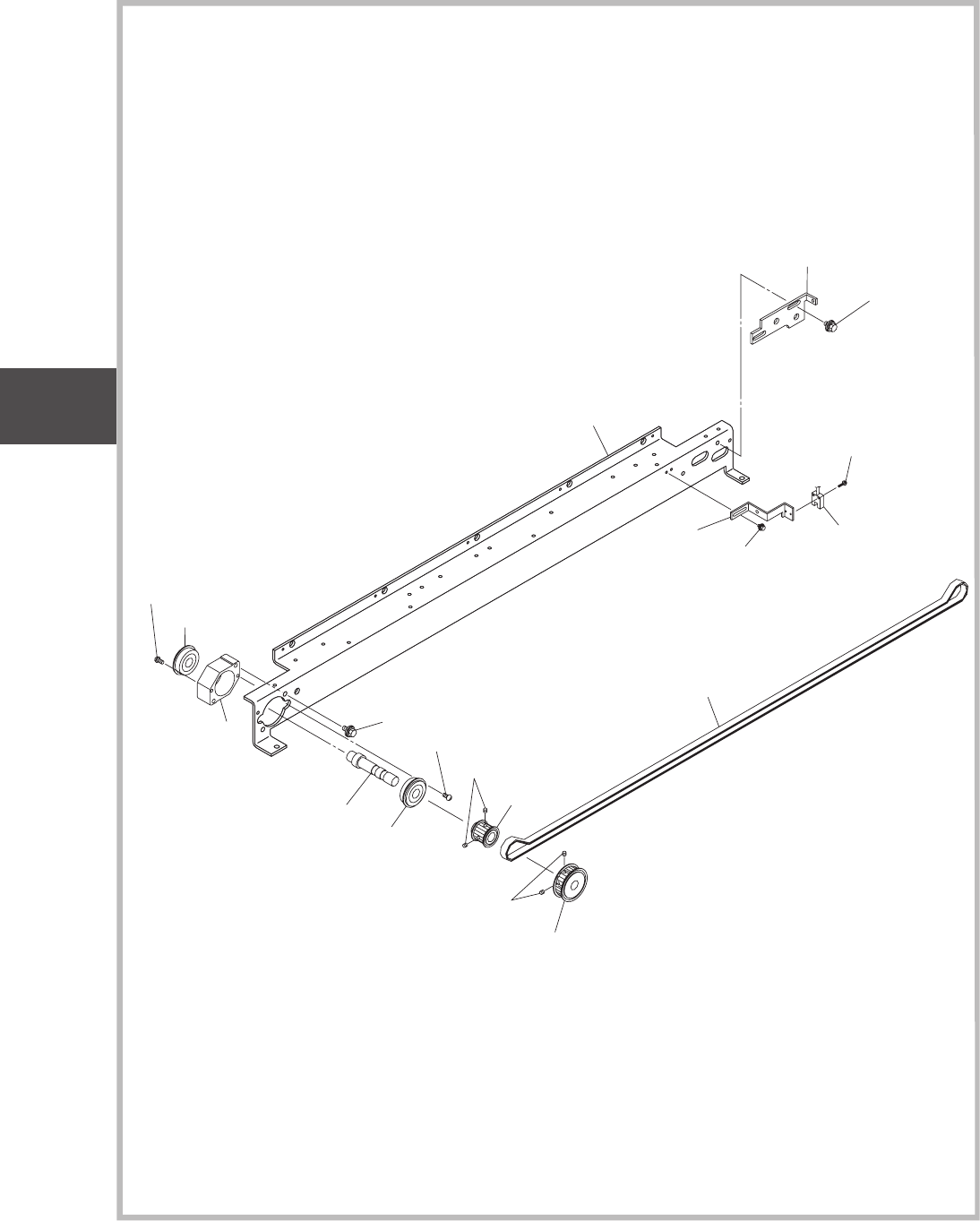

218 220 221 See Fig C2-4 Key No.31 1 236 233 232 233 212 213 214 235 235 201 215 204 216 217 219 231 203 234 208 209 207 220 221 Fig. C2-3 プーリ、ベルト Pully , Belt 0912-002 Fig. C2 カッタ部 CUTTER SECTION UNIT -2 Fig.C2 CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 0920H119 BASE 1 109200711E-001
102 0920H10V GUIDE_LINEAR 1 109200711E-002
103 0920H10X BLOCK 1 109200711E-003
104 211AC891 COVER 1 109200711E-004
109 0223L0385 BELT_TIMING 1 109200711E-009
113 211AD295 COVER 1 109200711E-013
114 211AC892 COVER 1 109200711E-014
115 226B0032 GREASE NIPPLE 2 109200711E-015
116 210A3062 BASE 1 109200711E-016
117 211G5939 BLOCK 1 109200711E-017
118 211FD727 BRACKET 1 109200711E-018
119 221EA131 ROHS:BU_BOLT_HEX-SCT 2 109200711E-019
120 221AA004 ROHS:BOLT_HEX-SCT 8 109200711E-020
121 221AA005 ROHS:BOLT_HEX-SCT 2 109200711E-021
123 221HA003 WASHER 2 109200711E-023
124 221HA103 WASHER 5 109200711E-024
125 221AA016 ROHS:BOLT_HEX-SCT 26 109200711E-025
126 221HA004 WASHER 2 109200711E-026
127 221HA104 WASHER 2 109200711E-027
128 221AA030 ROHS:BOLT_HEX-SCT 8 109200711E-028
129 221HA005 WASHER 8 109200711E-029
130 221HA105 WASHER 8 109200711E-030
131 221DA207 MACHINE SCREW 4 109200711E-031
141 211FE262 BRACKET 1 1092007102-001
142 223Q0551 PULLEY_TIMING 1 1092007102-002
143 4M150265 MOTOR_AC-SERVO 1 1092007102-003
144 221AA031 ROHS:BOLT_HEX-SCT 4 1092007102-004
145 221FA009 NUT_HEX 4 1092007102-005
146 221HA005 WASHER 4 1092007102-006
147 221HA105 WASHER 8 1092007102-007
148 221CA027 SET_SCREW 2 1092007102-008
Fig. C2
0912-002
Fig. C2-2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
UNIT-2
Fig. C2
CUTTER 1
218
220
221
See Fig C2-4
Key No.311
236
233
232
233
212
213
214
235
235
201
215
204
216
217
219
231
203
234
208
209
207
220
221
Fig. C2-3
プーリ、ベルト
Pully, Belt
0912-002
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 210B4423 FRAME 1 1092007108-001
203 211FD982 BRACKET 1 1092007108-003
204 09207200 ASSY_SENSOR 1 1092007108-004
207 223Q0766 PULLEY_TIMING 1 1092007108-007
208 223L0386 BELT_TIMING 1 1092007108-008
209 221CA027 SET_SCREW 2 1092007108-009
212 221DA004 MACHINE SCREW 2 1092007108-012
213 221HA001 WASHER 2 1092007108-013
214 221HA101 WASHER 2 1092007108-014
215 221AA005 ROHS:BOLT_HEX-SCT 2 1092007108-015
216 221HA003 WASHER 2 1092007108-016
217 221HA103 WASHER 2 1092007108-017
218 221AA029 ROHS:BOLT_HEX-SCT 2 1092007108-018
219 221AA030 ROHS:BOLT_HEX-SCT 2 1092007108-019
220 221HA005 WASHER 4 1092007108-020
221 221HA105 WASHER 4 1092007108-021
231 213A1604 SHAFT 1 3092007107-001
232 211G5997 BLOCK 1 3092007107-002
233 222D0086 BEARING_RADIAL 2 3092007107-003
234 223Q0751 PULLEY_TIMING 1 3092007107-004
235 221DA208 MACHINE SCREW 4 3092007107-005
236 221CA027 SET_SCREW 2 3092007107-006
Fig. C2
0912-002
Fig. C2-3
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
UNIT-2
Fig. C2
CUTTER 1
