User Manual Line Computer UNIX 4 Data Management Software Version 501.xx 01/99 Issue 4.3 User Interface of the Data Manager 4 - 17 ● Confirm d ialog box "Copy fro m..." with OK w hen the co pying procedure is t…
4 Data Management User Manual Line Computer UNIX
4.3 User Interface of the Data Manager Software Version 501.xx 01/99 Issue
4 - 16
Command Area
In the command area the sorting sequence can be selected according to certain criteria as well as the display
mode of the files and directories in the main window. The uses for the mouse action double-click can be defined
for Default, Editor, Compiler or Menu. In addition, the function Reread directory is available.
Arrow button
Each click of the arrow button causes the directory structure to go back in the
hierarchy
by one level (e.g.
subdirectory --> directory --> main directory).
4.3.4.1 FILE menu
The Data Manager enables files and directories to be edited using the menu functions described in the following.
- Opening directories
A selected directory is opened and its contents are shown in the current file window.
● Select directory by clicking one time.
● Select menu option FILE --> Open....
Or else, if Double click --> Default is set in the command area:
● Open directory by double-clicking.
- Copying files and directories within a data partner or from one data partner to another
Files or directories can be copied. Source and target of the copying operation can be located in diffe-
rent data partners.
● Select file/directory (source) by clicking one time.
● Select menu option FILE --> Copy.
The mouse cursor has the shape of a double cross.
● Click on target.
NOTE
Only if Actions --> Confirm is set in the main window of the Data Manager will a dialog box be
displayed in which the selected action (e.g. copy, move, delete etc.) has to be confirmed before it is
executed.
If Actions --> Immediately is set, the selected action is executed immediately
without any prior
confirmation. An exception is the "Delete" action. It is always executed after
the verification query has
been confirmed.
User Manual Line Computer UNIX 4 Data Management
Software Version 501.xx 01/99 Issue 4.3 User Interface of the Data Manager
4 - 17

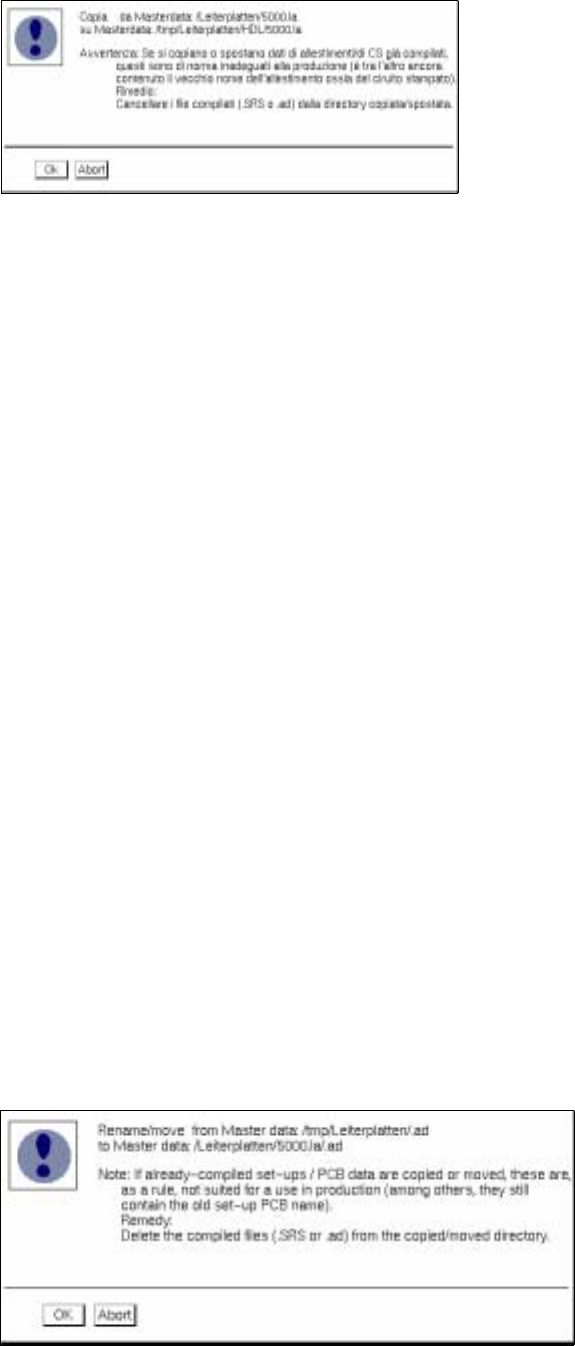

● Confirm dialog box "Copy from..." with OK when the copying procedure is to be carried out.
Or else, if Mouse function --> Copy has been set in the main window:
● Click on file/directory (source) one time.
The icon or the name of the source are now displayed in reverse video.
● Click on file/directory (source) again.
Where icons are displayed the icon changes color and where the text mode has been selected, the
name of the selected source is preceded by "!". The mouse cursor has the shape of a double cross.
● Click on target.
● Confirm dialog box "Copy from ..." with OK.
- Printing of files and directories
The contents of a directory or the complete tree structure of a directory can be printed out.
● Select file/directory by clicking one time.
● Select menu option FILE --> Print.
● On the submenu select Tree or Directory.
Where icons are displayed the icon changes color and where the text mode has been selected, the
name of the selected source is preceded by "!". The mouse cursor has the shape of a double cross.
● Click on target (e.g. printer plotter) in the main window of the Data Manager.
- Moving / Renaming files and directories within a data partner or from one data partner to another
Files or directories can be moved or renamed. Source and target of the operation can be located in
different data partners.
Moving:
● Select file/directory (source) by clicking one time.
● Select menu option FILE --> Move.
● Click on target.
● Confirm dialog box "Rename/move from ..." with OK.
4 Data Management User Manual Line Computer UNIX
4.3 User Interface of the Data Manager Software Version 501.xx 01/99 Issue
4 - 18
Or else, if Mouse function --> Move has been set in the main window:
● Click on file/directory (source) one time.
The icon or name of the source are now displayed in reverse video.
● Click on file/directory (source) again.
Where icons are displayed the icon changes color and where the text mode has been selected, the
name of the selected source is preceded by " ! ". The mouse cursor has the shape of a double cross.
● Click on target.
● Confirm dialog box "Rename/move from ..." with OK.
Renaming:
● Select file/directory by single-clicking.
● Select FILE --> Move menu option.
● Click into any free space in the display area.
● Confirm dialog box "Rename/move from..." with OK.

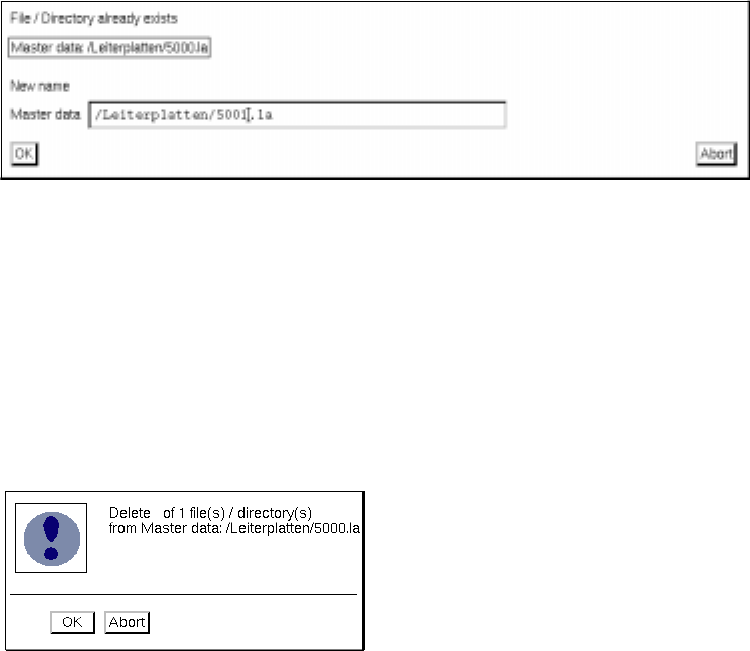

The following dialog box for entering the new name is displayed.
● Delete the old name using the Delete key and enter the new name.
● Confirm your entry with OK.
The dialog box is closed and the file or directory is displayed in the display area under its new
name.
- Deleting files and directories
Selected files or directories can be deleted.
● Select FILE or Directory by clicking one time.
● Select menu option FILE --> Delete.
● Confirm dialog box "Delete from ..." with OK.
Or:
● Select file/directory by clicking one time.
The icon or name of the source is now displayed in reverse video.
● Click on file/directory again. The mouse cursor has the shape of a double cross.
● Click on Waste basket in the main window.
● Confirm dialog box "Delete from ..." with OK.
