User Manual Line Computer UNIX 4 Data Management Software Version 501.xx 01/99 Issue 4.5 F ile Display User Interface 4 - 33 4.5 File Display User Interfac e The user interface e nables the oper ator to v iew the co nten…
4 Data Management User Manual Line Computer UNIX
4.4 User Interface of Print and Update Server Software Version 501.xx 01/99 Issue
4 - 32
User Manual Line Computer UNIX 4 Data Management
Software Version 501.xx 01/99 Issue 4.5 File Display User Interface
4 - 33
4.5 File Display User Interface
The user interface enables the operator to view the contents of different types of files. The following types of
files can be selected from:
- Error files (.error)
- Log files (.log)
- Line configuration lists (.mf)
4.5.1 Starting the File Display
The operator can start the File Display function either via the menu "FILE" on the desktop menu bar, or via Data
Manager by selecting a data partner (Job data, Master data).
Moreover, the File Display can be opened for viewing given error files, via the menus of the "Job Control" (see
chapt. 14) and "Optimization Dialog" (see chapt. 11) application programs.
Starting the File Display option via the Data Manager, with an error file in the "Job data/Losplanung"
directory serving as an example:
● Click on FILE -> Data Manager on the desktop menu bar.
The main window of the Data Manager is opened (see Fig. 4.3.1).
● Select icon (or text) Job data by double-clicking.
The main window of the data partner "Job Data" is opened (see section 4.3).
● Activate Default button in the command area of the main window.
● Successively select Losplanung, xx.lose by double-clicking.
● Select .error file (if available) by double-clicking.
The main window of the File Display containing the contents of the error file ".error" is opened.
Starting the File Display option via the Data Manager, with the line configuration list for the overall line
serving as an example:
● Click on FILE -> Data Manager on the desktop menu bar.
The main window of the Data Manager is opened (see Fig. 4.3.1).
● Select icon (or text) Master data by double-clicking.
The main window of the "Master data" is opened (see Fig. 4.3.2).
● Activate Default button in the command area of the main window.
● Successively select Anlagen, SMT.ak, .ra and .mf by double-clicking.
The main window of the File Display containing the contents of the line configuration list ".mf"
is opened (see Fig. 4.5.2).
4 Data Management User Manual Line Computer UNIX
4.5 File Display User Interface Software Version 501.xx 01/99 Issue
4 - 34
Starting the File Display option via the desktop, with an error file in the "master data:Leiterplatten/..."
directory serving as an example:
● Click on FILE -> File contents on the desktop menu bar.

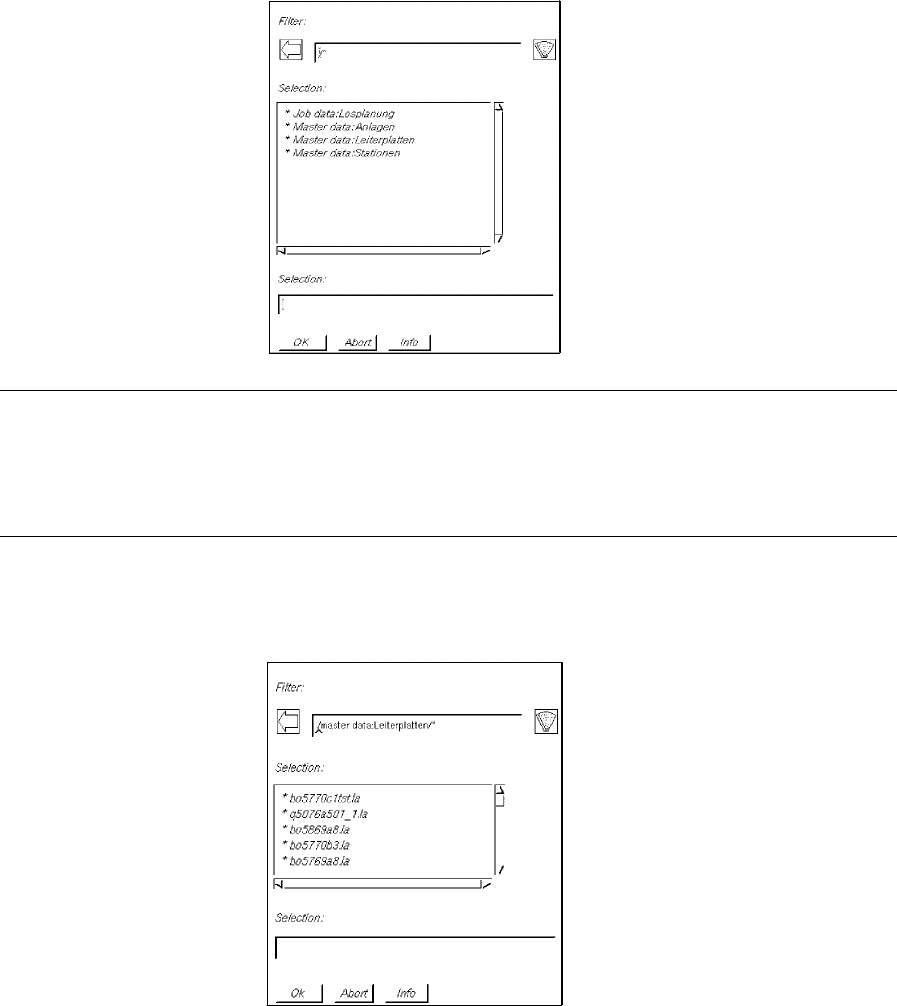

The following FSB for the selection of the path (directory) in which the error file is located is
opened:
NOTE
If the File Display had previously been opened and the current state (data type) been saved under
"OPTIONS --> Save state", (see section 4.5.2.2), the FSB is opened with the file filter previously
saved.
● Select directory master data: Leiterplatten by double-clicking.
The PCBs contained in the directory are displayed.
● Successively select PCB *xx.la, *.ad, *SMT.AK, *Linie.VA and *xx.AR by double-clicking (or
else by clicking once and confirming the selection with OK in each case).
If available, an error file ".error" is now displayed in the FSB.
