6 Product / Package Form User Manual Line Computer UNIX

6.1 Package Form Editor Software Version 501.xx 01/99 Issue

6 - 22

SST number "11"

Flip-chip camera SIPLACE 80F3/F

Component dimension 20 x 20 mm

Camera’s field of view 12,2 x 9,2 mm

Resolution 20

m/pixel

Minimum pin pitch 0,2 mm

Minimum ball radius of BGA’s 0,04 mm

Camera illumination 3 programmable illumination levels

SST number "12"

RV camera (12-nozzle head) SIPLACE 80S-20/23/HS-50/F

Component dimension 18 x 18 mm

Camera’s field of view 24 x 24 mm

Resolution 50

m/pixel

Minimum pin pitch 0,5 mm

Minimum ball radius of BGA’s 0,2 - 0,25 mm

Camera illumination 3 programmable illumination levels

SST number "13"

RV camera (6-nozzle head) SIPLACE 80F

Component dimension 32 x 32 mm

Camera’s field of view 39 x 39 mm

Resolution 81

m/pixel

Minimum pin pitch 0,5 mm

Minimum ball radius of BGA’s ca. 200

Camera illumination 2 programmable illumination levels

SST number "14"

Flip Chip camera (6-nozzle head) SIPLACE 80F

Component dimension 15 x 15 mm

Camera’s field of view 19,2 x 19,2 mm

Resolution 40

m/pixel

Minimum pin pitch 0,5 mm

Minimum ball radius of BGA’s 0,2 - 0,25 mm

Camera illumination 3 programmable illumination levels

SST number "17"

Coplanarity Module SIPLACE 80F

User Manual Line Computer UNIX 6 Product / Package Form

Software Version 501.xx 01/99 Issue 6.1 Package Form Editor

6 - 23

6.1.2.8 View Area - "Handling Data" Screen

If the "Sensor type" button is activated in the command area, all created sensor system types are shown in

the view area (see Fig. 6.1.5).

If the "Nozzle" button is activated in the command area, the numbers of all nozzles created as well as the

acceleration selected in each case are displayed in % (see Fig. 6.1.9).

Each nozzle (except for nozzles of the 3xx type) is assigned its own buttons by means of which the

settings for the "Acceleration" special handling option can be selected (see section 6.1.2.9).

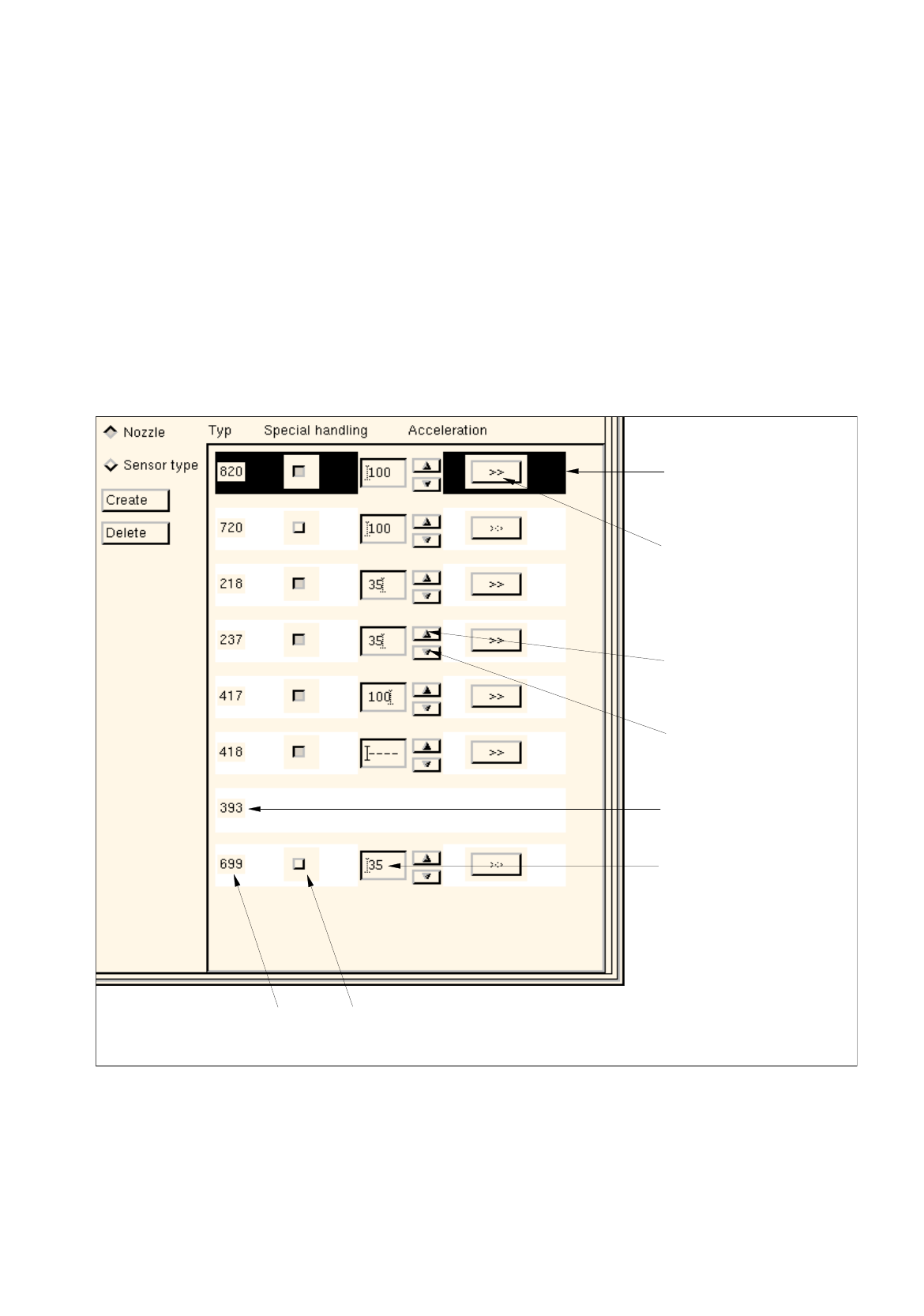

Layout of the View Area for the "Nozzle" Setting

Abb. 6.1.9 View Area - "Nozzle" Setting

Button ">>"

Button for

Selected

nozzle

Arrow button

(to increase the

(to reduce the

Nozzle

Editing/display box

(opens the dialog box

for axis-specific settings)

acceleration value)

Special handling not

possible for this nozzle

acceleration value [%]

special handling "Acceleration"number

type

6 Product / Package Form User Manual Line Computer UNIX

6.1 Package Form Editor Software Version 501.xx 01/99 Issue

6 - 24

General Notes Relating to the Buttons in the View Area

Appropriate buttons in the view area allow the

Acceleration

special handling option for selected nozzles

to be activated or deactivated, respectively.

If the button for the special handling procedure was activated, minimum (35%), medium (70%) or maxi-

mum ( 100%) acceleration of the axes can be selected for each individual nozzle of the 4xx, 7xx and 8xx

types on machine types 80S-20/23/HS-50 and 80F

using the corresponding arrow buttons.

The desired percentage can also be entered directly into the adjacent editing field.

After the value has been entered, the RETURN key must be pressed or a different field be clicked for the

value to be accepted.

For nozzle types 2xx and 6xx on machine types 80S-15, 80F3 and HS-180, only minimum (35%) or maxi-

mum (100%) acceleration can be selected. The settings are always valid for all nozzles of a given type.

Axis-specific settings can be selected in the appropriate dialog boxes (see Fig. 6.1.10 and Fig. 6.1.11) when

the button

assigned to the corresponding nozzle is clicked on.

6.1.2.9 Settings for the "Acceleration" Special Handling

To be able to also transport and deposit large components (e.g. PLCC's 84) safely, the acceleration of the x,

y, z and d(dp) axes can be reduces as required by means of the special handling option.

On machine types SIPLACE 80S-15, 80F3 and HS-180 it is possible to reduce the acceleration of the individual

axes to 35% for nozzle types 2xx and 6xx.

On machine types SIPLACE 80S-20/23/HS-50 and 80F

it is possible to select axis-specific accelerations

for each individual nozzle of the types 4xx, 7xx and 8xx.

Due to the fact that 4xx type nozzles can be used on machine types SIPLACE 80F3 and

80F

, it is possible

to enter axis-specific acceleration values. On machine type SIPLACE 80F3, however, the acceleration is

automatically reduced to 35% if full acceleration (100%) is not selected.
