User Manual Line Computer UNIX 7 Product / Adhesive Pattern Software Version 501.xx 01/99 Issue 7.1 Adhesive Pattern Editor 7 - 5 7.1.2.2 Definition of x/y-Coordinates for Adhesive Dots Fig. 7.1.3 Definition of x/y-coord…
7 Product / Adhesive Pattern User Manual Line Computer UNIX
7.1 Adhesive Pattern Editor Software Version 501.xx 01/99 Issue
7 - 4

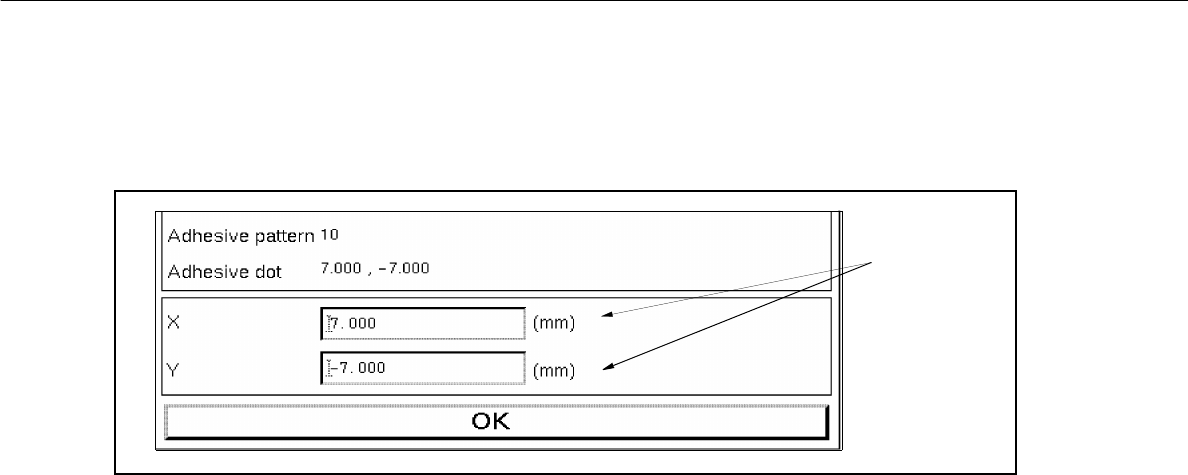

Fig. 7.1.2 Window "Entries of x/y-coordinates for adhesive dot"
- Deleting
A created adhesive dot can be deleted.
● Select coordinate ddata of the adhesive dot to be deleted from the display area of the main
window "Adhesive Pattern Editor".
● Click on Delete.
The coordinate data of the adhesive dot are no longer displayed.
- Changing
The coordinate data of an existing adhesive dot can be edited.
● Select coordinate data from the display area.
● Click on Change.
The window for editing the x/y-coordinates is opened (see Fig. 7.1.2).
● Click on editing field containing the value to be changed (cursor to be positioned in front of the
value).
● Delete entry using the DELETE key and enter new value.
● Confirm entries with OK.
The window is closed. The edited values are displayed in the main window "Adhesive Pattern
Editor".
editing fields
User Manual Line Computer UNIX 7 Product / Adhesive Pattern
Software Version 501.xx 01/99 Issue 7.1 Adhesive Pattern Editor
7 - 5
7.1.2.2 Definition of x/y-Coordinates for Adhesive Dots

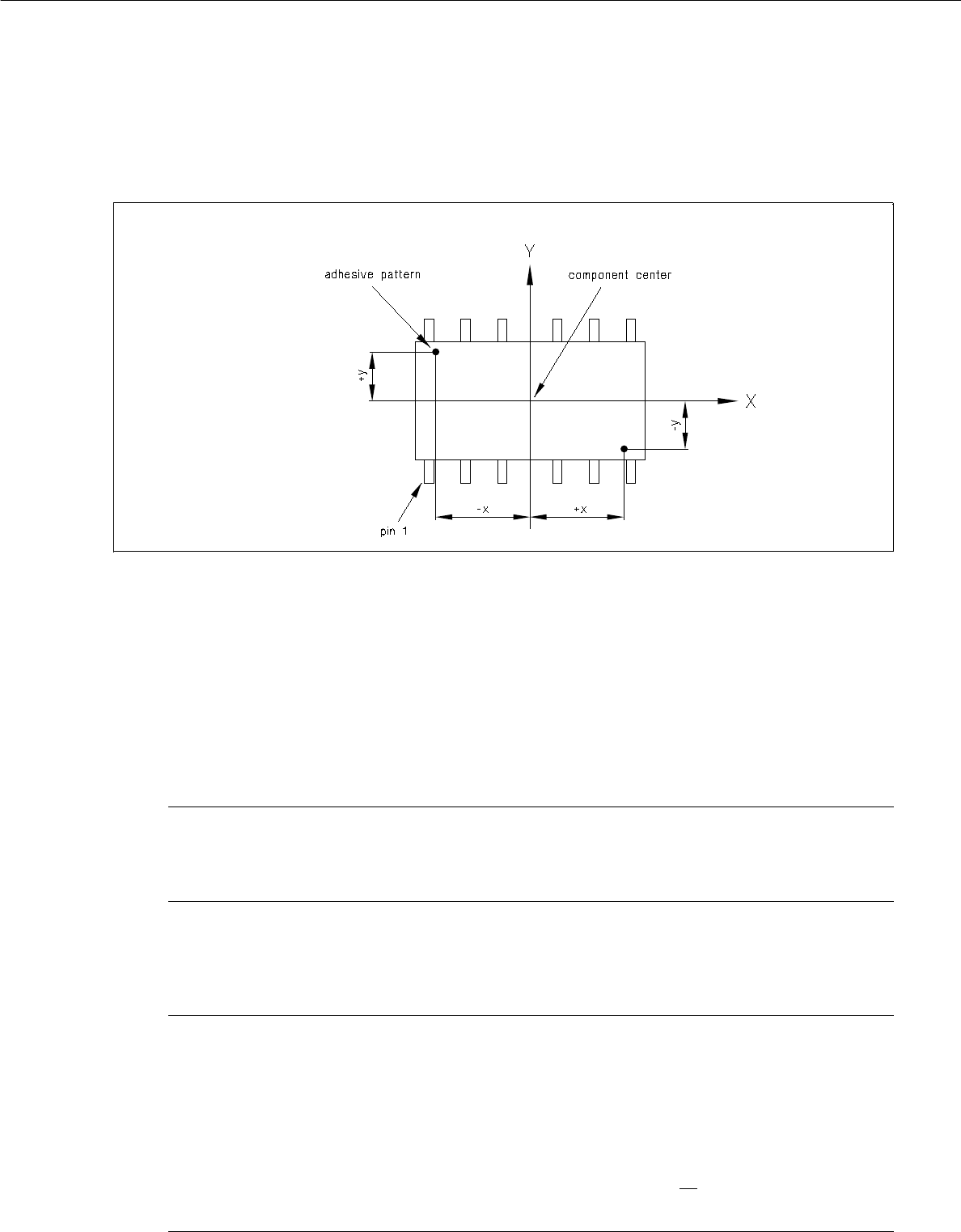

Fig. 7.1.3 Definition of x/y-coordinates for adhesive dots
Editing a new adhesive dot
● Click on Create in the command area of the main window "Adhesive Pattern Editor" (see Fig. 7.1.1).
The window for editing the coordinate data of the new adhesive dot is opened (see Fig. 7.1.2).
● Click on editing field "X" and enter value for the x-coordinate (observe correct sign).
● Click on editing field "Y" and enter value for the y-coordinate (observe correct sign).
NOTE
In order to be able to apply the adhesive dots of an adhesive pattern by means of an adhesive
dispensing cartridge, a minimum spacing of the adhesive dots must be observed.
● Confirm the entries with OK.
The window is closed. The coordinate data of the created adhesive dot are displayed in the main
window "Adhesive Pattern Editor".
NOTE
If invalid values or characters (e.g. a comma as decimal point) were entered or if the minimum
distance between adhesive dots in an adhesive pattern has not been observed, a dialog box contai-
ning a corresponding error message is displayed. The fields containing the invalid values are sur-
rounded by a red frame. The dialog box must first be acknowledged by selecting OK. Thereafter, the
entries can be corrected and confirmed with OK.
The edited values are retained when the window is closed. If, however, no
saving operation is carried
out upon exiting the Adhesive Pattern Editor, the edited data will be lost.
