User Manual Line Computer UNIX 9 Production Tools / Feeders
Software Version 501.xx 01/99 Issue 9.1 Feeder Editor
9 - 15
- Z [mm]
Offset in z-direction from the support surface of the WP in the WPC to the bottom surface of the tray
compartment (= contact surface of the component)
- dx [mm]
Dimension (offset) from the center of the first division to the center of the last division in x-direction
- dy [mm]
Dimension (offset) from the center of the first division to the center of the last division in y-direction
- Angle [degree]
Angle of rotation of the component in the tray compartment (pick-up angle)
Editing waffle-pack tray data:
● Click on editing field Name and enter FM_PLCC for the name of the customer-specific type.
● Click on editing field N and enter 10.
● Click on editing field M and enter 5.
● Click on editing field X and enter 145.
● Click on editing field Y and enter -27.
● Click on editing field Z and enter 6.
● Click on editing field dx and enter 186.3.
● Click on editing field dy and enter -80.6.
● Click on editing field Angle and enter 0.
NOTE
In order to be able to immediately detect any invalid entries, the RETURN key should be pressed
after each
entry. If the current entry is incorrect, the corresponding editing field will be surrounded by a
red frame.
Selecting waffle-pack tray carriers (WTC):
● Click on button Select.
The selection box containing a list of the available WTCs is opened.
9 Production Tools / Feeders User Manual Line Computer UNIX
9.1 Feeder Editor Software Version 501.xx 01/99 Issue
9 - 16
● Select waffle-pack tray carrier FT~S_Typ_1.
The selection box is closed and the name of the selected WTC is displayed in the "Carrier"
field.
● Click on Ok to accept the data.
The sub-editor "Waffle-Pack Tray" is closed.
The name of the created customer-specific type is displayed in the selection field "Placeable
feeders".
3. Allocation of customer-specific type FM_PLCC without any restrictions
● Activate icon in the command area (if the Feeder Editor is still in the "selection mode").
The "Line" button in the setting area is automatically activated. All machine types are selected.
● Select the entry FM~PLCC for the customer-specific type "FM_PLCC" in the selection field
"Placeable feeders". In the selection field "Feeder" the following entry is displayed:
FM~PLCC
Example "B" for component "BESO20" in package form "541"
Task:
1. The component should be able to be supplied on machine types "HS180" and "SIPLACE80S" by means of
the customer-specific type "FD_VSO20" (based on the 8mm-tape feeder, electric) only
on the left side of
the machine (as seen in direction of travel).
2. In addition, the component should be able to be set up on machine type "HS180" by means of the
9.5mm-linear feeder.
3. Ín addition, the component should be able to be set up on machine type "SIPLACE80S" by means of the
12 mm-tape feeder.
Steps to be performed:
1. Setting the Feeder Editor for editing the component "BESO20"
● Click on the "Component" editing field, enter the component name BESO20 and complete your
entry by pressing RETURN.
In the "Package form" editing field, the number of the package form ("541") allocated to the com-
ponent "BESO20" is displayed, and in the "GF name" field the comment ("VSO20") entered in the
Package Form Editor is displayed.
User Manual Line Computer UNIX 9 Production Tools / Feeders
Software Version 501.xx 01/99 Issue 9.1 Feeder Editor
9 - 17
2. Creating customer-specific type "FD_VSO20" and editing feeder data
● Activate icon or icon in the command area.
● Select entry FD~S_8_EL for 8mm-tape feeders, electric, in the selection field "Placeable feeders"
by double-clicking. The sub-editor "Feeder data" for the definition of the customer-specific type
(name, correction values for the packaging offset, vibration time) is opened.

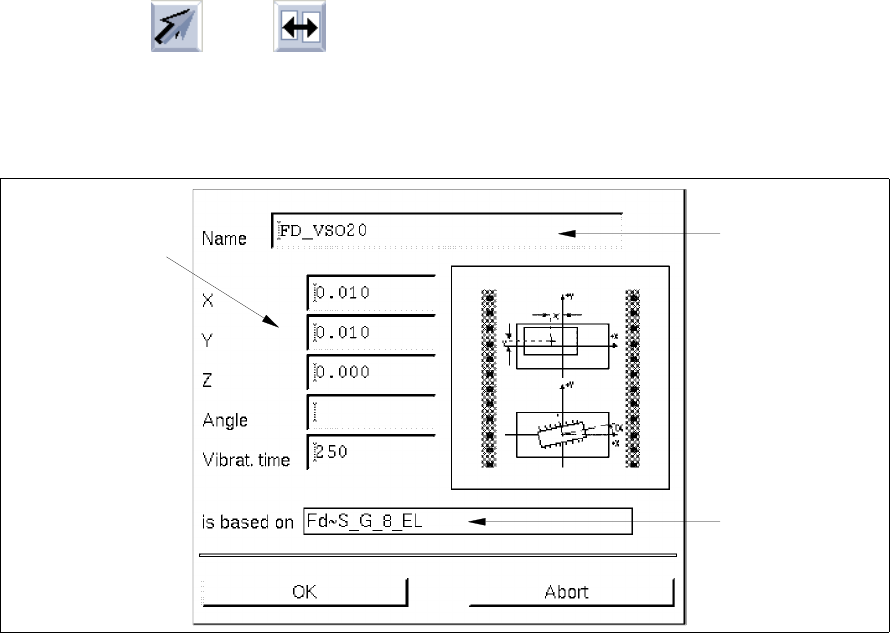

Fig. 9.1.4 Sub-Editor "Feeder data"
Meaning of the editing fields (see also chapt. 13)
- Name
Name of the customer-specific type
- X [mm]
Offset from the component center to the feeder division in x-direction
- Y [mm]
Offset from the component center to the feeder division in y-direction
- Z [mm]
Correction value in z-direction for the component pick-up height from the feeder division
(Normally, no value must be entered here, since the pick-up height is preset in the MA-Data).
- Angle [degree]
Angle of component pick-up from the feeder division (required due to the packaging)
- Vibrat. time [ms]
Vibration time of the selected feeder type
(The vibration time applies to both divisions of the feeder simultaneously).
Editing field
"Name"
Name of
SIEMENS type
(default type)
Editing fields
"Packaging offset
and vibration time"
