User Manual Line Computer UNIX 10 Production Tools / Restrictions
Software Version 501.xx 01/99 Issue 10.1 Restriction Editor
10 - 9
Defining bindings
to the complete line:
● Click on arrow below the display of the stations (see Fig. 10.1.1).
The window for the definition of bindings is opened (see Fig. 10.1.2).

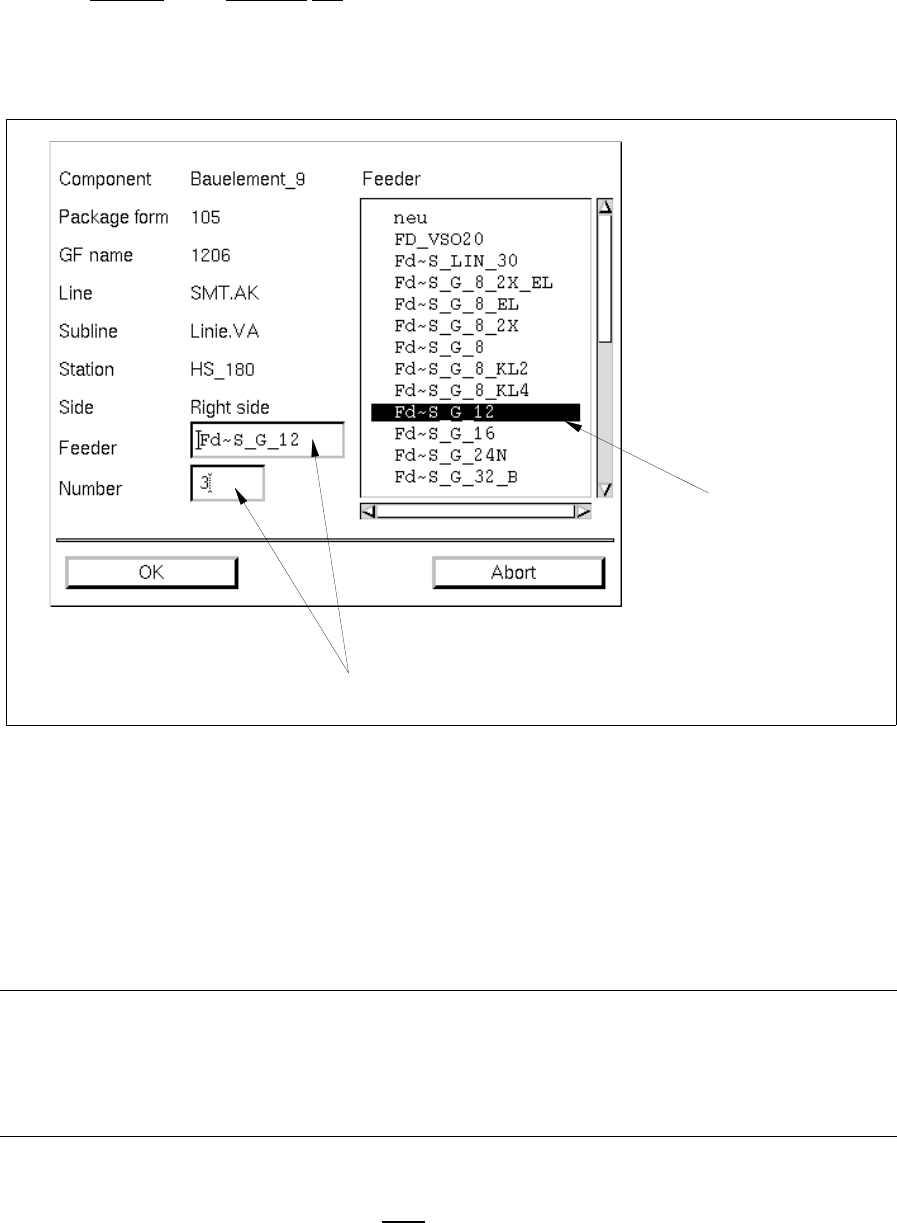

Fig. 10.1.2 Window for the Definition of Bindings
Meaning of the editing fields
- Feeder
Name of the particular feeder or waffle-pack tray by means of which the current component must be
set up at the selected location.
NOTE
Any entry in the editing field "Feeder" is not required.
If no entry is made the default or alternative feeding unit (feeder or waffle-pack tray) specified for the
component and the machine is automatically defined.
- Number
Indicates how often the current component must
be set up at the selected location. As default value a
"1" is entered.
selection field
"Feeder"
editing fields
10 Production Tools / Restrictions User Manual Line Computer UNIX
10.1 Restriction Editor Software Version 501.xx 01/99 Issue
10 - 10
Defining bindings:
Defining a particular feeding unit:
● Select the desired feeding unit (feeder or waffle-pack tray) from the "Feeder" selection field (see
Fig. 10.1.2). The name of the selected feeding unit is entered in the "Feeder" editing field.
Or else:
● Click on the "Feeder" editing field and enter the name of the desired feeding unit.
Defining the quantity:
● Click on the "Number" editing field, delete the default value using the DELETE key and enter the
desired quantity.
● Click on OK for the entered data to be accepted.
The window is closed.
All locations where the current component must be set up are now highlighted in yellow. (If the com-
plete line is selected, the binding is not highlighted in color).
In the selection field "Restrictions/Allocations" the number stating how often the current compo-
nent must be set up at the selected location, the names of the machine type and the feeding unit
are displayed. If a particular feeder part was selected, the side on which the feeder part is
located is entered in addition. The entry as a whole is identified by a "B" (for "binding").
Example: B 3x HS_180 R FD~S_G_8_EL
Number of Machine type Side Feeding unit
bindings (HS-180) (8mm-tape feeder, electric)
Example of a binding to a complete line (without the selection of a feeding unit):
B 6x SMT.ak/line.va
Number of Name of line/name of subline
bindings
- (Exclude)
When this icon is active, the editor is in the mode which allows exclusions for the current component
to be defined.
● Click on icon in the command area.
● In the display area, select the location (feeder part or entire machine) at which the current compo-
nent with the feeder allocated to it must not
be set up (see Fig. 10.1.1). The selected location and
all other locations for which exclusions have already been defined are now highlighted in red.
User Manual Line Computer UNIX 10 Production Tools / Restrictions
Software Version 501.xx 01/99 Issue 10.1 Restriction Editor
10 - 11
In the selection field "Restrictions/Allocations" the name of the machine type on which the current
component must not
be set up is displayed, preceded by the letter "E". If a particular feeder part was
selected, the side on which the feeder part is located is entered in addition.
Example: A S_SIP_80F R
Machine type Side
(SIPLACE 80F) ("right" as seen in the direction of travel)
NOTE
If in the selection field "Restrictions/Allocations" a side ("R" or "L") is entered in addition to the name
of the machine type, the exclusion applies to this side only (feeder part) and not the entire machine
type.
An exclusion can be reversed again by clicking on a location highlighted in red.
- (Delete)
When this icon is active, the editor is in the deletion mode. Entries of bindings, exclusions or allocati-
ons selected in the selection field "Restrictions/Allocations" are deleted. Moreover, the customer-spe-
cific types created in the Restriction Editor can be deleted in the selection field "Placeable feeders".
● Click on icon in the command area.
● Select the restriction or allocation you want to delete from the selection field "Restrictions/Alloca-
tions" or select the "customer-specific type" from the selection field "Placeable feeders". The
selected entry is deleted from the selection field.
Saving the defined allocations, bindings and exclusions
● Select menu option FILE --> Save.
The current data are saved to the ".rs" restriction file of Job data/Losplanung.
