12 Production Tools / Station and Line Confi guration User Manual Line Computer UNIX 12.1 Configuration Edit or Software Version 501.xx 01/99 Issue 12 - 16 - PCB Centering -> MVS 340 sel ectio n of im age proc essing …
User Manual Line Computer UNIX 12 Production Tools / Station and Line Configuration
Software Version 501.xx 01/99 Issue 12.1 Configuration Editor
12 - 15
12.1.3.3 Main Window of Machine Options Editor "Station and Station Extension"

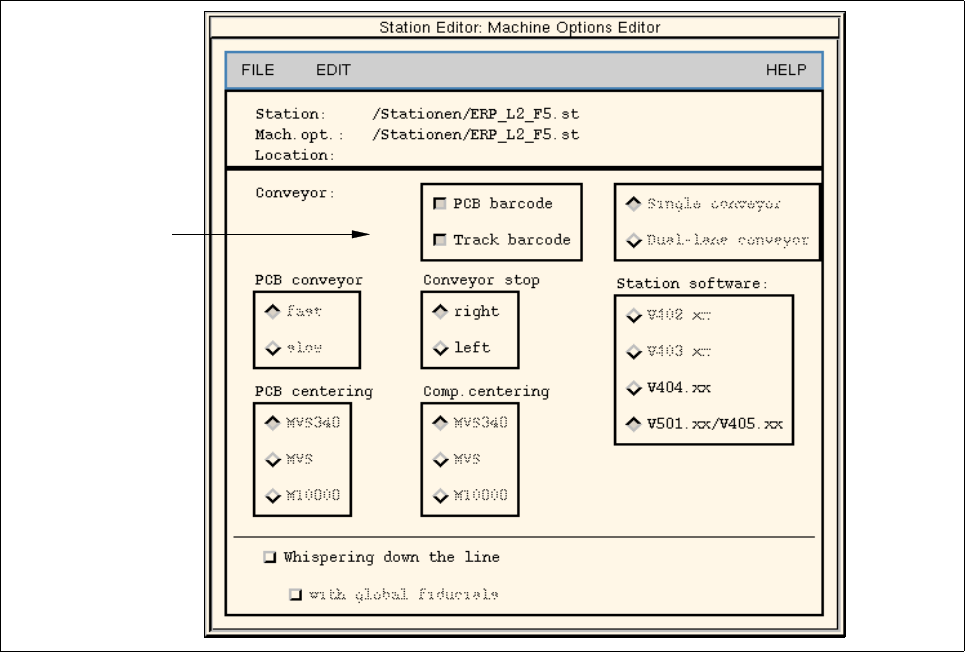

Fig. 12.1.4 Machine Options Editor "Station SIPLACE"
POSSIBLE SETTINGS for the machine option "SIPLACE station" (standard machine)
- Conveyor -> PCB barcode PCB recognition with/without barcode
- Conveyor -> Track barcode component type recognition for track-related refilling
with/without barcode
- Conv. limit stop -> right determining the right or left conveyor stop
Conv. limit stop -> left
- Station software -> V402.xx The data that are sent to the station are created in the
Station software -> V403.xx selected format (LRU.402.xx, LRU.403.xx, LRU.404.xx
Station software-> V404.xx or LRU.501xx/405.xx).
Station software-> V501.xx/405.xx
setting area
12 Production Tools / Station and Line Configuration User Manual Line Computer UNIX
12.1 Configuration Editor Software Version 501.xx 01/99 Issue
12 - 16
- PCB Centering -> MVS340 selection of image processing system type for PCB centering
PCB Centering -> MVS ("MVS" and "MVS340" for all-SIPLACE" lines,
PCB Centering -> MVS1000 MVS "M10000" for SIPLACE lines with HS-180)
- Comp Centering -> MVS340 selection of image processing system type for component
Comp Centering -> MVS centering ("MVS" and "MVS340" for "all-SIPLACE" lines,
Comp Centering -> MVS1000 "M10000" for SIPLACE lines with HS-180)
- Whispering down the line Fiducials defined as inkdots are only measured at the
first station. The measuring result is transferred to the
subsequent stations.
- with global fiducials Fiducials for PCB position recognition (including the fiducials
for inkdots) are only measured at the first station.
NOTE
The "Whispering down the line" (WDTL) option can only be used in more recent SIPLACE machine
generations such as 80S20 or 80F
4
(and later versions, with exception of HS-50).
It serves to reduce machine ancillary times (measuring times) during the processing of PCBs since the
position of all fiducials is determined only at the first station of a line.
At the subsequent stations merely two fiducials are measured, and the position of any other fiducials
that may be required is calculated from the measuring results transferred from the preceding station
in each case.
Only if the button for "Whispering down the line" is activated can the button "with global fiducials" be
activated in addition.
The setting of the "Whispering down the line" option must be the same on all stations.
User Manual Line Computer UNIX 12 Production Tools / Station and Line Configuration
Software Version 501.xx 01/99 Issue 12.1 Configuration Editor
12 - 17
Fig. 12.1.5 Machine Options Editor "Station HS-180"
POSSIBLE SETTINGS for the machine option "HS-180 Station" (standard machine)
- Conveyor -> Ultrasonic PCB tracking with/without ultrasonic detecting system
- Conveyor -> PCB barcode PCB recognition with/without barcode
- Conveyor -> Track barcode component type recognition for track-related refilling
with/without barcode
- PCB conveyor -> fast setting the PCB conveyor to the fast or slow mode
PCB conveyor -> slow
setting area
