12 Production Tools / Station and Line Configuration User Manual Line Computer UNIX
12.1 Configuration Editor Software Version 501.xx 01/99 Issue
12 - 20
Command Area
The commands are symbolized by means of icons. They determine the mode (selection mode, allocation mode
or deletion mode) in which the Configuration Editor is to operate.
NOTE
Upon opening, the Configuration Editor is initially in the selection mode. If nozzles are allocated in the
Configuration Editor with the aid of the Machine Options Editor, they are deemed to be configured and
their allocation cannot
be changed any more in the Set-Up Editor (see chapt. 13, section 13.1.3.6).
If the nozzle changer is to be configured differently for the various setups, it is important that the allocation
of the nozzles be carried out only in the Set-Up Editor.
- Create
If this icon is active, a nozzle can be allocated to a location in the Nozzle Changer.
NOTE
If the Machine Options Editor for the nozzle changer of an HS-50 placement station is invoked, a second
icon for "Create" is displayed in the bottom
portion of the command area (see Fig. 12.1.7). A second
nozzle changer (option) can be set up when this icon is activated.
● Click on icon in the command area.
● Click on the target location in the Divisions selection field.
● Click on a nozzle in the Nozzle selection field.
The number of the nozzle is then entered in the target location.
- Move
If this icon is active, a nozzle can be moved to another location within a Nozzle Changer.
● Click on icon in the command area.
● Click on the target location in the Divisions selection field.
● Click on the nozzle you wish to move.
The moved nozzle is displayed in the target location (division).
User Manual Line Computer UNIX 12 Production Tools / Station and Line Configuration
Software Version 501.xx 01/99 Issue 12.1 Configuration Editor
12 - 21

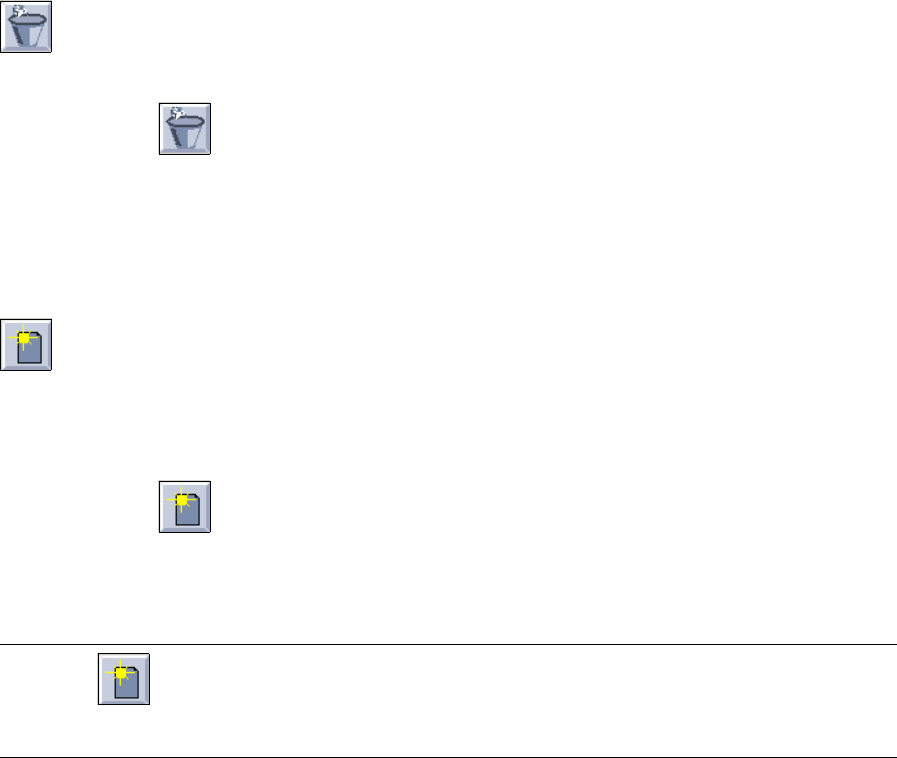

- Delete
If this icon is active, a nozzle can be deleted from a location in the Nozzle Changer.
● Click on icon in the command area.
● Click on the nozzle at the particular location.
The nozzle is deleted from the location without any verification query being displayed.
- (Create/set up a second nozzle changer)
(unique to machine type HS-50)
To set up a second nozzle changer for a revolver head:
● Activate icon in the lower part of the command area.
The second nozzle changer is now set up.
Five additional compartments are now available in the "Locations" selection field. The nozzles are
allocated to these compartments in the same way as for the first nozzle changer.
NOTE
If the icon is clicked on once more (deactivated), the second nozzle changer is no longer
set up.
