Waffle-pack tray carrier

Clicking on the "Waffle-pack tray carrier" icon causes a list of all waffle-pack tray carriers and manual

trays with their designations to be displayed in the display area.

Example of the designation of waffle-pack tray carriers:

FT~S_M_FB_51 FT

: waffle-pack tray carrier

S_M_FB_51

: type designation

Display field "Feeder list"

In the display field the lists of the feeders, waffle-pack trays, modules or waffle-pack tray carriers are displayed

that were selected by means of the respective icons.

The feeding units contained in the feeder list are displayed together with their most important characteristics

and their designations. The feeding units are displayed in gray, the divisions of the feeders and waffle-pack

trays are highlighted in dark-blue.

When the lower scroll bar is moved, the front of the feeders and modules can be displayed.

13.1.3.2 Machine Options List

Clicking on the option "Options list" on the SERVICES menu causes the machine options list to be opened (see

Fig. 13.1.9 ).

The machine options list contains the options that can be defined for a line, these being Coplanarity Module,

Nozzle Changer, component centering and disposal belt. These options are allocated to the feeder parts in the

Station Configuration. They cannot be allocated in the Feeder Part Editor, except for the component disposal

conveyor for SIPLACE 80S-20/S-23/F4/F5 placement stations.

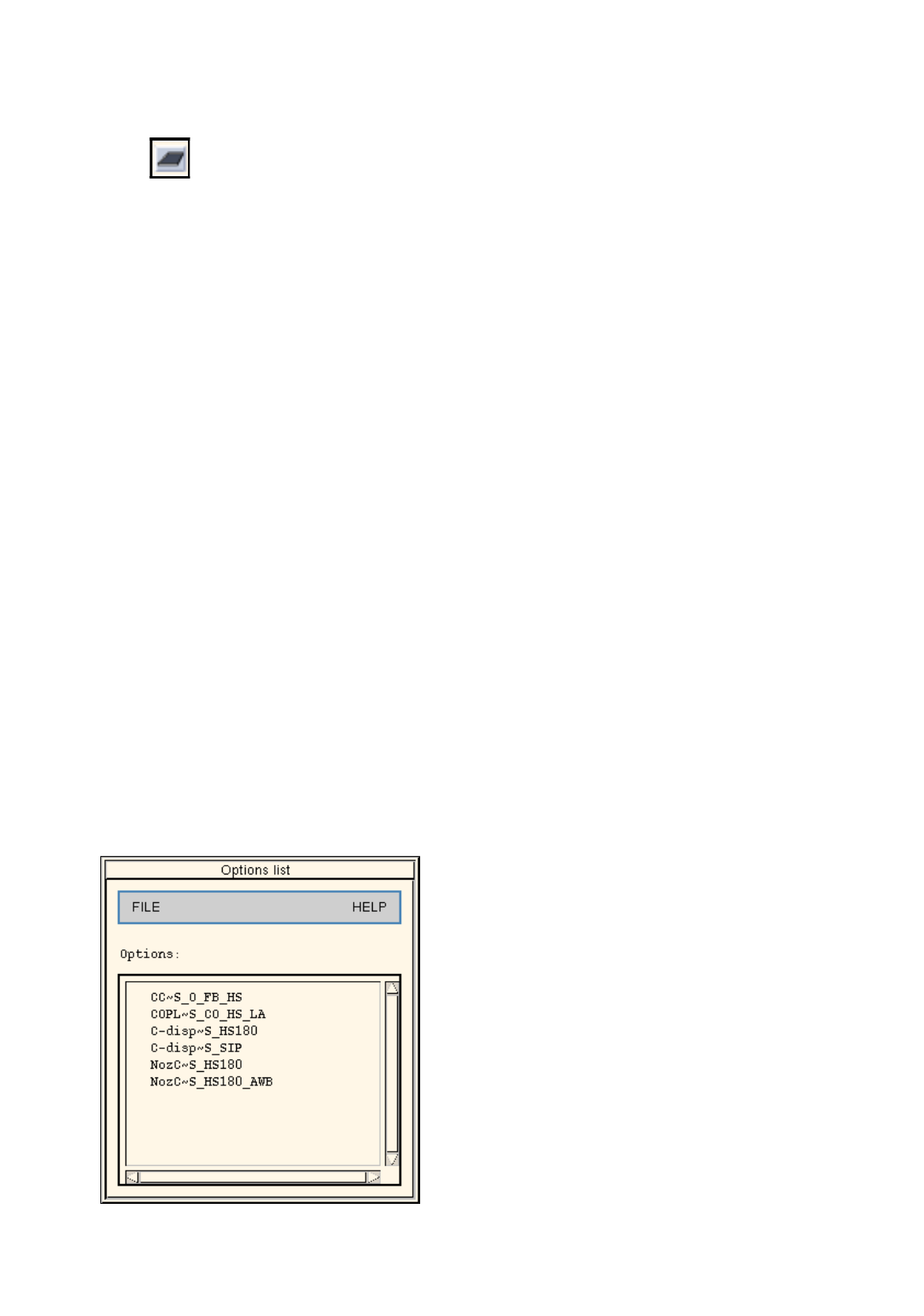

Fig. 13.1.9 Machine Options List

13 Production Tools / Set-Up User Manual Line Computer UNIX

13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 501.xx 01/99 Issue

13 - 16

If the Feeder Part Editor was opened from the Configuration Editor, (see chapt. 12, section 12.1.2.4), the options

can be allocated to the tracks of the feeder parts, provided they are allowed to be set up there.

CC~S_O_FB_HS

Component centering station for HS180;

can be set up only once on the left feeder part of an HS180.

COPL~S_CO_HS180

Coplanarity module for HS180;

can be set up only once on the right feeder part on an HS180.

C-disp~S_HS180

Component disposal belt for HS180;

can be set up once on either feeder part of an HS180.

C-disp~S_SIP

Component disposal belt for Siplace;

can be set up once on either feeder part of a Siplace

80S-20/S-23/F4/F5.

NozC~S_HS180

Nozzle Changer for HS180;

can be set up only once on the left feeder part of an HS180.

NozC~S_HS180_AWB

Nozzle Changer for HS180 with reject box;

can be set up only once on the left feeder part of an HS180.

13.1.3.3 Packaging Box/Packaging Editor

Owing to variations of the exact position of components in the divisions and compartments of tape feeders and

waffle-pack trays it may be necessary to correct the packaging offsets or vibration times to ensure that the

components are picked up with absolute precision.

These corrections are entered in the Packaging Editor. The Packaging Editor is opened by clicking on the

"Packaging box" option on the SERVICES menu.

The Packaging box option is only actually activated when a feeder division or the compartments of a waffle-

pack tray are selected.

The editing area of the Packaging Editor is different for feeders and waffle-pack trays. Therefore, the Packaging

Editors for feeders and waffle-pack trays are described separately in the two sections that follow.

13.1.3.4 Packaging Editor for Feeders

If the coordinates, the pick-up angle or the vibration time of a given component are not accurate, this can be

corrected in the Packaging Editor. These corrections are made separately for each individual feeder division

(see Fig. 13.1.10).

The allocation of the division number to the feeder division is preset by the factory and cannot be changed. The

top division is division 1, the lower division is division 2. Where only one division is available, this division is

division number 1 (see also Fig. 13.1.2).

A separate Packaging Editor is opened for each division. In the title bar of the window, division 1 is identified

by <1> and division 2 by <2>.

User Manual Line Computer UNIX 13 Production Tools / Set-Up

Software Version 501.xx 01/99 Issue 13.1 Set-Up Editor (Feeder Part and WPC Editors)

13 - 17

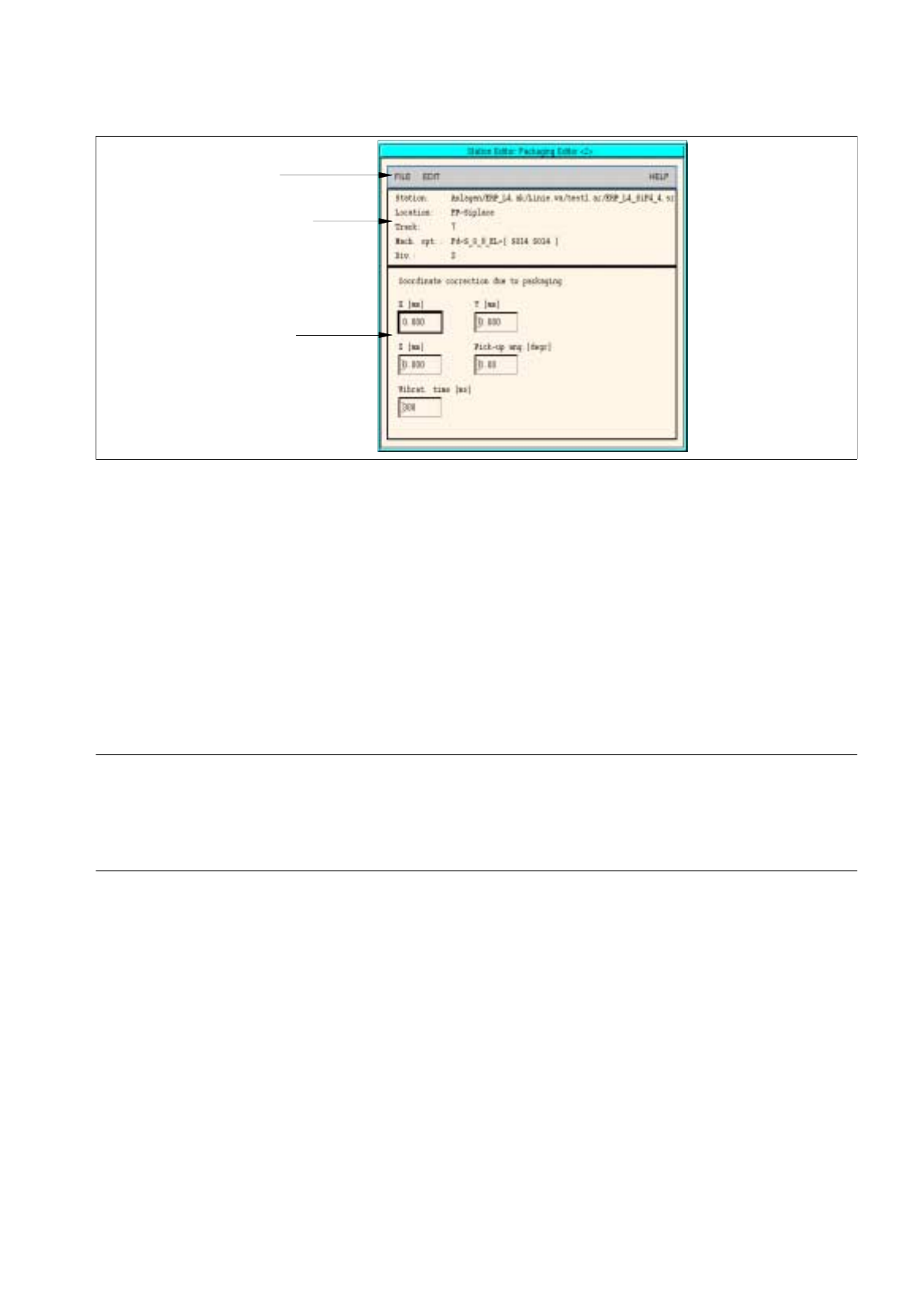

Fig. 13.1.10 Packaging Editor for Feeders

The Packaging Editor for feeders is subdivided into the following areas:

Menu bar

Identification field

Editing area

Menu Bar

The menu bar contains the menus "FILE", "EDIT" and "HELP".

NOTE

The functions and the operation of the menus "FILE" and "HELP" are similar to those in other application

programs of the line computer and are described in detail in chapt. 2 "General Information on Using the

Program".

EDIT Menu

The EDIT menu contains the following options:

Reset data

The corrections are deleted from all editing fields. The factory-set default values are redisplayed.

Delete comp.

The component is deleted from the feeder division. This is indicated by a minus sign in the identifica-

tion field.

menu bar

identification field

editin

area
