User Manual Line Computer UNIX 13 Production Tools / Set-Up Software Version 501.xx 01/99 Issue 13.1 Set-Up Editor (Feeder Part and WPC Editors) 13 - 25 13.1.3.6 Nozzle Changer / Machine Options Editor Clicki ng on the &…
13 Production Tools / Set-Up User Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 501.xx 01/99 Issue
13 - 24

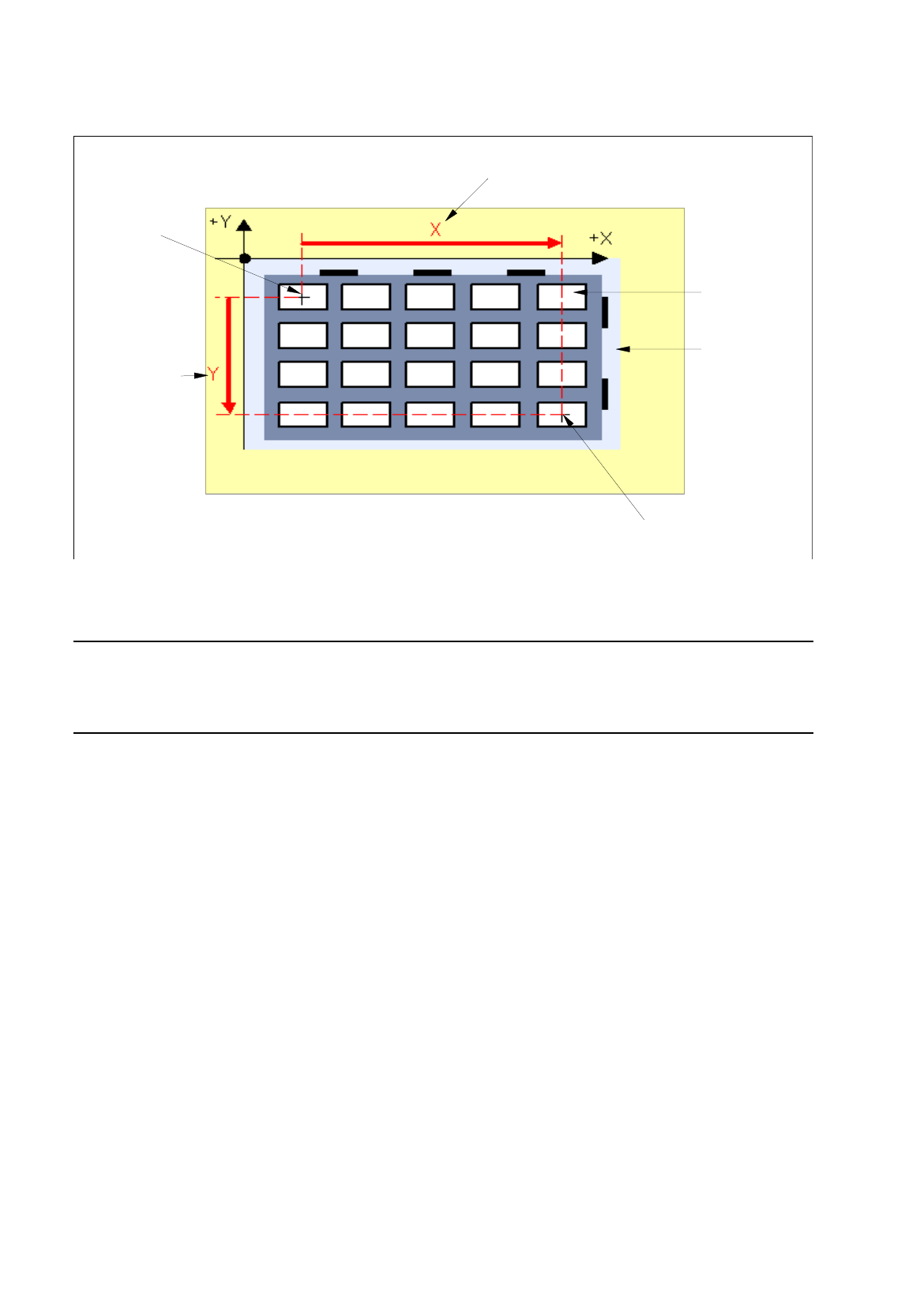

Fig. 13.1.18 Diagonal in X- Direction and Y-Direction
NOTE
If offset values were entered that are not valid for the selected feeder type, the respective editing fields are
surrounded by a red frame. The invalid values must first be corrected before all values can be accepted.
center of last compartment
center of
first compart-
dia
g
onal X
[
mm
]
dia
g
onal
Y
[
mm
]
compartment
of waffle-
pack tra
y
waffle-pack
tra
y
carrier
ment
User Manual Line Computer UNIX 13 Production Tools / Set-Up
Software Version 501.xx 01/99 Issue 13.1 Set-Up Editor (Feeder Part and WPC Editors)
13 - 25
13.1.3.6 Nozzle Changer / Machine Options Editor
Clicking on the "Nozzle Changer" option on the SERVICES menu causes the window "Machine Options
Editor" to be opened (see Fig. 13.1.19).
The Nozzle Changer can be configured with the required nozzles for a given set-up in the Machine Options
Editor. The nozzles are allocated to the individual locations (divisions) of the Nozzle Changer. Within a Nozzle
Changer nozzles can be moved or deleted. This allocation can be changed at any time as required.
The Machine Options Editor can also be invoked upon setting up the station configuration in order to permanently
assign particular nozzles to given locations (divisions). This allocation can only be changed there.
If nozzles were assigned to given locations in the nozzle changer in Station Configuration, they are displayed
upon opening the Machine Options Editor. These locations cannot be changed in the Feeder Part Editor.

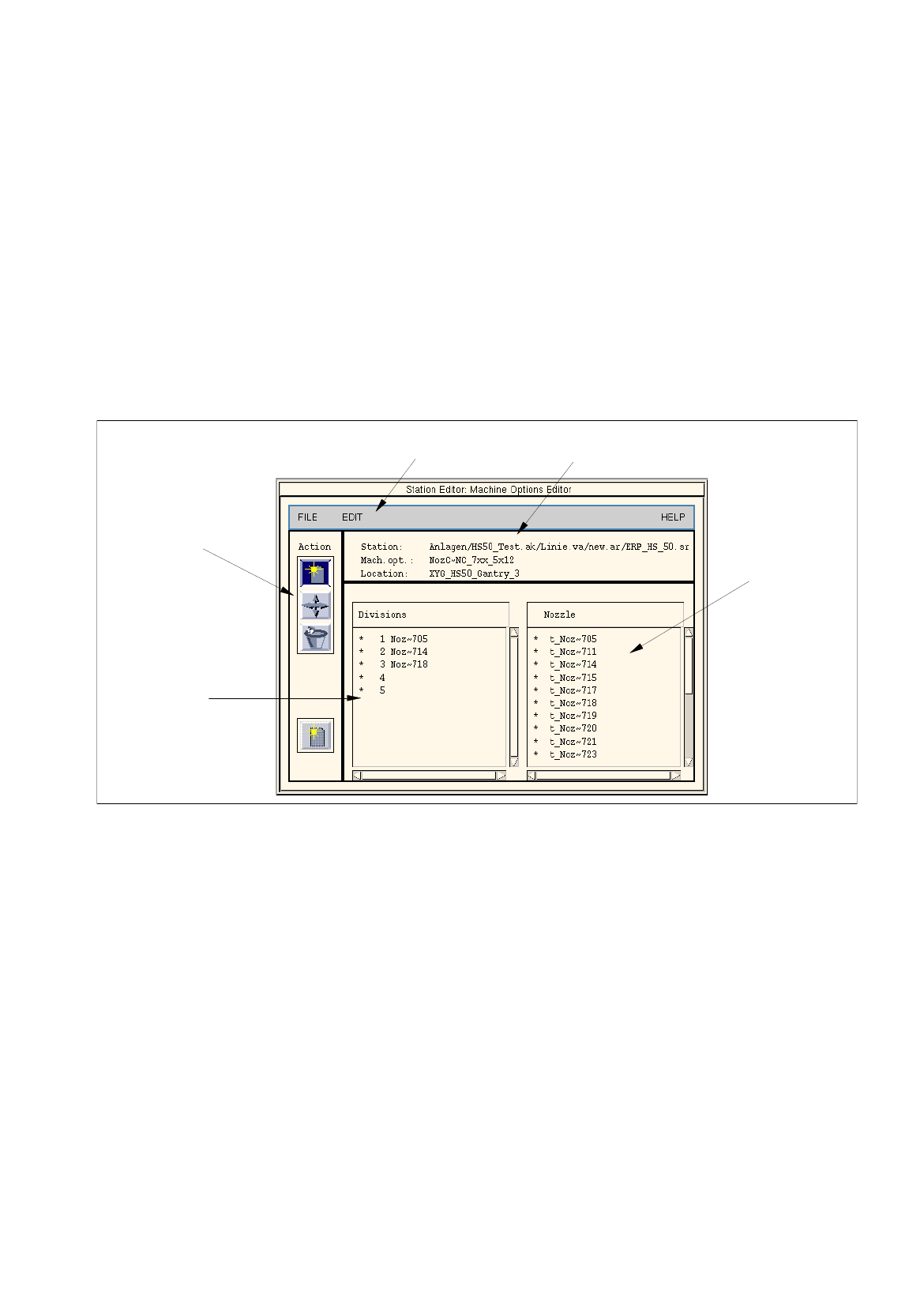

Fig. 13.1.19 Machine Options Editor
The Machine Options Editor is subdivided into the following areas:
-
Menu bar
-
Identification field
-
Command area
-
Selection field "Divisions"
-
Selection field "Nozzle"
menu bar identification field
selection field
"Nozzle"
command
selection field
"Divisions"
area
13 Production Tools / Set-Up User Manual Line Computer UNIX
13.1 Set-Up Editor (Feeder Part and WPC Editors) Software Version 501.xx 01/99 Issue
13 - 26
Menu Bar
The menu bar contains the menus "FILE", "EDIT" and "HELP".
NOTE
The functions and the operation of the menus "FILE" and "HELP" are similar to those in other application
programs of the line computer and are described in detail in chapt. 2 "General Information on Using the
Program".
EDIT
Menu
The EDIT menu contains the following option:
-
Reset
This function cannot be executed as of yet.
Identification Field
The identification field contains the following data which cannot be edited:
-
Station:
Name of the current station including Overall system/subline/line/set-up/
station name
-
Mach.opt.:
Name of the Nozzle Changer
-
Location:
Name of the location where the machine option is set up
Command area
Commands are available in the command area by means of which nozzles can be allocated, moved and deleted.
For a commond to be executed, it must be clicked on. The icon turns gray then.
-
Create
If this icon is active, a nozzle can be allocated to a location in the Nozzle Changer.
NOTE
If the Machine Options Editor was invoked for an HS-50 placement station in the Feeder Part Editor,
an additional (inactive) icon for "Create" is displayed in the bottom portion of the command area
(see Fig. 13.1.19). This icon enables a second nozzle changer to be set up in the station configuration
(see chapt. 12, section 12.1.3.5).
●
Click on icon in the command area.
●
Click on the target location in the Divisions selection field.
●
Click on a nozzle in the Nozzle selection field.
The number of the nozzle is then entered in the target location.
