3 Desktop (Root Window)
3.1 Introduction
This chapter of the User’s Manual provides the user with information on the layout, function and operation of
the desktop (root window). The desktop is the user interface of the entire LC system and is displayed after the
LC software has been started up (see chapt. 2, section 2.1.1).
3.1.1 Layout of the Desktop
The desktop fills the entire screen and cannot be changed in size. The appearance of the desktop depends on
whether the LC program is started in the user mode
Programming mode
or
Control mode
. Even though the
appropriate mode was already set upon the installation of the LC software (see chapt. 1), it can be changed by
means of the OPTIONS menu (see section 3.2.1.2). Depending on the user mode selected, the tools on the
desktop can be used to fulfill varying tasks.
- In the
programming mode
the desktop provides the user with all tools required to completely define a
product and to control its production.
- In the
control mode
the desktop provides the user only with those tools in the form of icons that are
required for the production (control). The other tools can be activated via the menu options of the
"PRODUCT" and "PRODUCTION TOOLS" menus (see section 3.2.1.4 and section 3.2.1.5).
3 Desktop (Root Window) User Manual Line Computer UNIX
3.1 Introduction Software Version 501.xx 01/99 Issue
3 - 2

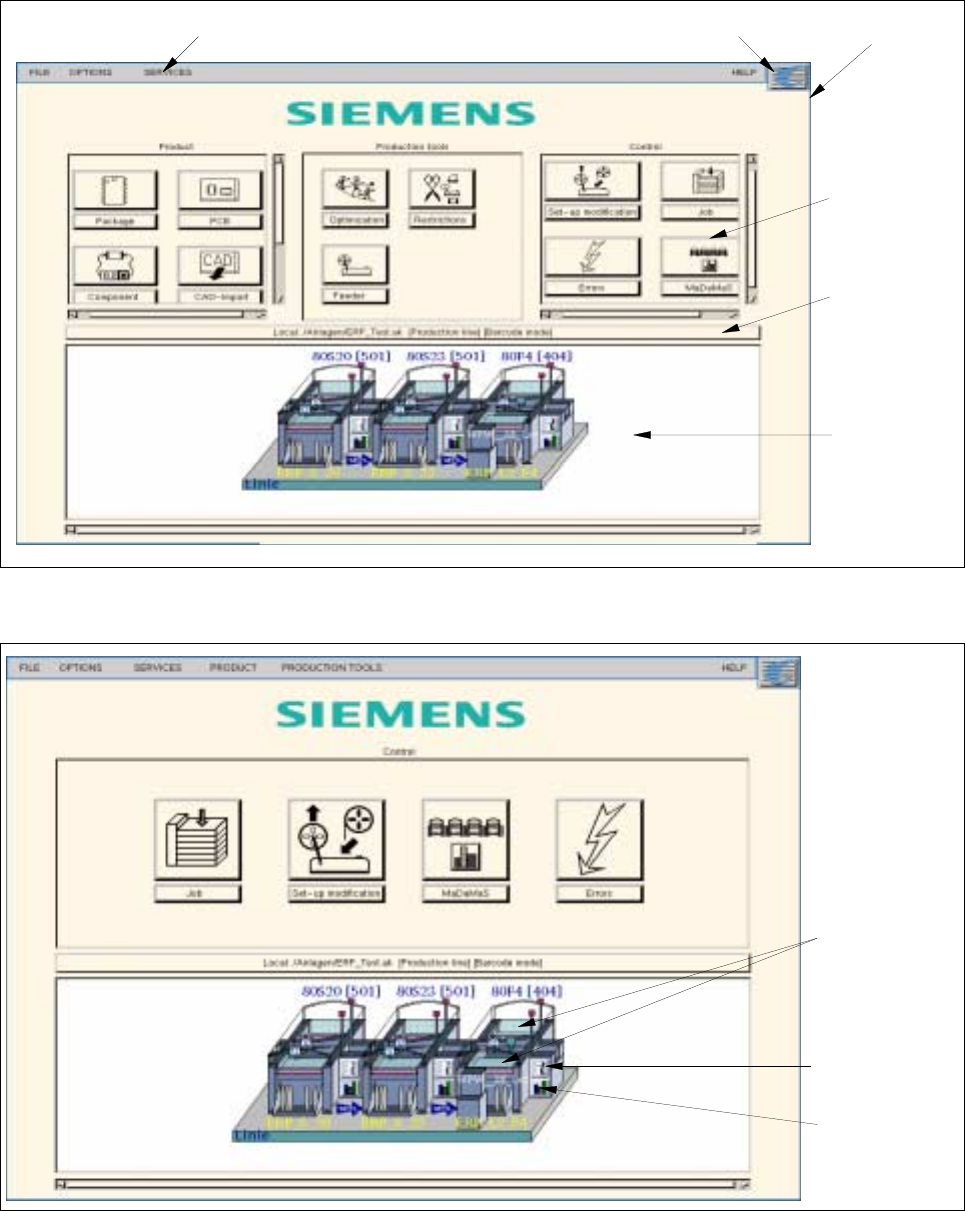

Fig. 3.1.1 Layout of the Desktop in the Programming Mode
Fig. 3.1.2 Layout of the Desktop in the Control Mode
desktop menu bar SMD symbol
main group
line selection
(current line
configuration)
main menu
display
area
button (for the
selection of a
new line)
feeder parts
symbol "i“ for
station
controller
bar chart
symbol for
MaDaMaS
