The desktop is subdivided into the three sections described below:
- Upper area containing the desktop menu bar
The menu bar contains the following menus:
FILE
OPTIONS
SERVICES
PRODUCT (only available in the control mode)
PRODUCTION TOOLS (only available in the control mode)
- Middle area containing the main groups
Product (only available in the programming mode)
Production Tools (only available in the programming mode)
Control
Each of these main groups contains the modules of the LC software. These modules are the LC pro-
grams which are displayed in the respective main group as icons when they have been logged on to the
desktop.
- Bottom section featuring the
Line selection button
and the view area
The
Line selection button
displays the pathname of the current line. The type of data storage ("local" or
"central") currently accessed is indicated in front of the pathname as an additional piece of information.
- If the overall line was defined as a production line in the Line Editor, the entry [production line]
is displayed behind the path name (see Fig. 3.1.4).
- If the "with barcode" option was activated for the overall line, the entry [barcode mode] is
displayed behind the path name (see Fig. 3.1.4).
The FSB enabling the selection of a different line can be opened by clicking on the button.
The view area contains a display symbolizing the current line configuration including all stations
existing in the line.
NOTE
The meaning and functions of all elements of the desktop in the programming and control modes are
described in section 3.2.
User Manual Line Computer UNIX 3 Desktop (Root Window)
Software Version 501.xx 01/99 Issue 3.1 Introduction
3 - 5
In addition to the main groups, the desktop contains the SMD symbol for the display of the currently used LC
version:
● Click on the SMD symbol.
A menu with the entries "Index" and "Version" is opened.
● Select entry Version.

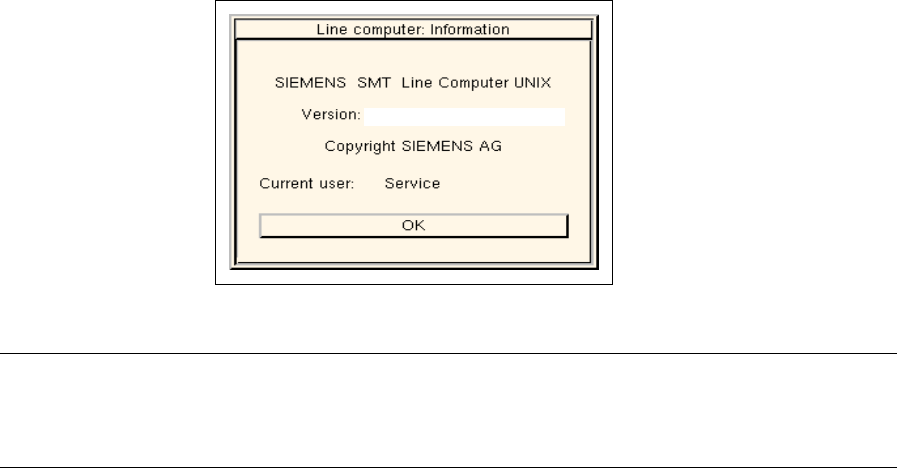

The current version of the LC software and the name of the current user are displayed in an info
box (see example below).
NOTE
If the Index entry is clicked on, the help window containing a listing of all available Help topics is
opened (see chapt. 2, section 2.5.3.1).
LRU.501.01
