- - 3. BASEFRAME ELECTRICAPPA RATUSCOMPO NENTS(1) 4 1 2 8 1 3 1 2 1 0 6 5 2 1 9 1 5 1 7 1 8 1 6 1 4 7 3 3 9 9 1 1 1 1 2 0 2 4 3 3 2 5 2 4 2 7 2 8 2 9 3 4 3 5 3 8 2 6 3 0 2 2 2 3 2 5 3 7 2 1 3 2 3 1 3 6 A A 1 3 9 …

- -

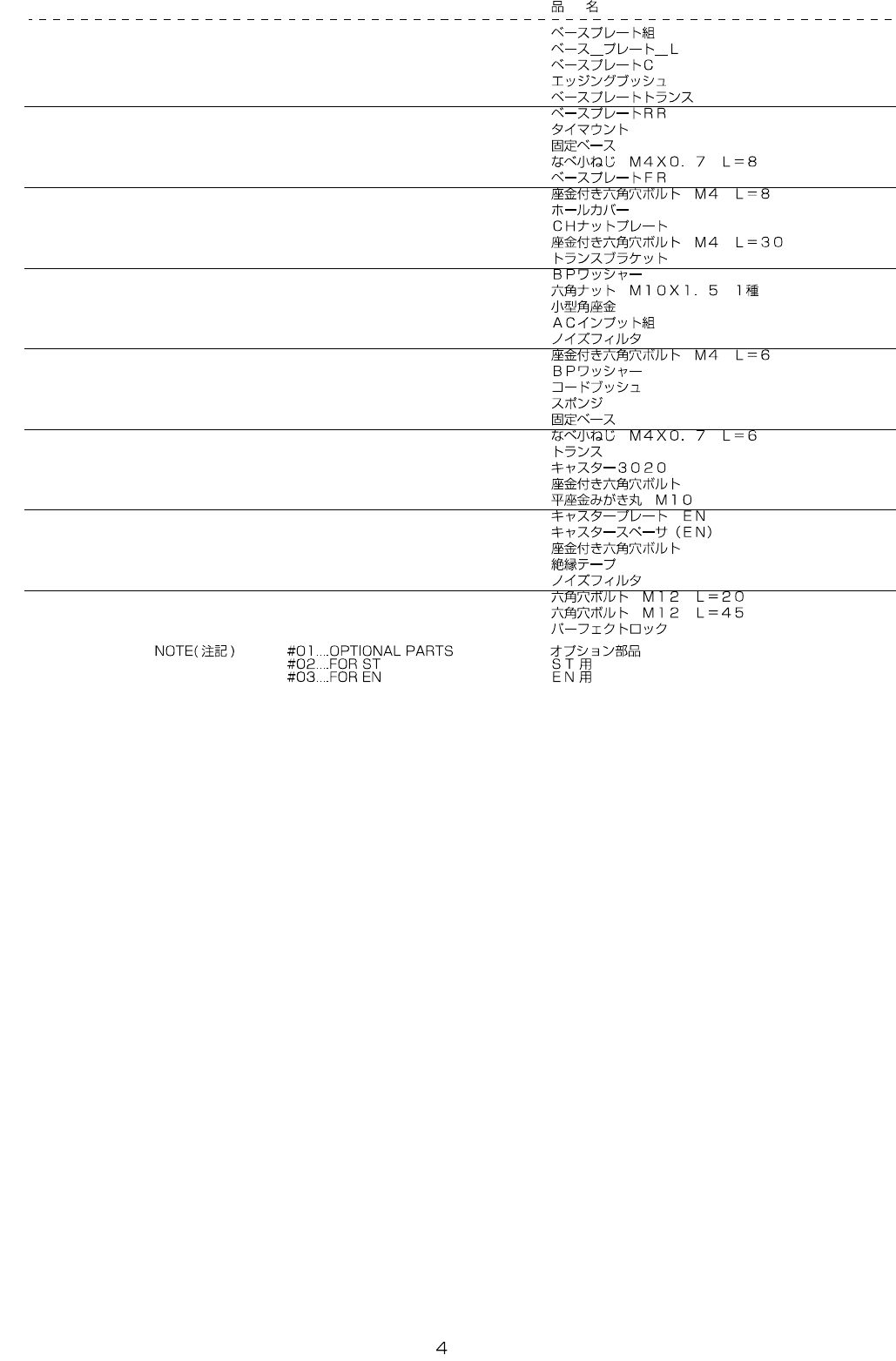

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83538 BASEPLATEASSY 1

2 401-14022 BASE_PLATE_L (1)

3 401-82999 BASE_PLATE_C (1)

4 HX-0009600-0A EDGING (0.07)

5 401-82997 BASE_PLATE_TRANS (1)

6 401-82996 BASE_PLATE_RR (1)

7 HX-0055700-00 TIEMOUNT (6)

8 HX-0029400-00 FIXEDBASE (8)

9 SM-4040801-SC SCREWM4X0.7L=8 (14)

10 401-08554 BASEPLATEFR (1)

11 SL-6040892-TN SCREWM4L=8 (2)

12 400-94549 HOLECOVER (4)

13 400-98142 CHNUTPLATE (4)

14 SL-6043092-TN SCREWM4L=30 (8)

15 401-82998 TRANS_BRACKET (1)

16 400-94475 BPWASHER (22)

17 NM-6100001-SC NUTM10X1.5TYPE1 (18)

18 400-44814 WASHERPLATE (4)

19 401-83540 ACINPUTUNIT 1

20 401-82379 NOISEFILTER (1)

21 SL-6040692-TN SCREWM4L=6 (4)

#01

400-94475 BPWASHER 4

#02

HX-0018800-0F CORDBUSH 1

24 400-80833 SPONGE 22

25 HX-0029400-00 FIXEDBASE 31

26 SM-4040601-SC SCREWM4X0.7L=6 31

#01

401-83386 TRANSFORMER 1

#01

400-94543 CASTER3020 4

#01

SL-6102042-TN SCREW 16

#01

WP-1052001-SC WASHER10 32

#01

400-94545 CASTERPLATEEN 4

#01

400-00406 CASTERSPACER(EN) 4

#01

SL-6104042-TN BOLT 16

34 400-45554 INSULATIONTAPE 0.3

#01

HN-0040100-00 NOISEFILTER 1

#01

SM-9122003-SC BOLTM12L=20 4

37 SM-6124502-TN BOLTM12L=45 4

#03

HX-0057900-00 PERFECTROCK 1

- -

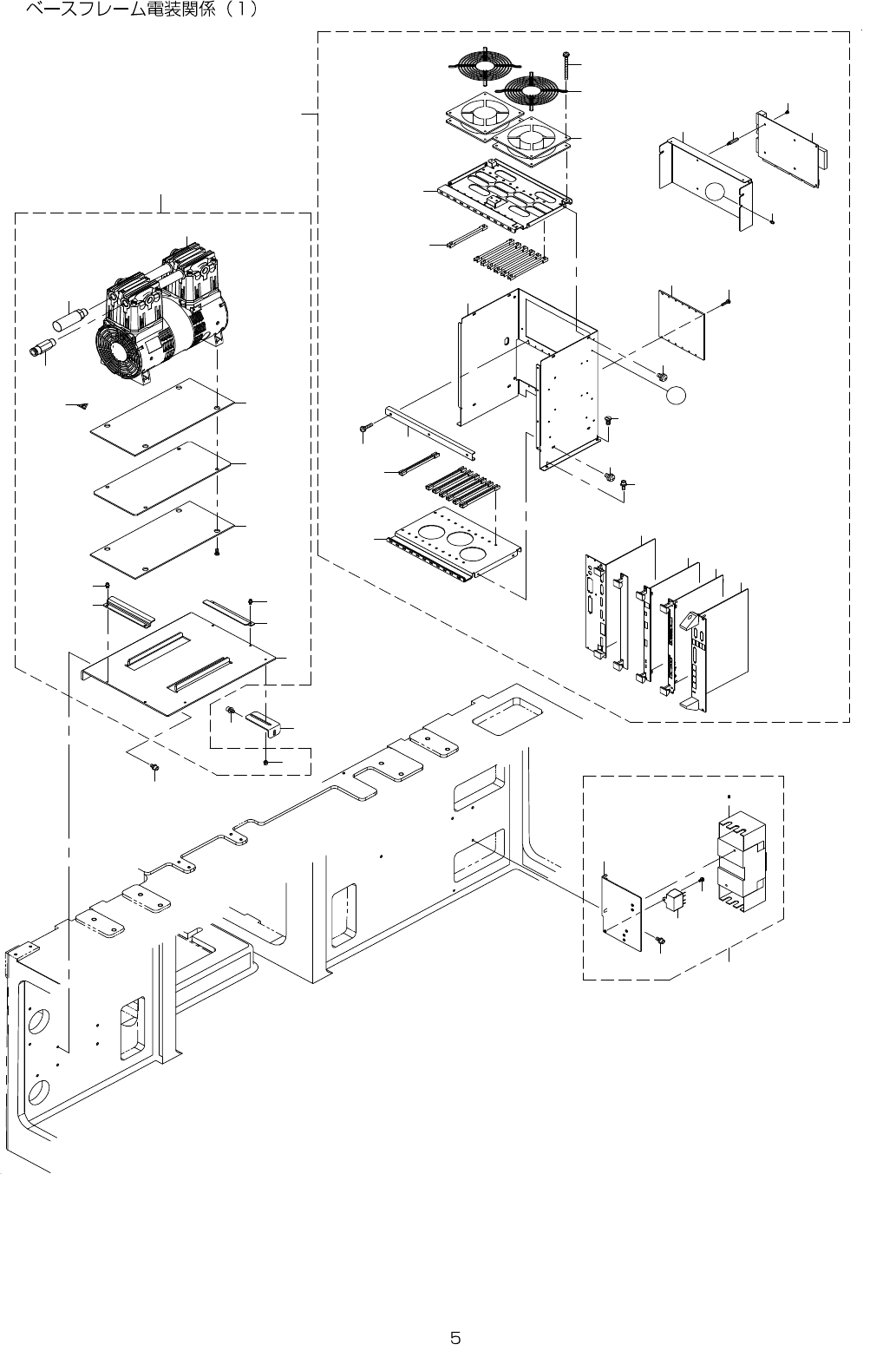

3. BASEFRAMEELECTRICAPPARATUSCOMPONENTS(1)

1 2

1 3

1 2

1 0

1 9

1 5

1 7 1 8

1 6

1 4

1 1

2 0

2 4

3 3

2 5

2 4

2 7

2 8

2 9

3 4

3 5

3 8

2 6

3 0

2 2

2 3

2 5

3 7

2 1

3 2

3 1

3 6

3 9 4 1

4 2

4 0

4 3

4 4

- -

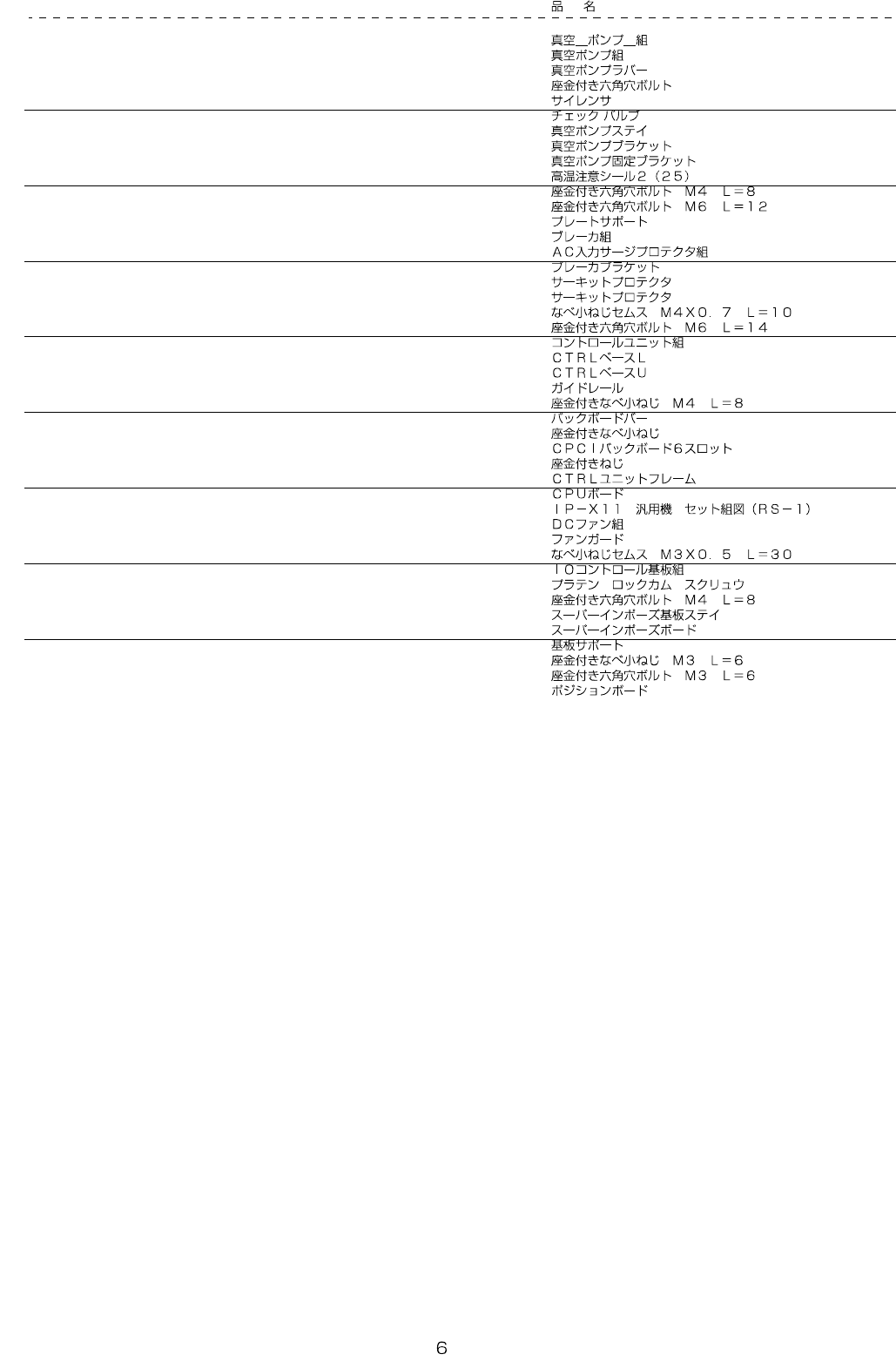

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-47582 VACUUM_PUMP_ASM 1

2 401-29244 VACUUMPUMPASM (1)

3 401-66451 VP_RUBBER (2)

4 SL-6040642-TN BOLT (2)

5 PX-0553020-00 SILENCER (1)

6 PV-0253010-00 CHECKVALVE (1)

7 401-66450 VP_STAY (1)

8 401-66448 VP_BR (1)

9 401-66449 VP_FIX_BR (2)

10 CM-3003000-02 LABEL2(25) (1)

11 SL-6040892-TN SCREWM4L=8 (4)

12 SL-6061292-TN SCREWM6L=12 4

13 401-47523 PLATE_SUPPORT 2

14 401-83539 BREAKER_ASM 1

15 401-29262 ACINPUTSURGEPROTECTORASM (1)

16 401-83474 BREAKER_BR (1)

17 401-82380 CIRCUITPROTECTOR (1)

18 401-82381 CIRCUITPROTECTOR (1)

19 SL-4041091-SC SCREWM4L=10 (1)

20 SL-6061492-TN SCREWM6L=14 (2)

21 401-83537 CTRL_UNIT_ASM 1

22 401-47545 CTRL_BASE_L (1)

23 401-47544 CTRL_BASE_U (1)

24 HX-0002600-00 GUIDERAIL (14)

25 SL-4040891-SC SCREWM4X8 (8)

26 400-47087 BACK_BOAD_BAR (1)

27 SL-4031491-SC SCREWM3X14 (3)

28 401-72512 CPCIBACKBOARD6SLOT (1)

29 SL-4851091-SC SCREW (16)

30 401-47546 CTRL_UNIT_FRAME (1)

31 401-23242 CPUBOARD (1)

32 401-90921 IP-X11SETGENASM(RS-1) (1)

33 401-29141 DCFANASM (2)

34 HM-0003300-30 FANGUARD (2)

35 SL-4033091-SC SCREWM3L=30 (4)

36 401-28871 IOCONTROLPCBASM (1)

37 E1038-871-000 PLATENLOCKCAMSCREW (2)

38 SL-6040892-TN SCREWM4L=8 (2)

39 401-82995 SUPER_INPAUSE_PWB_STAY (1)

40 401-29641 SUPERIMPOSEBOARD (1)

41 HX-0035400-0P SPACER (1)

42 SL-4030681-SC SCREWM3L=6 (1)

43 SL-6030692-TN SCREWM3L=6 (1)

44 401-29648 POSITIONBOARD (1)
