RS-1-Rev02PDFA - 第101页
- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 #01 401-47271 CONVEYOR_COVER_M_ASM 1 2 #02 401-47272 CONVEYOR_COVER_L_ASM 1 3 401-47167 CONVEYOR_COVER_L (2) 4 401-47168 CONVEYOR_SIDE_COVER_L (2) 5 401-47169 C…
- -
48.CONVEYORCOVERCOMPONENTS
3 0
3 0
2 8
2 9
1 3 1 6
9
7
1 2
6
9
5
3
9
9
9
8
7
9
5
4
3
8
9
9
4
9
6
1 1
1 2
1 2
1 0
1 0
2 8
9
2 1 2 2
1 9 2 0
2 6 2 7
2 6 2 7
2 4
1 7 1 8
1 9 2 0
2 6 2 7
2 1 2 2
2 3
2 6 2 7
2 4
2 5
2 6 2 7
2 3
2 6 2 7
2 6 2 7
2 6 2 7
2 6 2 7
2 6 2 7
2 6 2 7
2 5
2 6 2 7
1 7 1 8
- -

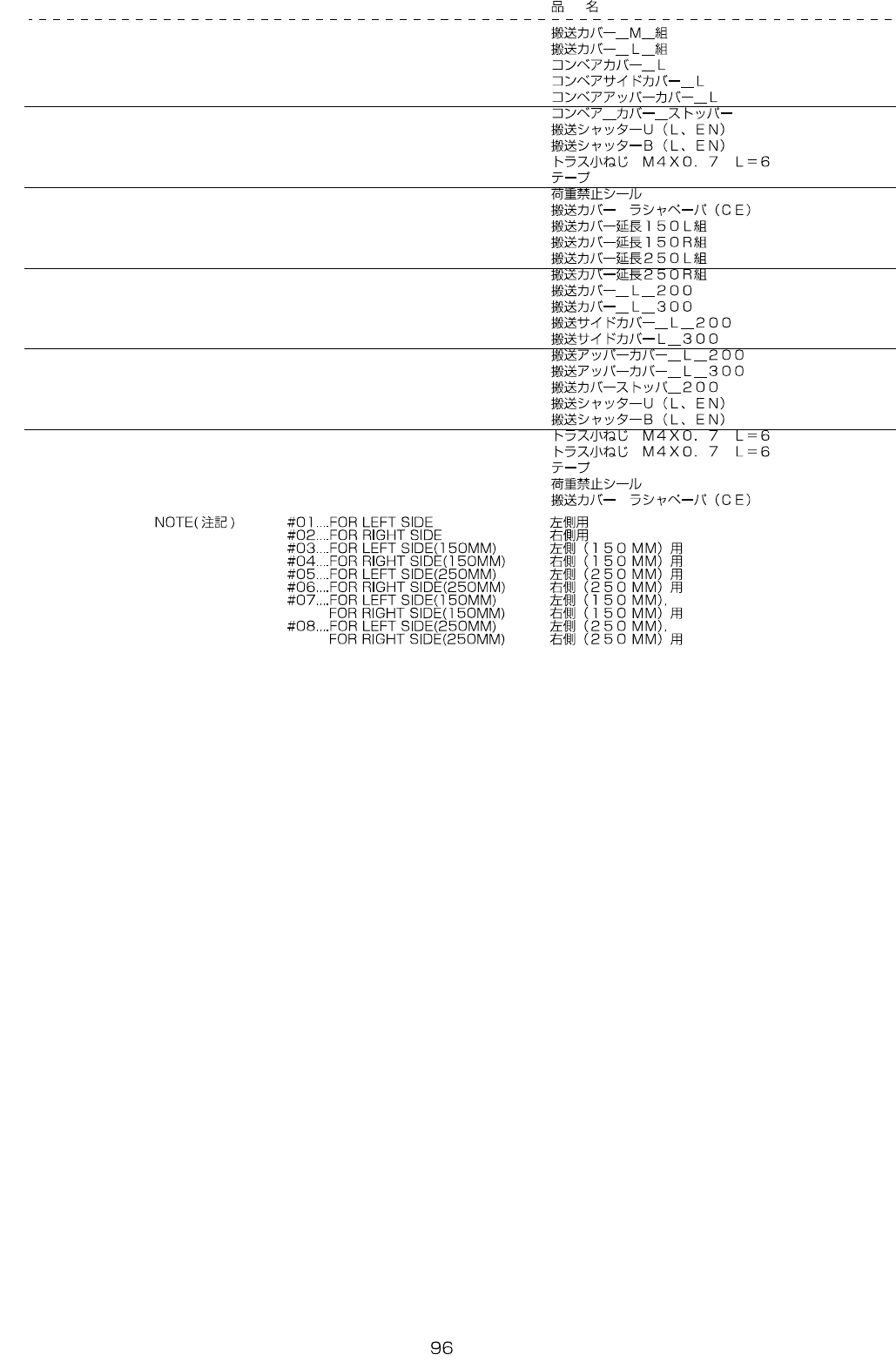

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-47271 CONVEYOR_COVER_M_ASM 1
2
#02
401-47272 CONVEYOR_COVER_L_ASM 1
3 401-47167 CONVEYOR_COVER_L (2)
4 401-47168 CONVEYOR_SIDE_COVER_L (2)
5 401-47169 CONVEYOR_UPPER_COVER_L (2)
6 401-47170 CONVEYOR_COVER_STOPPER (2)
7 400-01484 CONVEYORSHUTTERU(L,EN) (2)
8 400-01485 CONVEYORSHUTTERB(L,EN) (2)
9 SM-0040601-SC SCREWM4X0.7L=6 (38)
10 400-01490 TAPE (3)
11 E5721-729-000 LABEL (2)
12 E1143-721-000 WOOLENCLOTHPAPER (4)
13
#03
401-87792 CONVEYOR_COVER_EX_150L_ASM 1
14
#04
401-87793 CONVEYOR_COVER_EX_150R_ASM 1
15
#05
401-87794 CONVEYOR_COVER_EX_250L_ASM 1
16
#06
401-87795 CONVEYOR_COVER_EX_250R_ASM 1
17
#07
401-47189 CONVEYOR_COVER_L_200 (2)
18
#08
401-86619 CONVEYOR_COVER_L_300 (2)
19
#07
401-47190 CONVEYOR_SIDE_COVER_L_200 (2)
20
#08
401-86620 CONVEYOR_SIDE_COVER_L_300 (2)
21
#07
401-47191 CONVEYOR_UPPER_COVER_L_200 (2)
22
#08
401-86621 CONVEYOR_UPPER_COVER_L_300 (2)
23 401-47192 CONVEYOR_COVER_STOPPER_200 (2)
24 400-01484 CONVEYORSHUTTERU(L,EN) (2)
25 400-01485 CONVEYORSHUTTERB(L,EN) (2)
26
#07
SM-0040601-SC SCREWM4X0.7L=6 (40)
27
#08
SM-0040601-SC SCREWM4X0.7L=6 (38)
28 400-01490 TAPE (2.8)
29 E5721-729-000 LABEL (2)
30 E1143-721-000 WOOLENCLOTHPAPER (4)
- -
49.IFS-NXCOMPONENTS
1
1
2
3
4
5
6
7
7
8
8
5
9
9
1 0
1 0
