- - 18. OCCCOMPON ENTS 3 5 1 9 2 0 2 1 1 6 3 2 3 1 3 0 2 7 1 4 2 6 2 4 2 5 3 4 1 2 1 3 2 8 4 8 3 A 5 A 9 1 0 2 1 5 1 7 2 3 2 2 2 9 3 3 1 1 1 8 1 5 6 7

100%1 / 128
- -

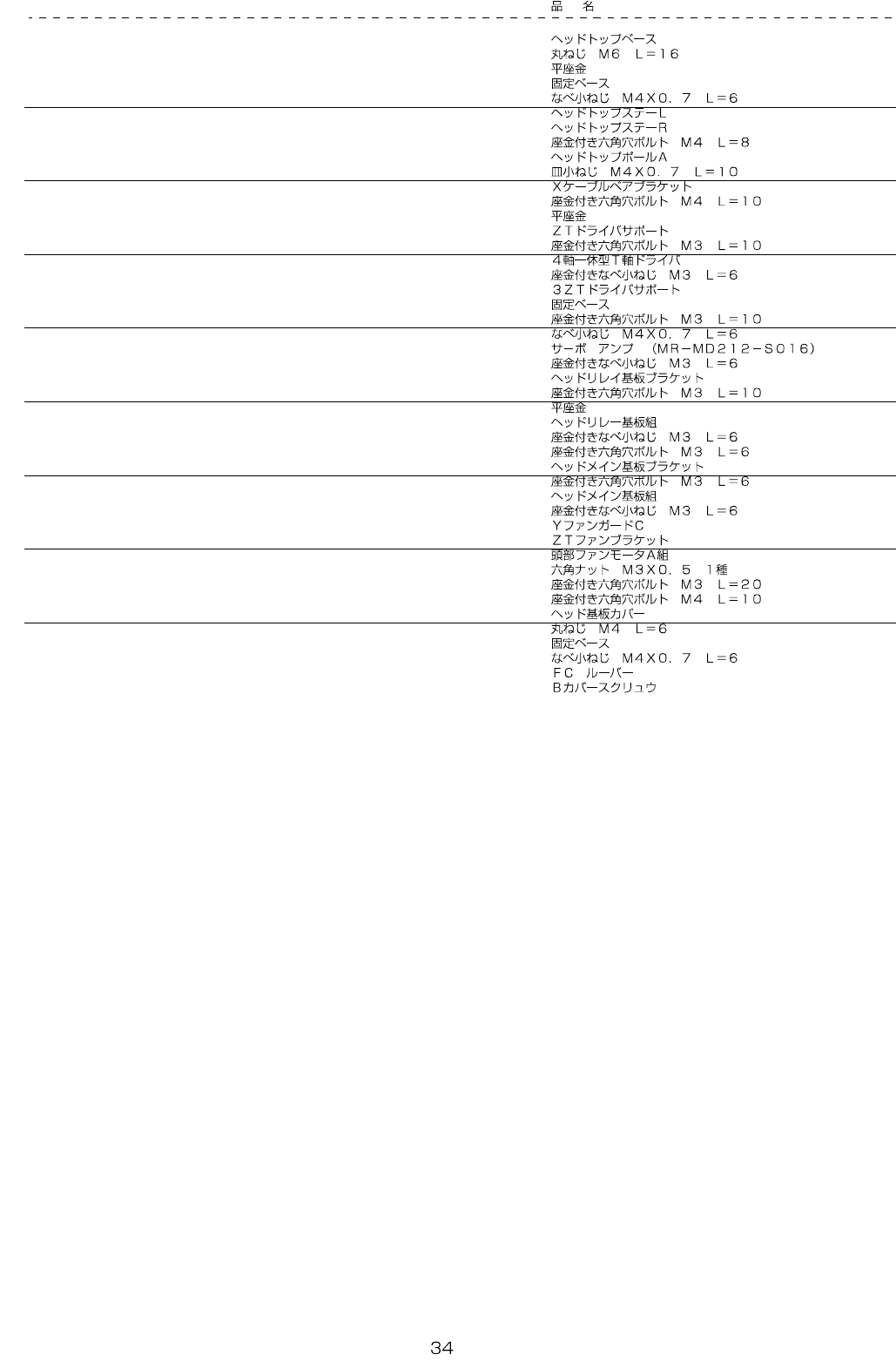

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-82785 HEAD_TOP_BASE 1
2 SM-3061652-TN SCREWM6L=16 6
3 WP-0651646-SC WASHER 6
4 HX-0029400-00 FIXEDBASE 1
5 SM-4040601-SC SCREWM4X0.7L=6 1
6 401-82782 HEAD_TOP_STAY_L 1
7 401-82784 HEAD_TOP_STAY_R 1
8 SL-6040892-TN SCREWM4L=8 4
9 401-82786 HEAD_TOP_POLE_A 2
10 SM-1041001-SC SCREWM4X0.7L=10 2
11 401-82787 X_CABLE_BEAR_BR 1
12 SL-6041092-TN SCREWM4L=10 4
13 WP-0431005-SP PLAINWASHER 4
14 401-82788 ZT_DRIVER_SUPPORT 1
15 SL-6031092-TN SCREWM3L=10 4
16 401-29650 4AXISINTEGRALTYPETAXISDRIVER 1
17 SL-4030691-SC SCREWM3L=6 9
18 401-82789 3ZT_DRIVER_SUPPORT 3
19 HX-0029400-00 FIXEDBASE 3
20 SL-6031092-TN SCREWM3L=10 12
21 SM-4040601-SC SCREWM4X0.7L=6 3
22 EZ-1492148-11 AMPLIFIERSERVO 3
23 SL-4030691-SC SCREWM3L=6 15
24 401-82790 HEAD_RELAY_PCB_BR 1
25 SL-6031092-TN SCREWM3L=10 4
26 WP-0431005-SP PLAINWASHER 2
27 401-28874 HEADRELAYPCBASM 1
28 SL-4030691-SC SCREWM3L=6 5
29 SL-6030692-TN SCREWM3L=6 1
30 401-82793 HEAD_MAIN_PCB_BR 1
31 SL-6030692-TN SCREWM3L=6 4
32 401-28873 HEADMAINPCBASM 1
33 SL-4030691-SC SCREWM3L=6 4
34 400-66152 Y_FAN_GUARD_C 1
35 401-82794 ZT_FAN_BR 1
36 401-19461 HEADFANMOTORAASSY 1
37 NM-6030001-SC NUTM3X0.5TYPE1 2
38 SL-6032092-TN SCREWM3L=20 4
39 SL-6041092-TN SCREWM4L=10 2
40 401-82795 HEAD_PCB_COVER 1
41 SM-3040652-TN SCREWM4L=6 4
42 HX-0029400-00 FIXEDBASE 17
43 SM-4040601-SC SCREWM4X0.7L=6 17
44 L153E-321-000 FCRUBBER 2
45 400-81751 B_COVER_SCREW 1
- -

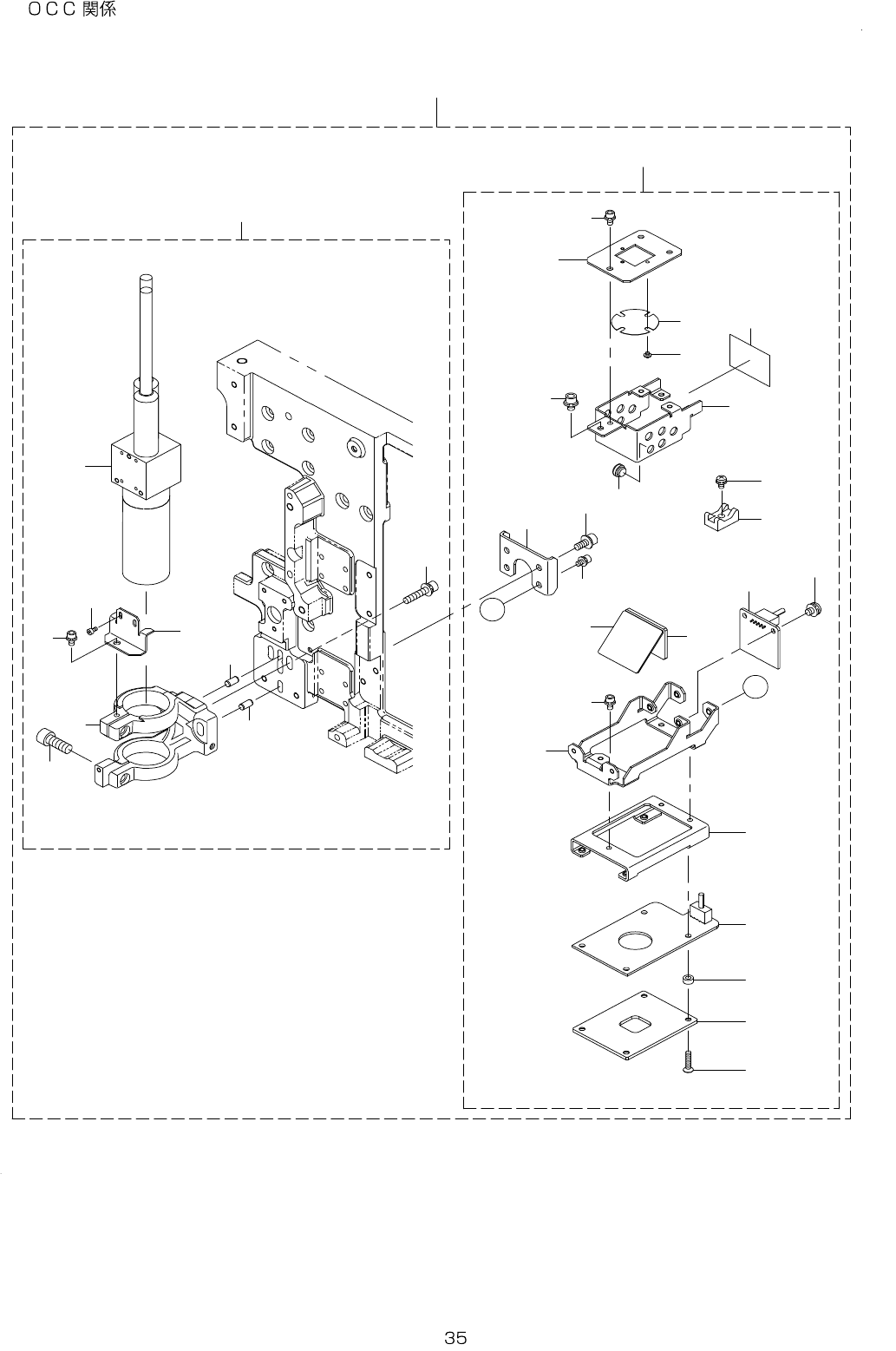

18.OCCCOMPONENTS
3 5
1 9
2 0
2 1
1 6
3 2
3 1
3 0
2 7
1 4
2 6
2 4
2 5
3 4
1 2
1 3
2 8
4
8
3
A
5
A
9
1 0
2
1 5
1 7
2 3
2 2
2 9
3 3
1 1
1 8
1
5
6
7
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-83256 OCC_ASSY 1
2 401-83254 OCC_LENS_ASSY (1)
3 401-27914 CAMERALENSASSY (1)
4 401-83253 OCC_LENS_BR_ADD (1)
5 PH-0400082-C0 PARALLELPINTYPEB4X8 (2)
6 SM-6061602-TN SCREWM6L=16 (2)
7 SL-6042092-TN SCREWM4L=20 (3)
8 401-27901 CCD_BRACKET (1)
9 SL-6030692-TN SCREWM3L=6 (1)
10 SM-6020402-TN SCREWM2X4 (2)
11 401-27912 OCC_LIGHT_ASSY (1)
12 401-27896 OCC_LIGHT_BRKT_T (1)
13 SL-6041092-TN SCREWM4L=10 (2)
14 401-27902 OCC_LIGHT_BRACKET (1)
15 SL-6030692-TN SCREWM3L=6 (2)
16 401-27897 OCC_LIGHT_SUPPORT (1)
17 SL-6030692-TN SCREWM3L=6 (3)
18 401-28878 OCCAPCBASM (1)
19 HX-0033500-0G SPACER (4)
20 401-27900 LIGHT_DIFFUSER (1)
21 SM-1031001-SC SCREWM3X0.5L=10 (4)
22 HX-0029400-00 FIXEDBASE (1)
23 SL-4030891-SC SCREWM3L=8 (1)
24 401-27898 MIRRORBOX (1)
25 400-43896 LENSFILTER (1)
26 SM-0020201-SC SCREWM2L=2 (3)
27 SL-6030692-TN SCREWM3L=6 (3)
28 401-27899 FILTER_PLATE (1)
29 SL-6030692-TN SCREWM3L=6 (3)
30 118-04606 RUBBERPLUG (10)
31 400-14040 LIGHTDIFFUSER (1)
32 400-14037 BEAMSPRITTER (1)
33 E1143-721-000 WOOLENCLOTHPAPER (1)
34 401-28879 OCCCPCBASM (1)
35 SL-6030692-TN SCREWM3L=6 (2)
