RS-1-Rev02PDFA - 第42页

- - 19. HMSCOMPON ENTS 6 2 1 3 4 5 7

- -

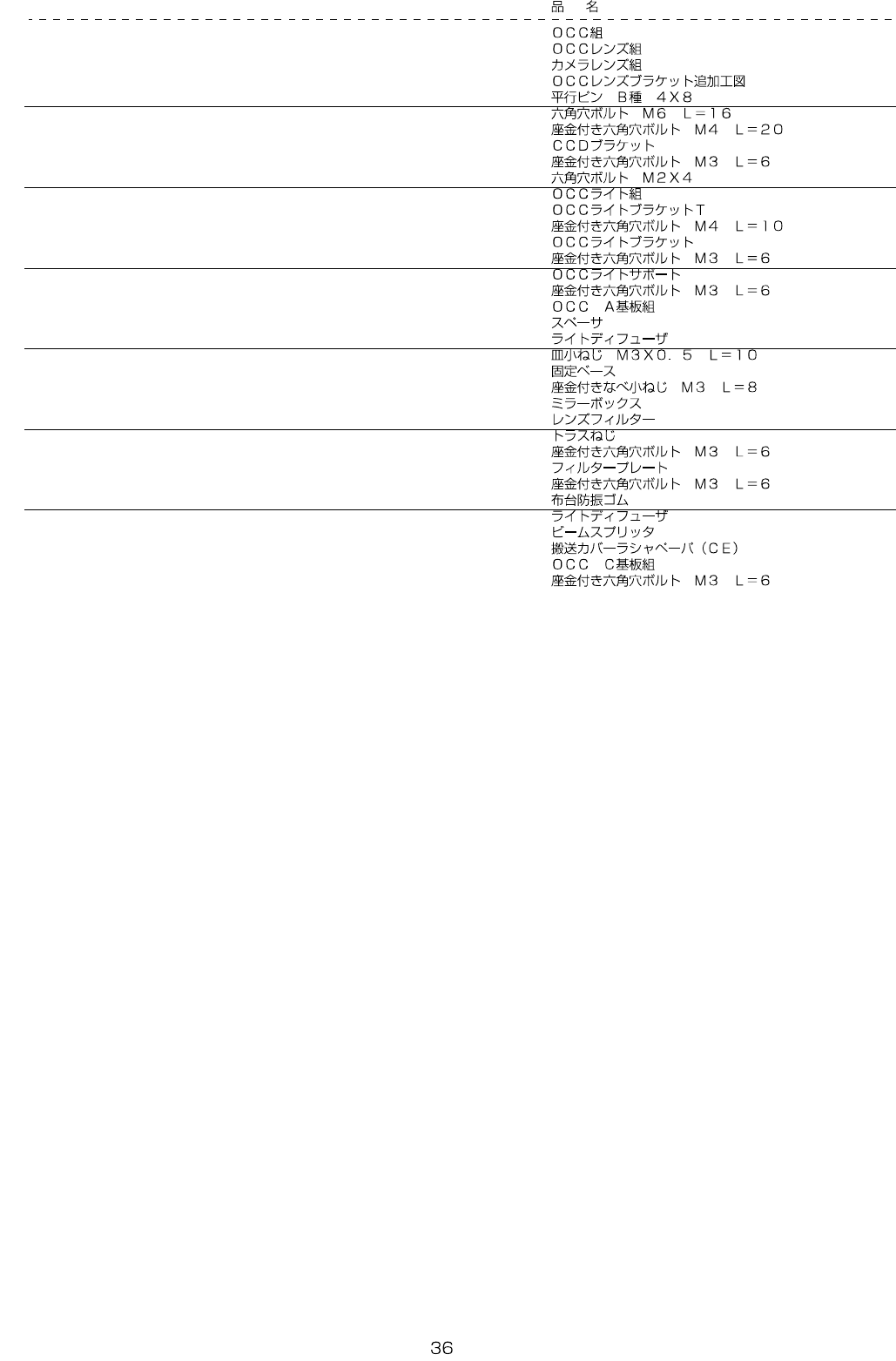

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83256 OCC_ASSY 1

2 401-83254 OCC_LENS_ASSY (1)

3 401-27914 CAMERALENSASSY (1)

4 401-83253 OCC_LENS_BR_ADD (1)

5 PH-0400082-C0 PARALLELPINTYPEB4X8 (2)

6 SM-6061602-TN SCREWM6L=16 (2)

7 SL-6042092-TN SCREWM4L=20 (3)

8 401-27901 CCD_BRACKET (1)

9 SL-6030692-TN SCREWM3L=6 (1)

10 SM-6020402-TN SCREWM2X4 (2)

11 401-27912 OCC_LIGHT_ASSY (1)

12 401-27896 OCC_LIGHT_BRKT_T (1)

13 SL-6041092-TN SCREWM4L=10 (2)

14 401-27902 OCC_LIGHT_BRACKET (1)

15 SL-6030692-TN SCREWM3L=6 (2)

16 401-27897 OCC_LIGHT_SUPPORT (1)

17 SL-6030692-TN SCREWM3L=6 (3)

18 401-28878 OCCAPCBASM (1)

19 HX-0033500-0G SPACER (4)

20 401-27900 LIGHT_DIFFUSER (1)

21 SM-1031001-SC SCREWM3X0.5L=10 (4)

22 HX-0029400-00 FIXEDBASE (1)

23 SL-4030891-SC SCREWM3L=8 (1)

24 401-27898 MIRRORBOX (1)

25 400-43896 LENSFILTER (1)

26 SM-0020201-SC SCREWM2L=2 (3)

27 SL-6030692-TN SCREWM3L=6 (3)

28 401-27899 FILTER_PLATE (1)

29 SL-6030692-TN SCREWM3L=6 (3)

30 118-04606 RUBBERPLUG (10)

31 400-14040 LIGHTDIFFUSER (1)

32 400-14037 BEAMSPRITTER (1)

33 E1143-721-000 WOOLENCLOTHPAPER (1)

34 401-28879 OCCCPCBASM (1)

35 SL-6030692-TN SCREWM3L=6 (2)

- -

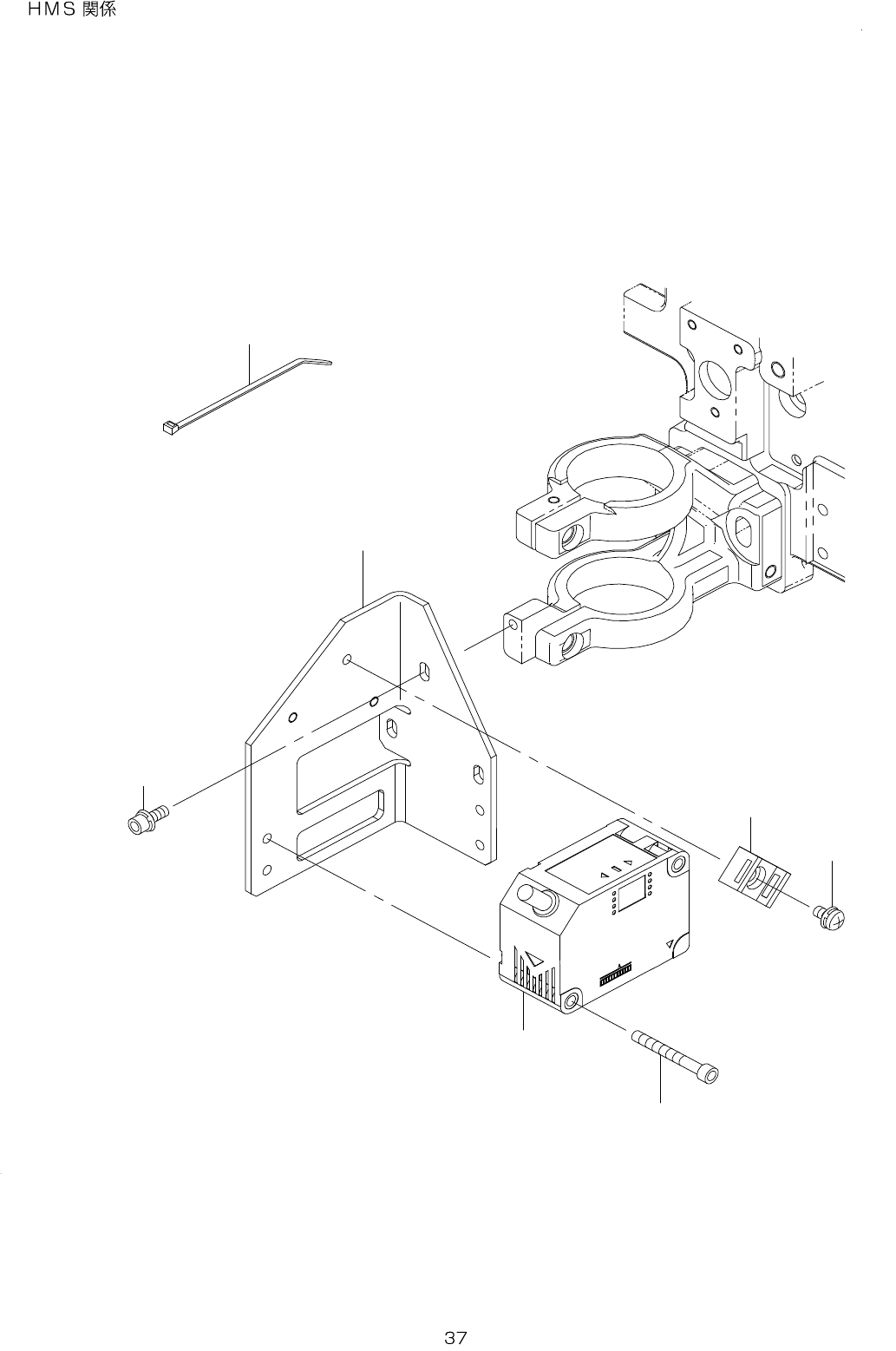

19.HMSCOMPONENTS

6

2

1

3

4

5

7

- -

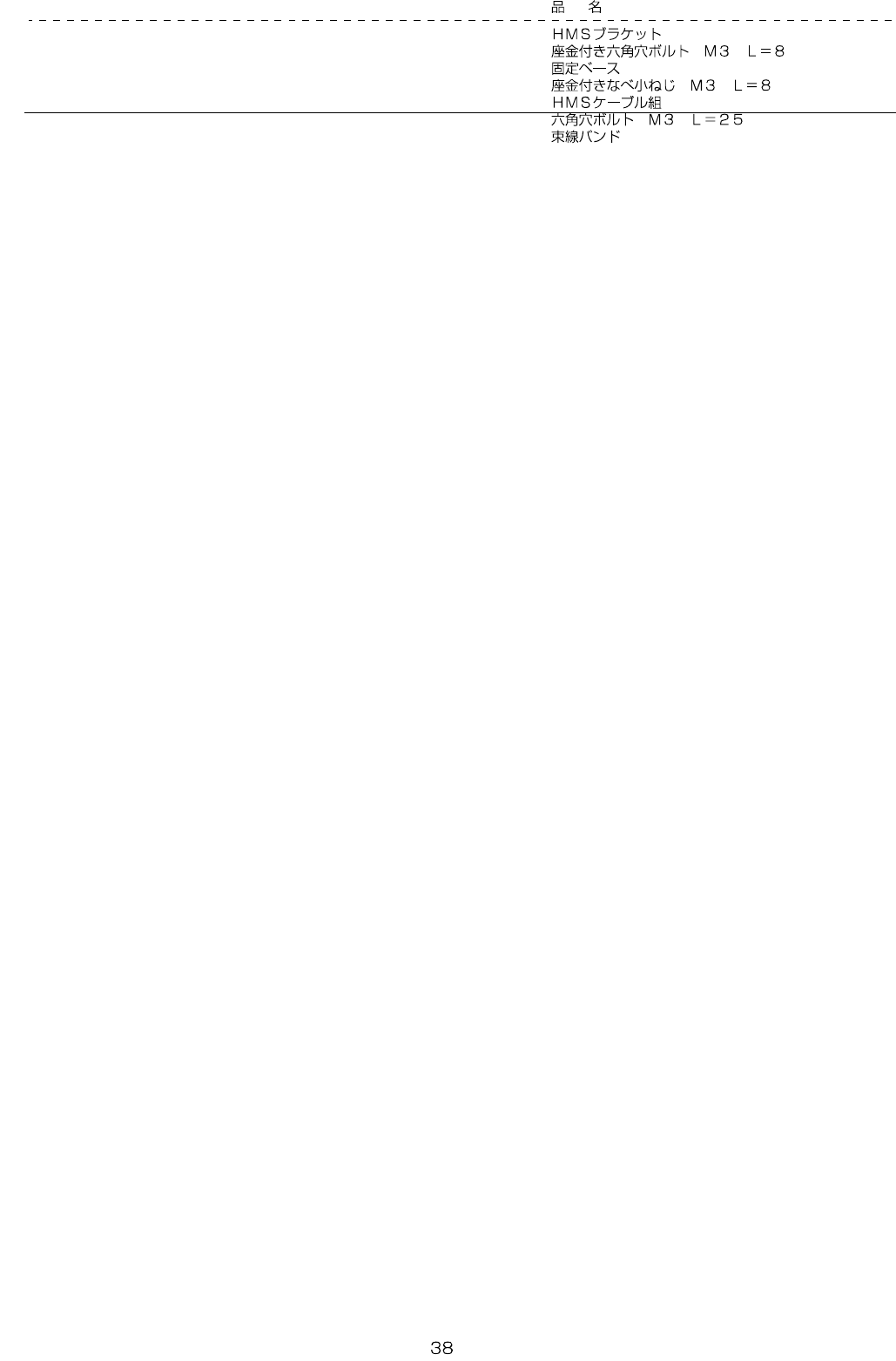

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-27903 HMS_BRACKET 1

2 SL-6030892-TN SCREWM3L=8 3

3 HX-0029400-00 FIXEDBASE 1

4 SL-4030891-SC SCREWM3L=8 1

5 401-29108 HMSCABLEASM 1

6 SM-6032502-TN SCREWM3L=25 2

7 HX-0023300-00 CABLEBAND 2
