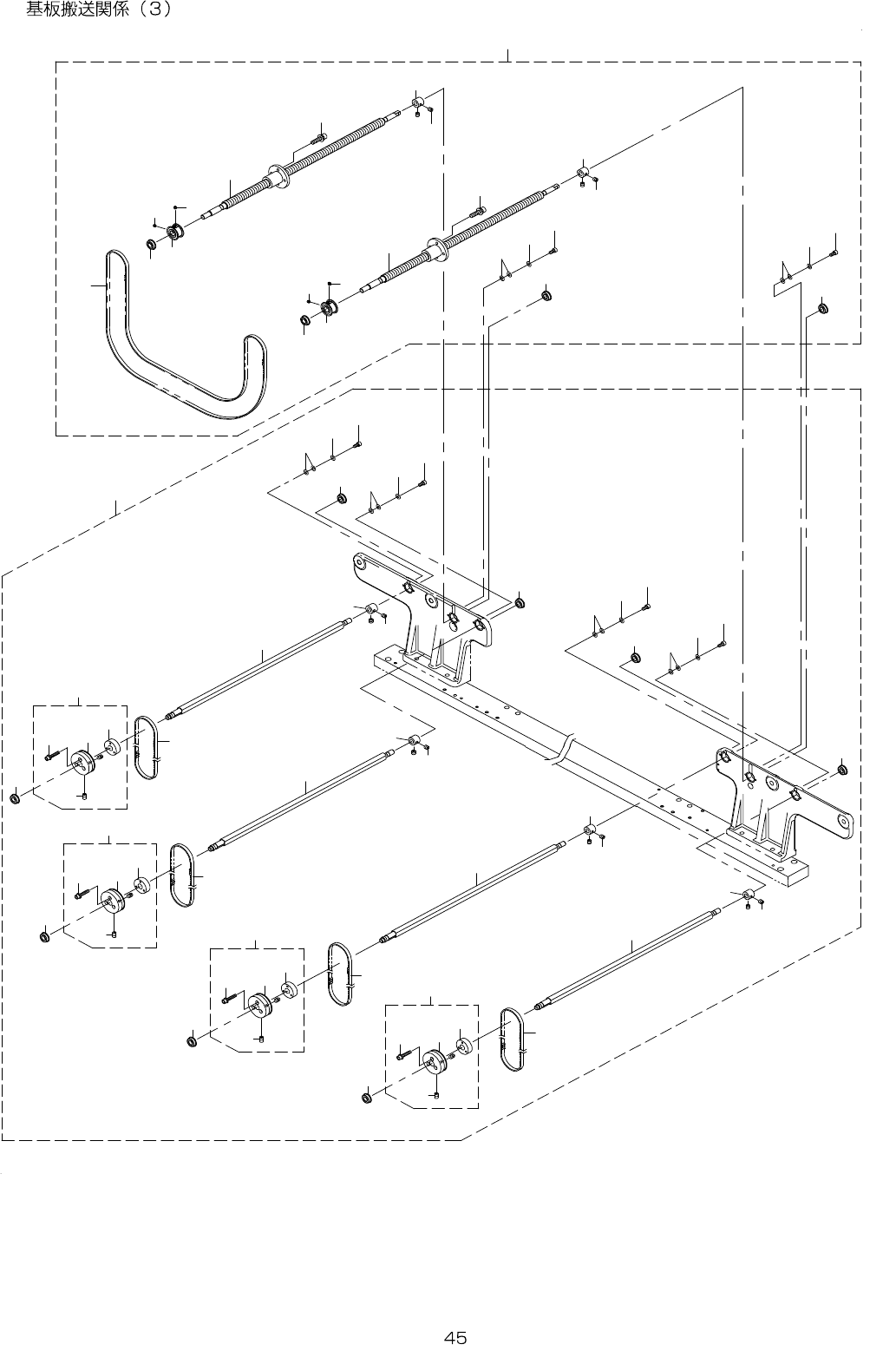

23.PWBCONVEYORCOMPONENTS(3)
1 3
1
3
1 1
7
6
1 6
1 8
1 7
2 6
1 6
1 8
1 7
2 6
2 0
1 7
1 6
1 4
2 7
3
2
6
1 9
1 4
8
1 1
7
1 5
4
2 6
2 7
9
1 4
2 7
1 2
1 8
3
5
5
1 0
5
1 0
5
3
8
9
1 2
4
1 4
2 7
1 9
2 6
1 8
1 6
1 7
1 9
1 9
1 5
2 5
2 2
2 3
2 4
2 6
2 1
2 0
2 6
2 1
2 4
2 3
2 2
2 5
2 6
2 1
2 4
2 3
2 2
2 5
2 6
2 1
2 4
2 3
2 2
2 5
- -

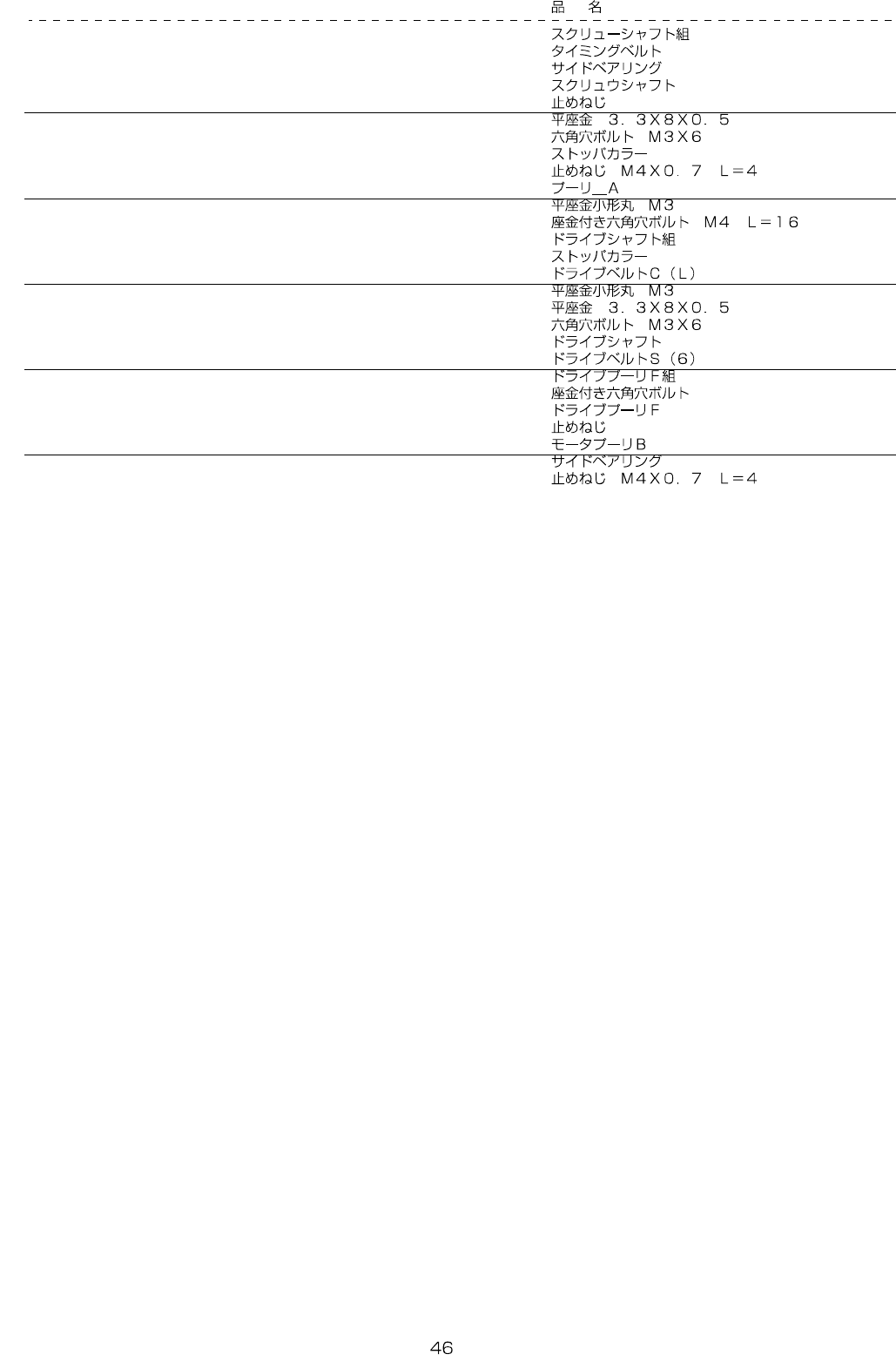

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-83560 SCREWSHAFTASM 1
2 E2146-721-000 TIMINGBELT (1)
3 SB-1080002-00 SIDEBEARING (4)
4 401-83059 SCREW_SHAFT (2)
5 SM-8040602-TP SCREWM4X0.7L=6 (4)
6 WP-0330516-SC WASHER3.3X8X0.5 (4)
7 SM-6030602-TN SCREWM3X6 (4)
8 E2141-721-000 STOPPERCOLLAR (2)
9 SM-8040402-TP SCREWM4X0.7L=4 (4)
10 401-84270 PULLEY_A (2)
11 WP-0320500-SF WASHER3.2X7X0.5 (8)
12 SL-6041692-TN SCREWM4L=16 (8)
13 401-83563 DRIVESHAFTASM 1
14 E2141-721-000 STOPPERCOLLAR (4)
15 400-01005 DRIVEBELTC(L) (2)
16 WP-0320500-SF WASHER3.2X7X0.5 (16)
17 WP-0330516-SC WASHER3.3X8X0.5 (8)
18 SM-6030602-TN SCREWM3X6 (8)
19 401-83058 DRIVE_SHAFT (4)
20 400-46033 DRIVEBELTS(6) (2)
21 400-00849 DRIVEPULLEYFASM (4)
22 SL-6031642-TN SCREW (3)
23 400-00850 DRIVEPULLEYF (1)
24 SM-8040602-TP SCREWM4X0.7L=6 (2)
25 400-00851 MOTORPULLEYB (1)
26 SB-1080002-00 SIDEBEARING (8)
27 SM-8040402-TP SCREWM4X0.7L=4 (8)
- -
24.PWBCONVEYORCOMPONENTS(4)
3
4
6
7
8
1 7
1 3
1 4
5
A
1 5
1 6
A
B
2 3
2 2
2 4
2 4
9
B
8
7
4
3
9
5
6
1 1
1 2
1 2
1 1
1 6
1 5
1 4
1 3
1 7
2
1 0
2 5
1 9
2 7
2 0
1
1
1
1
1 8
1 8
1 8
1 8
2 6
2 6
2 6
2 6
2 1
