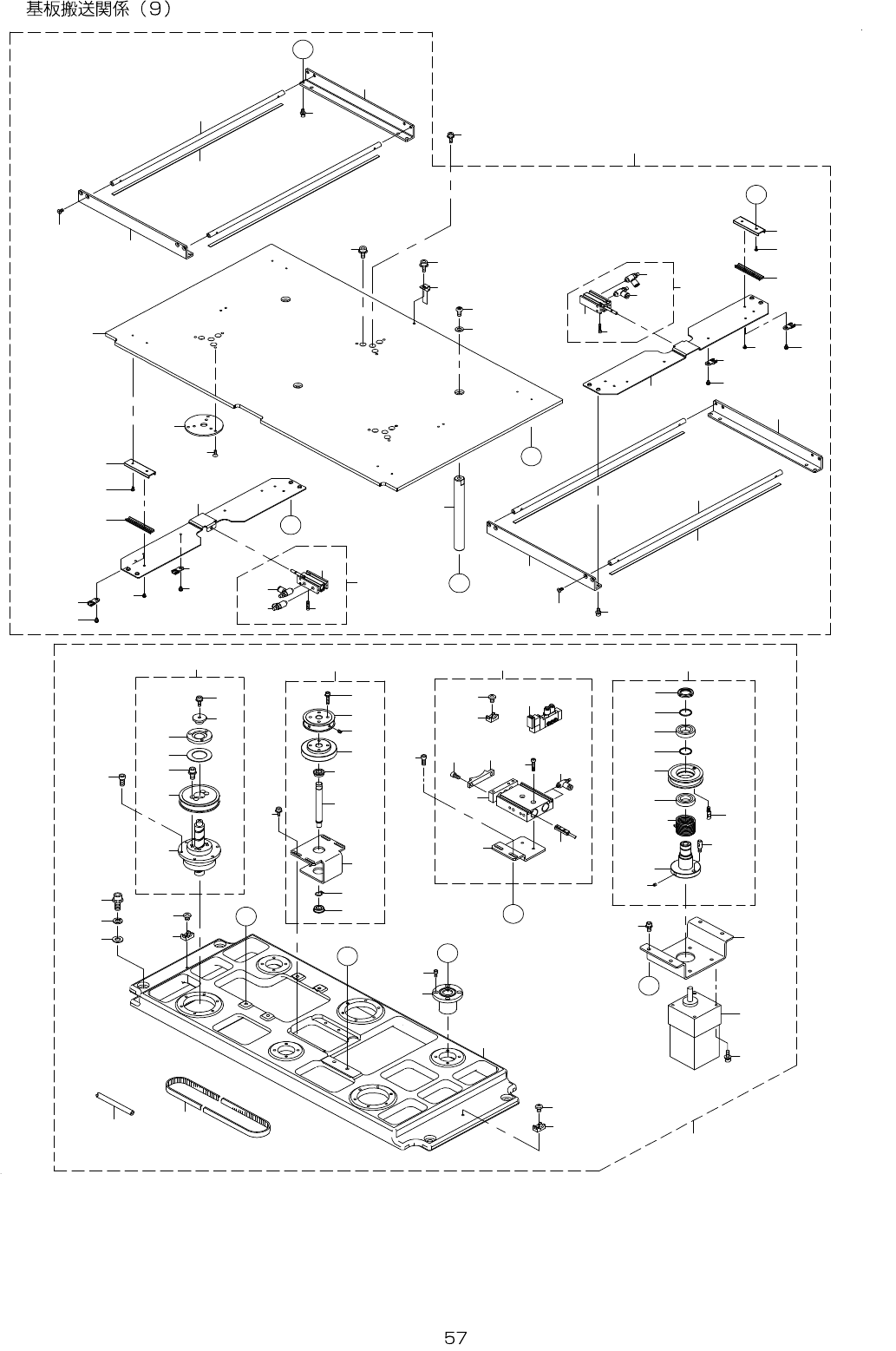

- - 29. PWBCONVEYOR COMPONENTS(9) 2 0 C 4 4 4 2 4 5 5 1 5 0 4 9 4 8 5 2 4 7 4 6 6 6 3 6 3 9 3 8 3 7 4 2 4 3 4 0 4 1 6 2 6 4 6 0 6 1 3 4 1 0 9 6 2 3 1 4 1 3 8 1 3 7 A A 5 9 1 9 1 8 2 9 2 8 2 7 3 1 2 2 2 6 2 7 2 5 3 …

- -

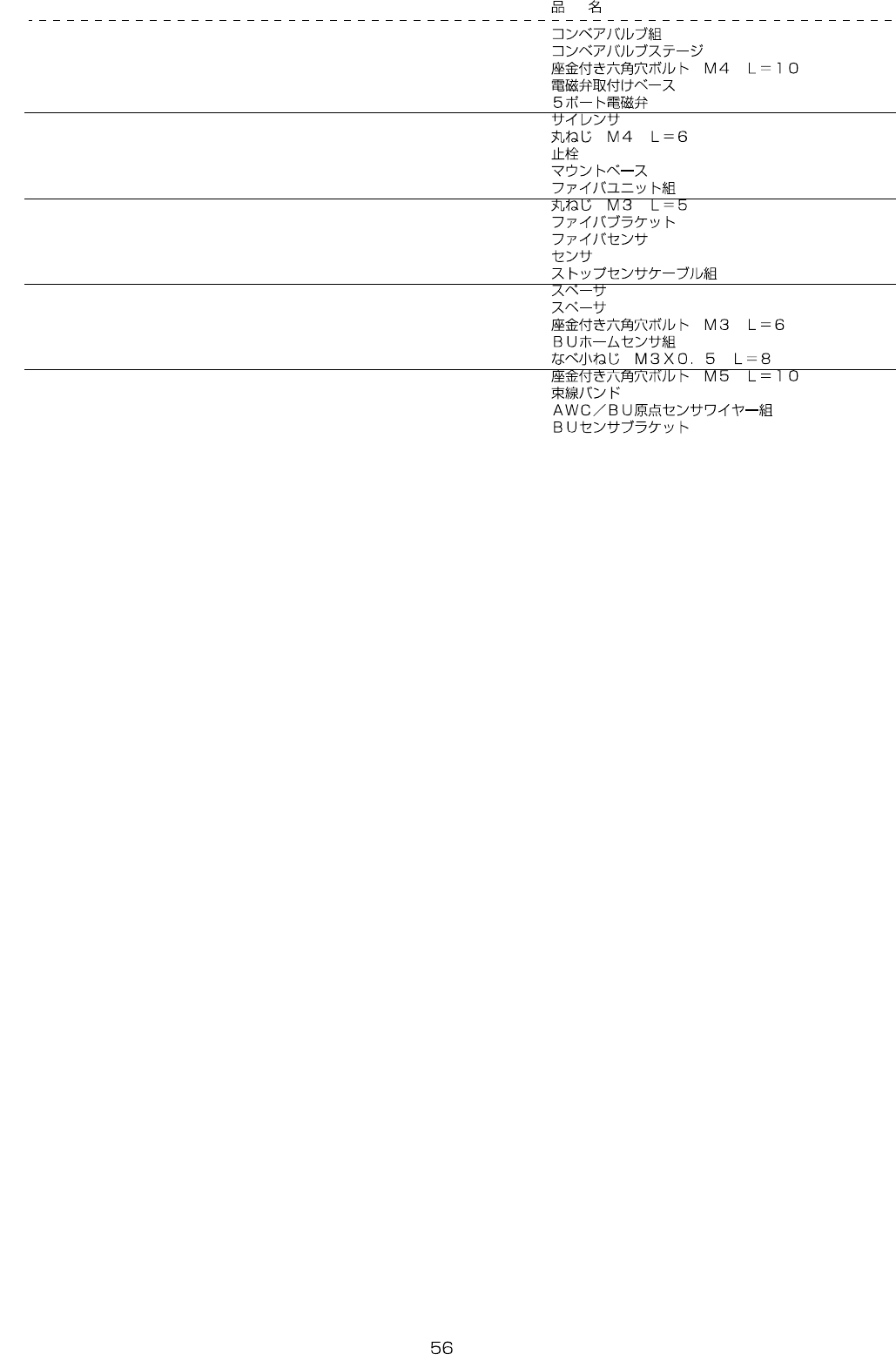

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83551 CONVEYOR_VALVE_UNIT 1

2 401-47000 CONVEYOR_VALVE_STAGE (1)

3 SL-6041092-TN SCREWM4L=10 (2)

4 PV-9150050-00 SOLENOIDVALVEINSTALLINGBASE (1)

5 PV-1502093-00 5PORTSOLENOIDVALVE (4)

6 PX-0500030-00 SILENCER (1)

7 SM-3040652-TN SCREWM4L=6 (2)

8 PX-5000140-00 PLUG (2)

9 HX-0070600-0A MOUNTBASE (3)

10 401-83556 FIBER_UNIT_ASM 1

11 SM-3030552-TN SCREWM3L=5 (8)

12 401-83047 FIBER_BRACKET (8)

13 401-82350 FIBERSENSOR (4)

14 HD-0010700-30 SENSOR (4)

15 401-29061 STOPSENSORCABLEASM (3)

16 HX-0035400-0S SPACER (8)

17 HX-0035400-0A SPACER (8)

18 SL-6030692-TN SCREWM3L=6 (8)

19 401-83549 BU_HOME_SENSOR_ASM 1

20 SM-4030801-SC SCREWM3X0.5L=8 (1)

21 SL-6051092-TN SCREWM5L=10 (2)

22 EA-9500B01-00 CABLEBAND (1)

23 401-29042 AWC/BUORGSENSORCABLEASM (1)

24 401-83060 BU_SENSOR_BR (1)

- -

29.PWBCONVEYORCOMPONENTS(9)

2 0

4 4

4 5

5 1

5 0

4 9

4 8

5 2

4 7

4 6

6 6

3 6

3 9

3 8

3 7

4 2

4 3

4 0

4 1

6 2

6 4

6 0

6 1

3 4

1 0

2 3

1 4

1 3

5 9

1 9

1 8

2 9

2 8

2 7

3 1

2 2

2 6

2 7

2 5

3 0

2 5

3 1

1 7

3 5

2 4

3 2

1 1

1 2

3 3

2 1

5 7

5 8

8 1

5 4

5 3

1 5

1 6

6 5

6 3

6 7

6 8

6 9

6 7

7 1

7 2

7 3

7 0

7 3

7 2

7 1

7 4

8 0

7 4

7 7

7 5

7 4

8 0

7 7

7 4

7 5

7 6

7 5

7 6

7 0

7 8

7 9

6 9

6 5

5 6

5 5

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83553 BU_UNIT 1

2 HX-0029400-00 FIXEDBASE (2)

3 401-85225 BU_BASE_RS (1)

4 SM-4040801-SC SCREWM4X0.7L=8 (2)

5 400-71334 BU_TIMING_BELT (1)

6 401-83867 ENCORDERUNIT (1)

7 400-93905 ENCORDERSHAFT (1)

8 RC-0100001-KP SNAPRINGM10 (1)

9 400-93906 STOPPERDISC (1)

10 SL-6042092-TN SCREWM4L=20 (4)

11 400-93612 ENCORDERPULLEY (1)

12 SM-8040602-TP SCREWM4X0.7L=6 (2)

13 SB-1100005-00 BEARING (2)

14 400-93904 ENCORDERBR (1)

15 WS-0820002-KN SPRINGWASHERM8 (4)

16 WP-0841601-SC WASHERM8 (4)

17 SL-6051292-TN SCREWM5L=12 (4)

18 SB-8160001-00 BEARING (3)

19 SM-6040802-TN SCREWM4X0.7L=8 (12)

20 SM-6051402-TN SCREWM5L=14 (2)

21 SM-6085002-TN BOLT (4)

22 SL-6051692-TN SCREWM5L=16 (4)

23 401-83067 BU_MOTOR_BR (1)

24 401-83554 TORQUE_SUPPORT_RS_ASM (1)

25 SB-1170001-00 BEARING (2)

26 E4156-729-000 NUT(M17X1) (1)

27 E4144-729-000 THRUSTCOLLAR (2)

28 401-28428 TORQUE_SUPPORT_J (1)

29 SM-8050402-TP SCREW (2)

30 L177E-721-000 SPTTBLMOTORPULLEY (1)

31 E4142-729-000 STOPPERPIN (2)

32 401-83078 BU_TOSION_SPRING (1)

33 SL-6041092-TN SCREWM4L=10 (4)

34 SM-6041002-TN SCREW (18)

35 401-29637 BUAXISSERVOMOTOR (1)

36 400-82786 STBLBALLSCREWUNIT (3)

37 L177E-021-000 HOLDERCUSHION (1)

38 E4124-729-000 SHAFTHOLDER (1)

39 SL-6041092-TN SCREWM4L=10 (1)

40 L177E-221-000 SPTTBLPULLEY (1)

41 L176E-821-000 SPTTBLBALLSCREW (1)

42 L176E-921-000 CLAMPHOLDER (1)

43 SL-6041642-TN SCREW (4)

44 401-14270 BUSTOPERASSYL (1)

45 PV-1502090-00 5-PORTSOLENOIDVALVE (1)

46 400-00970 BUSTOPER (1)

47 SM-6051002-TN SCREW (2)

48 PA-1501011-00 DUALRODCYLINDER (1)

49 SM-6042002-TN SCREW (2)

50 400-94746 BUSTOPPERBR (1)

51 PC-0105080-00 SPEEDCONTROLLER (2)

52 400-92574 BULOCKSENSASM (1)

53 HX-0029400-00 FIXEDBASE (1)

54 SM-4040801-SC SCREWM4X0.7L=8 (1)

55 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2.5)

56 401-83555 SUPPORT_TABLE_ASM 1

57 SM-3061252-TN SCREWM6L=12 (3)

58 WP-0651001-SC WASHER (3)

59 401-22963 BU_GUIDE_SHAFT (3)

60 401-47002 BU_SENSOR_DOG (1)

61 SL-6040892-TN SCREWM4L=8 (1)

62 L177E-121-000 BALLSCREWSUPPORTPLATE (3)

63 401-83064 SUPPORT_TABLE (1)

64 SM-1040801-SC SCREWM4X0.7L=8 (9)

65 401-83063 SIDE_BEAM (4)

66 SL-6040892-TN SCREWM4L=8 (9)

67 401-83061 BU_RELEASE_SUPPORT (4)

68 401-83062 BU_RELEASE_SUPPORT_BS (2)

69 401-83068 SLIDE_SHEET (4)

70 401-28562 BU_SELECT_CYLINDER_ASM (2)

71 PC-0105080-00 SPEEDCONTROLLER (2)

72 401-29048 BUCHANGECABLEASM (1)

73 SM-6031402-TN SCREWM3X0.5L=14 (2)

74 401-28510 SLIDE_RAIL (4)

75 HX-0034400-00 FIXEDBASE (4)

76 SL-4030691-SC SCREWM3L=6 (4)

77 SL-4850591-SC SCREWM2.5L=5 (8)

78 SL-6041092-TN SCREWM4L=10 (8)

79 SM-1040801-SC SCREWM4X0.7L=8 (8)

80 SM-4860601-SC SCREWM2.6L=6 (8)

81 SL-6041092-TN SCREWM4L=10 3
