- - 31. ACCESSORIES PARTCOMPONENTS 2 5 1 2 1 3 9 6 5 8 1 0 1 1 2 0 3 2 3 4 7 1 4 1 5 1 6 1 8 1 9 2 1 2 2 2 3 1 2 4 2 8 2 9 1 7 2 6 2 7

100%1 / 128
- -

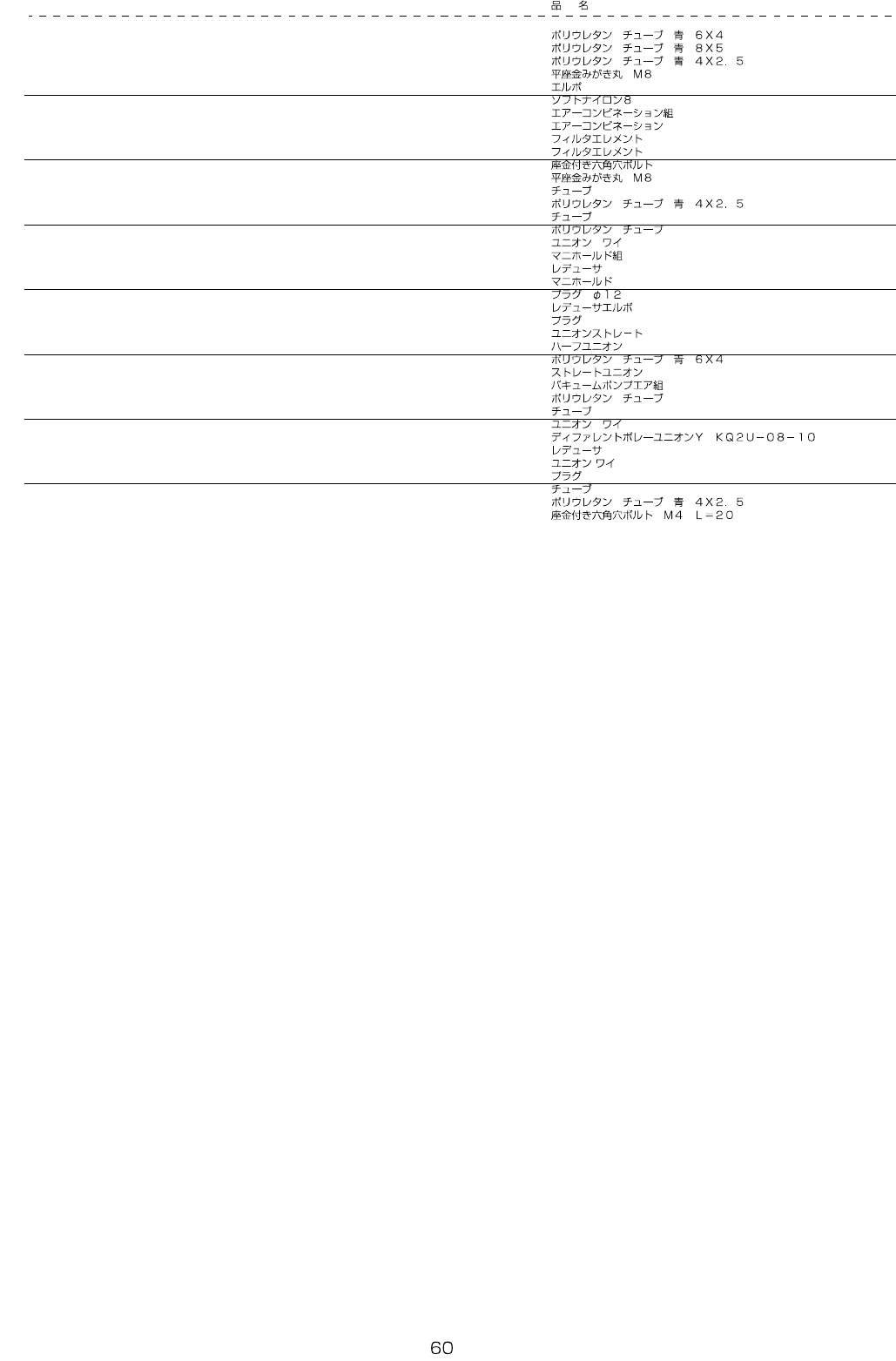

REF.NO NOTE PARTNO DESCRIPTION Qty
1 BT-0600400-EC URETHANETUBEBLUE6X4 12
2 BT-0800501-EA URETHANETUBEBLUE8X5 2.5
3 BT-0400251-EA URETHANETUBEBLUE4X2.5 3.05
4 WP-0841601-SC WASHERM8 2
5 PJ-3040800-02 ELBOWUNION 10
6 400-54839 SOFTNYLON8 15.1
7 400-94700 AIRCOMBINATIONASSY 1
8 400-63483 AIRCOMBINATION (1)
9 PF-9010060-00 FILTERELEMENT (1)
10 PF-9010100-00 FILTERELEMENT (1)
11 SL-6061692-TN BOLT (4)
12 WP-0841601-SC WASHERM8 (4)
13 BT-1200801-EF TUBE (0.45)
14 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.05)
15 BT-1200801-EF TUBE (1)
16 BT-1000651-EB POLYURETHANETUBE (1.7)
17 PJ-3081000-01 UNIONY (1)
18 401-47664 MANIFOLD_ASM 1
19 PJ-3010600-03 REDUCER (3)
20 PJ-3091200-03 MANIFOLD (1)
21 PJ-0200000-03 PLUGROUND12 (1)
22 PJ-3040600-01 REDUCERELBOW (3)
23 PX-9500070-00 PLUG (3)
24 PJ-3030800-01 UNIONSTRAIGHT 2
25 PJ-3010605-03 HALFUNION 1
26 BT-0600400-EC URETHANETUBEBLUE6X4 12.1
27 PJ-3030600-01 STRAIGHTUNION 1
28 401-47611 VACUUM_PUMP_AIR_ASM 1
29 BT-1000651-EB POLYURETHANETUBE (0.3)
30 BT-1200801-EF TUBE (0.2)
31 PJ-3081200-02 UNIONY (1)
32 400-69259 DIFFERENTBOREUNIONY (2)
33 PJ-3010600-03 REDUCER (2)
34 PJ-3080600-07 UNIONY 5
35 PJ-0205000-02 PLUG 1
36 BT-1200801-EF TUBE 0.2
37 BT-0400251-EA URETHANETUBEBLUE4X2.5 2
38 SL-6042092-TN SCREWM4L=20 2
- -
31.ACCESSORIESPARTCOMPONENTS
2 5
1 2
1 3
9
6
5
8
1 0
1 1
2 0
3
2
3
4
7
1 4
1 5
1 6
1 8
1 9
2 1
2 2
2 3
1
2 4
2 8 2 9
1 7
2 6
2 7
- -

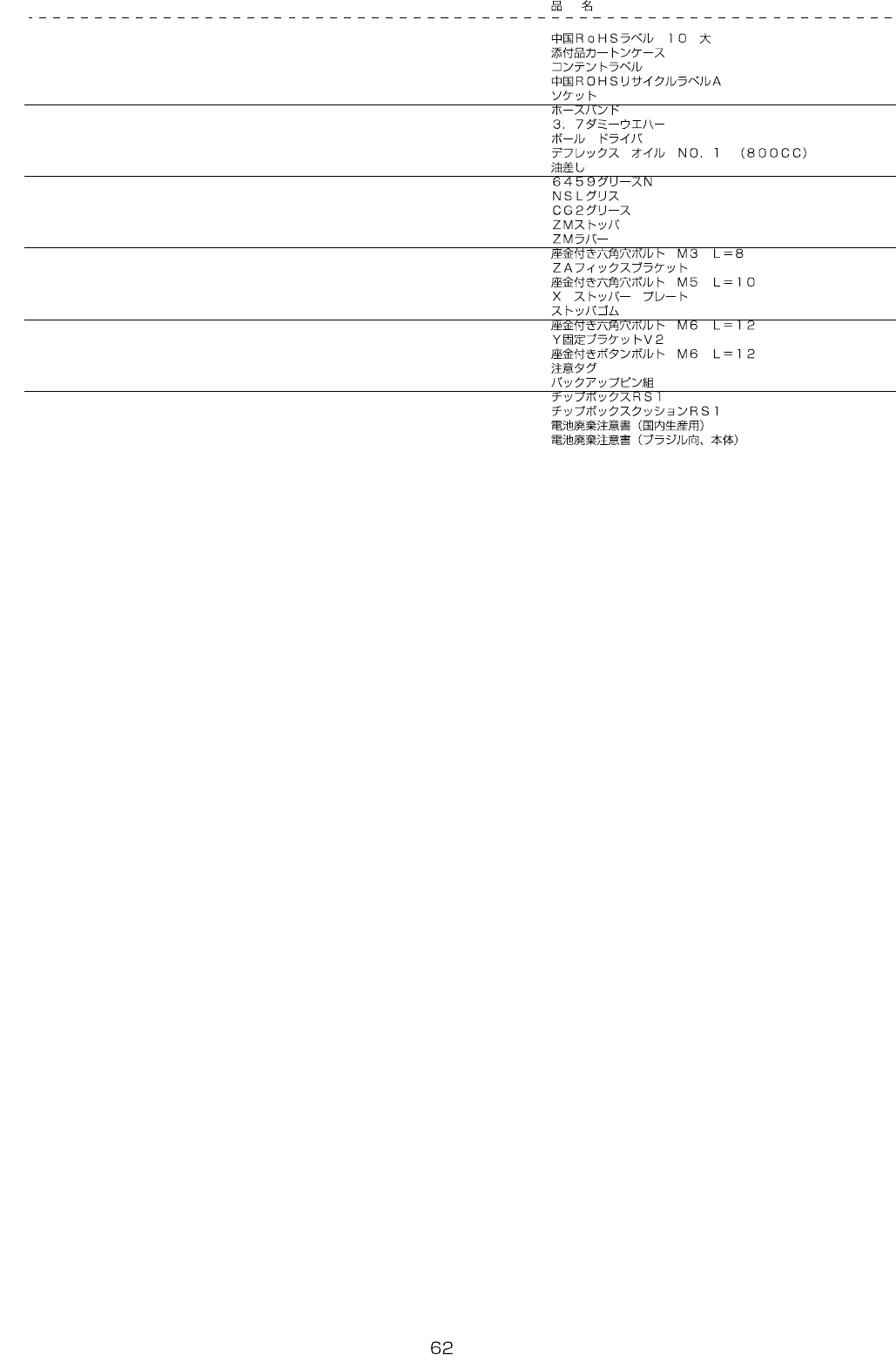

REF.NO NOTE PARTNO DESCRIPTION Qty
1 CM-6005001-03 CHINAROHSLABEL10L 1
2 400-77701 ACCESSORYCARTONCASE 1
3 E6953-861-B00 CONTENTLABEL 2
4 400-61008 CHINA_ROHS_RECYCLE_LABEL_A 1
5 PJ-0700000-01 SOCKET 1
6 161-21907 HOSEBAND 1
7 400-35043 3.7DUMMYWAFER 1
8 J1080-000-000 BALLDRIVER 1
9 MDF-RX1001L0-9 DEFRIXOILNO.1(800CC) 1
10 J1067-000-000 OILER 1
11 400-32449 6459GREASEN 1
12 400-94361 NSL_GREASE 1
13 400-46643 CG2GREASE 1
14 400-46528 ZMSTOPPER 1
15 400-46644 ZMRUBBER 1
16 SL-6030892-TN SCREWM3L=8 1
17 401-82877 ZA_FIXED_BRACKET 1
18 SL-6051092-TN SCREWM5L=10 1
19 L132E-821-000 XSTOPPERPLATE 1
20 E2424-725-000 STOPPERRUBBERR 1
21 SL-6061292-TN SCREWM6L=12 2
22 401-06051 Y_FIX_BR_V2 2
23 SL-3061232-TN SCREWM6L=12 8
24 400-87186 CAUTION_TAG 8
25 401-28431 BACK_UP_PIN_ASSY 12
26 401-82972 CHIP_BOX_RS1 1
27 401-82973 CHIP_BOX_CUSHION_RS1 1
28 400-81445 INFORMATIONOFTHEBATTERYDISPOSAL(JP) 1
29 400-89308 INFOOFTHEBATTERYDISPOSAL(FORBRAZIL) 1
