- - 37. MINISIGNAL TOWERCO MPONENTS 1 1 2 2

- -

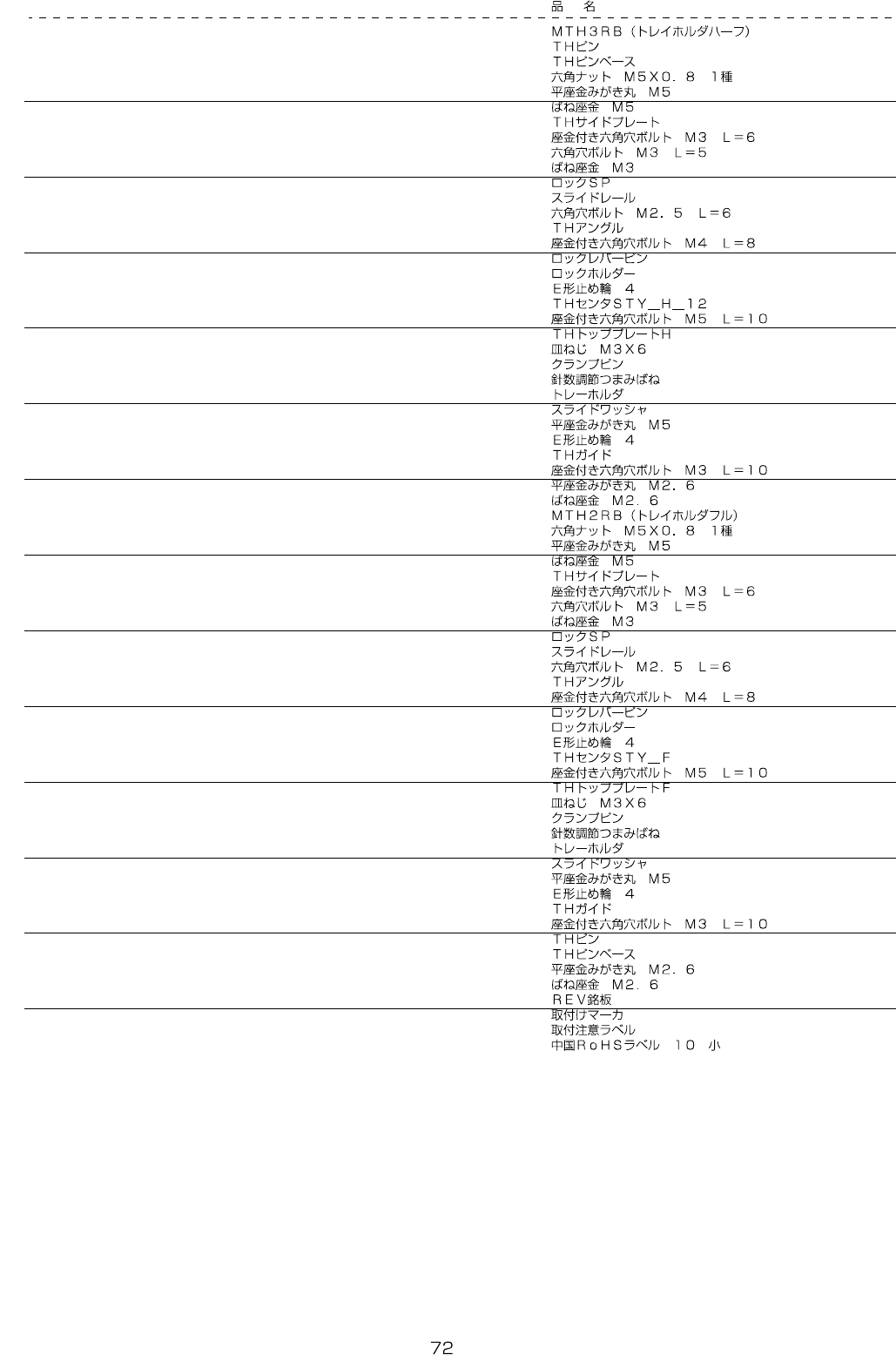

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83117 MTH3RB(TRAY_HOLDER_HALF) 1

2 401-82947 TH_PIN (2)

3 401-82948 TH_PIN_BASE (2)

4 NM-6050001-SC NUTM5X0.8TYPE1 (2)

5 WP-0531001-SC WASHERM5 (2)

6 WS-0510002-KN SPRINGWASHERM5 (2)

7 401-82949 TH_SIDE_PLATE (2)

8 SL-6030692-TN SCREWM3L=6 (4)

9 SM-6030502-TN SCREWM3L=5 (2)

10 WS-0310002-KN SPRINGWASHERM3 (2)

11 400-85741 LOCK_SP (2)

12 401-67213 SLIDE_RAIL (2)

13 SM-6850602-UZ SCREWM2.5L=6 (6)

14 401-82950 TH_ANGLE (2)

15 SL-6040892-TN SCREWM4L=8 (6)

16 E7725-716-000 LOCKLEVERPIN (2)

17 400-85739 LOCK_HOLDER (2)

18 RE-0400000-K0 E-RING4 (4)

19 401-82953 TH_CENTER_STY_H (2)

20 SL-6051092-TN SCREWM5L=10 (4)

21 401-82954 TH_TOP_PLATE_H (1)

22 SM-1030601-SC SCREWM3X6 (8)

23 E7307-700-000 CLAMPPIN (3)

24 B2626-372-000 SPRING (3)

25 E7709-700-000 TRAYHOLDER (3)

26 400-76382 SLIDEWASHER (6)

27 WP-0531001-SC WASHERM5 (3)

28 RE-0400000-K0 E-RING4 (3)

29 E7303-715-000 THGUIDE (4)

30 SL-6031042-TN SCREWM3L=10 (4)

31 WP-0280501-SC WASHERM2.6 (6)

32 WS-0270002-KN SPRINGWASHERM2.6 (6)

33 401-83114 MTH2RB(TRAY_HOLDER_FULL) 1

34 NM-6050001-SC NUTM5X0.8TYPE1 (2)

35 WP-0531001-SC WASHERM5 (2)

36 WS-0510002-KN SPRINGWASHERM5 (2)

37 401-82949 TH_SIDE_PLATE (2)

38 SL-6030692-TN SCREWM3L=6 (4)

39 SM-6030502-TN SCREWM3L=5 (2)

40 WS-0310002-KN SPRINGWASHERM3 (2)

41 400-85741 LOCK_SP (2)

42 401-67213 SLIDE_RAIL (2)

43 SM-6850602-UZ SCREWM2.5L=6 (6)

44 401-82950 TH_ANGLE (2)

45 SL-6040892-TN SCREWM4L=8 (6)

46 E7725-716-000 LOCKLEVERPIN (2)

47 400-85739 LOCK_HOLDER (2)

48 RE-0400000-K0 E-RING4 (4)

49 401-82951 TH_CENTER_STY_F (2)

50 SL-6051092-TN SCREWM5L=10 (4)

51 401-82952 TH_TOP_PLATE_F (1)

52 SM-1030601-SC SCREWM3X6 (8)

53 E7307-700-000 CLAMPPIN (6)

54 B2626-372-000 SPRING (6)

55 E7709-700-000 TRAYHOLDER (6)

56 400-76382 SLIDEWASHER (12)

57 WP-0531001-SC WASHERM5 (6)

58 RE-0400000-K0 E-RING4 (6)

59 E7303-715-000 THGUIDE (4)

60 SL-6031042-TN SCREWM3L=10 (4)

61 401-82947 TH_PIN (2)

62 401-82948 TH_PIN_BASE (2)

63 WP-0280501-SC WASHERM2.6 (6)

64 WS-0270002-KN SPRINGWASHERM2.6 (6)

65 E9635-455-000 REVISIONSEAL 2

66 E1602-723-000 MARKER 2

67 400-94024 INSTALLING_CAUTION_LABEL 2

68 CM-6005001-01 CHINAROHSLABEL10S 2

- -

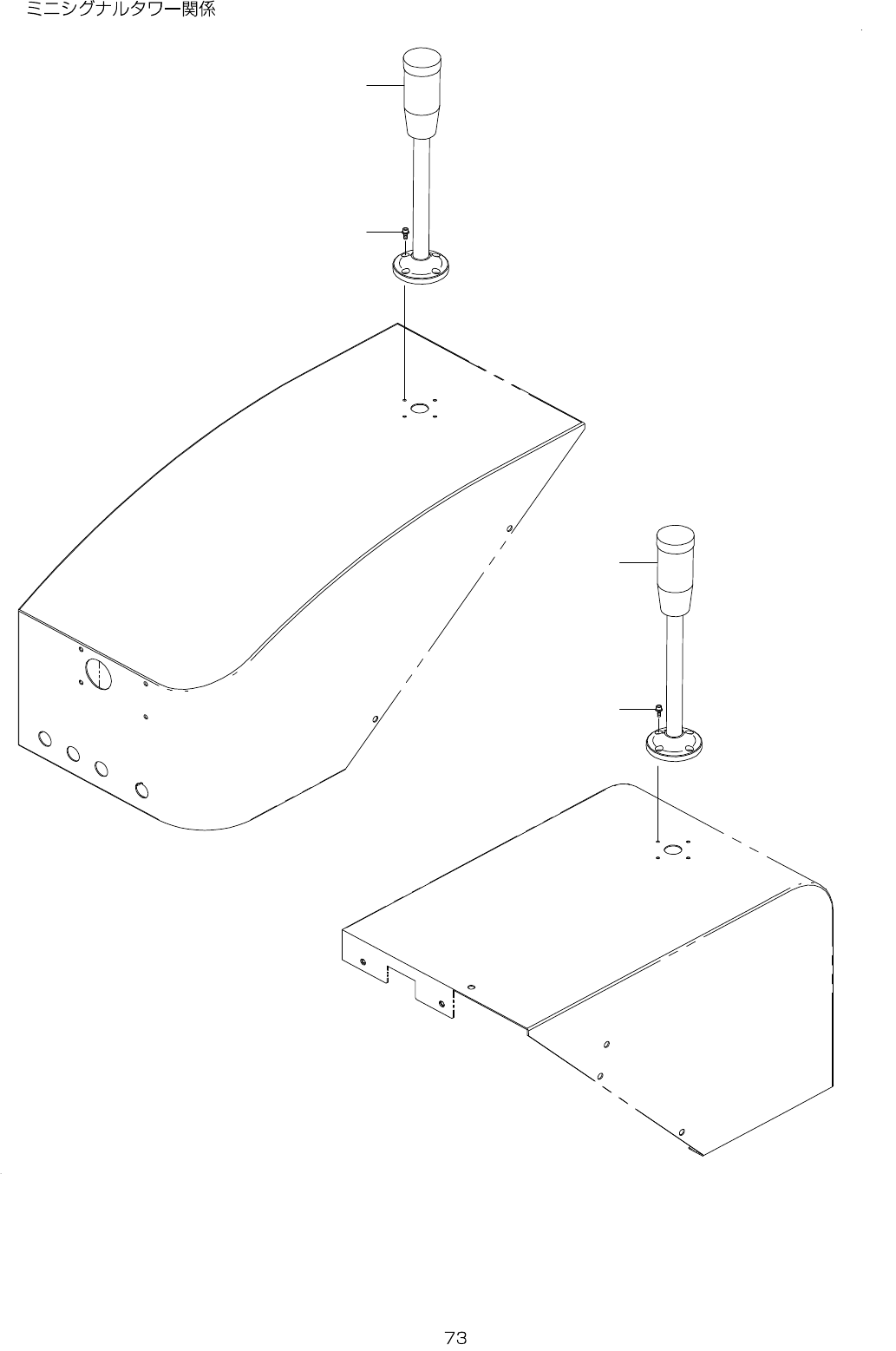

37.MINISIGNALTOWERCOMPONENTS

1

1

2

2

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-29010 MINISIGNALTOWERCABLEASM(OP) 2

2 SL-6041292-TN SCREWM4L=12 8
