- - 40. FEEDERBANKC OMPONENTS( 3) 1 0 1 3 2 2 2 3 3 4 5 5 6 7 1 1 9 8 8 1 2 1 3 1 3 1 3 1 3 1 5 1 6 A A 1 7 B 1 7 B 1 8 1 8 1 9 1 9 2 0 2 1 2 2 2 2 2 2 2 2 1 9 2 2 2 2 2 2 1 9 2 3 2 4 2 4 2 5 2 6 2 5 2 6 2 7 2 7 2 …

100%1 / 128
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-83608 CUTTER_ASM 1
2 401-83210 LINER_WAY (2)
3 SM-6052002-TN SCREW (10)
4 401-83189 EDGE_BASE_SIDE (2)
5 SL-6043092-TN SCREWM4L=30 (6)
6 401-86283 UPPER_EDGE_BASE (1)
7 401-86284 BRUSH_B (1)
8 SL-6041242-TN SCREWM4L=12 (4)
9 PS-0300162-KH SPRINGPIN3X16 (2)
10 401-83183 GUIDE_SLOPE (2)
11 SL-6043092-TN SCREWM4L=30 (2)
12 PH-0300104-S0 PARALLELPINTYPEB3X10 (2)
13 401-85336 UPPER_EDGE (1)
14 SM-6040602-TN SCREW (12)
15 SB-7080002-00 BEARING (4)
16 401-83126 HOLD_SHAFT (2)
17 RE-0600000-K0 E-RING6 (2)
18 401-83127 HOLD_PLATE (1)
19 SM-1040852-TP DISHSCREW (2)
20 401-83128 SPRING_PLATE (1)
21 SL-6040892-TN SCREWM4L=8 (2)
22 401-83129 PUSHER_STOP_PLATE (2)
23 401-83181 SLIDE_BASE (1)
24 SL-6051692-TN SCREWM5L=16 (11)
25 SL-6051092-TN SCREWM5L=10 (4)
26 SM-6051402-TN SCREWM5L=14 (2)
27 NM-6050001-SC NUTM5X0.8TYPE1 (2)
28 401-83131 PUSHER_SPRRING_R (2)
29 401-82493 LOWER_EDGE (2)
30 SL-6051092-TN SCREWM5L=10 (10)
31 401-83133 MDUB50-45DZ (2)
32 PC-0152030-00 SPEEDCONTROLLER (4)
33 SM-6084002-TN SCREWM8L=40 (4)
34 401-83134 CYLINDER_SUPPORT_BLOCK (1)
35 SM-6086002-TN SCREW (4)
36 401-83201 CONNECTION_BLOCK (2)
37 SM-6064502-TP SCREWM6L=45 (4)
38 WS-0610002-KN SPRINGWASHERM6 (4)
39 WP-0641601-SC WASHERM6 (4)
40 401-83136 WASHER (4)
41 401-83137 COLLAR (2)
42 401-83138 SLIDE_SPACER (2)
43 SM-6103552-TP SCREWM10L=35 (2)
44 401-83140 COVER_LOWER_EDGE (2)
45 SL-6051092-TN SCREWM5L=10 (4)
46 401-85337 SHOOT_A (1)
47 SL-6040892-TN SCREWM4L=8 (4)
48 401-85335 TAPE_GUIDE_PLATE (1)
49 401-83146 COVER_CUTTER (1)
50 SL-6040892-TN SCREWM4L=8 (2)
51 SM-3040652-TN SCREWM4L=6 (2)
52 401-83186 SHIM_T100 (4)
53 401-83187 SHIM_T40 (8)
54 401-83188 SHIM_T20 (10)
55 401-86289 SHIM_B_T20 (8)
56 401-86290 SHIM_B_T40 (8)
57 401-86291 SHIM_B_T100 (4)
58 401-86292 SHIM_B_T200 (2)
59 401-86606 FELT_CUSHION_A (2)
60 401-86640 FELT_SUPPORT (1)
61 SM-0040601-SC SCREWM4X0.7L=6 (2)
62 401-86216 COOLING_PIPE_ASM (1)
63 401-86217 COOLING_PIPE (1)
64 PJ-3040400-01 QUICKPIPEJOINTELBOW (2)
65 HX-0015000-0A CABLECLAMP (3)
66 SL-4041291-SC SCREWM4L=12 (3)
67 401-29113 NZL-UPSVCABLEASM (1)
68 PC-0105190-00 SPEEDCONTROLLER (1)
69 EZ-4447053-11 UNION(KQ2H06-M5N)HALF (1)
70 SM-8050602-TP SCREWM5L=6 (3)
71 SL-4041691-SC SCREWM4L=16 (2)
72 PJ-3050800-01 DIFFERENTDIAMETERUNIONT (1)
73 BT-0600400-EC URETHANETUBEBLUE6X4 (0.1)
74 BT-0400251-EA URETHANETUBEBLUE4X2.5 (2)
75 PJ-3080400-06 UNIONY (1)
76 401-86607 UPPER_EDGE_SUPPORT_ROLLER 1
77 401-86608 ROLLER_BASE 1
78 PH-0400162-C0 PARALLELPINTYPEB4X16 1
79 SM-8030302-TP SCREWM3X3 2
80
#01
401-86610 SPACER_R 1
81 SM-6043002-TN SCREW 2
82 400-92716 TAPECUTTERDANGERLABEL 1
83
#02
401-86609 SPACER_F 1
- -

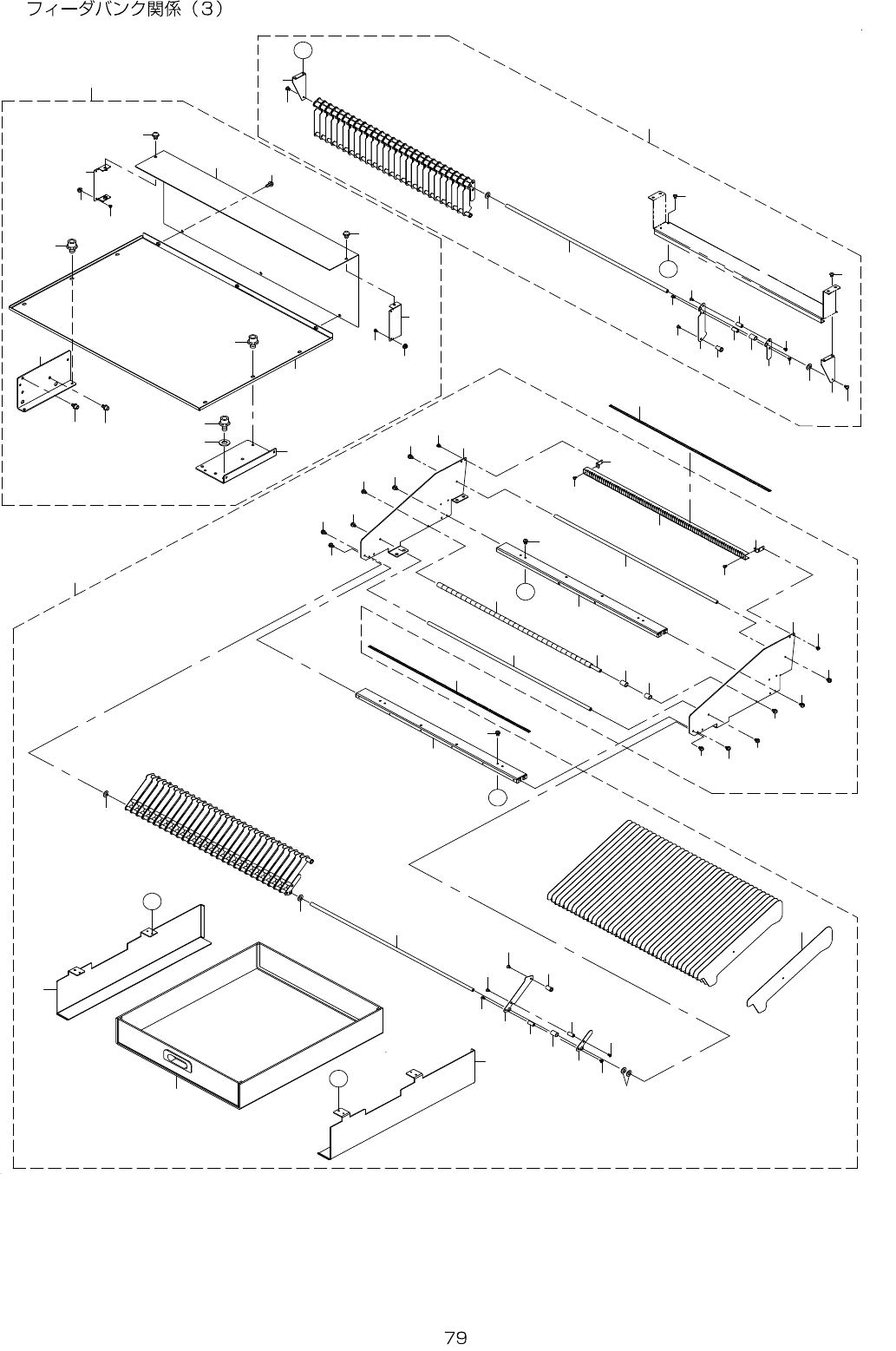

40.FEEDERBANKCOMPONENTS(3)
1 0
1 3
2 2
2
3
3
4
5
5
6
7
1 1
9
8
8
1 2
1 3
1 3
1 3
1 3
1 5
1 6
A
A
1 7
B
1 7
B
1 8
1 8
1 9
1 9
2 0
2 1
2 2
2 2
2 2
2 2
1 9
2 2
2 2
2 2
1 9
2 3
2 4
2 4
2 5
2 6
2 5
2 6
2 7
2 7
2 7
2 7
3 5
2 8
3 5
2 9
3 0
3 0
3 1
3 3
3 2
3 4
3 5
3 5
3 5
3 6
3 7
3 8
4 0
3 9
3 9
4 1
4 1
C
C
1 4
2
1
4 3
4 4
4 4
4 4
4 5
4 6
4 6
4 5
4 7
4 7
4 8
4 9
4 9
5 0
5 0
5 1
5 1
5 2
5 3
4 2
- -

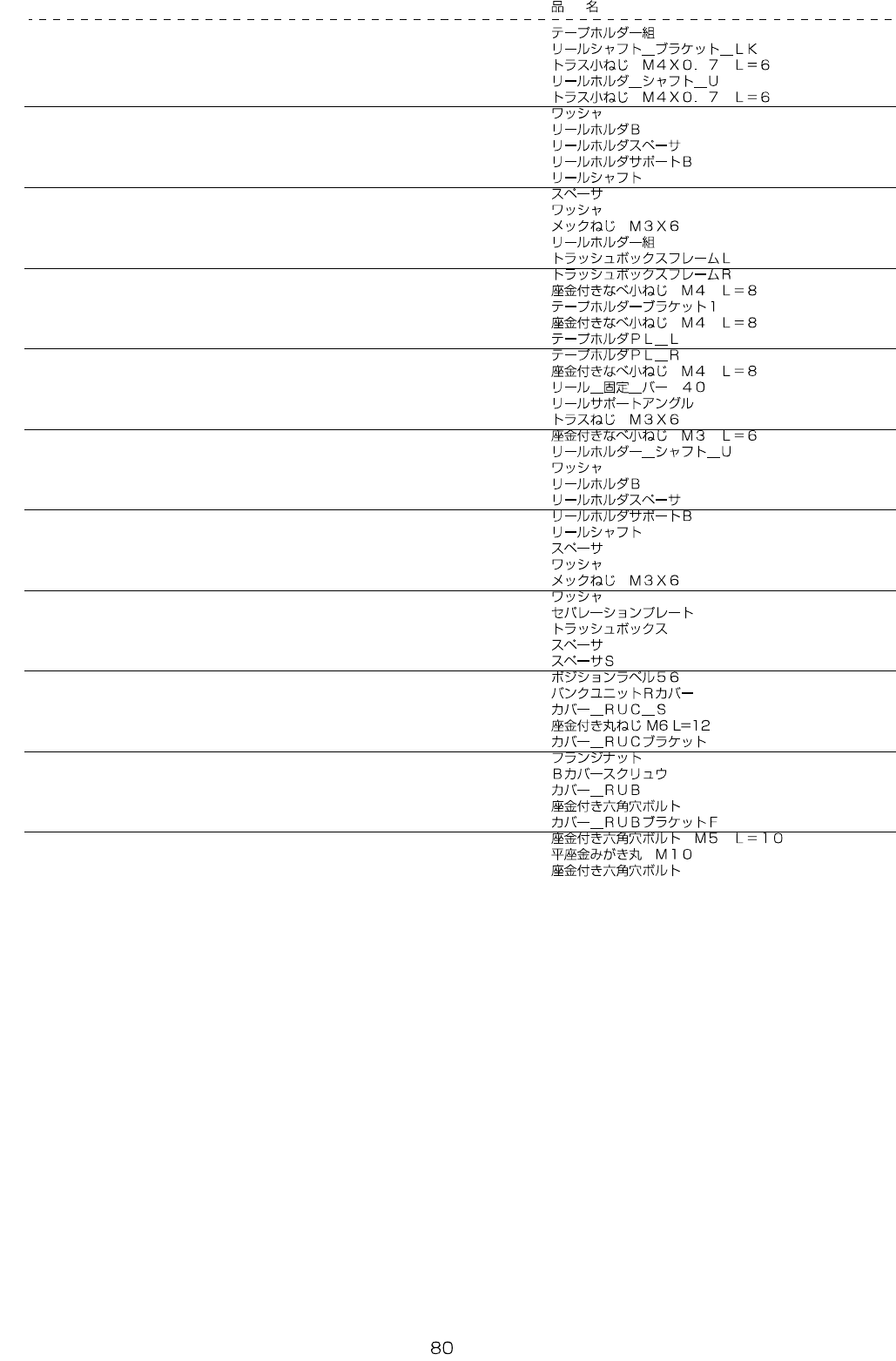

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-83609 TAPE_HOLDER_ASM 1
2 401-83156 REEL_SH_BR_LK (2)
3 SM-0040601-SC SCREWM4X0.7L=6 (4)
4 401-83158 REEL_HOLDER_SH_U (1)
5 SM-0040601-SC SCREWM4X0.7L=6 (2)
6 401-67541 WASHER (1)
7 401-67537 REEL_HOLDER_B (28)
8 401-67553 REEL_HOLDER_SPACER (56)
9 401-67538 REEL_HOLDER_SUPPORT_B (28)
10 401-67539 REEL_SH (28)
11 401-67540 SPACER (28)
12 401-67541 WASHER (28)
13 400-52050 SCREWM3X6MEC (140)
14 401-83610 REEL_HOLDER_ASM 1
15 401-85551 TRASH_BOX_FRAME_L (1)
16 401-85552 TRASH_BOX_FRAME_R (1)
17 SL-4040891-SC SCREWM4X8 (8)
18 400-94862 TAPE_HOLDER_BR_1 (2)
19 SL-4040891-SC SCREWM4X8 (8)
20 401-85553 TAPE_HOLDER_PL_L (1)
21 401-85554 TAPE_HOLDER_PL_R (1)
22 SL-4040891-SC SCREWM4X8 (8)
23 401-10291 REEL_FIXING_BAR40 (1)
24 400-84674 REEL_SUPPORT_ANGLE (2)
25 SM-0030601-SC SCREWM3X6 (2)
26 SL-4030691-SC SCREWM3L=6 (4)
27 401-83161 REEL_HOLDER_SH (4)
28 401-67541 WASHER (2)
29 401-67537 REEL_HOLDER_B (28)
30 401-67553 REEL_HOLDER_SPACER (56)
31 401-67538 REEL_HOLDER_SUPPORT_B (28)
32 401-67539 REEL_SH (28)
33 401-67540 SPACER (28)
34 401-67541 WASHER (28)
35 400-52050 SCREWM3X6MEC (140)
36 401-67541 WASHER (1)
37 400-84676 SEPARATION_PLATE (39)
38 401-85550 TRASH_BOX (1)
39 401-67540 SPACER (33)
40 401-86282 SPACER_S (1)
41 401-84971 POSITION_LAVEL_56 5
42 401-88171 BANK_UNIT_R_COVER 1
43 401-88176 COVER_RUC_S (1)
44 SL-3061232-TN SCREW (5)
45 401-88177 COVER_RUC_BR (2)
46 NM-3040520-SF FLANGENUTM4 (2)
47 400-81751 B_COVER_SCREW (4)
48 401-58856 COVER_RUB (1)
49 SL-6061092-TN SCREW (4)
50 401-81844 COVER_RUB_BR_F (2)
51 SL-6051092-TN SCREWM5L=10 (2)
52 WP-1052001-SC WASHER10 (2)
53 SL-6102042-TN SCREW (2)
