- - 46. REPLACINGOVERA LLCHANGERT RUCKCOMPONENTS(4 ) 1 4 4 B A 4 2 5 8 1 3 1 2 1 2 3 6 3 1 3 4 3 8 3 3 6 9 2 0 3 9 3 6 3 6 3 6 3 2 3 5 7 1 6 4 0 2 9 1 0 1 1 1 1 4 0 1 6 1 5 5 1 4 7 8 1 3 1 2 1 5 4 4 1 5 1 5 4 2 6 …

100%1 / 128
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-87652 TAPE_HOLDER_TROLLEY_ASM 1
2 401-87650 REEL_SH_BR_L (1)
3 SL-4040891-SC SCREWM4L=8 (4)
4 401-83158 REEL_HOLDER_SH_U (1)
5 SM-0040601-SC SCREWM4X0.7L=6 (2)
6 401-67541 WASHER (1)
7 401-67537 REEL_HOLDER_B (28)
8 401-67553 REEL_HOLDER_SPACER (56)
9 401-67538 REEL_HOLDER_SUPPORT_B (28)
10 401-67539 REEL_SH (28)
11 401-67540 SPACER (28)
12 401-67541 WASHER (28)
13 400-52050 SCREWM3X6MEC (140)
14 401-87651 REEL_SH_BR_R (1)
15 401-83610 REEL_HOLDER_ASM 1
16 401-85552 TRASH_BOX_FRAME_R (1)
17 SL-4040891-SC SCREWM4X8 (8)
18 400-94862 TAPE_HOLDER_BR_1 (2)
19 SL-4040891-SC SCREWM4X8 (8)
20 401-85553 TAPE_HOLDER_PL_L (1)
21 401-85554 TAPE_HOLDER_PL_R (1)
22 SL-4040891-SC SCREWM4X8 (8)
23 401-10291 REEL_FIXING_BAR40 (1)
24 400-84674 REEL_SUPPORT_ANGLE (2)
25 SM-0030601-SC SCREWM3X6 (2)
26 SL-4030691-SC SCREWM3L=6 (4)
27 401-83161 REEL_HOLDER_SH (4)
28 401-67541 WASHER (2)
29 401-67537 REEL_HOLDER_B (28)
30 401-67553 REEL_HOLDER_SPACER (56)
31 401-67538 REEL_HOLDER_SUPPORT_B (28)
32 401-67539 REEL_SH (28)
33 401-67540 SPACER (28)
34 401-67541 WASHER (28)
35 400-52050 SCREWM3X6MEC (140)
36 401-67541 WASHER (1)
37 400-84676 SEPARATION_PLATE (39)
38 401-85550 TRASH_BOX (1)
39 401-67540 SPACER (33)
40 401-86282 SPACER_S (1)
41 401-85551 TRASH_BOX_FRAME_L (1)
42 401-84971 POSITION_LAVEL_56 2
- -

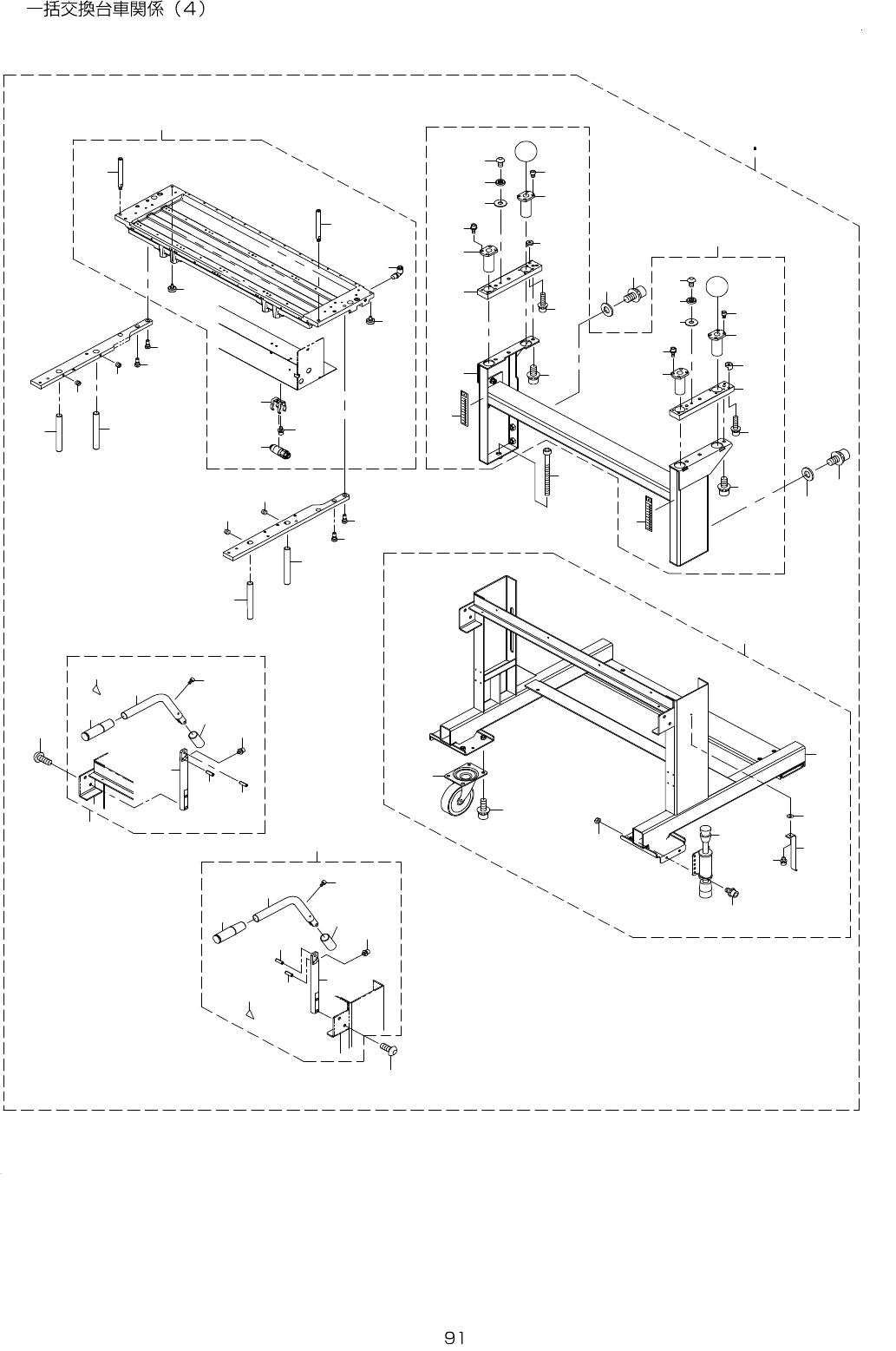

46.REPLACINGOVERALLCHANGERTRUCKCOMPONENTS(4)
1 4
4
B
A
4 2
5
8
1 3
1 2
1 2
3 6
3 1
3 4
3 8
3 3
6
9
2 0
3 9
3 6
3 6
3 6
3 2
3 5
7
1 6
4 0
2 9
1 0
1 1
1 1
4 0
1 6
1 5
5
1 4
7
8
1 3
1 2
1 5
4
4
1 5
1 5
4
2 6
2 8
3 0
2 9
2 5
2 1
2 4
2 3
2 2
3 0
1 8
1 8
3
1 9
3 7
3 7
1 7
1 7
2 7
4 2
1 8
1 8
1 7
1 7
4 7
4 7
4 7
4 7
4 3
4 4
4 4
4 5
4 6
4 6
4 1
3 4
3 1
3 8
3 3
3 5
3 2
- -

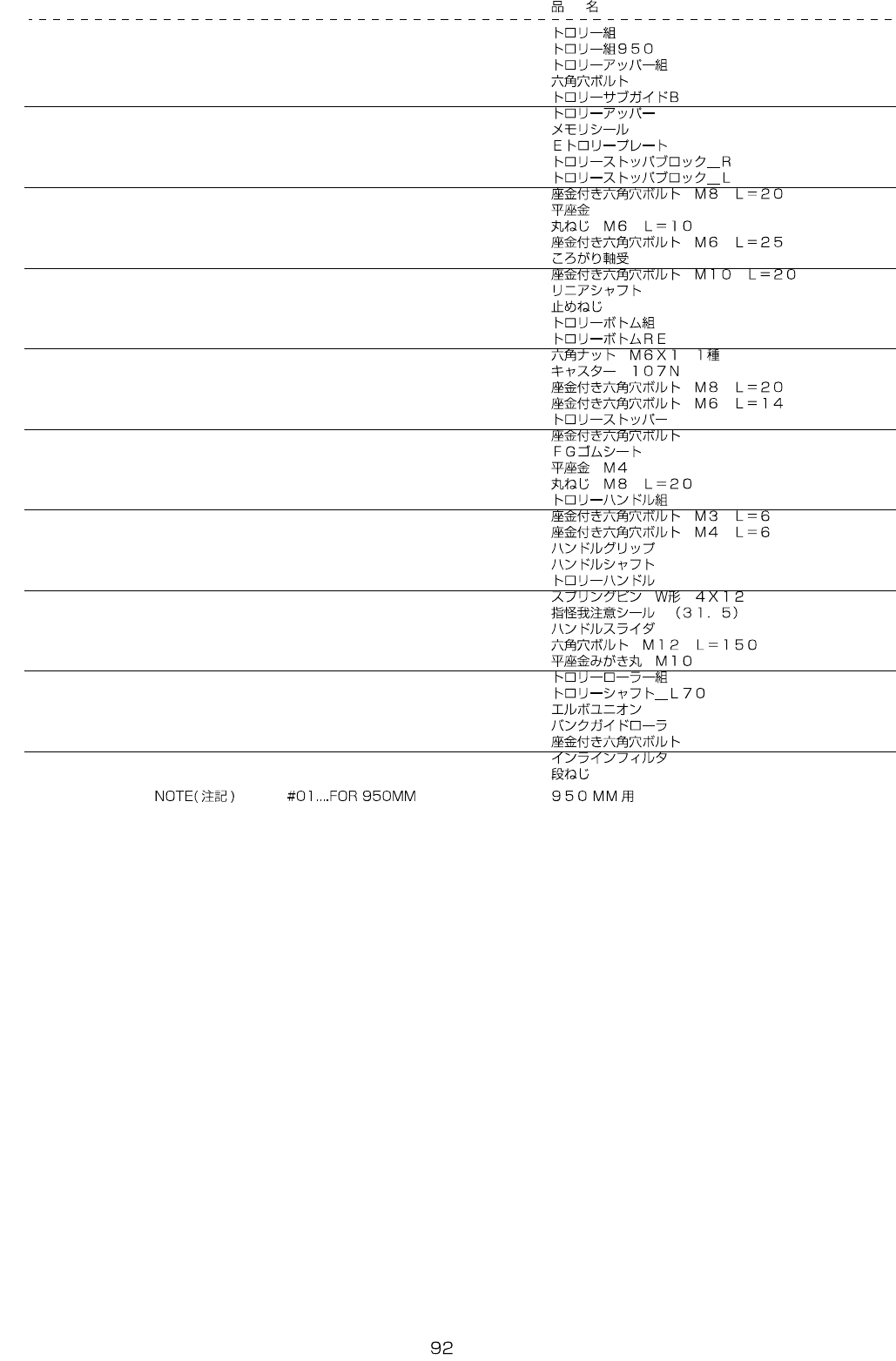

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-87614 TROLLEY_ASM 1
2
#01
401-87656 TROLLEY_ASM_950 1
3 401-87615 TROLLEY_UPPER_ASM (1)
4 SM-6040602-TN SCREW (16)
5 400-01748 TROLLEYSUBGUIDE (2)
6 401-77434 TROLLEY_UPPER (1)
7 400-01730 SCALEMARKSSEAL (2)
8 400-89239 E_TROLLEY_PLATE (4)
9 401-87619 TROLLEY_STOPPER_BLOCK_R (1)
10 401-87618 TROLLEY_STOPPER_BLOCK_L (1)
11 SL-6082092-TN SCREWM8L=20 (6)
12 WP-0621036-SP WASHER (4)
13 SM-3061052-TN SCREWM6L=10 (4)
14 SL-6062592-TN SCREWM6L=25 (2)
15 SB-8160005-C0 BEARING (4)
16 SL-6102042-TN SCREWM10L=20 (4)
17 401-28047 LINEAR_SHAFT (4)
18 SM-8060552-TP SCREWM6L=5 (4)
19 401-87616 TROLLEY_BOTTOM_ASM (1)
20 401-87620 TROLLEY_BOTTOM_RE (1)
21 NM-6060001-SC NUTM6X1TYPE1 (4)
22 400-94859 CASTER_107N (4)
23 SL-6082092-TN SCREWM8L=20 (16)
24 SL-6061492-TN SCREWM6L=14 (4)
25 E2711-721-000 TROLLEYSTOPPER (2)
26 SL-6040892-TN BOLT (1)
27 400-23476 FGGUMSHEET (1)
28 WP-0430801-SC WASHERM4 (1)
29 SM-3082052-TN SCREWM8L=20 (4)
30 401-87617 TROLLEY_HANDLE_ASM (2)
31 SL-6030642-TN SCREWM3L=6 (1)
32 SL-6040642-TN SCREWM4L=6 (1)
33 E2641-729-000 HANDLECLIP (1)
34 401-87629 HANDLE_SHAFT (1)
35 401-87628 TROLLEY_HANDLE (1)
36 PS-0400122-KP SPRINGPINTYPEW4X12 (3)
37 CM-3002000-03 FINGERINJURYCAUTIONLABEL(31.5) (1)
38 E2635-729-000 HANDLESLIDER (1)
39 SM-6125052-TR SCREWM12L=150 (2)
40 WP-1052001-SC WASHER10 (4)
41 401-87649 TROLLEY_ROLLER_ASM (1)
42 400-94881 TROLLEY_SHAFT_L70 (2)
43 PJ-3040852-01 ELBOWUNION8XPT1/4 (1)
44 E2732-721-000 BANKGUIDEROLLER (2)
45 SL-6040892-TN BOLT (2)
46 401-83167 INLINE_FILTER (1)
47 400-01734 SCREW (4)
