2 Operational Safety User Manual SIPLACE CA 2.2 Warning Labels on the Placement Machine Edition 08/2011 EN 54 2.2.8 Danger Sign W208 "Laser Class 2" at the PCB Conveyor 2 Item W208 "laser class 2" on …
User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
53
2.2.7.2 Danger Sign W207 on the Inrush Current Limitation for the Main Power Supply
2

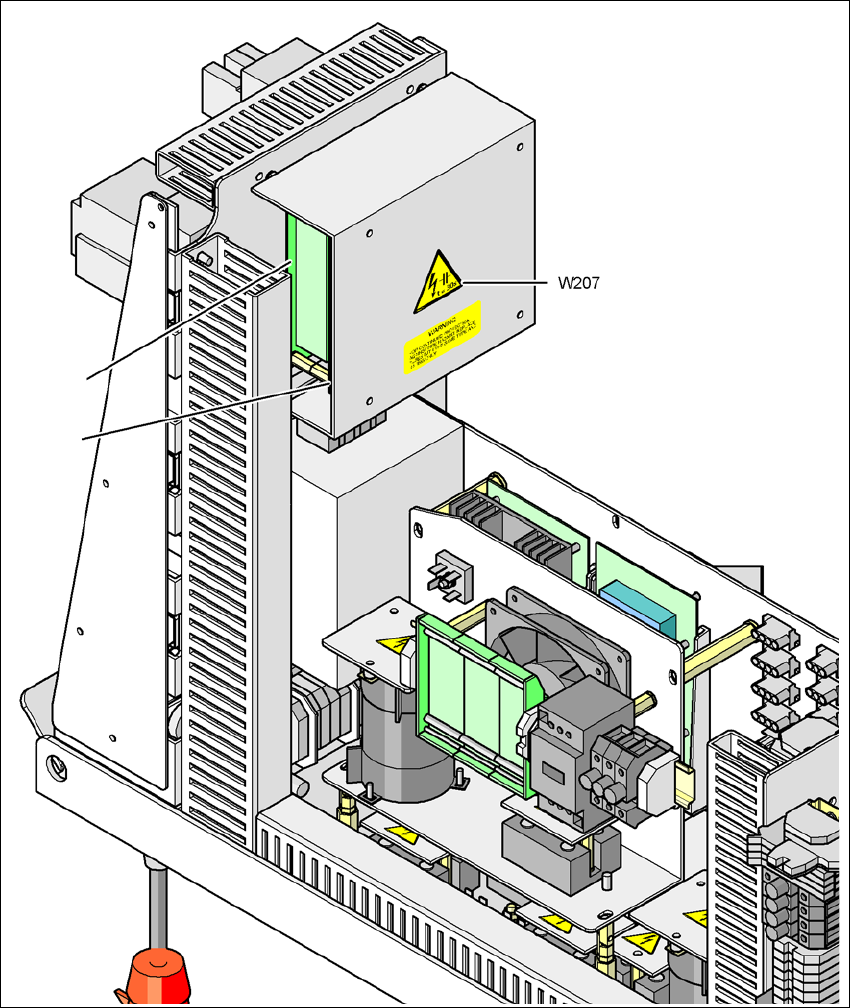

Fig. 2.2 - 10 Danger sign W207 on the inrush current limitation for the main power supply
Item W207 [03009346-01]
PCB1 Board, inrush current limiter - transformer
PCB2 Board, inrush current limiter - servo unit
PCB2
PCB1
2 Operational Safety User Manual SIPLACE CA
2.2 Warning Labels on the Placement Machine Edition 08/2011 EN
54
2.2.8 Danger Sign W208 "Laser Class 2" at the PCB Conveyor
2
Item W208 "laser class 2" on PCB conveyor in fig. 2.2 - 11 [03009347-01]
(number per machine: 4 for the dual conveyor, 2 for the single conveyor)
2
2
2

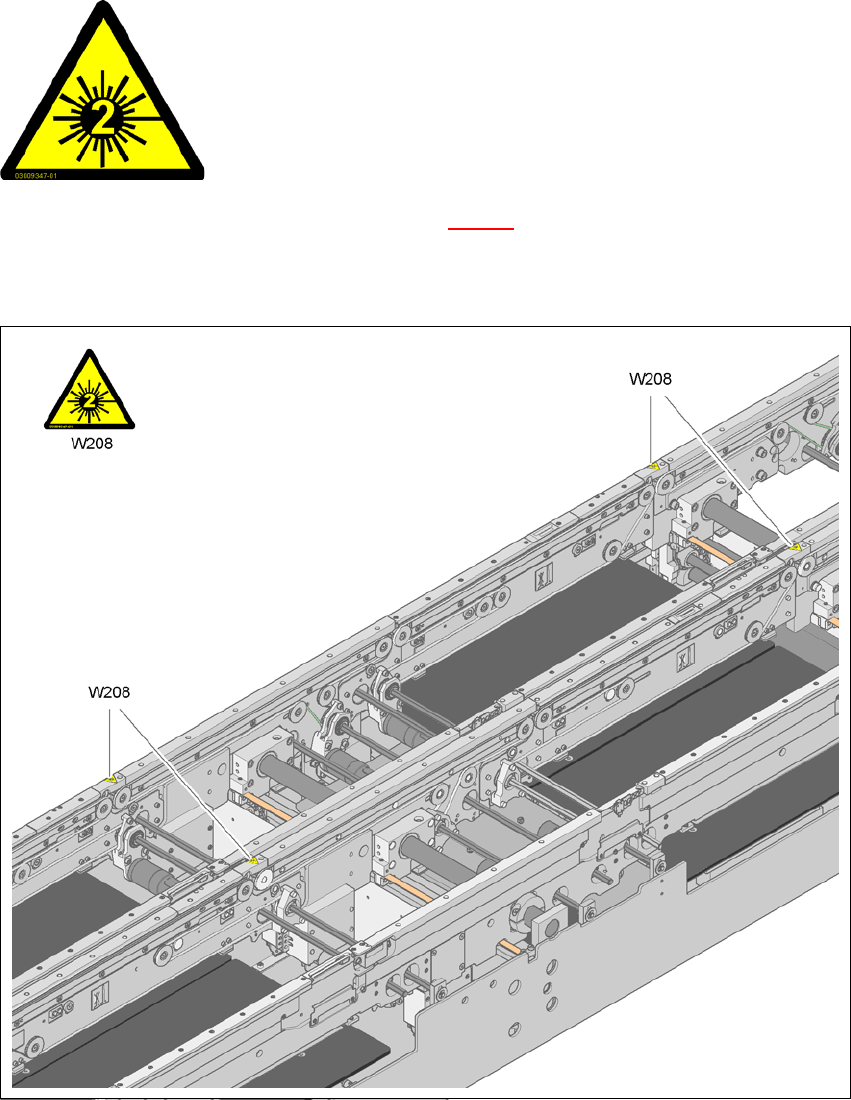

Fig. 2.2 - 11 Danger Sign W208 "Laser Class 2" at the PCB Conveyor
Item W208 [03009347-01]
2
2
LASER RADIATION!
Do not look into beam
Laser Class 2
User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
55
2.2.9 Danger Sign W211 on the CEKON Plug
2
Item W 211 in fig. 2.2 - 12 (number per machine: 1)
2

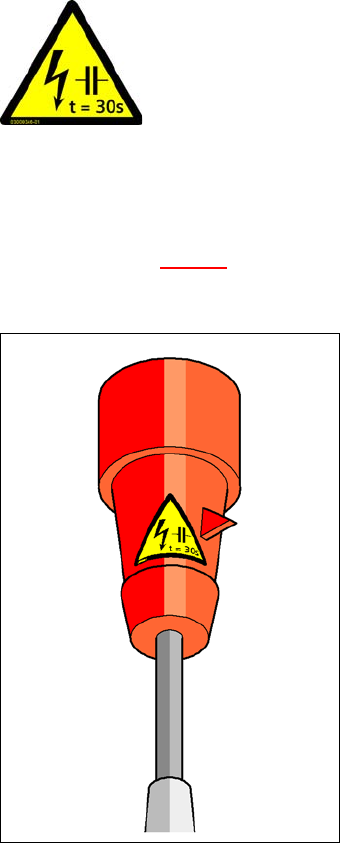

Fig. 2.2 - 12 Danger Sign W211 on the CEKON plug
Item W211 [03009351-01]
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
