3.4 SIPLACE CA Dimensions and Weight
3.4.1 Dimensions of CA4 Machine
3

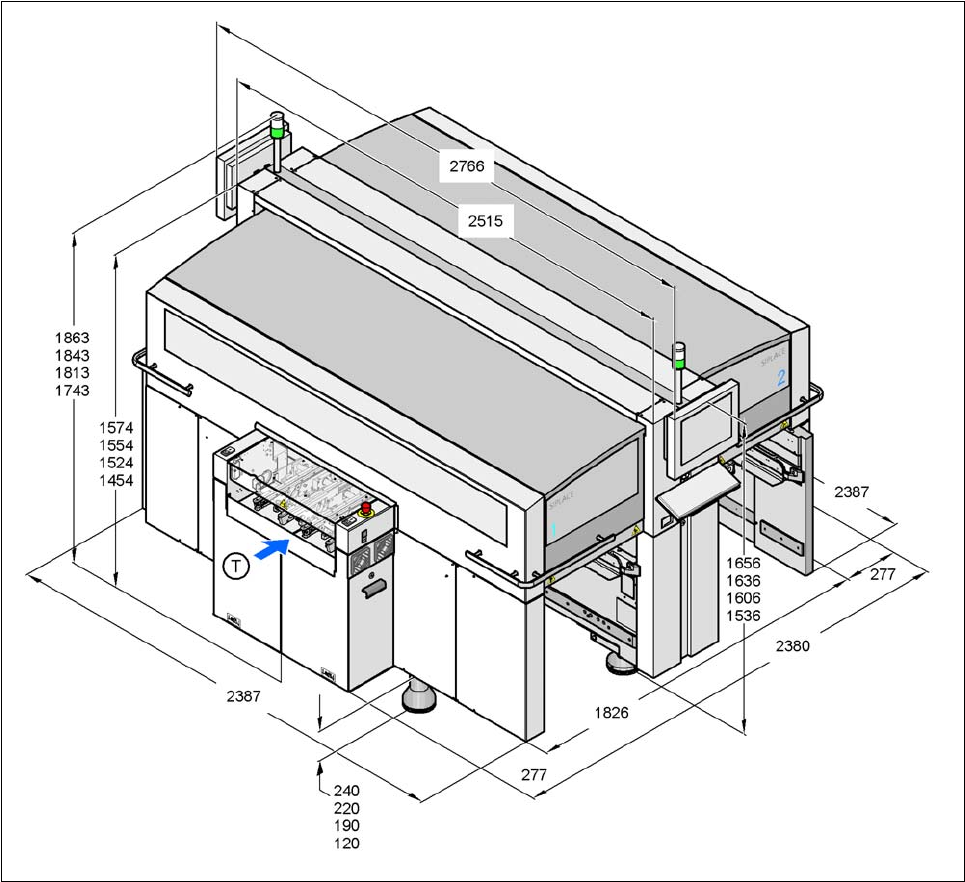

Fig. 3.4 - 1 Dimensions of CA4 machine (basic machine) in millimeters
(T) Direction of PCB transport
3 Technical Data User Manual SIPLACE CA
3.4 SIPLACE CA Dimensions and Weight Edition 08/2011 EN
128
3

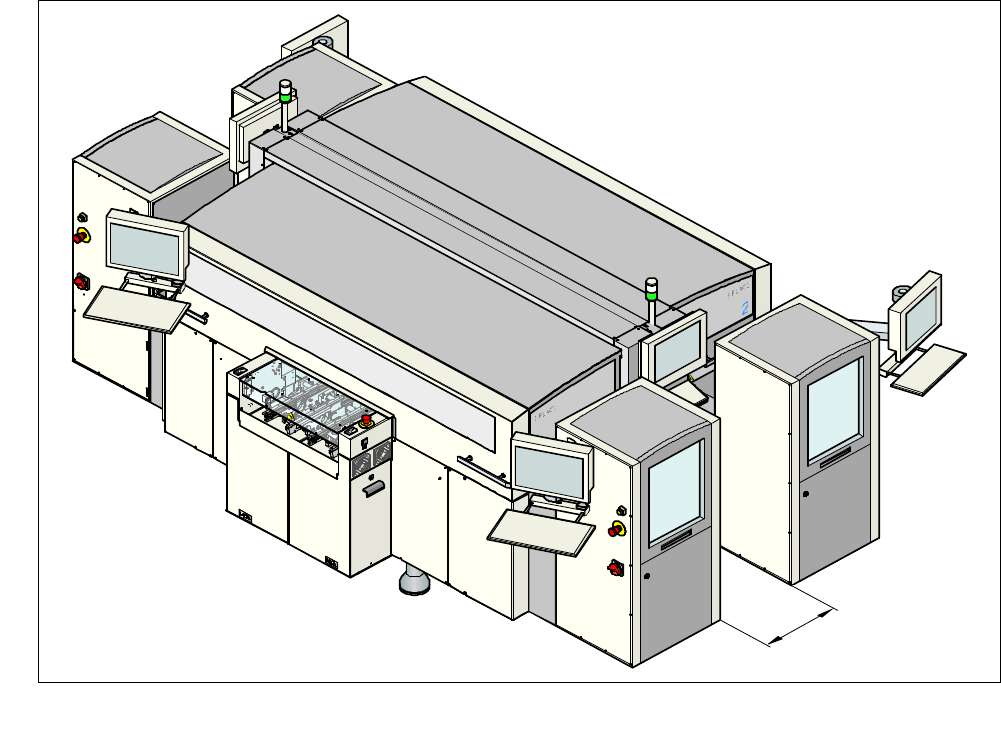

Fig. 3.4 - 2 Dimensions of CA4 machine with two SWS modules in millimeters
User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight
129
3

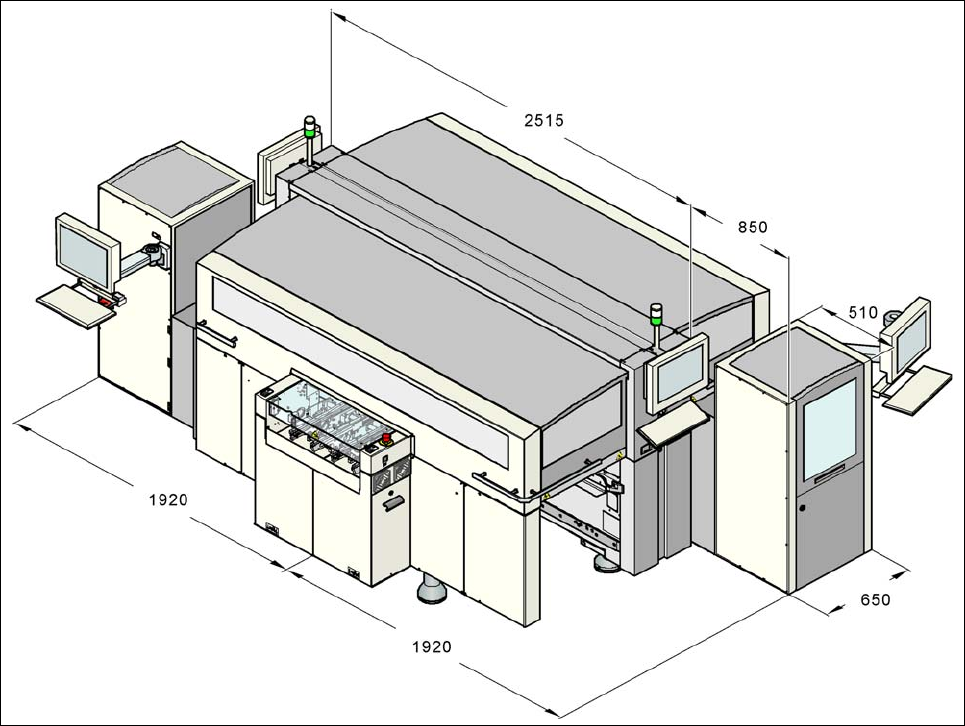

Fig. 3.4 - 3 Dimensions of CA4 machine with two SWSs in millimeters
X = 420 mm
X
