User Manual SIPLACE CA 3 Technical Data Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight 133 3.4.4 Machine Feet Clearances and th e S t ationary PCB Con veyor Edges 3.4.4.1 Machine Feet Clea rances and the S t ati…
3 Technical Data User Manual SIPLACE CA
3.4 SIPLACE CA Dimensions and Weight Edition 08/2011 EN
132
3.4.3 Height of Open Protective Cover
3

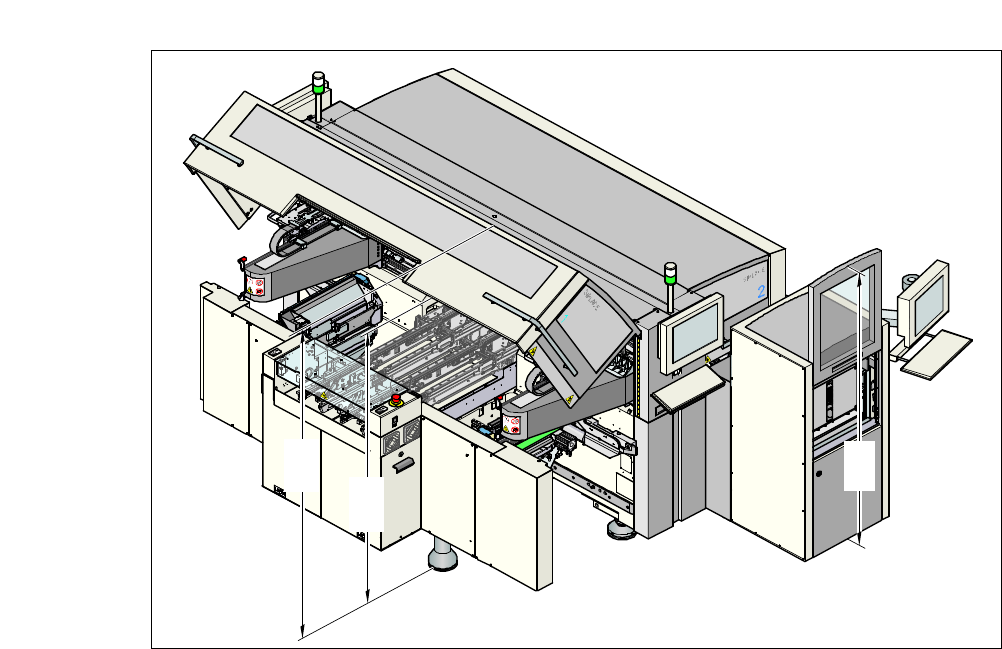

Fig. 3.4 - 6 Height of open protective cover - dimensions in millimeters
2110
2090
2060
1990
1840
1820
1790
1720
1960
1940
1910
1840
User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight
133
3.4.4 Machine Feet Clearances and the Stationary PCB Conveyor Edges
3.4.4.1 Machine Feet Clearances and the Stationary Right Conveyor Edge for the PCB Sin-
gle Conveyor
3

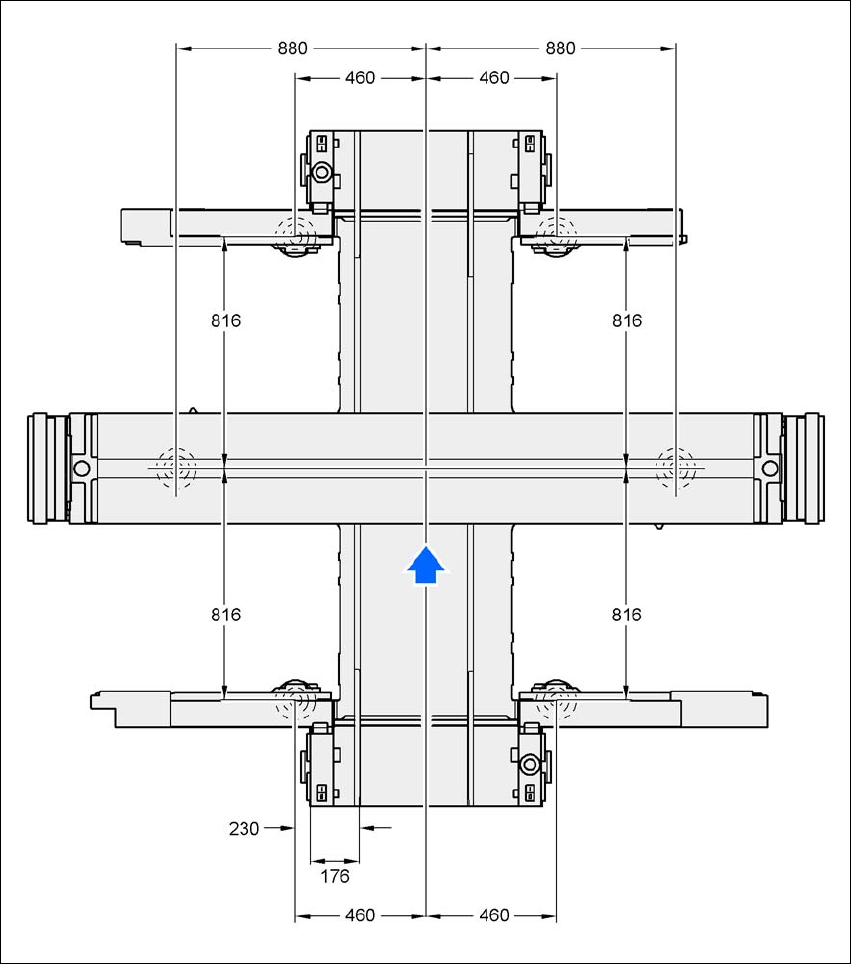

Fig. 3.4 - 7 Machine feet clearances and the stationary right conveyor edge for the PCB single conveyorin millime-
ters
3 Technical Data User Manual SIPLACE CA
3.4 SIPLACE CA Dimensions and Weight Edition 08/2011 EN
134
3.4.4.2 Machine Feet Clearances and the Stationary Left Conveyor Edge for the PCB Single
Conveyor
3

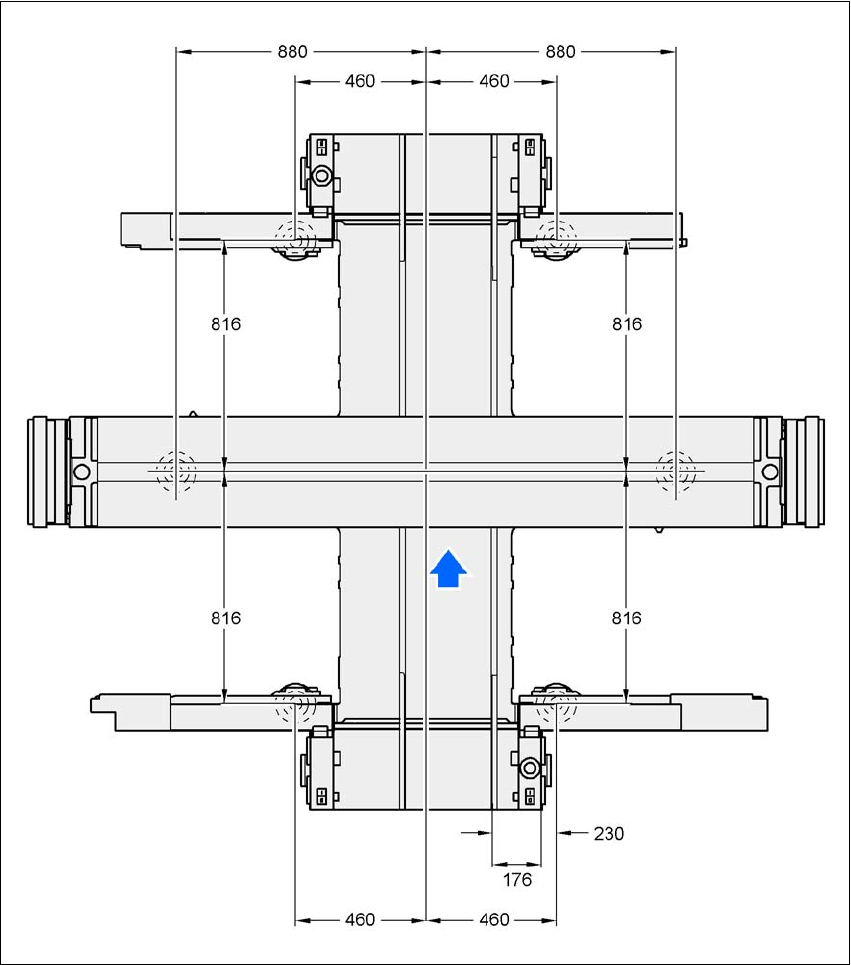

Fig. 3.4 - 8 Machine feet clearances and the stationary left conveyor edge for the PCB single conveyor in millimeters
