3 Technical Data User Manual SIPLACE CA 3.4 SIPLACE CA Dimensions and Weight Edition 08/2011 EN 140 3.4.6 Maneuvering Dist ance for the Com ponent T rolley of the CA4 Machine 3 3 Fig. 3.4 - 1 1 Maneuver ing distance of t…
User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight
139
CA4 (basic machine)
CA3 (basic machine)
SWS 8
SWS 12
Changeover table (X)
Changeover table (X),
fully configured with feeders
Changeover table (S)
Changeover table (S),
fully configured with feeders
CA4 with 2 SWS 8 and 2 SWS 12
CA3 with 3 SWS 8 and 1 SWS 12
3250 kg
3160 kg
330 kg
350 kg
95 kg
189 kg
98.5 kg
193 kg
4610 kg
4500 kg
Footprint
CA4 and CA3 6.70 m²
Load per unit area
b
)
CA4
CA3
6.88 kN/m²
6.72 kN/m²
Number of machine feet 6
a) This machine has asymmetrical SWS attachments. The center point of the whole machine is therefore not identi-
cal with the center point of the conveyor.
b) The load per unit area calculation included an additional working space of 0.5 m on each side of the machine.
3 Technical Data User Manual SIPLACE CA
3.4 SIPLACE CA Dimensions and Weight Edition 08/2011 EN
140
3.4.6 Maneuvering Distance for the Component Trolley of the CA4 Machine
3
3

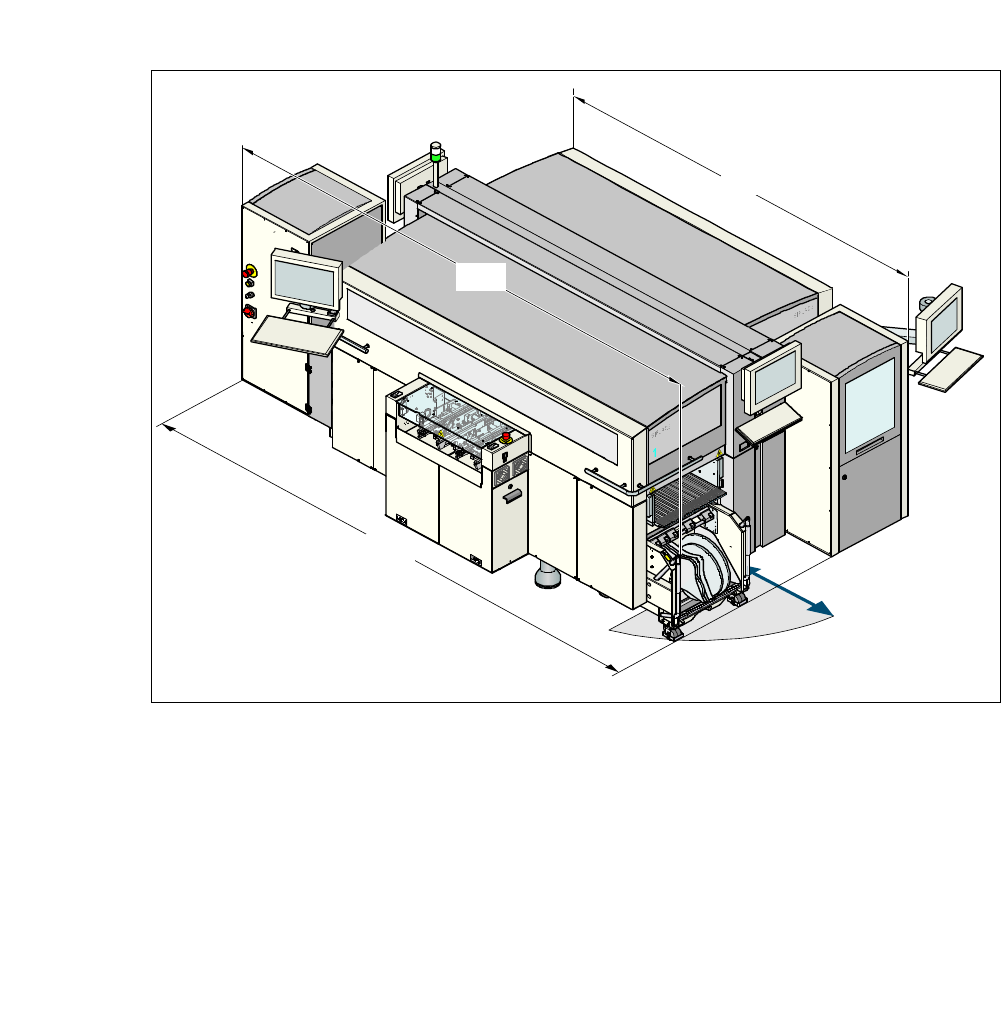

Fig. 3.4 - 11 Maneuvering distance of the component trolley at the CA4 machine with SWS
The maneuvering distance "R" of the component trolley for the CA4 machine is:
– 750 mm with the handles folded down
– 1050 mm with the handles folded up
User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight
141
3.4.7 Maneuvering Distance for the Component Trolley of the CA3 Machine
3
3
Fig. 3.4 - 12 Maneuvering distance of the component trolley at the CA3 machine with SWS
The maneuvering distance "R" of the component trolley for the CA3 machine is:
– at the locations 1, 3 and 4
750 mm with downward folded handles respectivly
1050 mm with upward folded handles,
– on location 2
600 mm with downward folded handles respectivly
900 mm with upward folded handles.
3
3
3765
R
3410
2995
