User Manual SIPLACE CA 3 Technical Data Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight 143 3.4.9 SWS Center of Gravity 3 Fig. 3.4 - 14 Coordinate system for the SWS center of gravit y 3 Center of gravity coordin…
3 Technical Data User Manual SIPLACE CA
3.4 SIPLACE CA Dimensions and Weight Edition 08/2011 EN
142
3.4.8 Center of Gravity of the CA-Series Machines
3

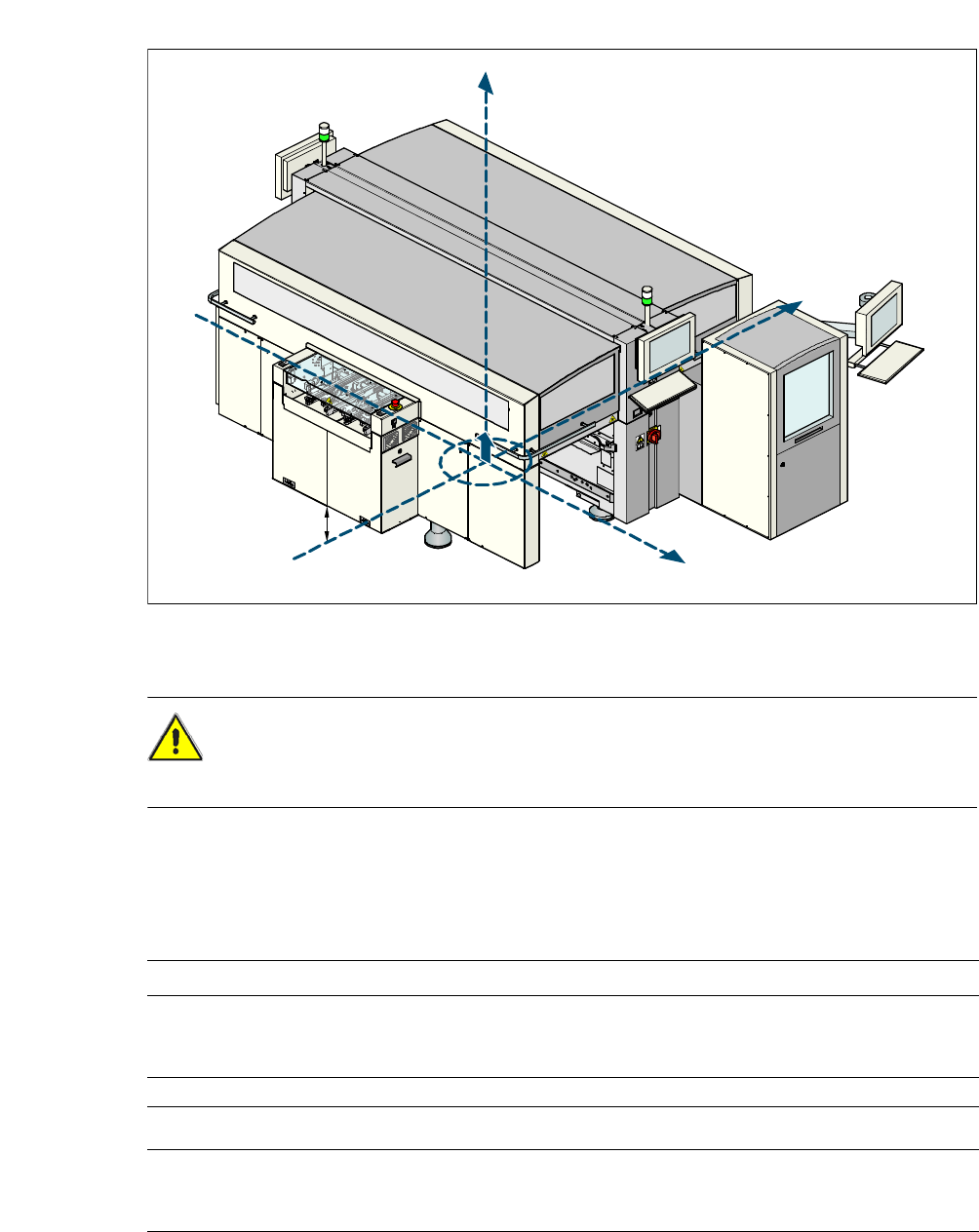

Fig. 3.4 - 13 Center of gravity for CA series machines with SWS
3
CAUTION 3
Before transport of the CA machine all component tables and SWS have to be removed.
Center of gravity coordinates:
These center of gravity coordinates for the placement machine apply for a PCB conveyor height
of 830 mm.
3
CA3 machine
Without SWS, without compo-
nent trolley
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
CA4 machine
Without SWS, without compo-
nent trolley
X coordinate 0 mm
Y coordinate 0 mm
Z coordinate 120 mm high
Y
Z
X
User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.4 SIPLACE CA Dimensions and Weight
143
3.4.9 SWS Center of Gravity
3
Fig. 3.4 - 14 Coordinate system for the SWS center of gravity
3
Center of gravity coordinates:
SWS X coordinate 0 mm
Y coordinate 655 mm
3 Technical Data User Manual SIPLACE CA
3.5 Line Concept Edition 08/2011 EN
144
3.5 Line Concept
3.5.1 Description
3
Flexibility, modularity, compact dimensions and high power density are the hallmarks of the new
SIPLACE concept. Operated together with the SIPLACE X-series, the SIPLACE CA machine al-
lows you to individually configure your production line with both identical and differing modules. If
the production requirements change, the individual placement machines are so compact and can
be combined with such flexibility that they can be recombined quickly and easily.

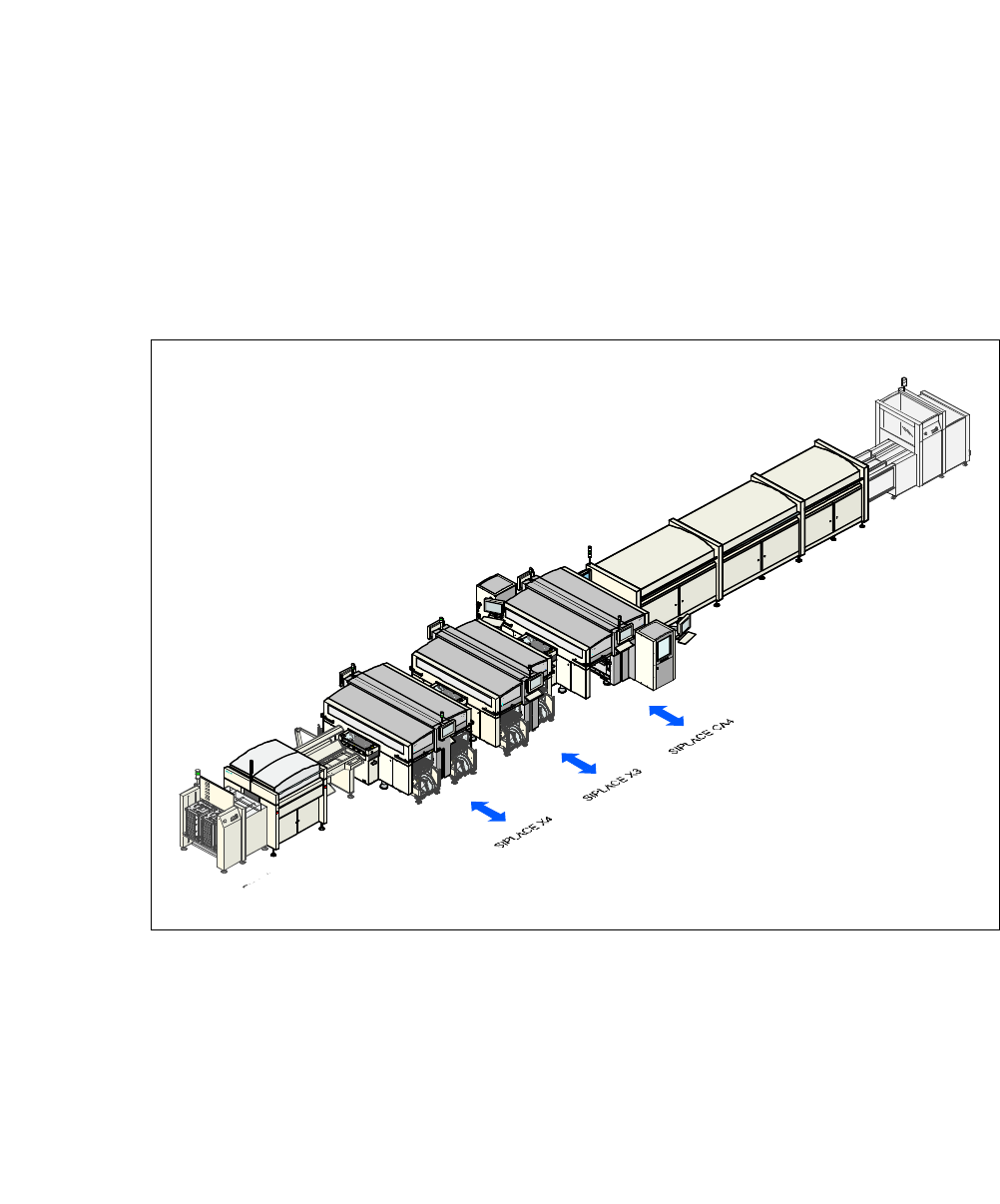

Fig. 3.5 - 1 Sample line concept
3
The SIPLACE family has the optimum placement system for each individual performance require-
ment.
SIPLACE machines from the CA series can place bare dies directly from the wafer, by using the
flip chip or die attach process, and can also place the entire SMT spectrum covered by the SI-
PLACE X machines. Thus, the SIPLACE CA is the beginning of a new placement technology
within the SIPLACE family.
