User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.12 Gantries
217
3.12 Gantries
The gantry system consists of two functional groups
–X axis and
–Y axis
.
3.12.1 Position of Gantry in CA4 MachinesCA4
3

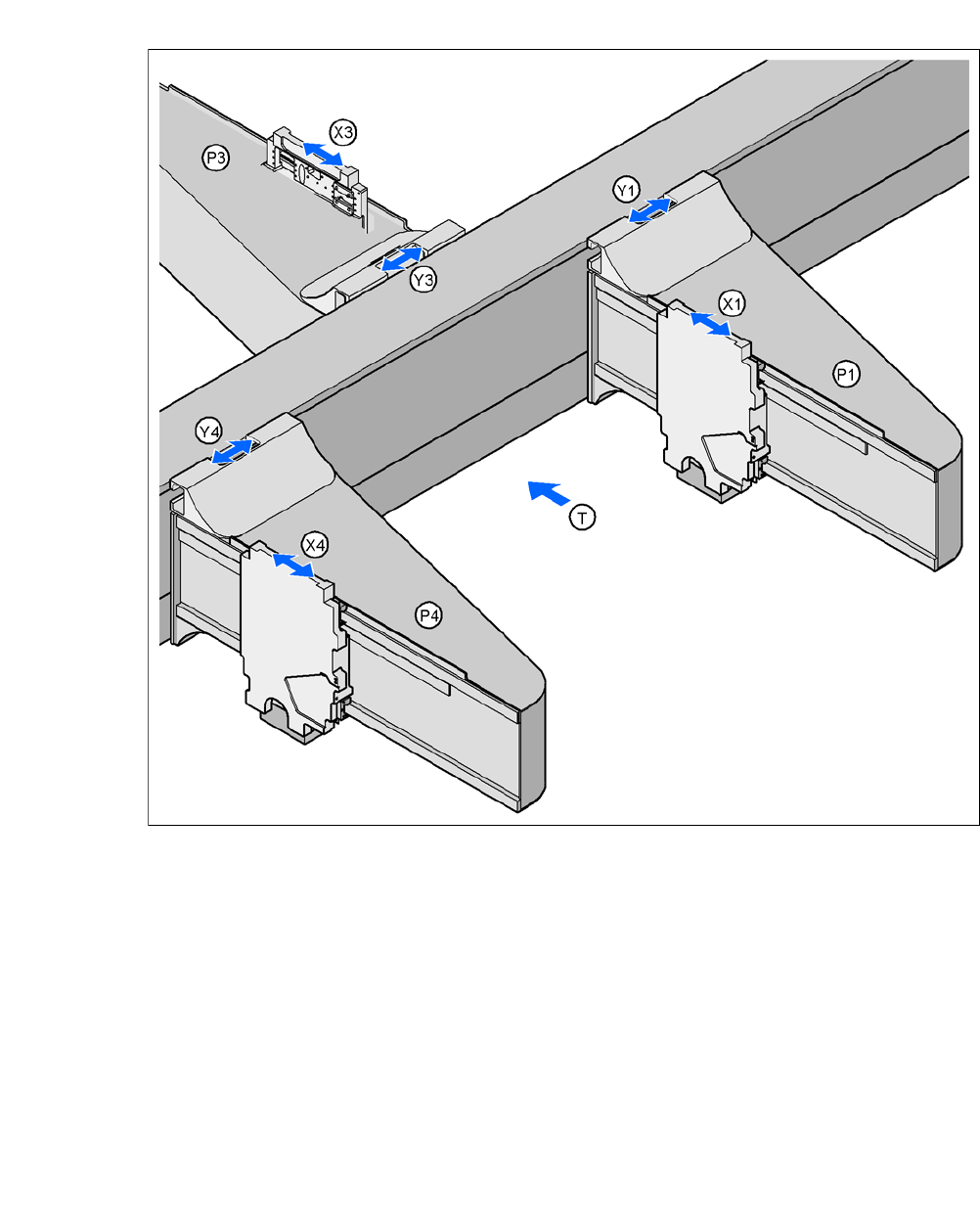

Fig. 3.12 - 1 Position of Gantry in CA4 MachinesCA4
P1, P2, P3, P4 (gantry 1 - 4) X3X axis, gantry 3
X1X axis, gantry 1 Y3Y axis, gantry 3
Y1Y axis, gantry 1 X4X axis, gantry 4
X2X axis, gantry 2 Y4Y axis, gantry 4
Y2Y axis, gantry 2 (T)Direction of PCB transport
Placement area 2
Placement area 1
3 Technical Data User Manual SIPLACE CA
3.12 Gantries Edition 08/2011 EN
218
3.12.2 Position of Gantry in CA3 MachinesCA3
3
Fig. 3.12 - 2 Position of gantry in CA3 machinesCA3
G1 gantry 1
X1 X axis, gantry 1
Y1 Y axis, gantry 1
G3 gantry 3
X3 X axis, gantry 3
Y3 Y axis, gantry 3
G4 gantry 4
X4 X axis, gantry 4
Y4 Y axis, gantry 4
(T) Direction of PCB transport
Placement area 2
Placement area 1
User Manual SIPLACE CA 3 Technical Data
Edition 08/2011 EN 3.12 Gantries
219
3.12.3 Structure of the X Axis
3

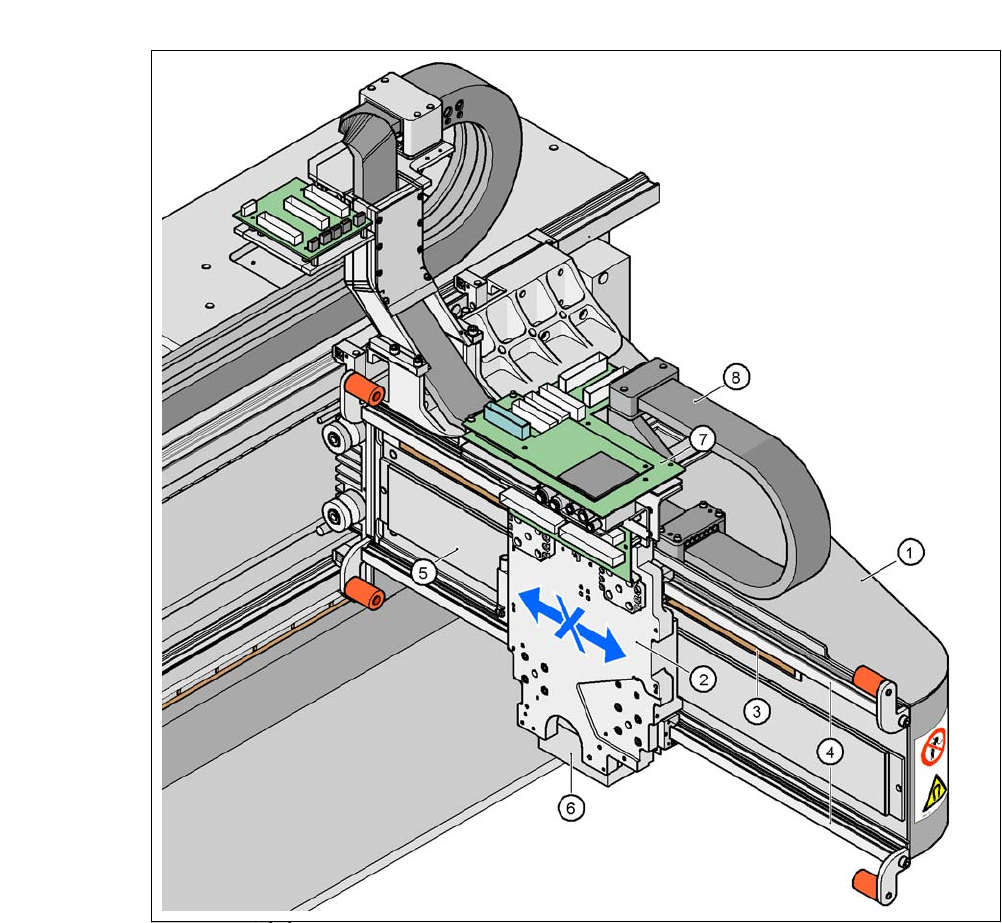

Fig. 3.12 - 3 Structure of the X axis
(1) Gantry arm
(2) Head mount with X-axis linear motor (primary part)
(3) Linear distance measuring system
(4) Guidance system
(5) Permanent magnet (secondary part of the X-axis linear motor)
(6) Sub-gantry camera
(7) Head boards
(8) Trailing cable
