4.5.4.1 Preadjust the Height of the Middle Machine Feet
The middle machine feet are preset first. Depending on the placement machine height, you may
need to screw the spacer to the underside of the machine.
Setting the PCB conveyor height to 830 mm 4
You will not need a spacer for a PCB conveyor height of 830 mm.
Screw the middle machine foot into the threaded hole provided - as far in as possible (see
item 5 in fig. 4.5 - 3
, page 272).
Setting the PCB conveyor height to 900 mm 4
You will need the spacer for a PCB conveyor height of 900 mm.
Align the spacer so that the 90 mm side is vertical and the hole for the middle machine foot
points downwards.
4
4
4
4
4
4
4
4
4
4
4
4

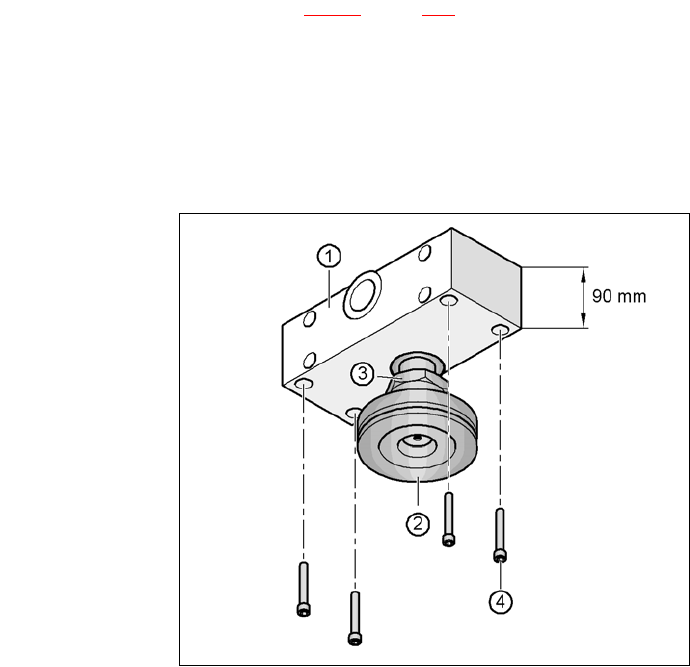

Fig. 4.5 - 4 Alignment of the spacer for a conveyor height of 900 mm
4
(1) Spacer height 90 mm
(2) Middle machine foot
(3) M24 lock nut
(4) Hexagon socket head screw M12x80, 4x
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
274
Screw the thread of the middle machine foot into the hole on the underside of the spacer.
Align the two spacers on the underside of the machine as follows:
– The opening in the spacer on the pneumatic unit side points in the direction of PCB trans-
port (see item 4 in fig. 4.5 - 3
, page 272).
– The opening in the spacer on the power supply side points in the opposite direction to
that of PCB transport (see item 3 in fig. 4.5 - 3
, page 272).
Fasten both spacers with four hexagon socket-head screws M12x80 each (see item 4 in fig.
4.5 - 4
). Use the size 10 mm screwdriver bit.
Setting the PCB conveyor height to 930 mm and 950 mm 4
You will also need the spacer for PCB conveyor heights of 930 mm and 950 mm.

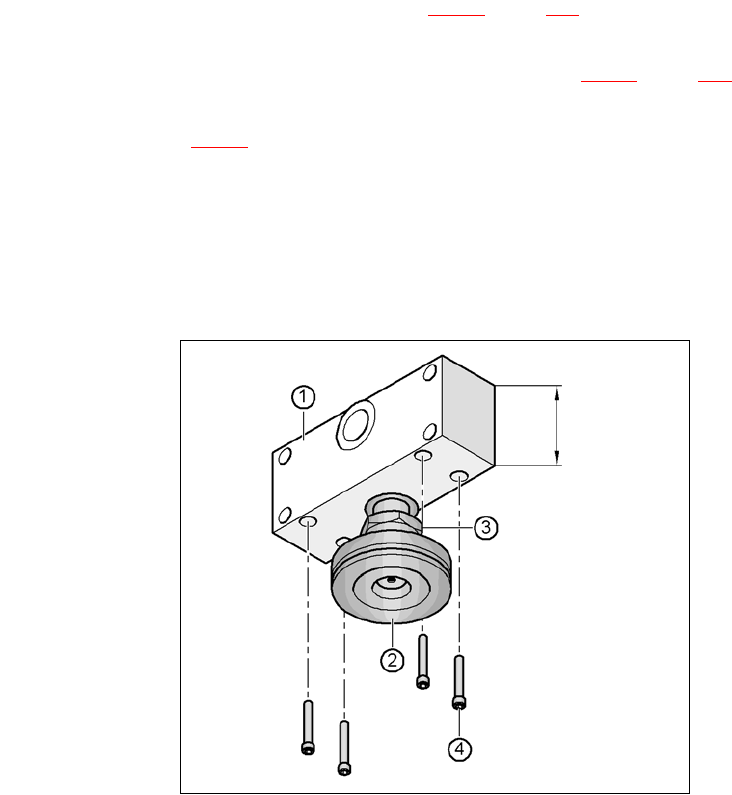

Align the spacer so that the 122.5 mm side is vertical and the hole for the middle machine foot
points downwards.
4
Fig. 4.5 - 5 Alignment of the spacer for conveyor heights of 930 and 950 mm
4
(1) Spacer height 122.5 mm
(2) Machine foot
(3) M24 lock nut
(4) Hexagon socket head screw M12x80, 4x
122,5 mm
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.5 Setting Up the Placement Machine
275
Screw the thread of the middle machine foot into the hole on the underside of the spacer.
Align the two spacers as follows:
– The opening in the spacer on the pneumatic unit side points in the direction of PCB trans-
port (see item 4 in fig. 4.5 - 3
, page 272).
– The opening in the spacer on the power supply side points in the opposite direction to
that of PCB transport (see item 3 in fig. 4.5 - 3
, page 272).
Fasten both spacers with four hexagon socket-head screws M12x80 each (see item 4 in fig.
4.5 - 5
). Use the size 10 mm screwdriver bit.
4.5.4.2 Preadjust the Height of the Outer Machine Feet
4

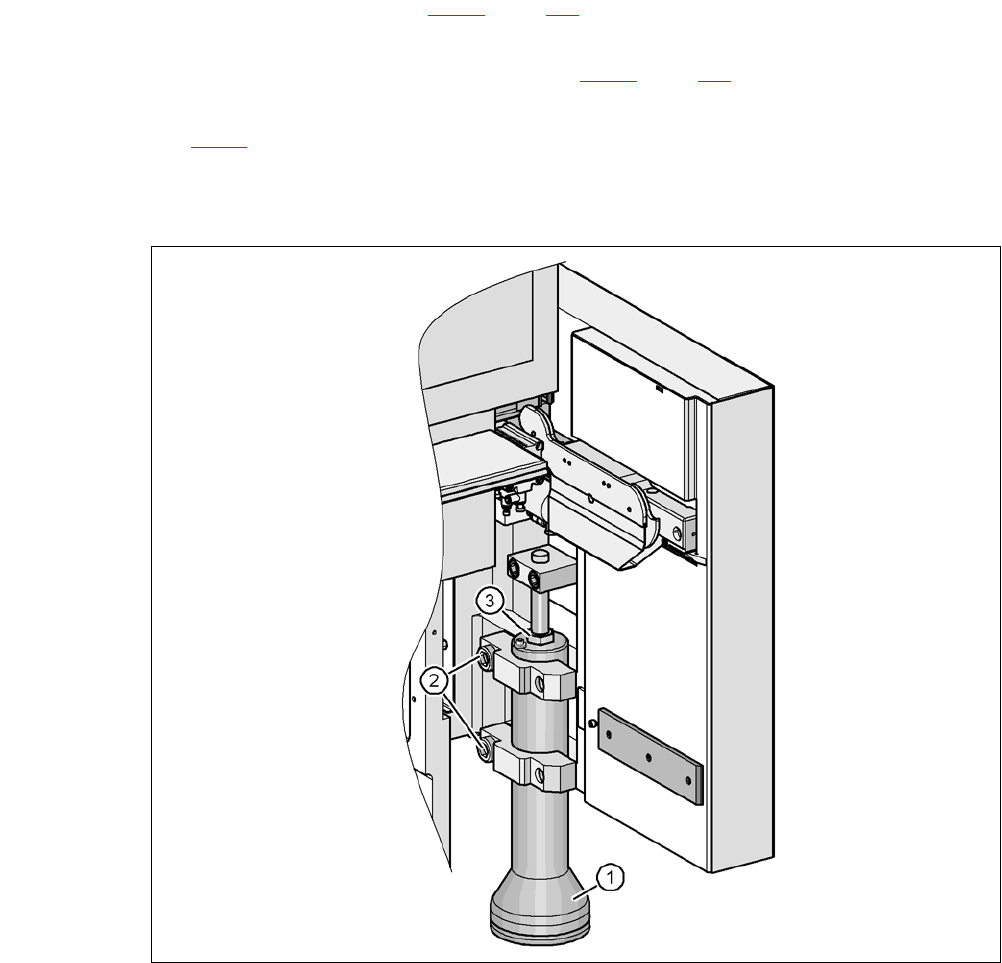

Fig. 4.5 - 6 Preadjust the height of the outer machine feet
(1) Machine foot - 2 versions
(2) M24x90 hexagon socket head screw
(3) M24x2x120 adjusting screw
