4.5.7.2 Setting Up
4

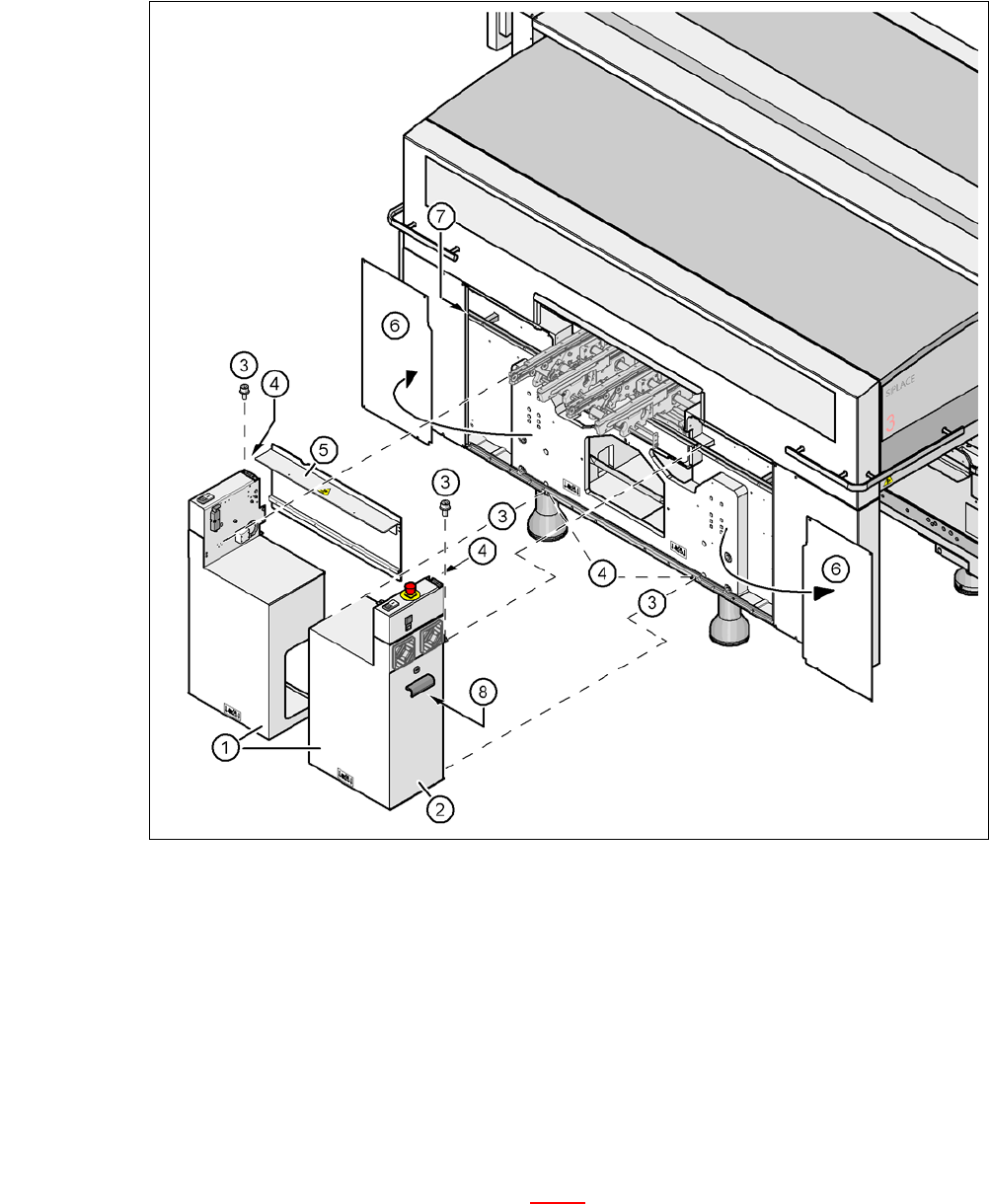

Fig. 4.5 - 8 Install extension kit to the PCB output side
(1) Extension kit
(2) Door
(3) Fillister head screw DIN 912, M6x16 and washer
(4) Grounding connection
(5) Transport cover
(6) Side plate, dismantled
(7) Insert rail
(8) Axis unit CA4 gantries 2 and 3 (CA4)
Remove both side plates (item 6 in fig. 4.5 - 8).
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.5 Setting Up the Placement Machine
281
CAUTION 4
Do not unscrew the three bottom screws straight away. Simply loosen them so that the side
plate does not fall off.
Detach the ground cable from the side plate.
Remove both doors (item 2 in fig. 4.5 - 8) from the extension kit (item 1).
Note: 4
To avoid damage, we recommend that a second person helps to assemble the extension kit.
Place the axis unit (item 8 in fig. 4.5 - 8) down at the side of the placement machine, so that
you have enough room to fit the extension kit (item 1 in fig. 4.5 - 8
).
Make sure that the connecting cables to the axis unit are not too tight.
Lift one half of the extension kit (item 1 in fig. 4.5 - 8) against the machine frame and position
it so that the assembly bracket lies on the assembly bar (item 7 in fig. 4.5 - 8
).
CAUTION 4
Make sure that this half of the extension kit does not collide with the hexagonal shaft of the
PCB conveyor and thus bend the shaft.
Fasten this half of the extension kit with 2 fillister head screws M6x16 and the corresponding
discs (item 3 in fig. 4.5 - 8
).
Before assembling the second half of the extension kit, fit the conveyor covers (item 5 in fig.
4.5 - 8
). The procedure is as follows:
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
282
4

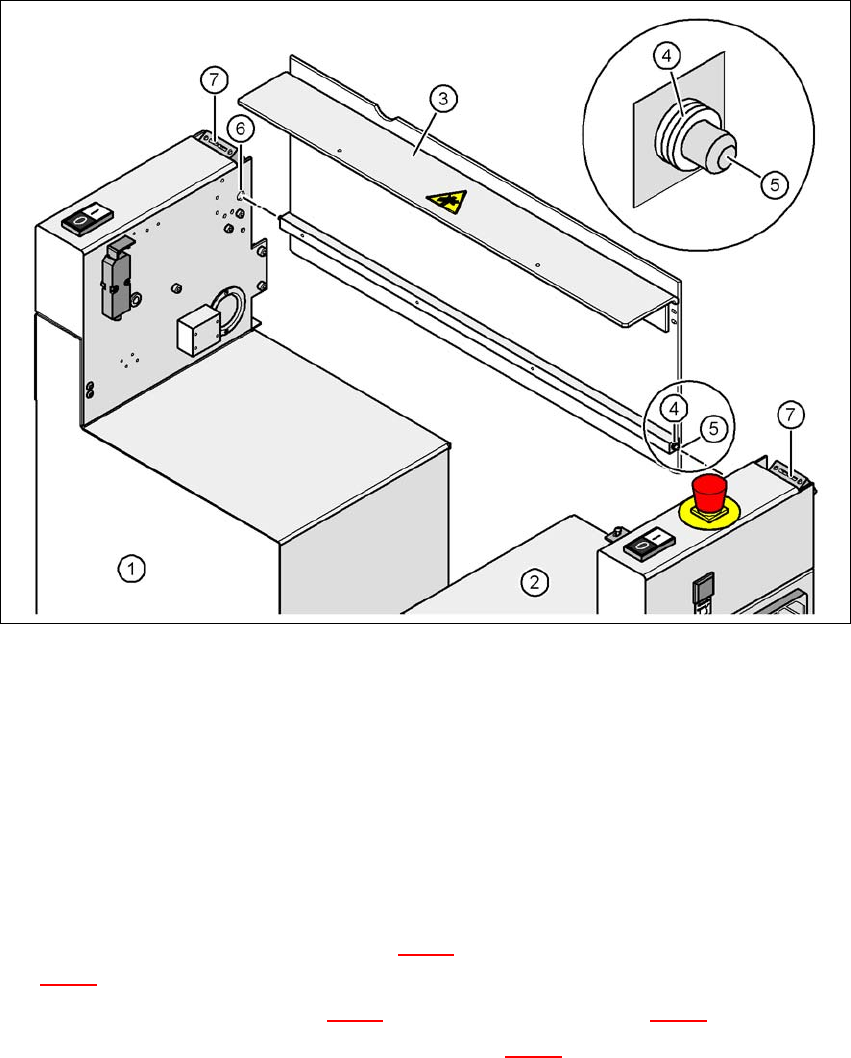

Fig. 4.5 - 9 Fitting the conveyor cover and the second half of the extension kit
(1) Half of the extension kit already fitted
(2) Second half of the extension kit to be fitted
(3) Transport cover
(4) Insert 3 white plastic washers on both sides
(5) Mandrel of the conveyor cover
(6) Hole
(7) Protective cover switch
Insert 3 white plastic discs (item 4 in fig. 4.5 - 9) on each of the two mandrels (item 5 in fig.
4.5 - 9
).
Insert the mandrel (item 5 in fig. 4.5 - 9) into the drilling (item 6 in fig. 4.5 - 9).
Lift the second half of the extension kit (item 2 in fig. 4.5 - 9) up to the machine frame.
