User Manual SIPLACE CA 4 Setting Up and Commissioning Edition 08/2011 EN 4.5 Setting Up the Placement Machine 295 4 Fig. 4.5 - 16 Fitting the conveyor cove r and the second half of the extension kit (1) Half of the exten…
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
294
Remove both side plates (item 6 in fig. 4.5 - 15).
CAUTION 4
Do not unscrew the three bottom screws straight away. Simply loosen them so that the side
plate does not fall off.
Detach the ground cable from the side plate.
Remove both doors (item 2 in fig. 4.5 - 15) from the extension kit (item 1).
Note: 4
To avoid damage, we recommend that a second person helps to assemble the extension kit.
Place the computer unit/Box PC unit
a
(item 8 in fig. 4.5 - 15) and the axis unit (item 9 in fig.
4.5 - 15
) down at the side of the placement machine, so that you have enough room to fit the
extension kit (item 1 in fig. 4.5 - 15
).
Make sure that the connection cable to the computer unit / Box PC unit and the axis unit is
not under tension.
Lift one half of the extension kit (item 1 in fig. 4.5 - 15) up to the machine frame and position
it so that the mounting bracket lies on the assembly insert rail (item 7 in fig. 4.5 - 15
).
CAUTION 4
Make sure that the extension kit does not collide with the hexagonal shaft of the PCB con-
veyor and thus become bent.
Fasten this half of the extension kit with 2 fillister head screws M6x16 and the corresponding
discs (item 3 in fig. 4.5 - 15
).
Before assembling the second half of the extension kit, fit the conveyor covers (item 5 in fig.
4.5 - 15
). The procedure is as follows:
a)
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.5 Setting Up the Placement Machine
295
4

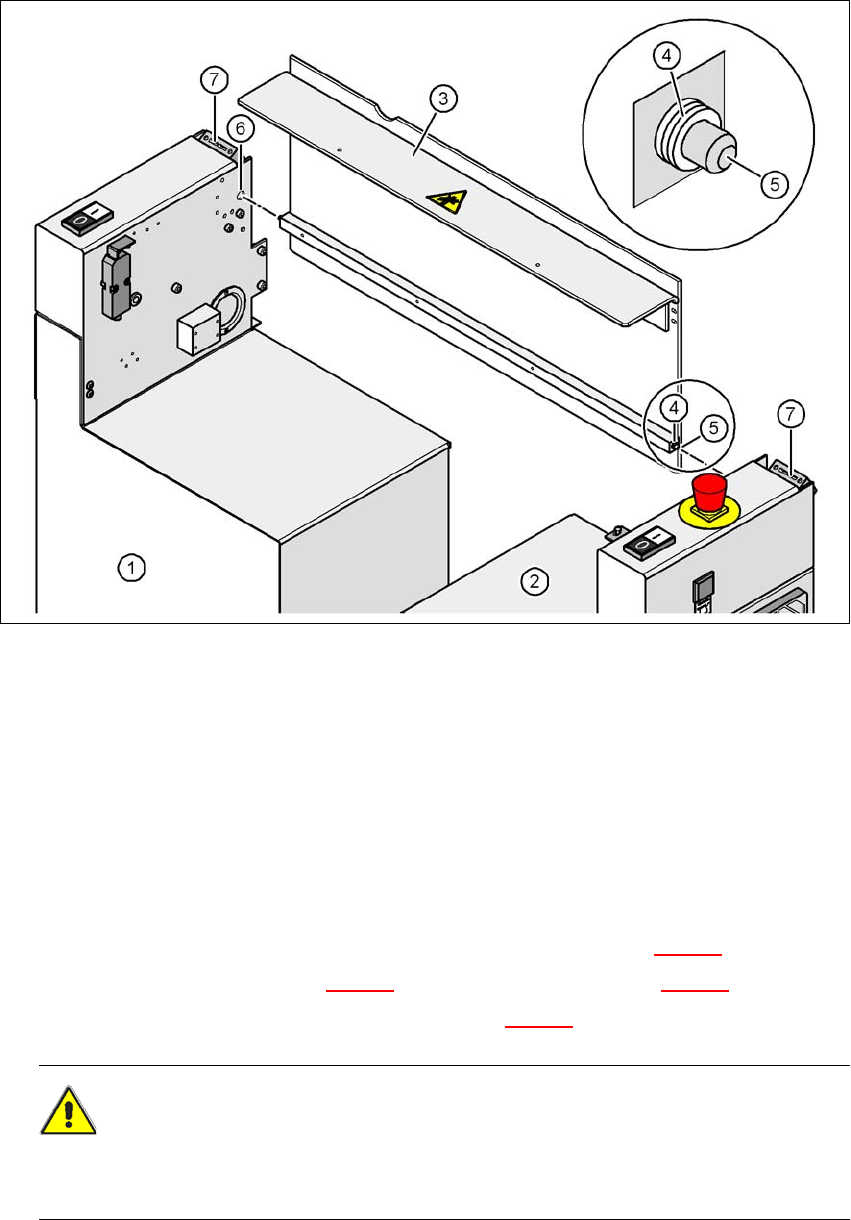

Fig. 4.5 - 16 Fitting the conveyor cover and the second half of the extension kit
(1) Half of the extension kit already fitted
(2) Second half of the extension kit to be fitted
(3) Transport cover
(4) Insert 3 white plastic washers on both sides
(5) Mandrel of the conveyor cover
(6) Hole
(7) Protective cover switch
Insert 3 white plastic discs on each of the two mandrels (item 5 in fig. 4.5 - 16).
Insert the mandrel (item 5 in fig. 4.5 - 16) into the drilling (item 6 in fig. 4.5 - 16).
Lift the second half of the extension kit (item 2 in fig. 4.5 - 16) up to the machine frame.
CAUTION 4
Make sure that this half of the extension kit does not collide with the hexagonal shaft of the
PCB conveyor and thus bend the shaft.
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
296
Insert the mandrel (item 5 in fig. 4.5 - 16) for the conveyor cover into the drilling (item 6 in fig.
4.5 - 16
) on the second half of the extension kit.
Position the second half of the extension kit so that the assembly bracket lies on the assembly
bar (item 7 in fig. 4.5 - 15
).
Fasten this second half of the placement machine with 2 fillister head screws M6x16 and the
corresponding disc (item 3 in fig. 4.5 - 15
).
4.5.10.3 Fastening the Hexagonal Shaft Guidance
When using a single conveyor, fasten one guidance for the hexagonal shaft (item 8 in fig. 4.5
- 14) onto the extension kit, with two fillister head screws M6x16 and discs.
When using a dual conveyor, fasten two guidances for the hexagonal shaft (item 8 in fig. 4.5
- 14) onto the extension kit, with two fillister head screws M6x16 and discs.
4.5.10.4 Establishing Cable Connections - Extension Kit on the PCB Input Side
4
Left-hand side of the extension kit
(viewed in the direction of travel)
Connector/cable To connector/
cable
Start/Stop button
Switch, PCB conveyor cover
X61/03020410 X61/03002537
Protective cover switch, location 4
X54/03020409 X54/03002540
Button for the component trolley docking unit, loca-
tion 4
X242/03021056 X242/03021054
Right-hand side of the extension kit
(viewed in the direction of travel)
Connector/cable To connector/
cable
EMERGENCY STOP button
Start/Stop button
X64/03020687 X64/03002538
Protective cover switch, location 1
X51/03020409 X51/03002539
Button for the component trolley docking unit, loca-
tion 1
X212/03021056 X212/03021051
