User Manual SIPLACE CA 4 Setting Up and Commissioning Edition 08/2011 EN 4.5 Setting Up the Placement Machine 309 4.5.13 Install Axis Slide In at the CA4 and CA3 4.5.13.1 Axis unit CA4, CA3 (gantries 1 and 4 ), ele ctric…
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
308
4.5.12.5 Fitting the Side Plates
Fasten the ground cable to each side plate (item 6 in fig. 4.5 - 15, page 293), as shown in fig.
4.5 - 17
, page 297.
Fix the side plate to the machine frame with 6 fillister head screws.
Continue with section 4.5.14 "Fitting the Main Fault Indicator", page 311.
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.5 Setting Up the Placement Machine
309
4.5.13 Install Axis Slide In at the CA4 and CA3
4.5.13.1 Axis unit CA4, CA3 (gantries 1 and 4), electrical connection points
4

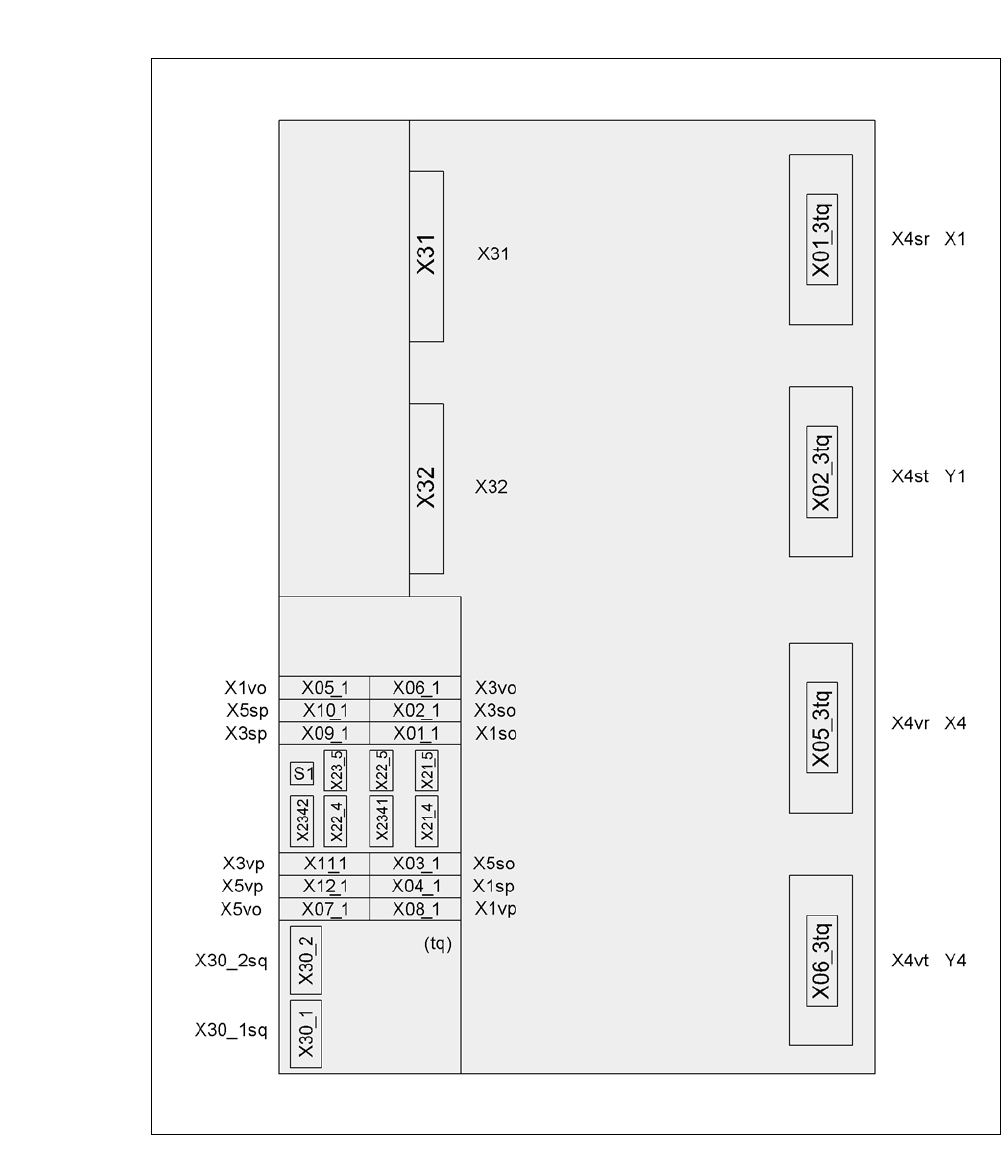

Fig. 4.5 - 23 Axis unit CA4, CA3 (gantries 1 and 4), rear side - connect electrical connection points
PlugPlug
Plug
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
310
4.5.13.2 Axis unit CA4, CA3 (Gantries 1 and 4) - connect Plugs
Connect the power cable as shown in the following diagram:
4
4
Check the switch settings of S1
1: OFF
2: OFF
Axis unit
Gantry 1 and gantry 4
Plug
Connection cable NOTE
Plug Cable
X31
X31 03009762
03009763
03009764
03009765
03009766 W1-W5
Secure connector with clips
X32
X32 03009822
03009823
03009824
03009825
03009827
Secure connector with clips
X01_3tq X4sr 03009760 Snap connector into place
X02_3tq X4st 03009761 Snap connector into place
X05_3tq X4vr 03009820 Snap connector into place
X06_3tq X4vt 03009821 Snap connector into place
X01_1tq
X02_1tq
X03_1tq
X1so
X3so
X5so
03009771
03009772
03009773
Insert as far as the stop
X04_1tq
X09_1tq
X10_1tq
X1sp
X3sp
X5sp
03009774
03009775
03009776
Insert as far as the stop
X05_1tq
X06_1tq
X07_1tq
X1vo
X3vo
X5vo
03009831
03009832
03009833
Insert as far as the stop
X08_1tq
X11_1tq
X12_1tq
X1vp
X3vp
X5vp
03009834
03009835
03009836
Insert as far as the stop
X30_1tq
X30_2tq
X30_1tq
X30_2tq
03010051
03010051
Screw tightly
