4 Setting Up and Commissioning User Manual SIPLACE CA 4.5 Setting Up the Placement Machine Edition 08/2011 EN 316 4.5.17 Final Adjustment of the Placement Machine Place the machine spirit level in the X and Y direction…
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.5 Setting Up the Placement Machine
315
4.5.16.3 Aligning the Placement Machine to the Line
Position the placement machine with the fork-lift truck , so that it is in a free location in the line.
WARNING 4
Slowly lower the placement machine. A second person should look underneath to ensure that
all the machine foot touch the floor at the same time. If the machine feet on one side hit the
ground hard, the fixings may be damaged.
4
4.5.16.4 Aligning the Placement Machine with the Air Cushion Transport System
Place the four air cushions of the air cushion transport system beneath the machine frame.
Lift the placement machine and align it to the line.
Check the distance to the PCB conveyor system of the neighboring placement machine. It
should be between 1 mm and 3 mm.
Lower the placement machine.
4
Fig. 4.5 - 26 Contact positions for the air cushion transport system
(1) Contact surfaces for the air cushion transport system
4 Setting Up and Commissioning User Manual SIPLACE CA
4.5 Setting Up the Placement Machine Edition 08/2011 EN
316
4.5.17 Final Adjustment of the Placement Machine
Place the machine spirit level in the X and Y directions, on the sides of the PCB conveyor in
placement area 1 (see fig. 4.5 - 27
). The PCB conveyor width is preset:
Single conveyor 210 mm
Dual conveyor, track 1 100 mm
Dual conveyor, track 2 210 mm 4
Note: 4
When using a dual conveyor, the spirit level for adjustment needs to be always placed on the
outer sides of the placement machine, when measuring in the X direction.
Measure the distance between the top edge of the PCB conveyor belt and the floor. This dis-
tance should be 800 mm, 900 mm, 930 mm or 950 mm.
4

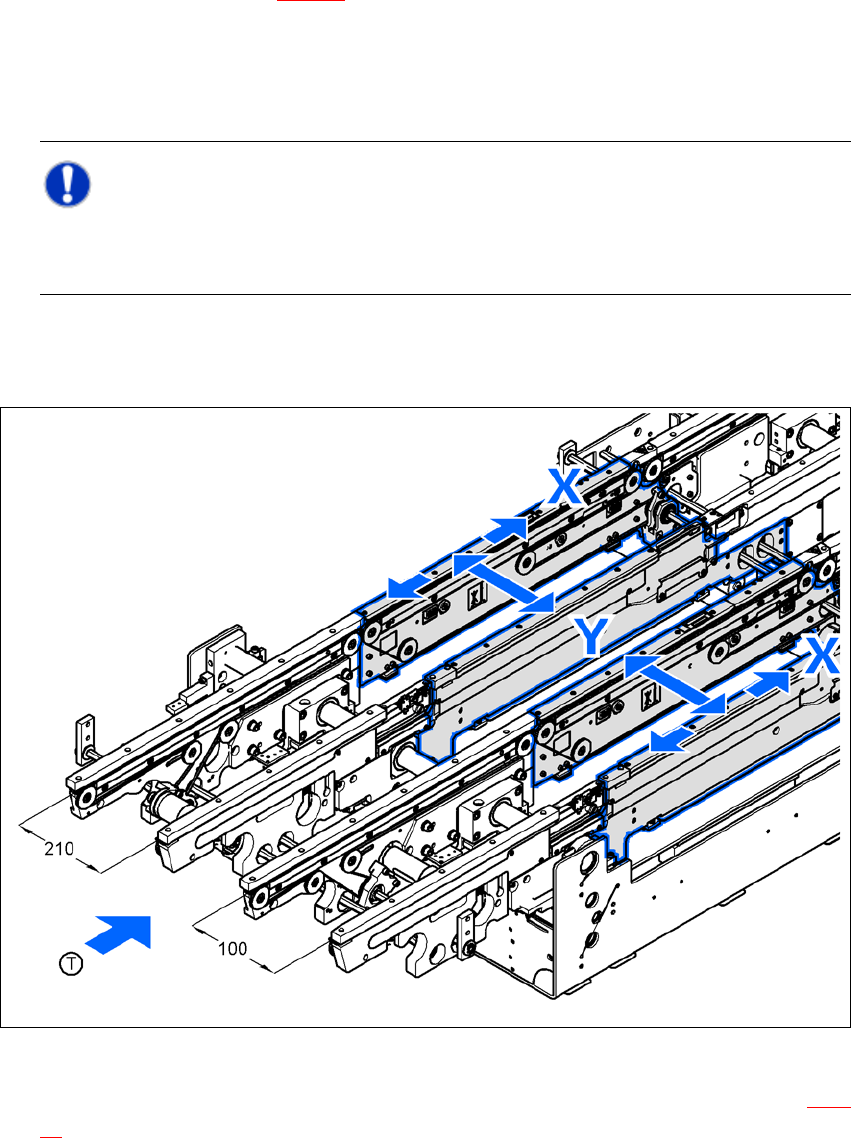

Fig. 4.5 - 27 Adjusting the placement machine in the X and Y directions
Use an open-ended wrench SW36 to adjust the setting screw M24x2x120 (item 1 in fig. 4.5 -
28) so that the spirit level does not deviate from its zero point when measuring the required
PCB conveyor height.
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.5 Setting Up the Placement Machine
317
4

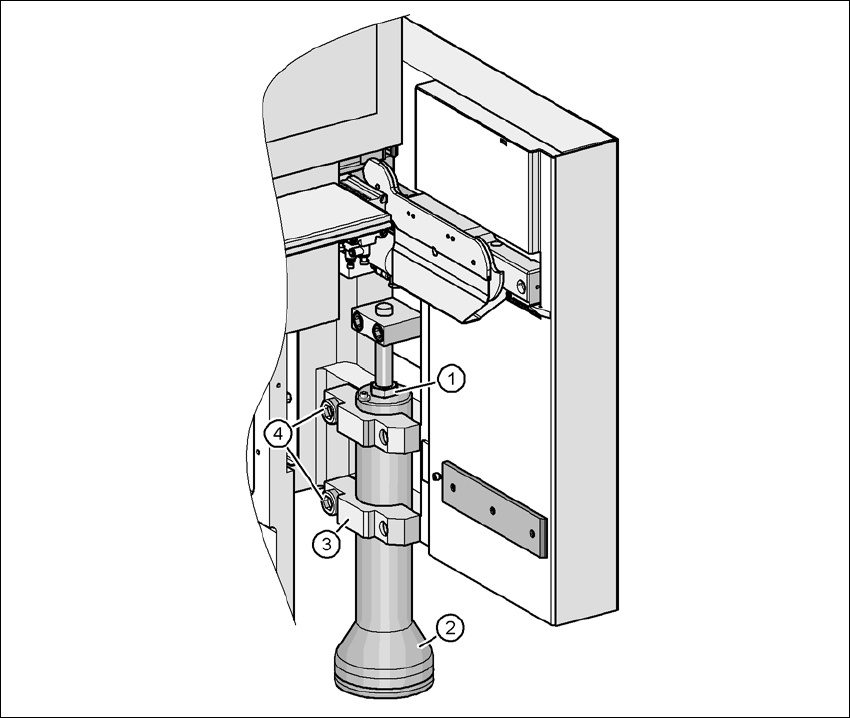

Fig. 4.5 - 28 Setting the height for the outer machine feet
(1) Setting screw M24x2x120 for height adjustment
(2) Outer machine foot
(3) Clamping piece
(4) M24x90 hexagon socket head screw
Check the required PCB conveyor height.
Once the placement machine has been correctly aligned, use the torque wrench to tighten
the hexagon socket-head screws M24x90 (item 4) to clamp the clamping pieces on all outer
machine feet (item 3).
